Спецификации

• Available model

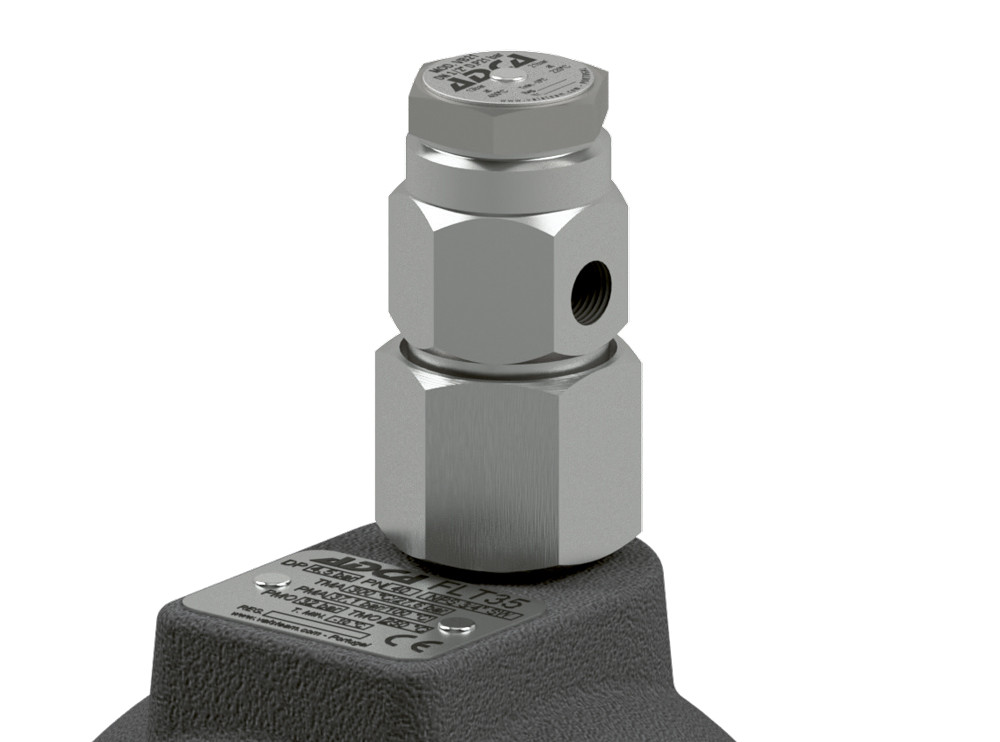

  VB21M Supplied with adapter fitting, for direct connection to the float steam trap cover

• Retrofitted for steam trap

  All the ADCA float steam traps can be supplied with the VB21M

• Application

  Saturated and superheated steam

• Body material

  Stainless steel AISI 303

• Max. allowable pressure

  21 bar at 220 ºC

• Max. allowable temperature

  13 bar at 400 ºC

• ΔP required to open vacuum breaker

  6,13 mbar

• Flow rate capacity

  Up to 3 dm³/s

• Connections

  adapter fitting 1/2" x 3/8" ISO 228,
  adapter fitting 1/2" ISO 228 x 3/8" NPT
