Спецификации

• Application

  Saturated and superheated steam,
  steam condensate

• Body material

  A351 CF8

• Available model

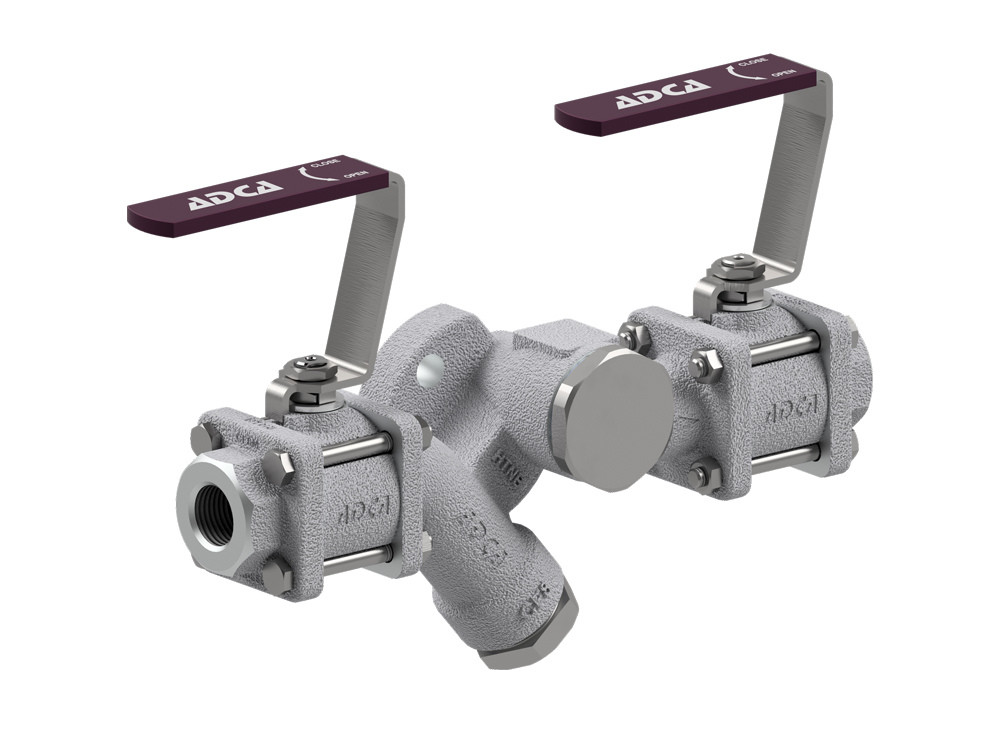

  CTS4U – with inlet and outlet shut-off valves

• Max. pressure for saturated steam

  17,5 bar

• Max. operating temperature

  230 ºC @ 10 bar

• Min. operating temperature

  -10 ºC

• Universal connector

  fits the two-bolt flange swivel connection steam traps

• Connections

  Female threaded ISO 7 Rp (NPT on request),

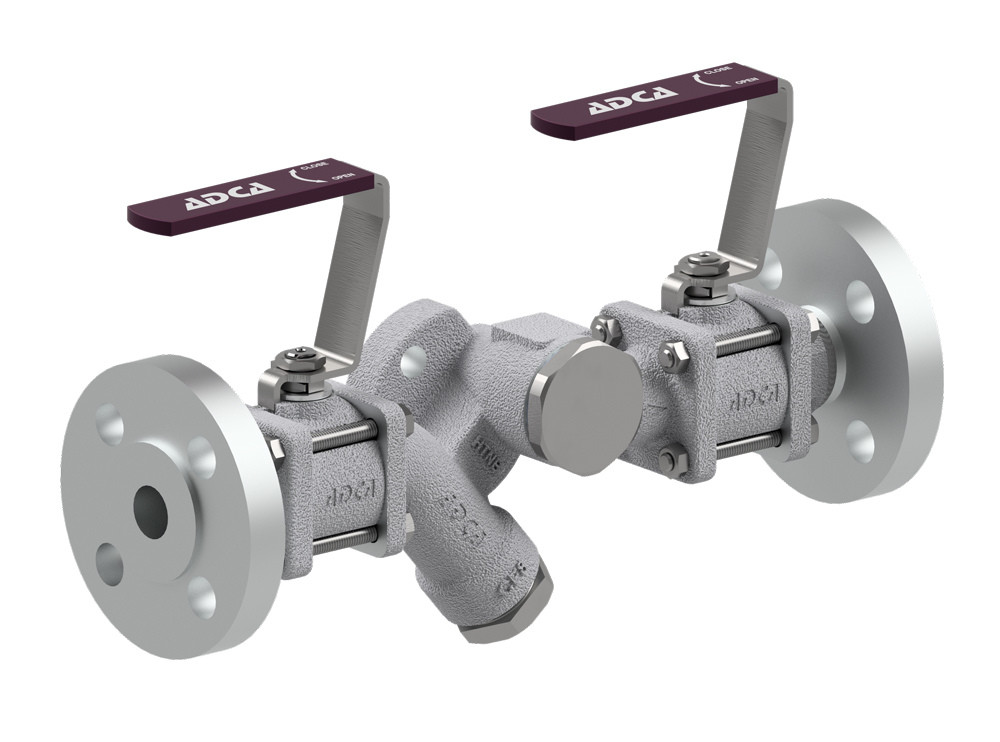

  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 150 or 300 on request
