Valsteam ADCA

Product code: FLT16
Float steam trap ADCA FLT16
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Ductile iron
- Max. operating pressure

  14 bar
- Max. operating temperature

  198 ºC
- Flow rate capacity

  Up to 495 kg/h
- Differential pressure

  Delta P: 4,5 , 10 and 14 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-2 PN 16
Измерение:
1/2” – 3/4”; DN15 – DN20

Price according to configuration

В наличии
Подробнее о продукте
Valsteam ADCA

Product code: FLT20

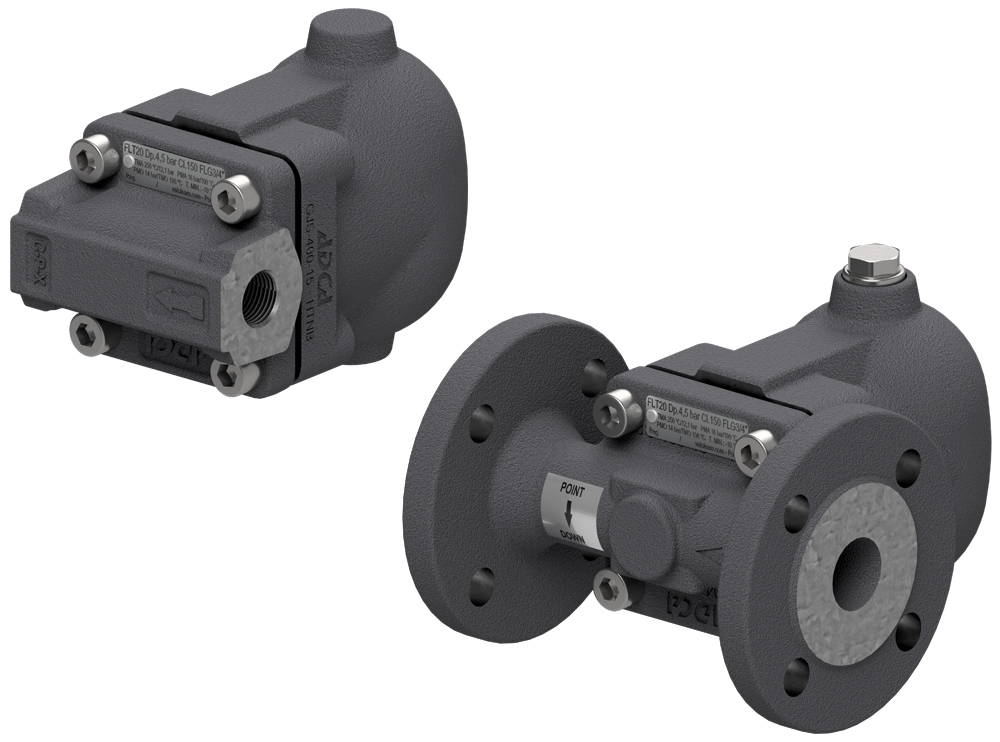

Float steam trap ADCA FLT20
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Ductile iron
- Max. operating pressure

  14 bar
- Max. operating temperature

  250 ºC
- Flow rate capacity

  Up to 595 kg/h
- Differential pressure

  Delta P: 4,5 , 10 and 14 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1/-2 PN 16,
  Flanged ASME B16.42 Class 150 on request
Измерение:
1/2” – 1”; DN15 – DN25

Price according to configuration

В наличии
Подробнее о продукте
Valsteam ADCA

Product code: FLT21

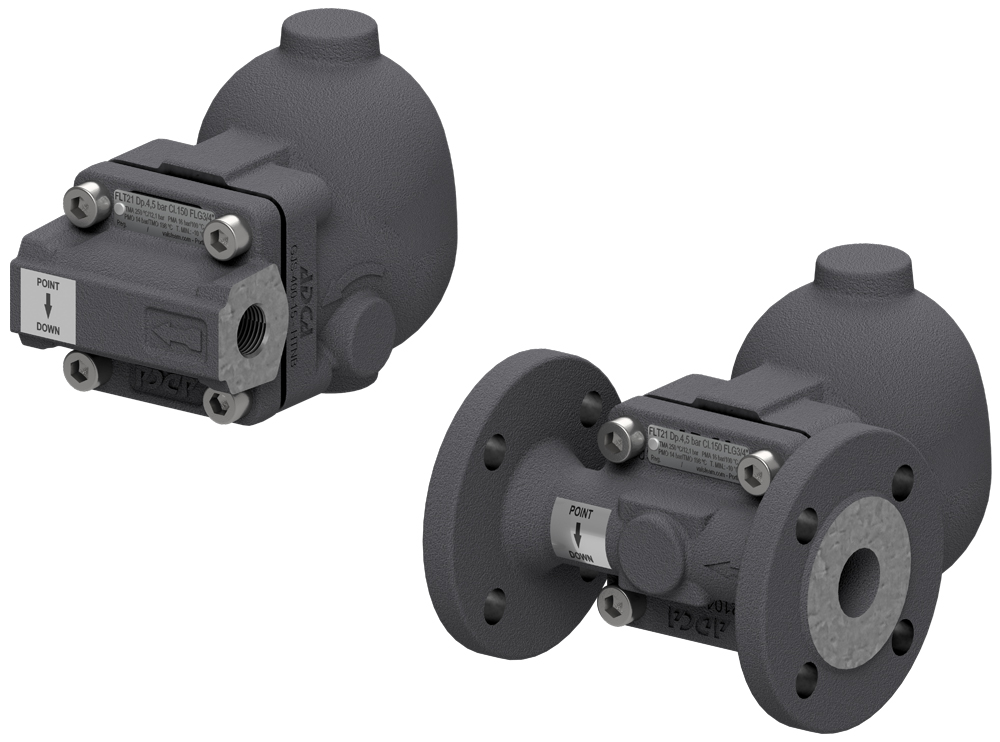

Float steam trap ADCA FLT21
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Ductile iron
- Max. operating pressure

  14 bar
- Max. operating temperature

  250 ºC
- Flow rate capacity

  Up to 710 kg/h
- Differential pressure

  Delta P: 4,5 , 10 and 14 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1/-2 PN 16,
  Flanged ASME B16.42 Class 150 on request
Измерение:
1/2” – 1”; DN15 – DN25

Price according to configuration

В наличии
Подробнее о продукте
Valsteam ADCA

Product code: FLT25

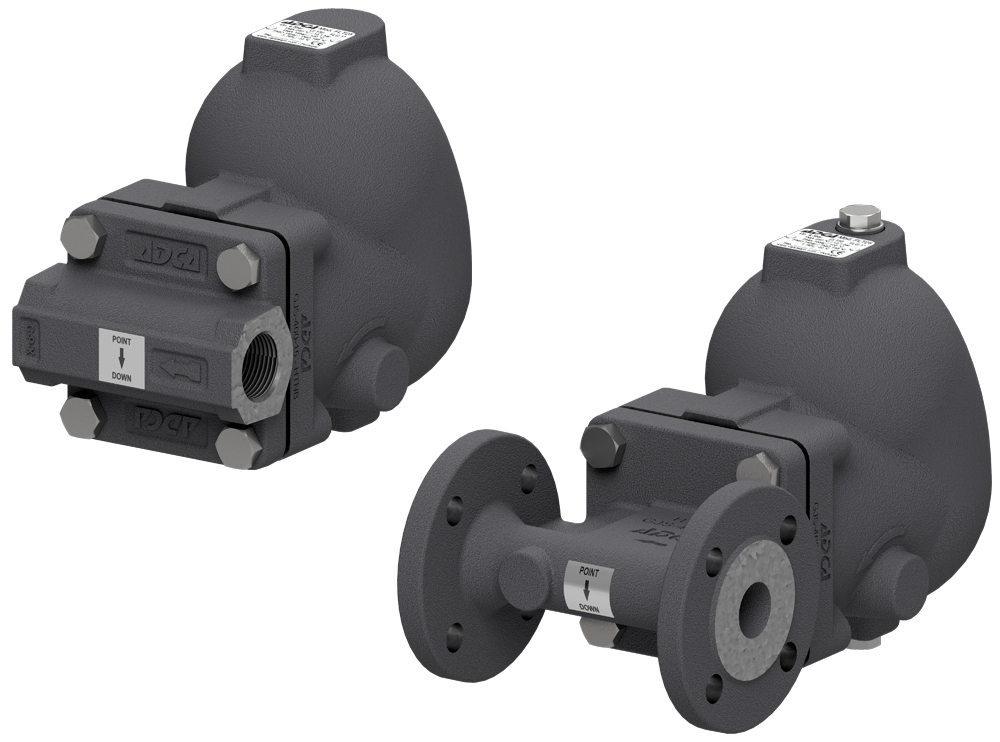

Float steam trap ADCA FLT25
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Ductile iron
- Max. operating pressure

  14 bar
- Max. operating temperature

  250 ºC
- Flow rate capacity

  Up to 2490 kg/h
- Differential pressure

  Delta P: 4,5 , 10 and 14 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1/-2 PN 16,
  Flanged ASME B16.42 Class 150 on request
Измерение:
1”; DN25

Price according to configuration

В наличии
Подробнее о продукте
Valsteam ADCA

Product code: FLT27

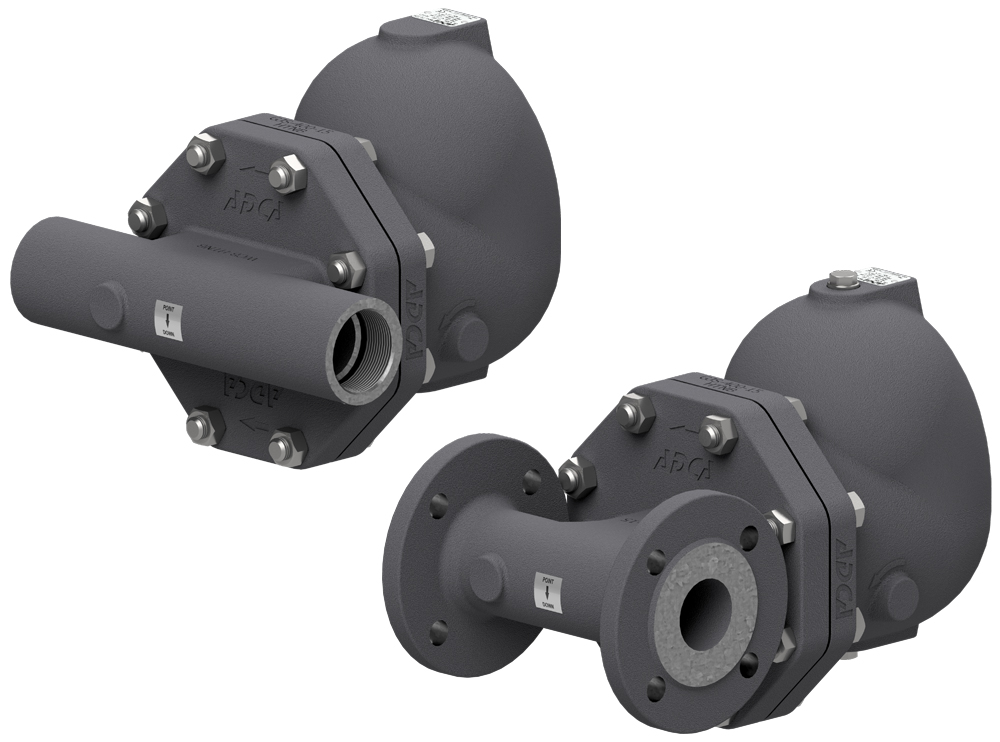

Float steam trap ADCA FLT27
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Ductile iron
- Max. operating pressure

  14 bar
- Max. operating temperature

  250 ºC
- Flow rate capacity

  Up to 7300 kg/h
- Differential pressure

  Delta P: 4,5 , 10 and 14 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-2 PN 16,
  Flanged ASME B16.42 Class 150 on request
Измерение:
1.1/2” – 2”; DN40 – DN50

Price according to configuration

В наличии
Подробнее о продукте
Valsteam ADCA

Product code: FLT29

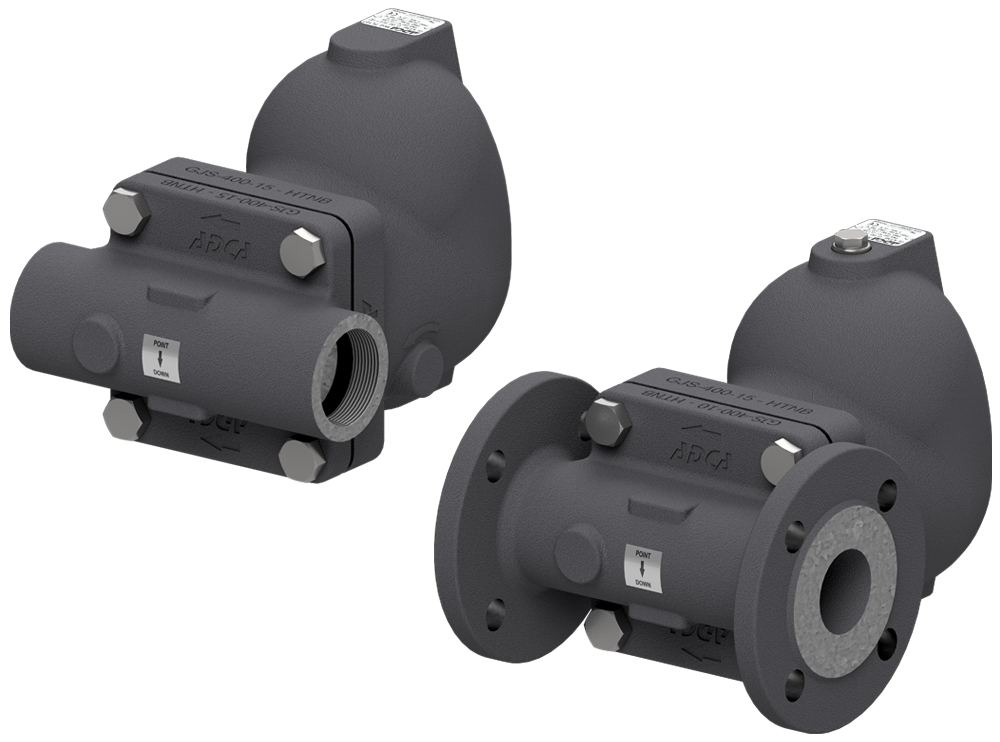

Float steam trap ADCA FLT29
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Ductile iron
- Max. operating pressure

  14 bar
- Max. operating temperature

  250 ºC
- Flow rate capacity

  Up to 22500 kg/h
- Differential pressure

  Delta P: 4,5 , 10 and 14 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-2 PN 16,
  Flanged ASME B16.42 Class 150 on request
Измерение:
2”; DN50

Price according to configuration

В наличии
Подробнее о продукте
Valsteam ADCA

Product code: FLT29TW

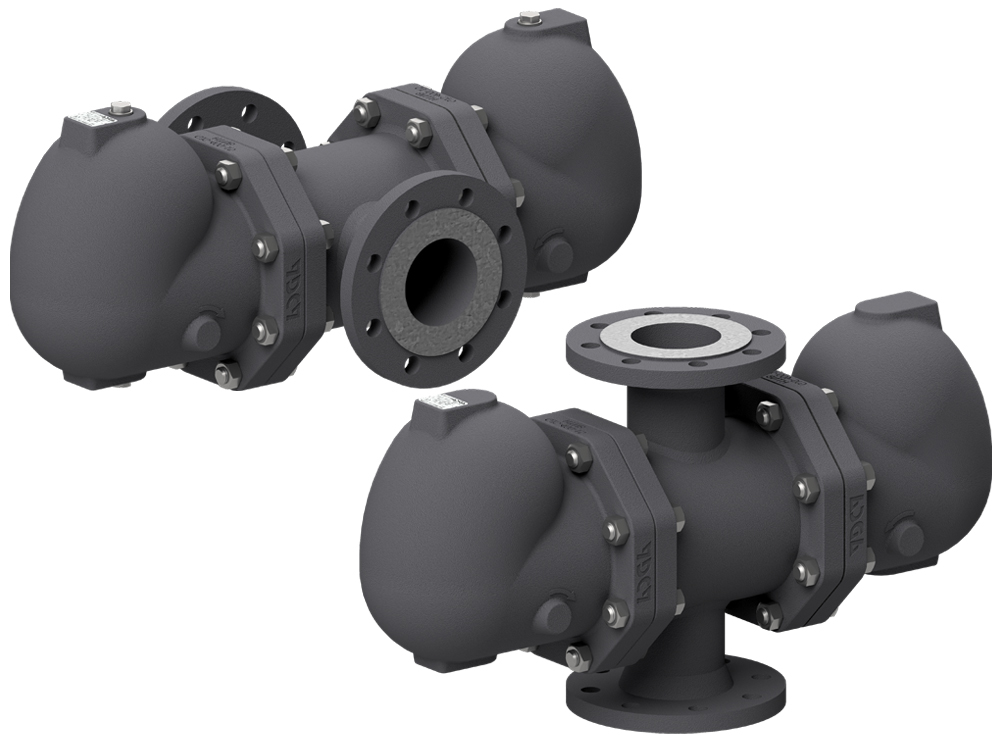

Float steam trap ADCA FLT29TW
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Ductile iron
- Max. operating pressure

  14 bar
- Max. operating temperature

  250 ºC
- Flow rate capacity

  Up to 45000 kg/h
- Differential pressure

  Delta P: 4,5 , 10 and 14 bar
- Connections

  Flanged EN 1092-1 PN 16,
  Flanged ASME B16.42 Class 150 on request
Измерение:
3” – 4”; DN80 – DN100

Price according to configuration

Доступно под заказ
Подробнее о продукте
Valsteam ADCA

Product code: FLT30

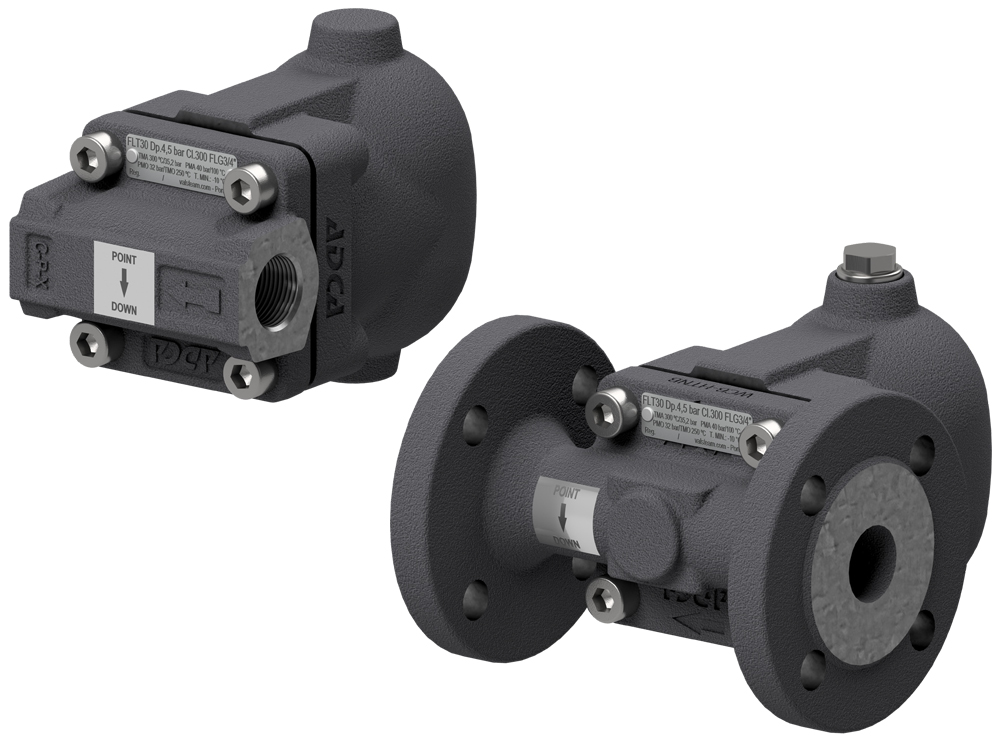

Float steam trap ADCA FLT30
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Carbon steel
- Max. operating pressure

  32 bar
- Max. operating temperature

  250 ºC
- Flow rate capacity

  Up to 595 kg/h
- Differential pressure

  Delta P: 4,5 , 10, 14 and 21 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request
Измерение:
1/2” – 1”; DN15 – DN25

Price according to configuration

Доступно под заказ
Подробнее о продукте
Valsteam ADCA

Product code: FLT31
Float steam trap ADCA FLT31
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Carbon steel
- Max. operating pressure

  32 bar
- Max. operating temperature

  250 ºC
- Flow rate capacity

  Up to 710 kg/h
- Differential pressure

  Delta P: 4,5 , 10, 14, 21 and 32 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request
Измерение:
1/2” – 1”; DN15 – DN25

Price according to configuration

Доступно под заказ
Подробнее о продукте
Valsteam ADCA

Product code: FLT35

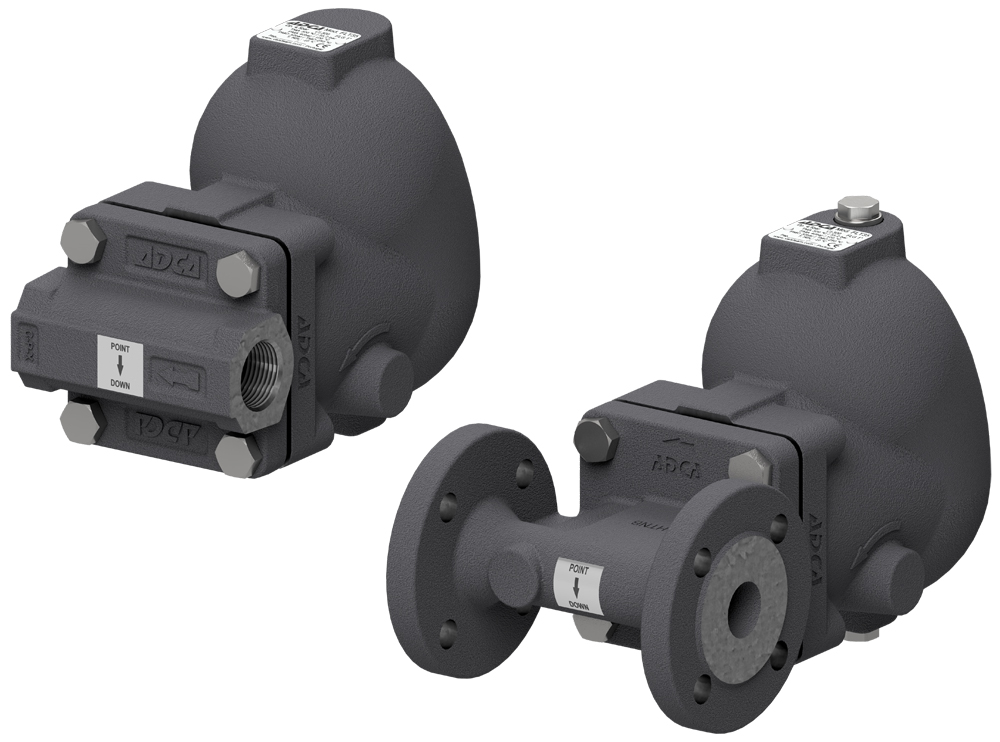

Float steam trap ADCA FLT35
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Carbon steel
- Max. operating pressure

  32 bar
- Max. operating temperature

  250 ºC
- Flow rate capacity

  Up to 2490 kg/h
- Differential pressure

  Delta P: 4,5 , 10, 14, 21 and 32 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request
Измерение:
1”; DN25

Price according to configuration

Доступно под заказ
Подробнее о продукте
