Float steam traps

Refine

Show:
10 per page
  • 10 products per page
  • 25 products per page
  • 50 products per page
Sort:
Relevance
  • Relevance
  • Created at
  • Product code
  • Name
  • Available

  • Valsteam ADCA

    FLT16

    Product code: FLT16

    Float steam trap ADCA FLT16

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Ductile iron

    • Max. operating pressure

      14 bar

    • Max. operating temperature

      198 ºC

    • Flow rate capacity

      Up to 495 kg/h

    • Differential pressure

      Delta P: 4,5 , 10 and 14 bar

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-2 PN 16

    Dimension:
    1/2” – 3/4”; DN15 – DN20
    Price according to configuration
    Available to Order
    More about the product

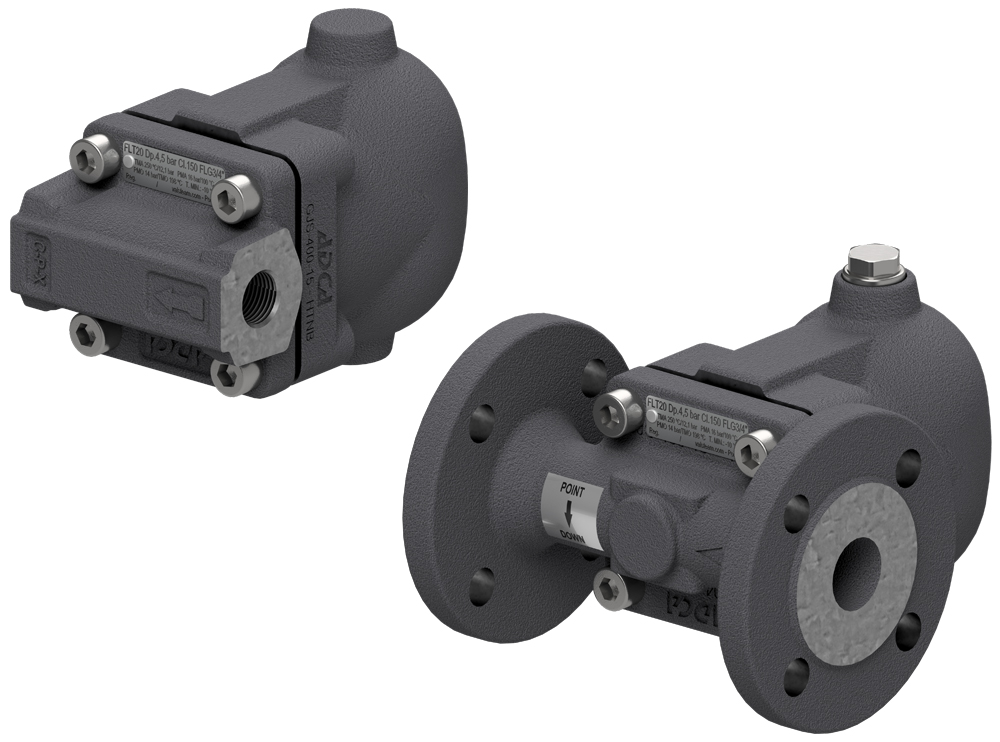

  • Valsteam ADCA

    FLT20

    Product code: FLT20

    Float steam trap ADCA FLT20

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Ductile iron

    • Max. operating pressure

      14 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 595 kg/h

    • Differential pressure

      Delta P: 4,5 , 10 and 14 bar

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1/-2 PN 16,
      Flanged ASME B16.42 Class 150 on request

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available to Order
    More about the product

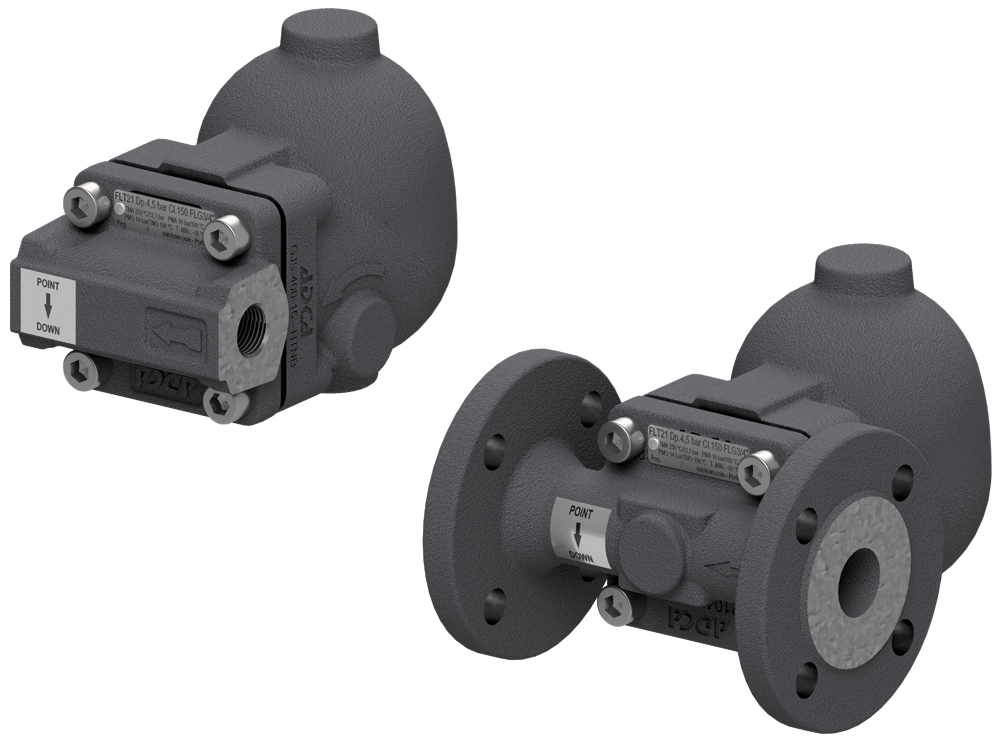

  • Valsteam ADCA

    FLT21

    Product code: FLT21

    Float steam trap ADCA FLT21

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Ductile iron

    • Max. operating pressure

      14 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 710 kg/h

    • Differential pressure

      Delta P: 4,5 , 10 and 14 bar

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1/-2 PN 16,
      Flanged ASME B16.42 Class 150 on request

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available to Order
    More about the product

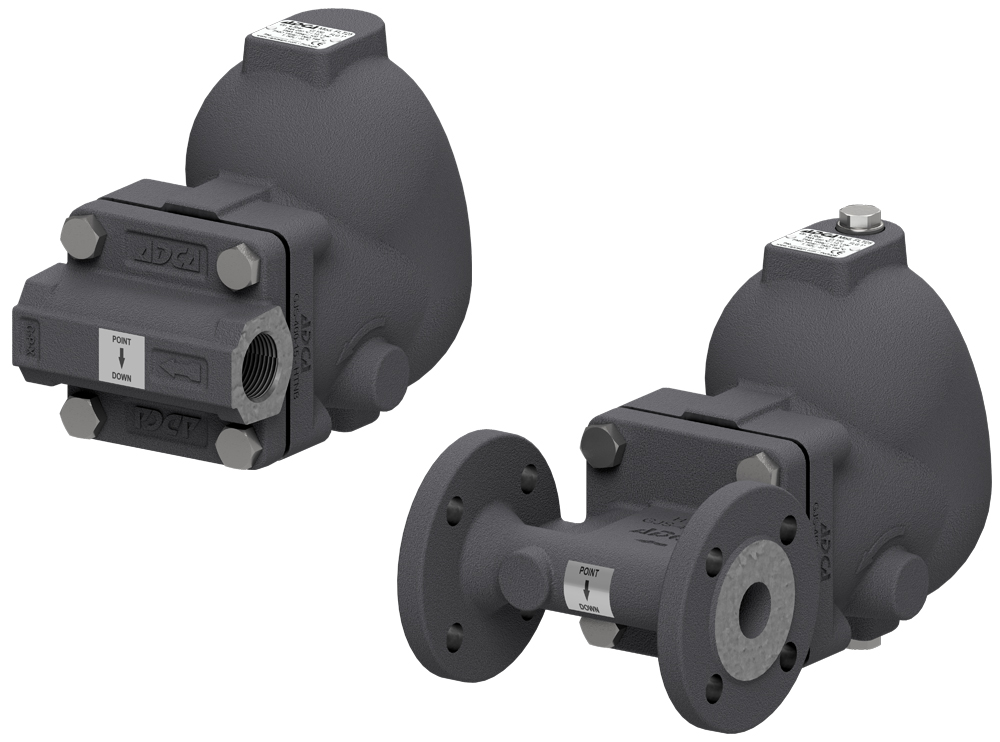

  • Valsteam ADCA

    FLT25

    Product code: FLT25

    Float steam trap ADCA FLT25

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Ductile iron

    • Max. operating pressure

      14 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 2490 kg/h

    • Differential pressure

      Delta P: 4,5 , 10 and 14 bar

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1/-2 PN 16,
      Flanged ASME B16.42 Class 150 on request

    Dimension:
    1”; DN25
    Price according to configuration
    Available to Order
    More about the product

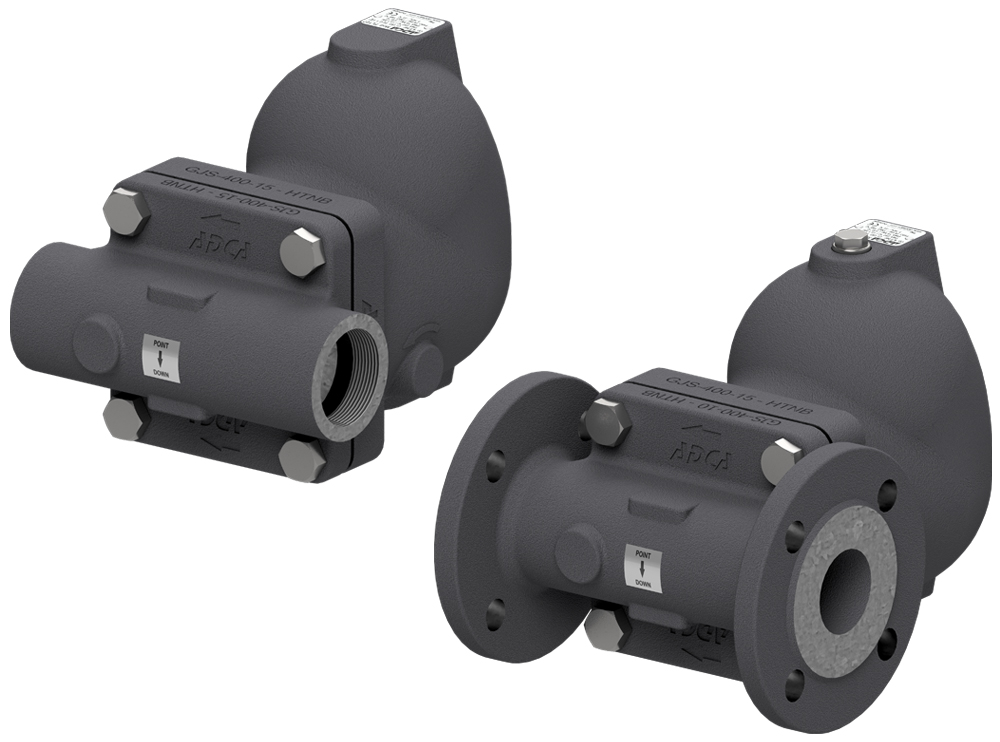

  • Valsteam ADCA

    FLT27

    Product code: FLT27

    Float steam trap ADCA FLT27

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Ductile iron

    • Max. operating pressure

      14 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 7300 kg/h

    • Differential pressure

      Delta P: 4,5 , 10 and 14 bar

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-2 PN 16,
      Flanged ASME B16.42 Class 150 on request

    Dimension:
    1.1/2” – 2”; DN40 – DN50
    Price according to configuration
    Available to Order
    More about the product

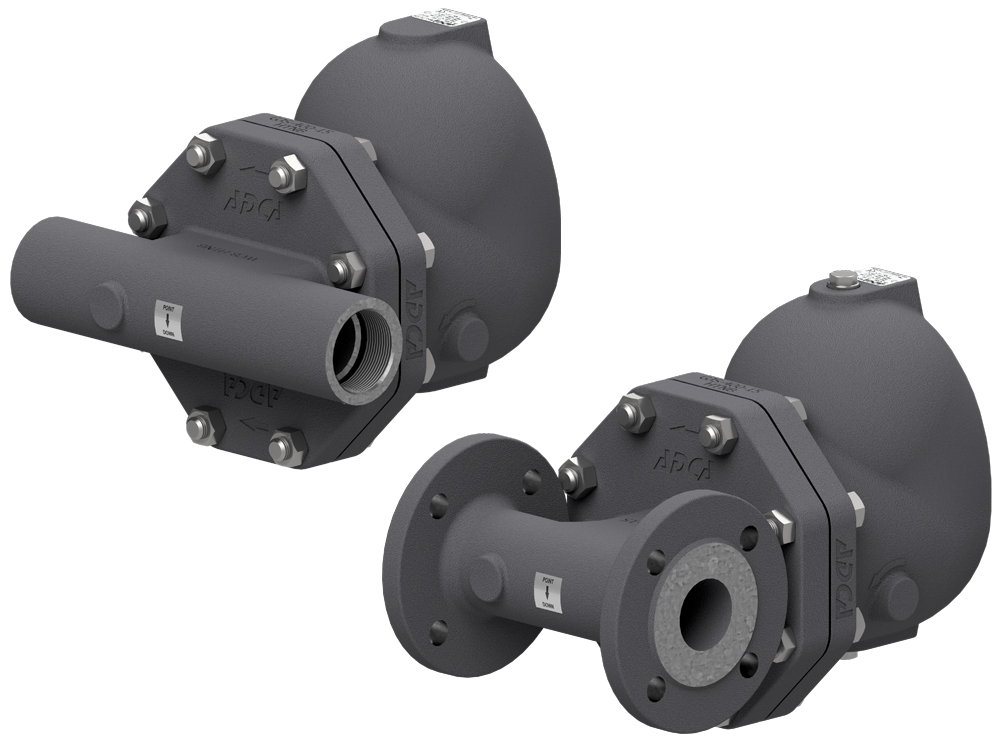

  • Valsteam ADCA

    FLT29

    Product code: FLT29

    Float steam trap ADCA FLT29

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Ductile iron

    • Max. operating pressure

      14 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 22500 kg/h

    • Differential pressure

      Delta P: 4,5 , 10 and 14 bar

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-2 PN 16,
      Flanged ASME B16.42 Class 150 on request

    Dimension:
    2”; DN50
    Price according to configuration
    Available to Order
    More about the product

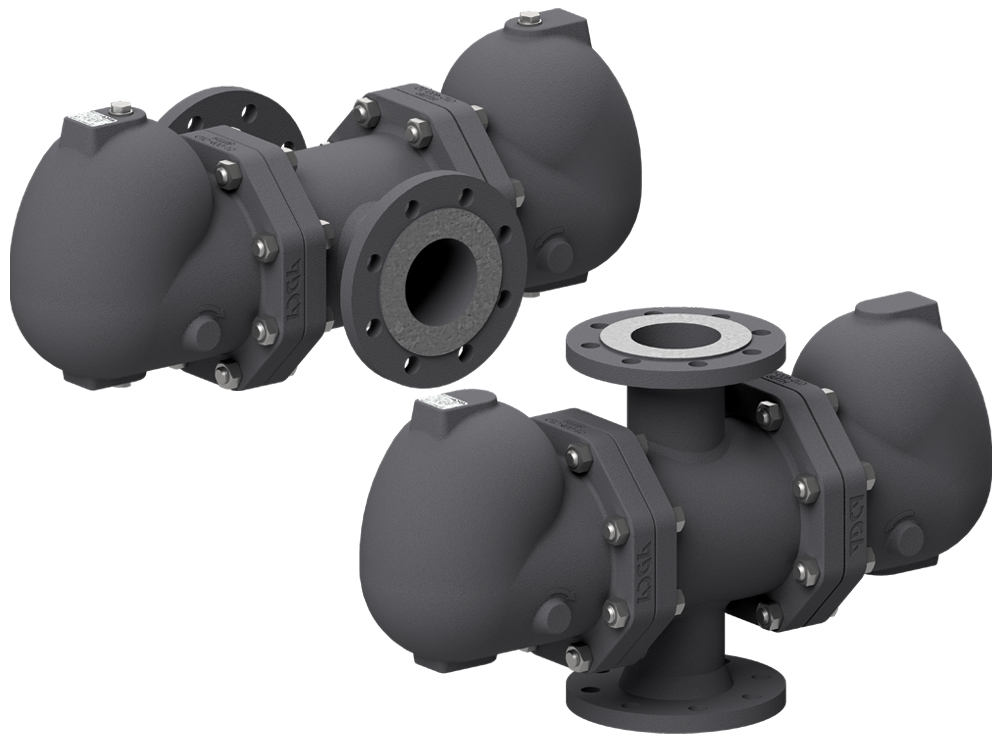

  • Valsteam ADCA

    FLT29TW

    Product code: FLT29TW

    Float steam trap ADCA FLT29TW

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Ductile iron

    • Max. operating pressure

      14 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 45000 kg/h

    • Differential pressure

      Delta P: 4,5 , 10 and 14 bar

    • Connections

      Flanged EN 1092-1 PN 16,
      Flanged ASME B16.42 Class 150 on request

    Dimension:
    3” – 4”; DN80 – DN100
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

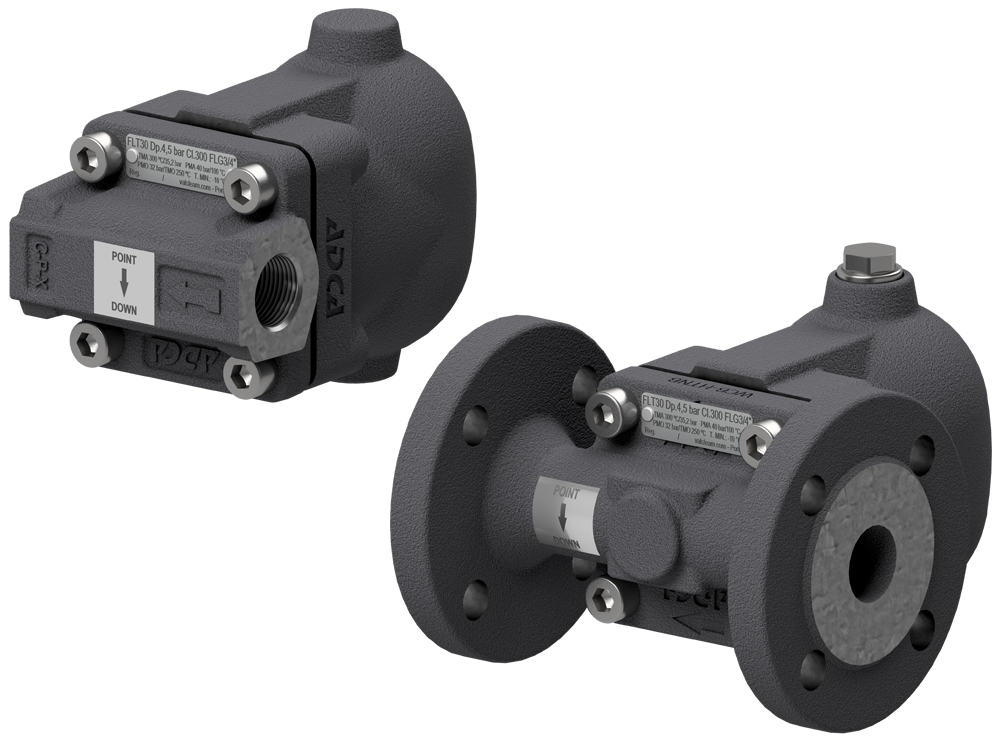

    FLT30

    Product code: FLT30

    Float steam trap ADCA FLT30

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Carbon steel

    • Max. operating pressure

      32 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 595 kg/h

    • Differential pressure

      Delta P: 4,5 , 10, 14 and 21 bar

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

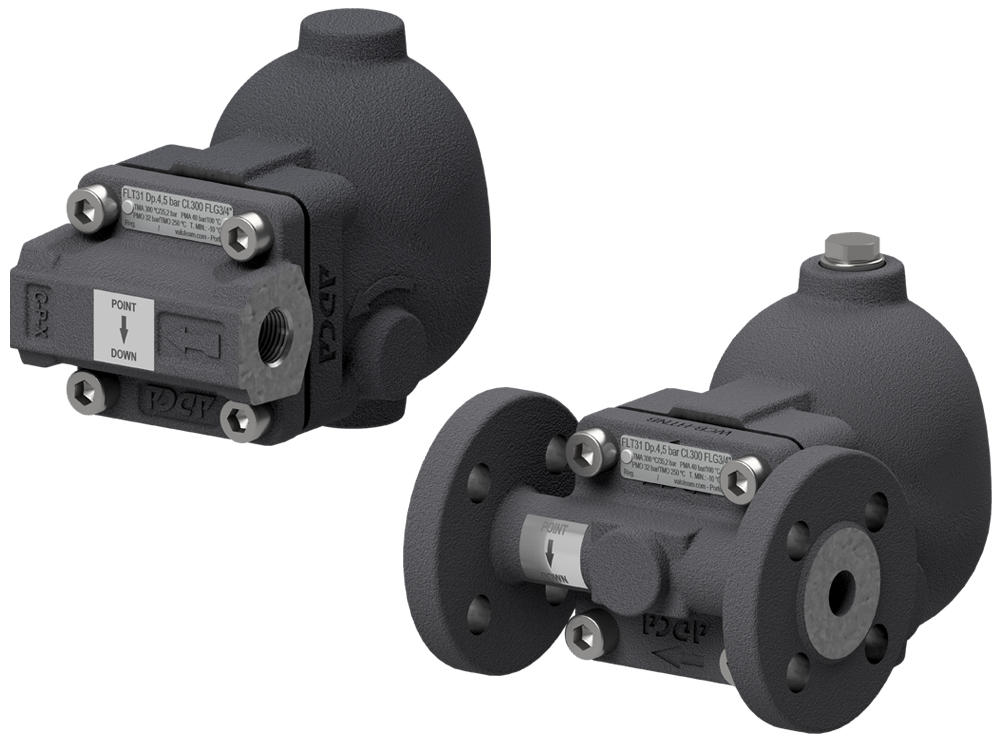

  • Valsteam ADCA

    FLT31

    Product code: FLT31

    Float steam trap ADCA FLT31

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Carbon steel

    • Max. operating pressure

      32 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 710 kg/h

    • Differential pressure

      Delta P: 4,5 , 10, 14, 21 and 32 bar

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

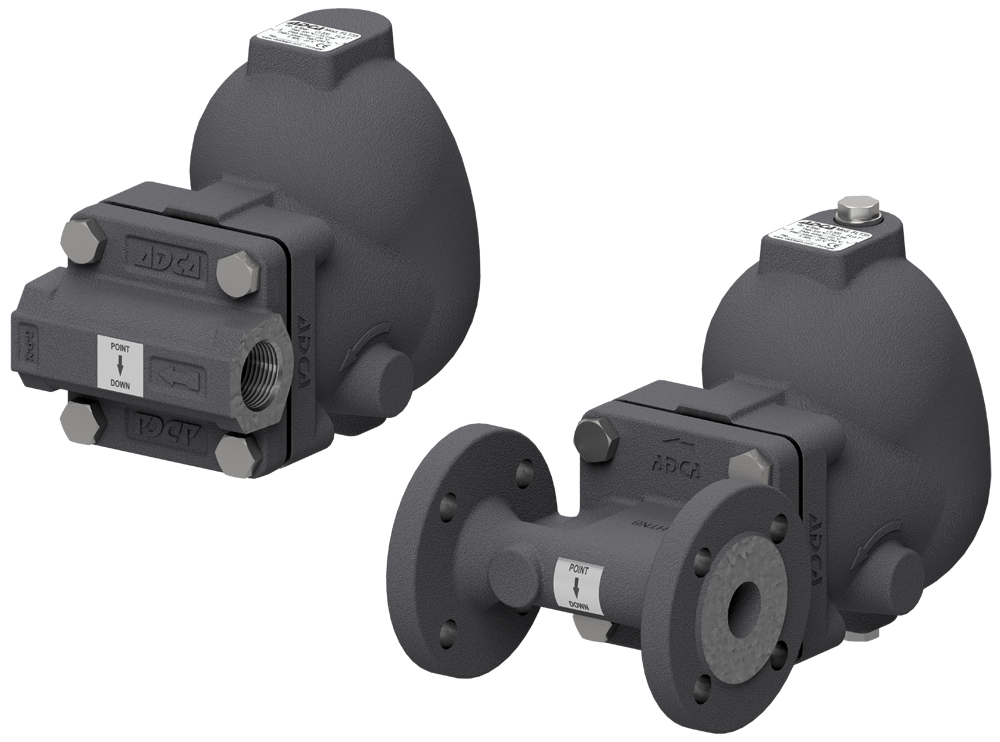

  • Valsteam ADCA

    FLT35

    Product code: FLT35

    Float steam trap ADCA FLT35

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Carbon steel

    • Max. operating pressure

      32 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 2490 kg/h

    • Differential pressure

      Delta P: 4,5 , 10, 14, 21 and 32 bar

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request

    Dimension:
    1”; DN25
    Price according to configuration
    Available on request
    More about the product
