Tosaca
Product code: Mod.1216SS

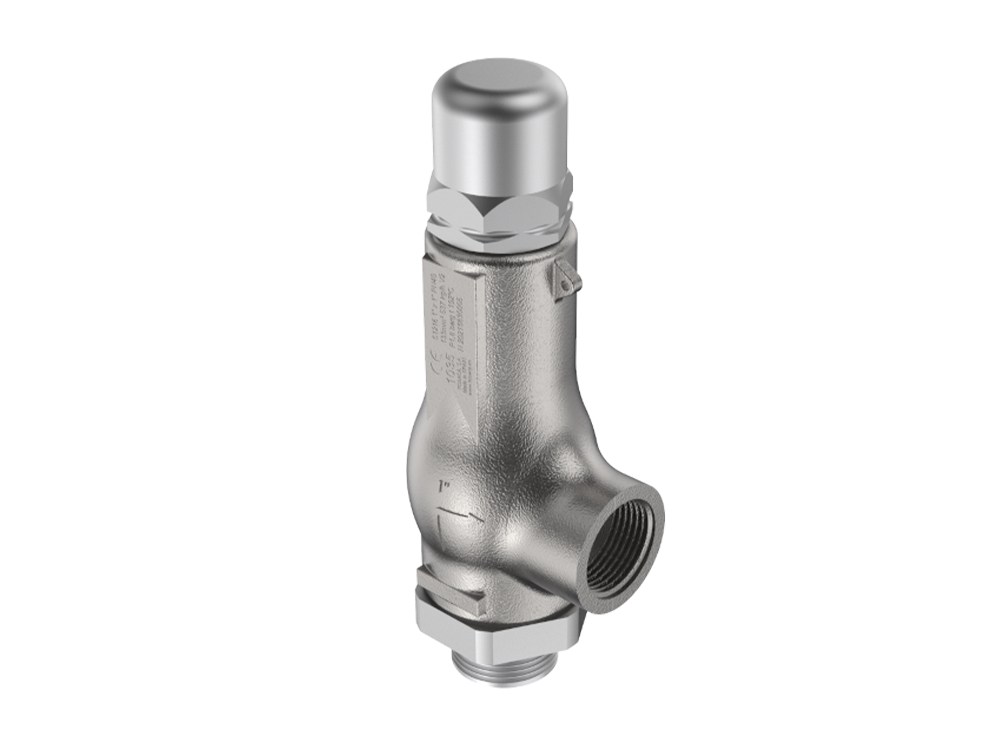

Safety relief valve Tosaca 1216 threaded, direct acting spring-loaded for steam, liquid and gas service, gas tight
-
Application
Steam,
Liquids,
Air, gases and vapours,
Oxygen (degreased) -
Body material
Stainless steel 316L
-
Max. operating pressure
Up to 40 bar (Body design PN40)
-
Set pressure range
0,2 up to max. 40 barg
-
Temperature range
-20°C up to +350°C
-
Valve sealing
Metal to metal (non-standard),
PTFE,
Viton -
Select type (lifting)
Available in Lever or Dome Top
-
Design type
Angle type; Direct spring loaded; Full lift safety valve
-
Cap
Gastight; Packed; Plain
-
Connections
Female threaded ISO 7 Rp PN 40 (NPT on request)
-
-
Valsteam ADCA
Product code: DT40-2
DT40/2
-
Application
Saturated and superheated steam,
steam condensate -
Body material
Stainless steel
-
Max. operating pressure
40 bar
-
Min. operating pressure
1,5 bar
-
Max. operating temperature
300 ºC
-
Flow rate capacity
Up to 740 kg/h
-
Differential pressure
Delta P: 40 bar
-
Connections
Female threaded ISO 7 Rp (NPT on request),
Flanged EN PN 40,
Flanged ASME Class 150 or 300 on request,
Socket weld (SW) ASME B16.11 on request,
Butt weld (BW) ASME B16.25 on request
-
-
Valsteam ADCA
Product code: DT42-2
DT42/2
-
Application
Saturated and superheated steam,
steam condensate -
Body material
Carbon steel
-
Max. operating pressure
42 bar
-
Min. operating pressure
0,25 bar
-
Max. operating temperature
300 ºC
-
Flow rate capacity
Up to 1040 kg/h
-
Differential pressure
Delta P: 42 bar
-
Connections
Female threaded ISO 7 Rp (NPT on request),
Flanged EN PN 40 or PN 63,
Flanged ASME Class 150 or 300 on request,
Socket weld (SW) ASME B16.11 on request
Wymiar:
1/2” – 1”; DN15 – DN25Price according to configurationDostępne do zamówieniaWięcej o produkcie -
-
Valsteam ADCA
Product code: DT46
DT46
-
Application
Saturated and superheated steam,
steam condensate -
Body material
Carbon steel
-
Max. operating pressure
46 bar
-
Min. operating pressure
1,5 bar
-
Max. operating temperature
400 ºC
-
Flow rate capacity
Up to 800 kg/h
-
Differential pressure
Delta P: 46 bar
-
Connections
Female threaded ISO 7 Rp (NPT on request),
Flanged EN PN 40, PN 63 or PN 100,
Flanged ASME Class 150, 300 or 600 on request,
Socket weld (SW) ASME B16.11 on request
-
-
Valsteam ADCA
Product code: PRV25-2S
Pressure reducing valve ADCA PRV25/2S direct acting bellows operated, steam
-
Application
Steam,
Saturated steam -
Body material
Carbon steel
-
Max. upstream pressure
Up to 17 bar
-
Max. operating temperature
Graphite filled PTFE valve sealing: 200 ºC,
Metal to metal sealing: 210 ºC -
Regulating range
0,14 to 8,6 bar
-
Flow rate coefficients
1,7 to 3,1 Kvs
-
Flow rate capacity
Saturated steam – Up to 543 (kg/h)
-
Connections
Female threaded ISO 7 Rp (NPT on request),
Flanged EN 1092-1 PN 25,
Flanged ASME B16.5 Class 150 on request
Wymiar:
1/2” – 1”; DN15 – DN25Price according to configurationDostępne do zamówieniaWięcej o produkcie -
-
Valsteam ADCA
Product code: PRW25-2S
Pressure reducing valve ADCA PRW25/2S direct acting bellows operated, water/gases
-
Application
Water,
Compressed air and other gases -
Body material
Carbon steel
-
Max. upstream pressure
Up to 14 bar
-
Max. operating temperature
NBR sealing for water and gases up to 80 ºC
-
Regulating range
0,35 to 8,6 bar
-
Flow rate coefficients
1,7 to 3,1 Kvs
-
Flow rate capacity
Compressed air – Up to 604 (Nm³/h),
Water – Up to 10,15 (m³/h) -
Connections
Female threaded ISO 7 Rp (NPT on request),
Flanged EN 1092-1 PN 25,
Flanged ASME B16.5 Class 150 on request
Wymiar:
1/2” – 1”; DN15 – DN25Price according to configurationDostępne na prośbęWięcej o produkcie -
-
Valsteam ADCA
Product code: DT40R
Thermodynamic steam trap ADCA DT40R
-
Application
Saturated and superheated steam,
steam condensate -
Body material
Stainless steel
-
Max. operating pressure
40 bar
-
Min. operating pressure
1,5 bar
-
Max. operating temperature
300 ºC
-
Flow rate capacity
Up to 740 kg/h
-
Differential pressure
Delta P: 40 bar
-
Connections
Female threaded ISO 7 Rp (NPT on request),
Flanged EN PN 40,
Flanged ASME Class 150 or 300 on request,
Socket weld (SW) ASME B16.11 on request,
Butt weld (BW) ASME B16.25 on request
Wymiar:
3/8” – 1”; DN10 – DN25Price according to configurationDostępne do zamówieniaWięcej o produkcie -
-
Valsteam ADCA
Product code: DT46R
Thermodynamic steam trap ADCA DT46R
-
Application
Saturated and superheated steam,
steam condensate -
Body material
Carbon steel
-
Max. operating pressure
46 bar
-
Min. operating pressure
1,5 bar
-
Max. operating temperature
400 ºC
-
Flow rate capacity
Up to 800 kg/h
-
Differential pressure
Delta P: 46 bar
-
Connections
Female threaded ISO 7 Rp (NPT on request),
Flanged EN PN 40, PN 63 or PN 100,
Flanged ASME Class 150, 300 or 600 on request,
Socket weld (SW) ASME B16.11 on request
Wymiar:
1/2” – 1”; DN15 – DN25Price according to configurationDostępne do zamówieniaWięcej o produkcie -
-
Valsteam ADCA
Product code: FLT16
Float steam trap ADCA FLT16
-
Application
Saturated and superheated steam,
steam condensate -
Body material
Ductile iron
-
Max. operating pressure
14 bar
-
Max. operating temperature
198 ºC
-
Flow rate capacity
Up to 495 kg/h
-
Differential pressure
Delta P: 4,5 , 10 and 14 bar
-
Connections
Female threaded ISO 7 Rp (NPT on request),
Flanged EN 1092-2 PN 16
Wymiar:
1/2” – 3/4”; DN15 – DN20Price according to configurationDostępne do zamówieniaWięcej o produkcie -
-
Valsteam ADCA
Product code: FLT20
Float steam trap ADCA FLT20
-
Application
Saturated and superheated steam,
steam condensate -
Body material
Ductile iron
-
Max. operating pressure
14 bar
-
Max. operating temperature
250 ºC
-
Flow rate capacity
Up to 595 kg/h
-
Differential pressure
Delta P: 4,5 , 10 and 14 bar
-
Connections
Female threaded ISO 7 Rp (NPT on request),
Flanged EN 1092-1/-2 PN 16,
Flanged ASME B16.42 Class 150 on request
Wymiar:
1/2” – 1”; DN15 – DN25Price according to configurationDostępne do zamówieniaWięcej o produkcie -
