Automatic air vent ADCA AE16SS maintenable for water systems

Specifications

Application

Cold and hot water
Min. liquid specific weight

0,75 kg/dm³
Body material

Stainless steel A351 CF8M
Max. operating pressure

14 bar
Max. operating temperature

AE16SSE – EPDM valve sealing: 130 ºC,
AE16SSV – Viton valve sealing: 150 ºC
Flow rate capacity

Up to 473 NL/min,
Values shown refer to capacities of air discharge at 15 ºC, under average atmospheric pressure (1013 mbar)
Differential pressure

Delta P max.: 12 bar,
Delta P min.: 0,5 bar
Type

Maintenable model
Option

Suffix “CK”: Version with integrated check valve
Connections

Female threaded ISO 7 Rp (NPT on request)

Automatic air vent ADCA AE16SS maintenable for water systems

Product code: A.53.8017.000

Available to Order

Price according to configuration

Choose your configuration

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

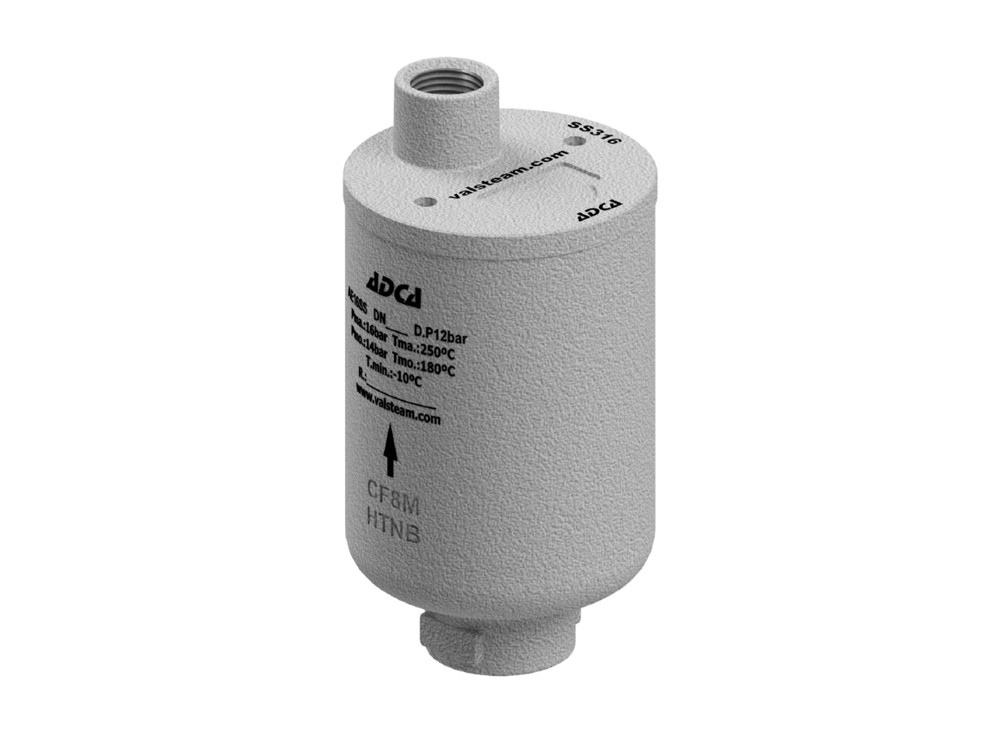

Automatic Air Eliminator / Automatic Air and Gas Vent ADCA AE16SS maintenable for Liquid Systems

The AE16SS all stainless steel air eliminator removes air from HVAC systems and are also suitable for non corrosive and/or dangerous liquids compatible with the construction, providing that their specific weight is no less than 0,75 kg/dm³.
This ball float type automatic air eliminator can be used in combination with other air elimination and separation systems or directly applied at high points in the piping.
