Valsteam ADCA
Product code: ADCA.MAS
Steam distribution manifold ADCA MAS
-
Function
Steam distribution manifolds are essentially designed to allow the placement of steam supply valves in a single location, reducing costs and providing an easy control of different steam lines.
-
Application
Saturated or superheated steam
-
Type
MAS-H – horizontal steam distribution manifold
-
Material
Fabricated carbon steel,
Full stainless steel construction, on request -
Max. allowable pressure
up to 40 bar for saturated steam
-
Max. allowable temperature
for saturated steam: 250°C
-
Manifold diameter Ø
Max.: up to Ø 357 (mm),
Min.: from Ø 114 (mm) -
Pressure Rating
PN16 / Class 150 ; PN25 ; PN40 / Class 300
-
Non-standard design
available on request; custom flanges, made to order
-
Connections
Flanged EN 1092-1 PN 16 or PN 40,
Flanged ASME B16.5 Class 150 or 300,
Female threaded ISO 7 Rp or NPT.
Dimension:
According to specific installation requirementsPrice according to configurationAvailable on requestMore about the product -
-
Valsteam ADCA

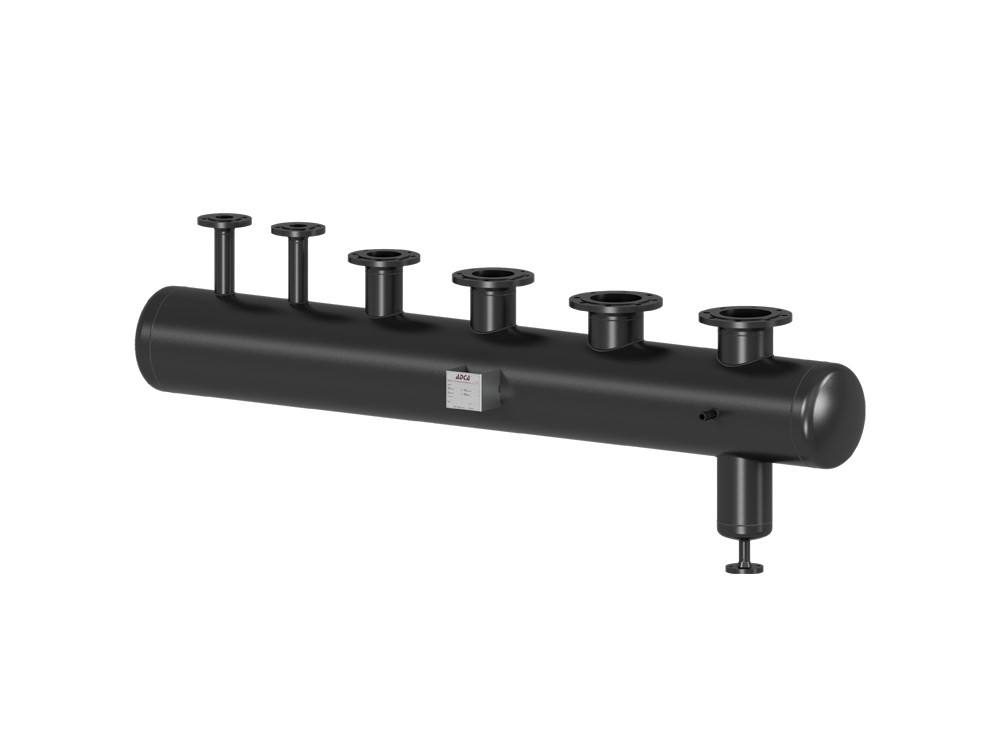

Product code: ADCA.MAW
Liquid manifold ADCA MAW
-
Application
hot condensate, cold and hot water and other liquids compatible with the construction
-
Type
MAW-H – horizontal liquid manifold
-
Material
Fabricated carbon steel,
Full stainless steel construction, on request -
Max. allowable pressure
up to 40 bar
-
Max. allowable temperature
hot condensate up to 98 ºC
-
Manifold diameter Ø
Max.: up to Ø 357 (mm),
Min.: from Ø 114 (mm) -
Pressure Rating
PN16 / Class 150 ; PN25 ; PN40 / Class 300
-
Non-standard design
available on request; custom flanges, made to order
-
Connections
Flanged EN 1092-1 PN 16 or PN 40,
Flanged ASME B16.5 Class 150 or 300,
Female threaded ISO 7 Rp or NPT.
Dimension:
According to specific installation requirementsPrice according to configurationAvailable on requestMore about the product -
-
Valsteam ADCA
Product code: ADCA.MAG
Gas manifold ADCA MAG
-
Application
Compressed air,
non corrosive gases -
Type
MAG-H – horizontal gas manifold
-
Material
Fabricated carbon steel,
Full stainless steel construction, on request -
Max. allowable pressure
up to 40 bar
-
Max. allowable temperature
250°C
-
Manifold diameter Ø
Max.: up to Ø 357 (mm),
Min.: from Ø 114 (mm) -
Pressure Rating
PN16 / Class 150 ; PN25 ; PN40 / Class 300
-
Non-standard design
available on request; custom flanges, made to order
-
Connections
Flanged EN 1092-1 PN 16 or PN 40,
Flanged ASME B16.5 Class 150 or 300,
Female threaded ISO 7 Rp or NPT.
Dimension:
According to specific installation requirementsPrice according to configurationAvailable on requestMore about the product -
