Valsteam ADCA
Product code: A.57.6500.000

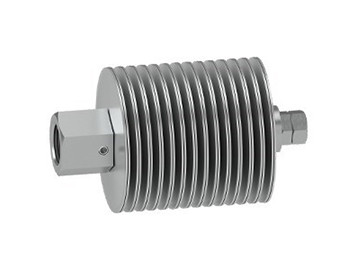

ADCAMix® Steam Injector ADCA SI20
-
Use
Heating via direct steam injection
-
Application
Saturated and superheated steam
-
Body material
Stainless steel AISI 304
-
Max. operating pressure
for saturated steam: up to 8,5 bar
-
Max. operating temperature
for saturated steam: 180 ºC
-
Flow rate capacity
up to 300 kg/h of saturated steam
-
Connections
Female threaded ISO 7 Rp (NPT on request)
-
-
Valsteam ADCA
Product code: A.57.6510.000

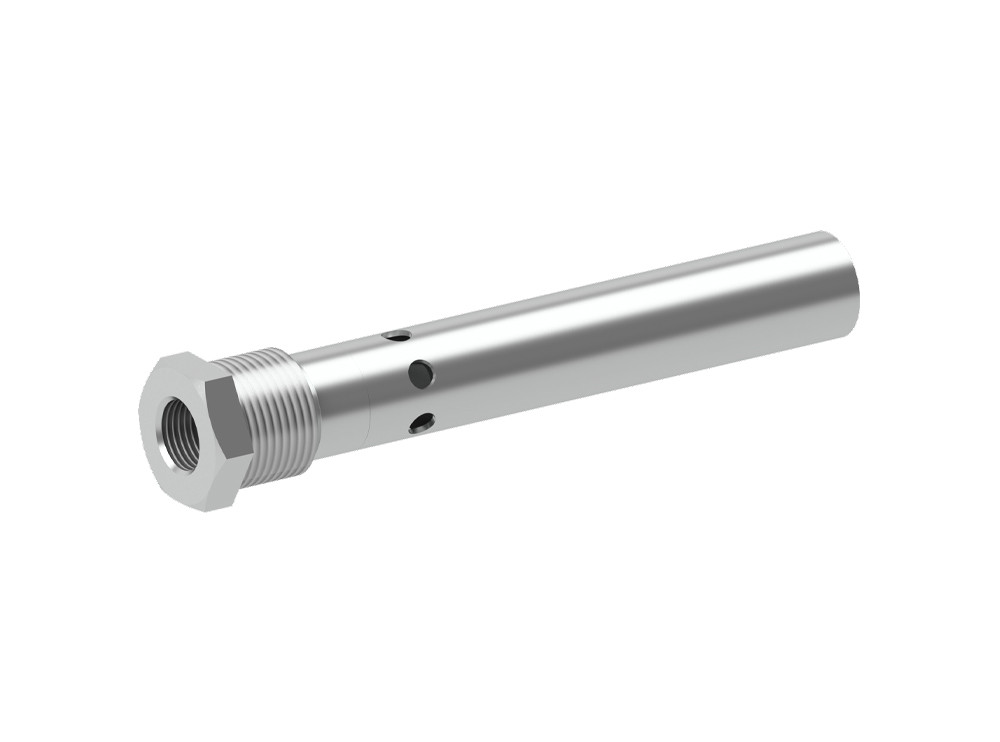

ADCAMix® Steam Injector ADCA SI115
-
Use
Heating via direct steam injection
-
Application
Saturated and superheated steam
-
Body material
Stainless steel AISI 304
-
Pressure Rating
Body design PN25
-
Max. operating pressure
for saturated steam: up to 17 bar
-
Maximum heated liquid temperature
95 ºC (tank/vessel vented to atmosphere)
-
Flow rate capacity
up to 300 kg/h of saturated steam
-
Connections
Female threaded ISO 7 Rp (NPT on request)
-
-
Valsteam ADCA
Product code: A.57.6510.000

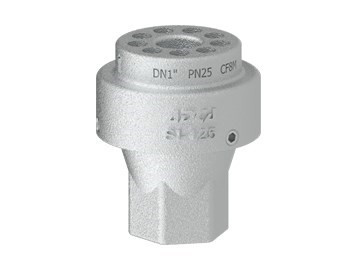

ADCAMix® Steam Injector ADCA SI125 / SI140
-
Use
Heating via direct steam injection
-
Application
Saturated and superheated steam
-
Body material
Stainless steel AISI 304
-
Pressure Rating
Body design PN25
-
Max. operating pressure
for saturated steam: up to 17 bar
-
Maximum heated liquid temperature
95 ºC (tank/vessel vented to atmosphere)
-
Flow rate capacity
Model SI125: up to 1220 kg/h of saturated steam,
Model SI140: up to 3200 kg/h of saturated steam -
Connections
Female threaded ISO 7 Rp (NPT on request)
-
