Valsteam ADCA
Product code: A.67.5000.000

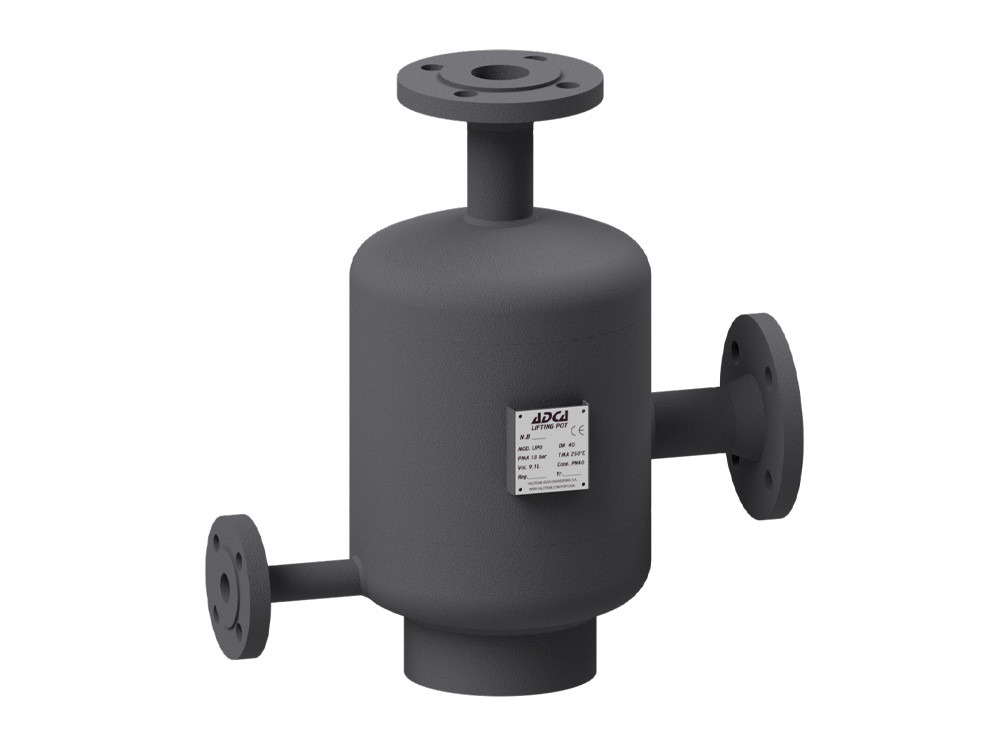

Condensate lifting pot ADCA LIPO/S
-
Function
The equipment is used for lifting the condensate from steam to more elevated condensate mains, quietly and without water hammer
-
Application
Lifting condensate to condensate mains
-
Body material
LIPOS – Welded sheet steel
-
Max. operating pressure
12 bar (Body design PN16),
18 bar (Body design PN40) -
Max. operating temperature
250°C (PN16 and PN40)
-
Supports
Installation supporting feet floor
-
Connections
Flanged EN 1092-1 PN 16 and PN 40,
Flanged ASME B16.5 Class 150 or 300, on request
Dimension:
1/2” – 4”; DN15 – DN100Price according to configurationAvailable on requestMore about the product -
-
Valsteam ADCA
Product code: A.67.5100.000

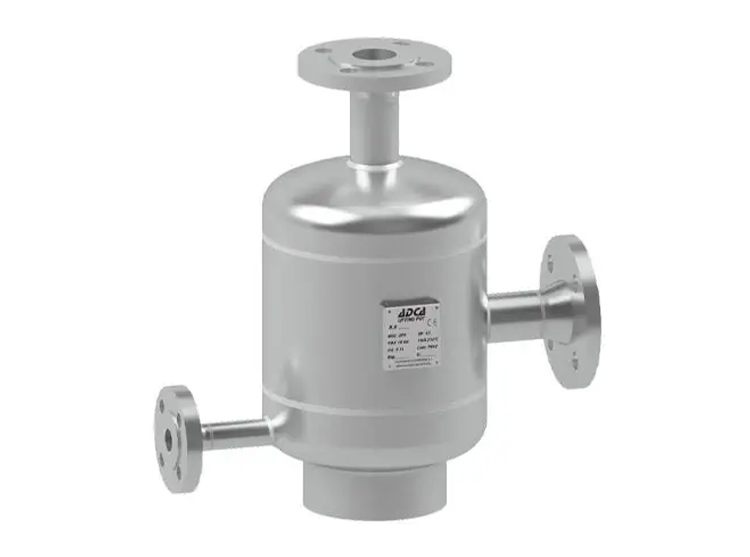

Condensate lifting pot ADCA LIPO/SS
-
Function
The equipment is used for lifting the condensate from steam to more elevated condensate mains, quietly and without water hammer
-
Application
Lifting condensate to condensate mains
-
Body material
LIPOSS – Welded stainless steel
-
Max. operating pressure
12 bar (Body design PN16),
18 bar (Body design PN40) -
Max. operating temperature
250°C (PN16 and PN40)
-
Supports
Installation supporting feet floor
-
Connections
Flanged EN 1092-1 PN 16 and PN 40,
Flanged ASME B16.5 Class 150 or 300, on request
Dimension:
1/2” – 4”; DN15 – DN100Price according to configurationAvailable on requestMore about the product -
