Valsteam ADCA

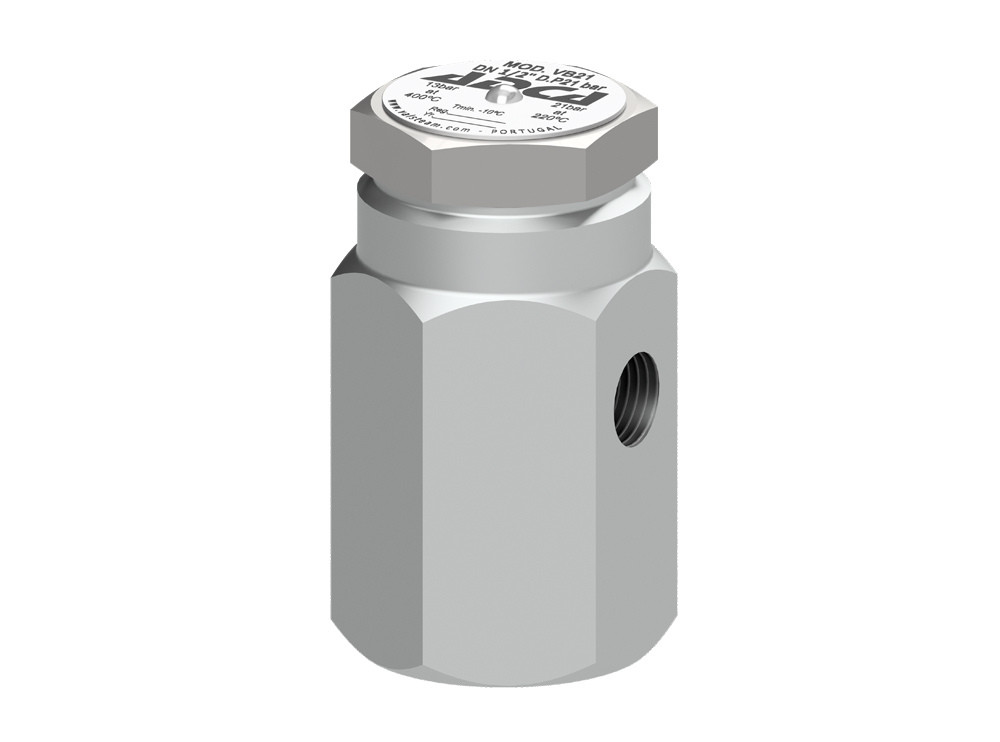

Product code: A.57.5500.000
Vacuum Breaker ADCA VB21 when the steam system, female threaded
-
Application
Saturated and superheated steam
-
Body material
Stainless steel AISI 303
-
Max. operating pressure
21 bar at 220 ºC
-
Max. operating temperature
13 bar at 400 ºC
-
ΔP required to open vacuum breaker
6,13 mbar
-
Feature
Female threaded
-
Outlet pipe connection
System: vertical connection 1/2"
-
Inlet pipe connection
Air inlet: horizontal connection 1/8"
-
Connections
Female threaded ISO 7 Rp A,
Female threaded NPT, on request
-
-
Valsteam ADCA

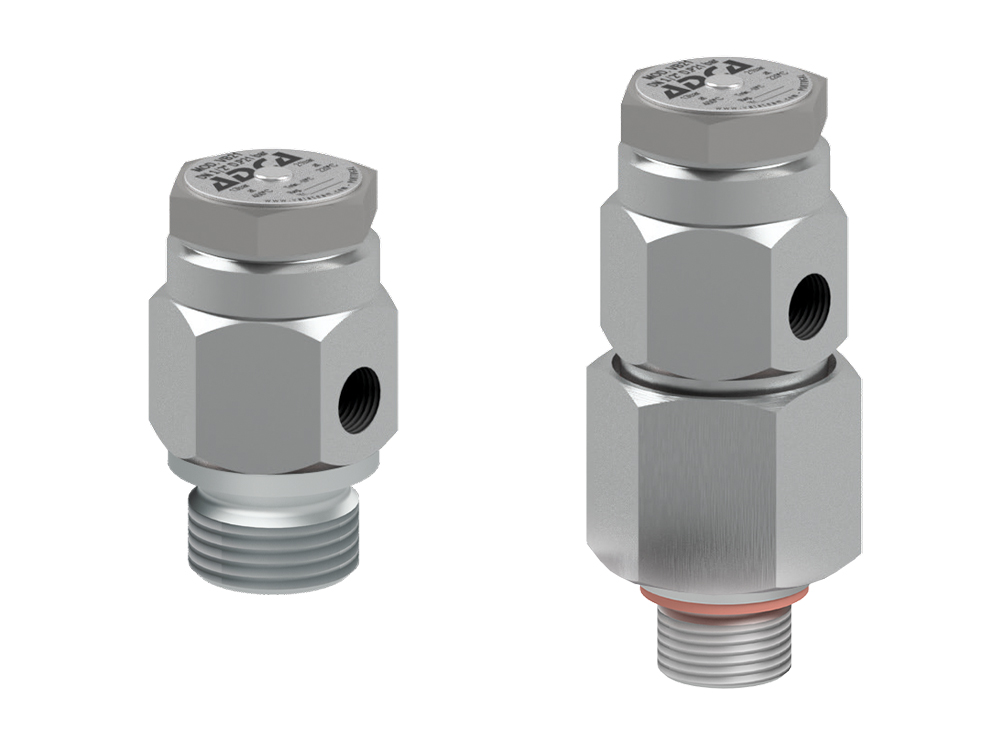

Product code: A.57.5550.000
Vacuum Breaker ADCA VB21M when the steam system, male threaded
-
Application
Saturated and superheated steam
-
Body material
Stainless steel AISI 303
-
Max. operating pressure
21 bar at 220 ºC
-
Max. operating temperature
13 bar at 400 ºC
-
ΔP required to open vacuum breaker
6,13 mbar
-
Feature
Male threaded
-
Outlet pipe connection
System: vertical connection 3/8” or 1/2”
-
Inlet pipe connection
Air inlet: horizontal connection 1/8"
-
Connections
Male threaded ISO 228 G,
Male threaded NPT, on request
-
-
Valsteam ADCA

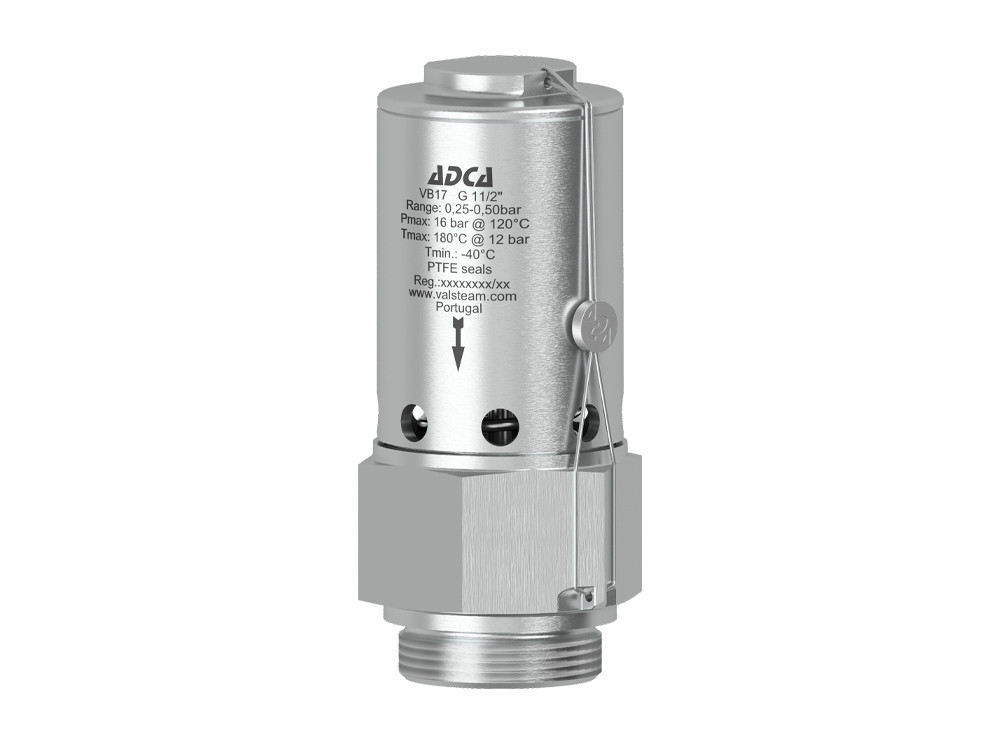

Product code: VB17X8VXXXB
Vacuum Breaker ADCA VB17
-
Application
Saturated and superheated steam,
Gases compatible with the construction -
Body material
Stainless steel AISI 316L
-
Air flow
Up to 220 m³/h
-
Max. operating pressure
16 bar at 120 ºC,
9 bar (steam system) -
Max. operating temperature
200 ºC at 12 bar
-
Min. operating temperature
-60 ºC
-
Valve seals
EPDM – Tmin -40 ºC / Tmax 150 ºC,
PTFE – Tmin -60 ºC / Tmax 180 ºC,
FPM / Viton – Tmin -10 ºC / Tmax 200 ºC -
Regulating range
-0,05 to -0,95 bar
-
Connections
Male threaded ISO 228,
Male threaded NPT ASME B1.20.1, on request,
Flanged EN 1092-1 PN40 (threaded flange), on request,
Flanged ASME B16.5 Class 150 (threaded flange), on request.
Dimension:
1/2" – 2"; DN15 – DN50Price according to configurationAvailable on requestMore about the product -
-
Valsteam ADCA

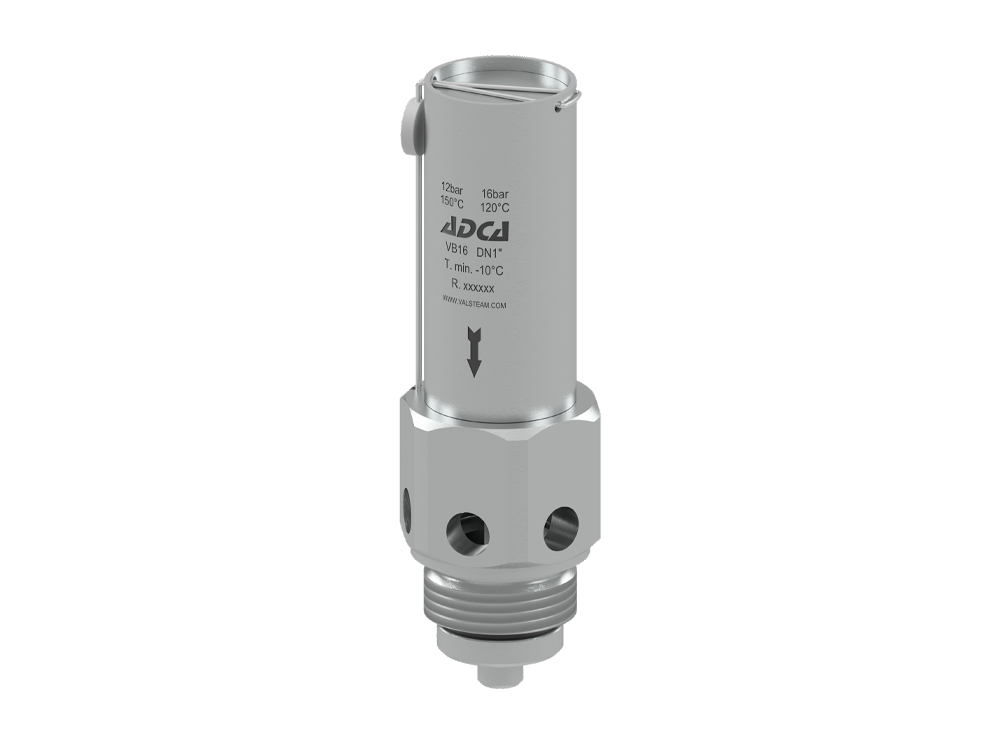

Product code: A.57.5610.015
Vacuum Breaker ADCA VB16
-
Application
Saturated and superheated steam,
Gases compatible with the construction -
Body material
Stainless steel AISI 316
-
Air flow
Up to 40 m³/h
-
Max. operating pressure
16 bar at 120 ºC
-
Max. operating temperature
150 ºC at 12 bar
-
Valve seals
Viton
-
Regulating range
0,05 to 0,50 bar
-
Connections
Male threaded ISO 228
-
