Valsteam ADCA
Product code: A.69.5000.000

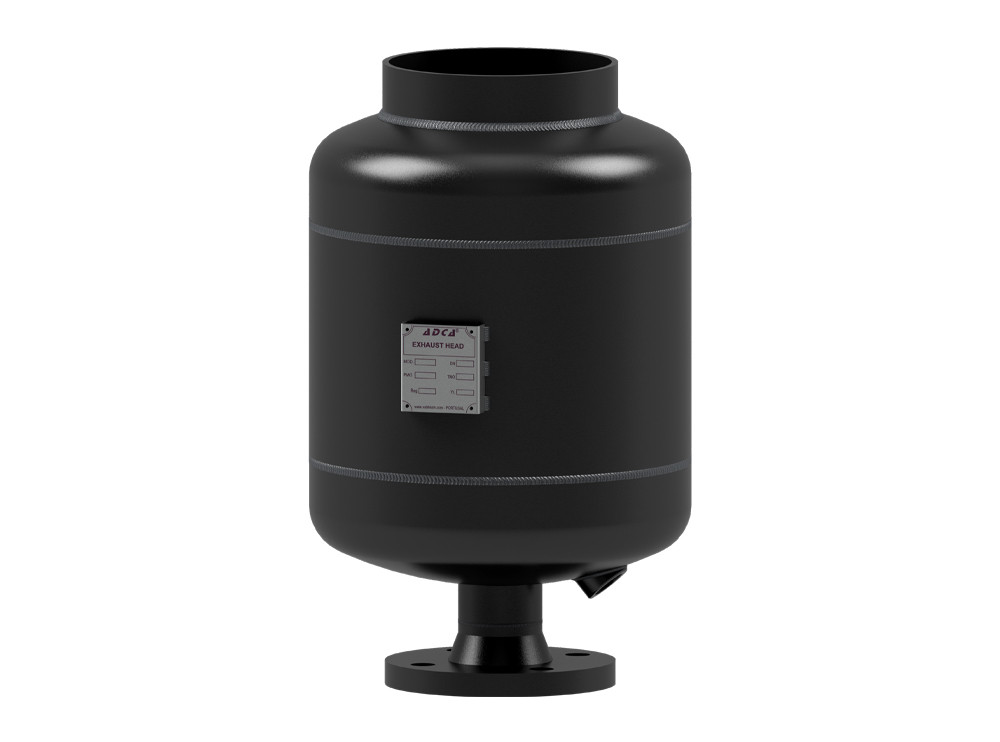

Exhaust head ADCA EH/S
-
Function
Open vertical steam vent pipes in blowdown vessels, boiler feedtanks, etc.
-
Application
Saturated and superheated steam
-
Body material
Carbon steel P235GH
-
Max. operating pressure
0,5 bar
-
Max. operating temperature
300 ºC
-
Min. operating temperature
-10 ºC
-
Non-standard design
Corrosion protection (metal abrasive blasted, metalized and painted),
For non-standard models, please consult -
Connections
Flanged EN 1092-1 PN 16,
Flanged ASME B16.5 Class 150 on request
Dimension:
1” – 4”; DN25 – DN250Price according to configurationAvailable on requestMore about the product -
-
Valsteam ADCA
Product code: A.69.5005.000

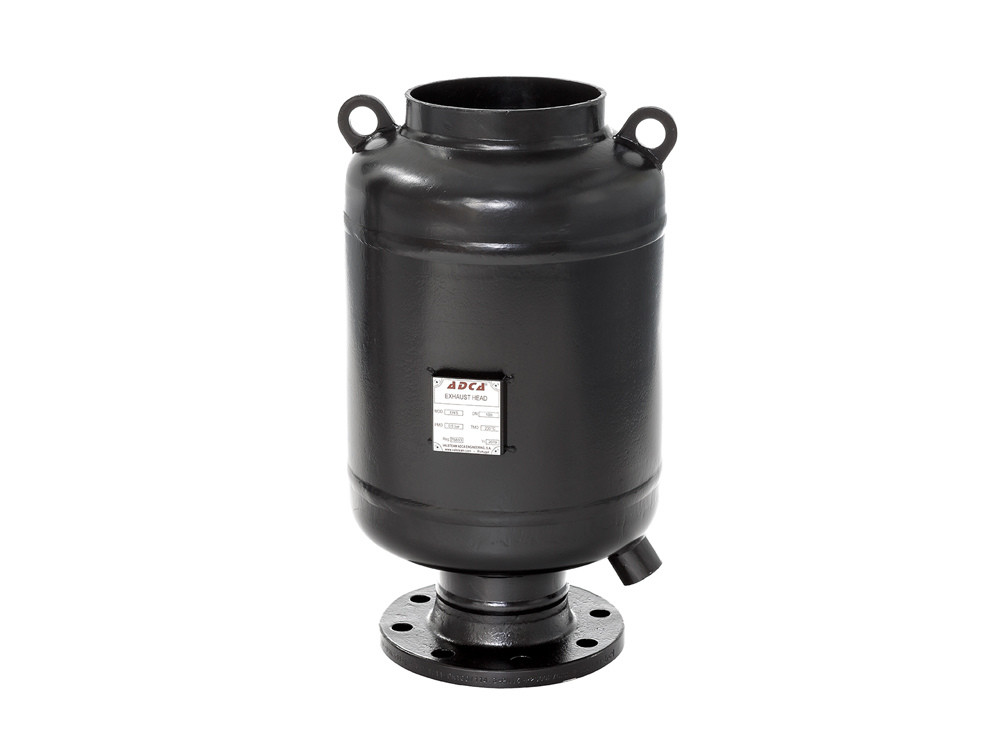

Exhaust head ADCA EH/SH with zinc spray metallizing
-
Function
Open vertical steam vent pipes in blowdown vessels, boiler feedtanks, etc.
-
Application
Saturated and superheated steam
-
Body material
Carbon steel (with zinc spray metallizing)
-
Max. operating pressure
0,5 bar
-
Max. operating temperature
300 ºC
-
Min. operating temperature
-10 ºC
-
Connections
Flanged EN 1092-1 PN 16,
Flanged ASME B16.5 Class 150 on request
Dimension:
1” – 4”; DN25 – DN250Price according to configurationAvailable on requestMore about the product -
-
Valsteam ADCA
Product code: A.69.5010.000

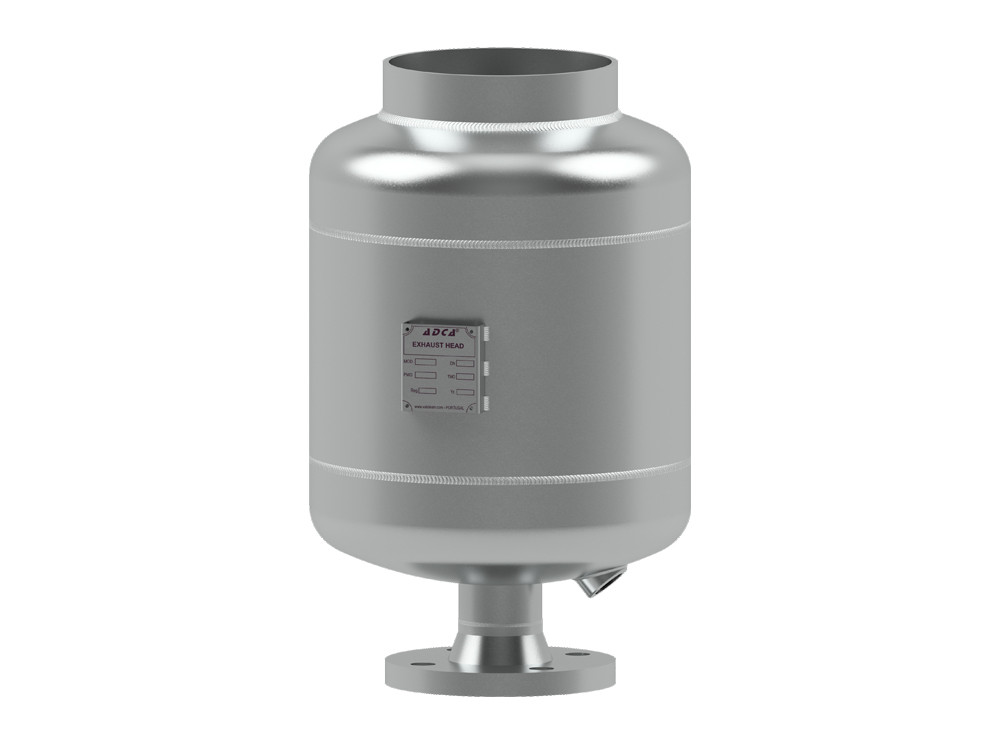

Exhaust head ADCA EH/SS
-
Function
Open vertical steam vent pipes in blowdown vessels, boiler feedtanks, etc.
-
Application
Saturated and superheated steam
-
Body material
Stainless steel AISI 316
-
Max. operating pressure
0,5 bar
-
Max. operating temperature
300 ºC
-
Min. operating temperature
-10 ºC
-
Connections
Flanged EN 1092-1 PN 16,
Flanged ASME B16.5 Class 150 on request
Dimension:
1” – 4”; DN25 – DN250Price according to configurationAvailable on requestMore about the product -
