Valsteam ADCA

Product code: ADCA.MLI.16.000

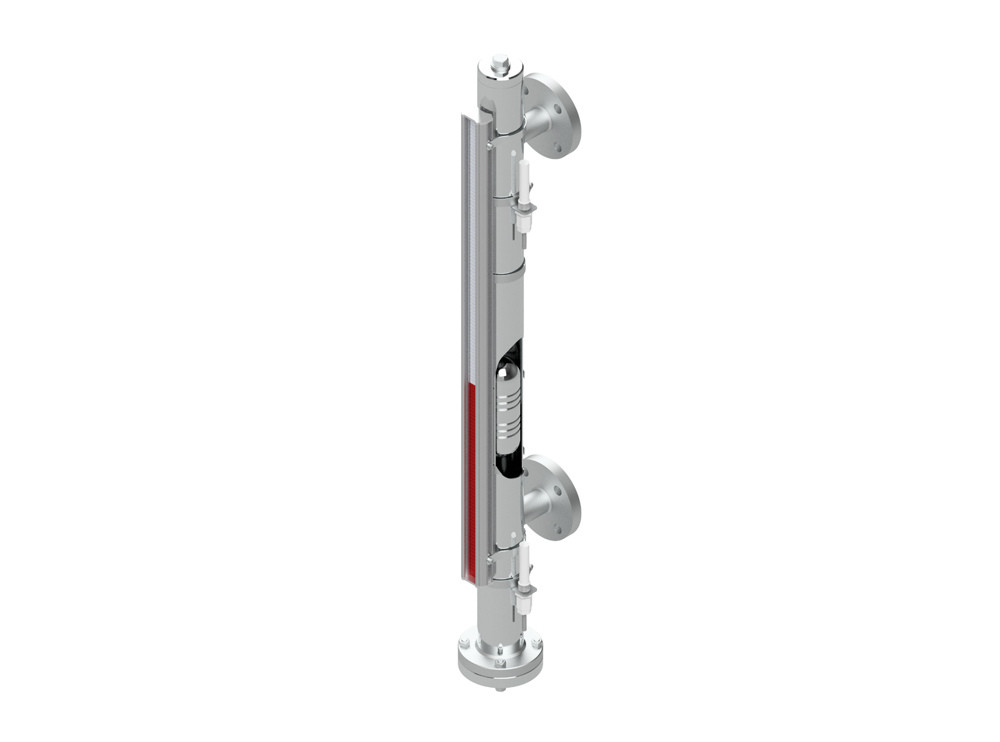

Magnetic level indicator ADCA MLI
- Use

  Indication of liquid levels on vessels and systems.
- Technology

  magnetic, float
- Application

  liquids
- Fluid density

  For fluid densities between 920 and 1075 kg/m³.
- Body material

  Stainless steel AISI 316
- Max. operating pressure

  30 bar
- Max. operating temperature

  200 ºC
- Total height

  350 or 600 mm.
- Gasket

  Viton
- Connections

  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 300 on request
Dimension:
DN25

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: ADCA.LGC.000

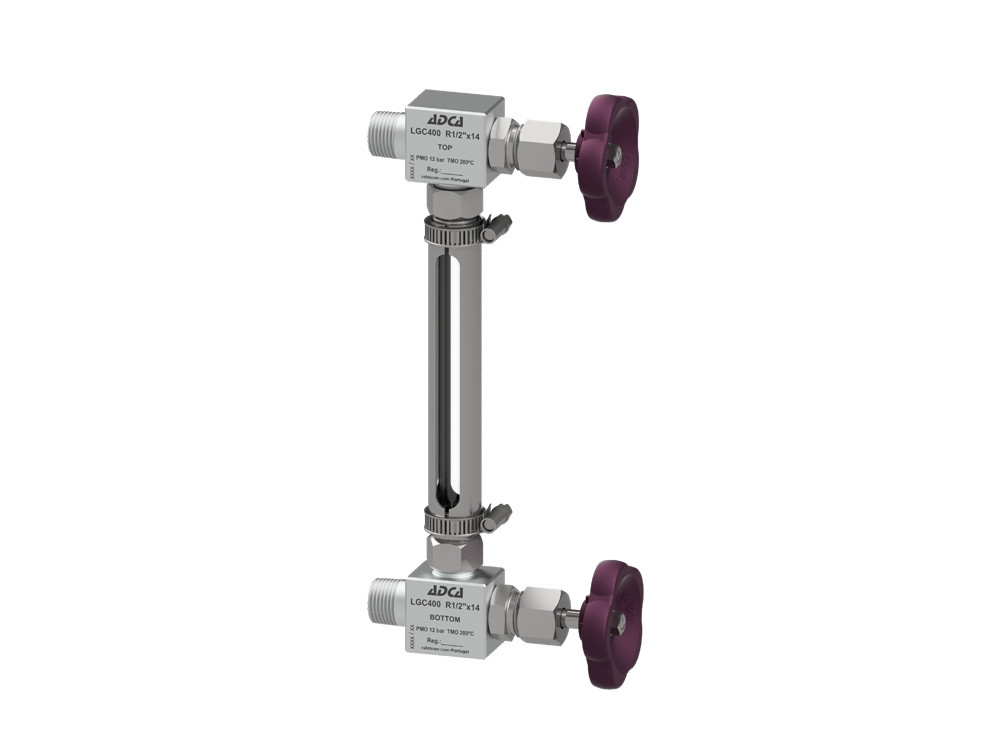

Level gauge valves ADCA LGC
- Use

  Liquid level in pressure operated pumps ADCAMat, vessels and other equipment.
- Application

  steam condensate,
  liquids
- Material

  Stainless steel AISI 316 Ti construction,
  Borosilicate glass.
- Max. operating pressure

  12 bar
- Max. operating temperature

  200 ºC
- Total height *

  400 mm. (default model LGC400),
  * Dimension to be provided by customer.
- Gasket

  Viton
- Connections

  Male threaded ISO 7 R.
- Options

  Bottom drain connection.
Dimension:
1/2” x 14 mm.

Price according to configuration

Available on request
More about the product
