Specifications

• Ball port & Design

  3 Piece, Full bore, ISO 5211 mounting

• Application

  Steam,
  Cold and hot water,
  Gases,
  Other process fluids

• Body material

  Stainless steel A351 CF8

• Max. allowable pressure

  100 bar (3/8” to 3/4”),
  63 bar (1” to 2”)

• Max. allowable temperature

  220 ºC (PTFE/GR seats)

• Seat material

  PTFE carbon graphite seats (standart),
  TFM 1600,
  Virgin PTFE,
  Peek

• Operation

  Lever handle,

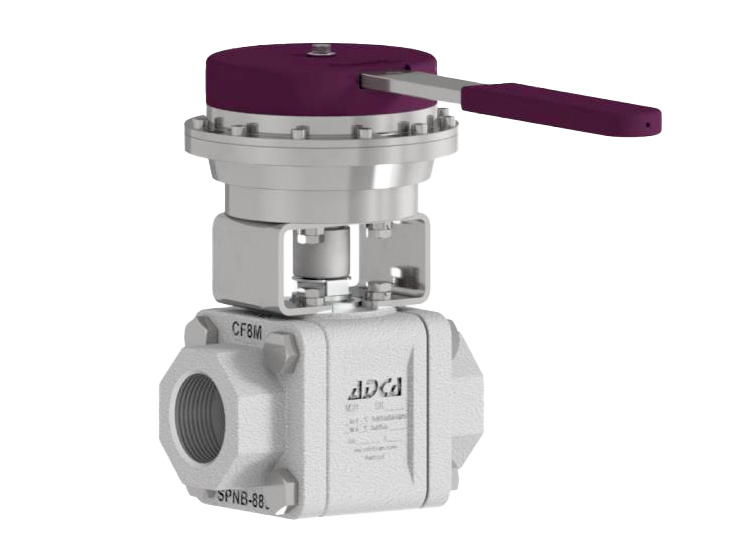

  Spring return handle ADCA SRH as per ISO 5211, on request

• Connections

  Female threaded ISO 7 Rp A,
  Female threaded NPT, on request,
  Socket weld (SW) ASME B16.11, on request.
