Public offer Prima Steam – Relible supplier equipment for your flow control!
Home → Catalogue → Pressure control → Control Valves

Self-acting temperature control valves

Refine

Show:
10 per page
  • 10 products per page
  • 25 products per page
  • 50 products per page
Sort:
Relevance
  • Relevance
  • Created at
  • Product code
  • Name
  • Available

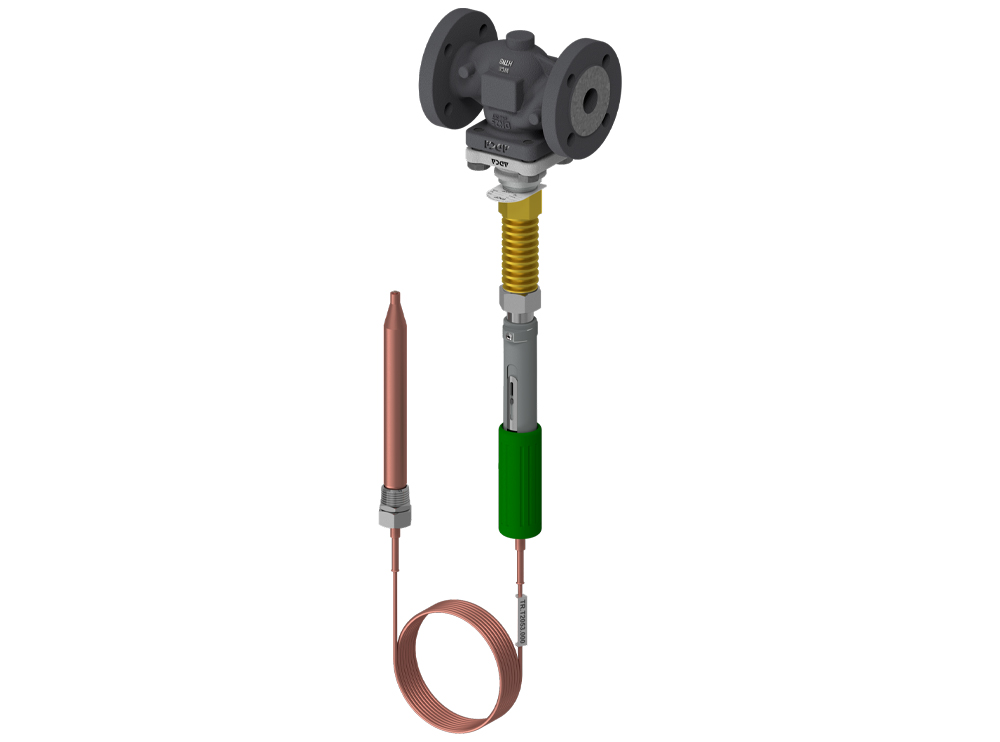

  • Valsteam ADCA

    TR.251S04

    Product code: TR.251S04

    Self operated temperature regulator ADCA TR25S for heating with thermostat ADCATrol

    • Function

      Temperature regulator (TR)

    • Application

      Valve closes when the temperature rises (heating)

    • Application

      Saturated and superheated steam,
      Hot and superheated water

    • Body material

      Carbon steel 250GH & Stainless Steel – Plug

    • Max. operating pressure

      Up to 40 bar (Body design PN40)

    • Medium temperatures

      Up to 150 ºC (standard),
      In case of medium temperatures between 150 and 250 ºC, a cooling unit type K1 has to be applied

    • Flow rate coefficients

      Kvs 0,2 to 5 (m³/h)

    • Thermostat type

      Thermostat with copper rod sensor

    • Available thermostat

      ADCATrol T series thermostat models T.205 and T.405

    • Thermostat ranges

      0 to 160 ºC

    • Capillary length thermostatic element

      3 m (standard),
      6 or 9 m (on request)

    • Max. closing force

      Up to 400 N (T.205),
      Up to 500 N (T.405)

    • Connections

      Female threaded ISO 7 Rp

    Dimension:
    1/2” – 1”
    Price according to configuration
    Available on request
    More about the product

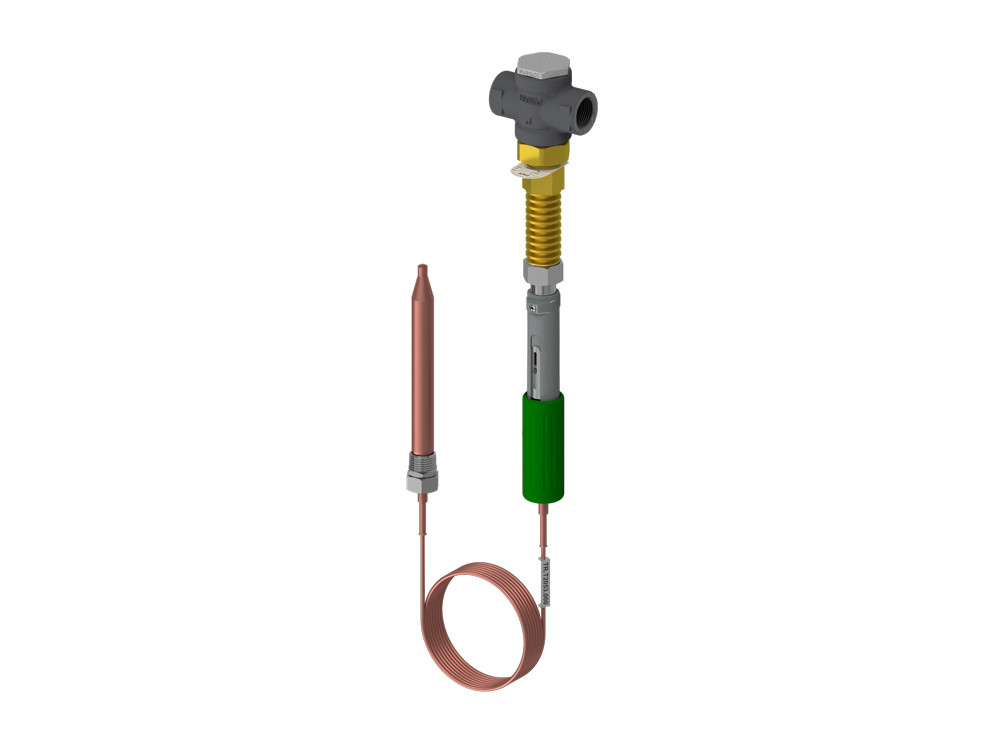

  • Valsteam ADCA

    TR.405S04

    Product code: TR.405S04

    Self operated temperature regulator ADCA TR40S for heating with thermostat ADCATrol

    • Function

      Temperature regulator (TR)

    • Application

      Valve closes when the temperature rises (heating)

    • Application

      Saturated and superheated steam,
      Hot and superheated water

    • Body material

      Carbon steel A216 WCB & Stainless Steel – Plug

    • Max. operating pressure

      Up to 40 bar (Body design PN40)

    • Medium temperatures

      Up to 150 ºC (standard),
      In case of medium temperatures between 150 and 250 ºC, a cooling unit type K1 has to be applied

    • Flow rate coefficients

      Kvs 0,2 to 7,5 (m³/h)

    • Thermostat type

      Thermostat with copper rod sensor

    • Available thermostat

      ADCATrol T series thermostat models T.205 and T.405

    • Thermostat ranges

      0 to 160 ºC

    • Capillary length thermostatic element

      3 m (standard),
      6 or 9 m (on request)

    • Max. closing force

      Up to 400 N (T.205),
      Up to 500 N (T.405)

    • Connections

      Flanged EN 1092-1 PN 40

    Dimension:
    DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

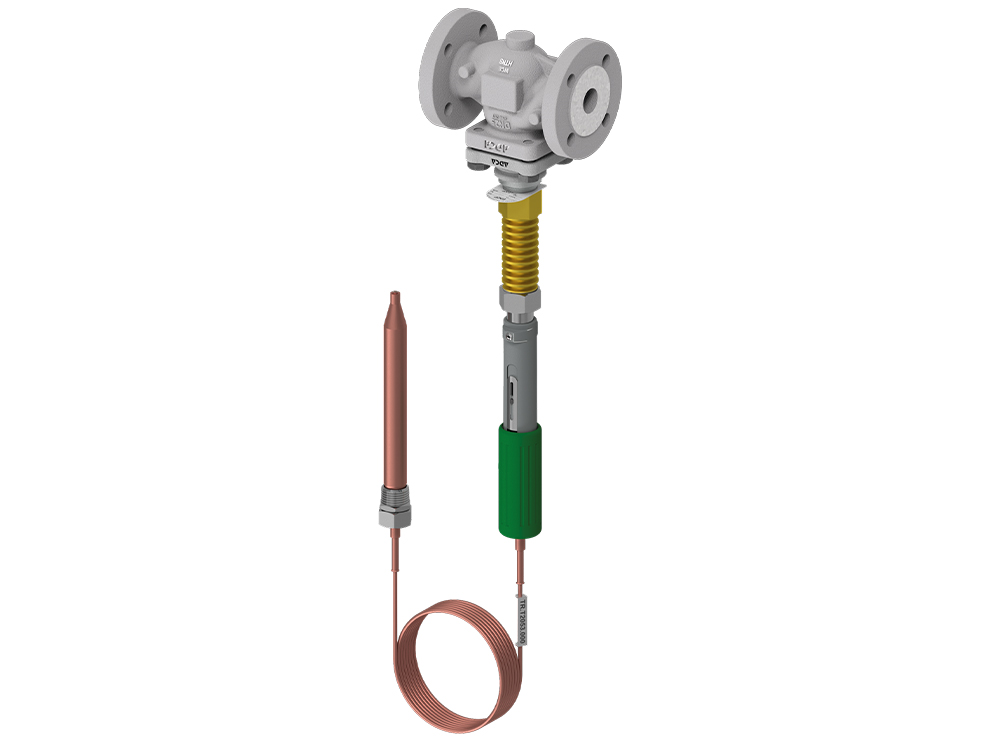

  • Valsteam ADCA

    TR.405SS04

    Product code: TR.405SS04

    Self operated temperature regulator ADCA TR40SS for heating with thermostat ADCATrol

    • Function

      Temperature regulator (TR)

    • Application

      Valve closes when the temperature rises (heating)

    • Application

      Saturated and superheated steam,
      Hot and superheated water

    • Body material

      Stainless Steel CF8M & Stainless Steel – Plug

    • Max. operating pressure

      Up to 33,7 bar (Body design PN40)

    • Medium temperatures

      Up to 150 ºC (standard),
      In case of medium temperatures between 150 and 250 ºC, a cooling unit type K1 has to be applied

    • Flow rate coefficients

      Kvs 0,2 to 7,5 (m³/h)

    • Thermostat type

      Thermostat with copper rod sensor

    • Available thermostat

      ADCATrol T series thermostat models T.205 and T.405

    • Thermostat ranges

      0 to 160 ºC

    • Capillary length thermostatic element

      3 m (standard),
      6 or 9 m (on request)

    • Max. closing force

      Up to 400 N (T.205),
      Up to 500 N (T.405)

    • Connections

      Flanged EN 1092-1 PN 40

    Dimension:
    DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

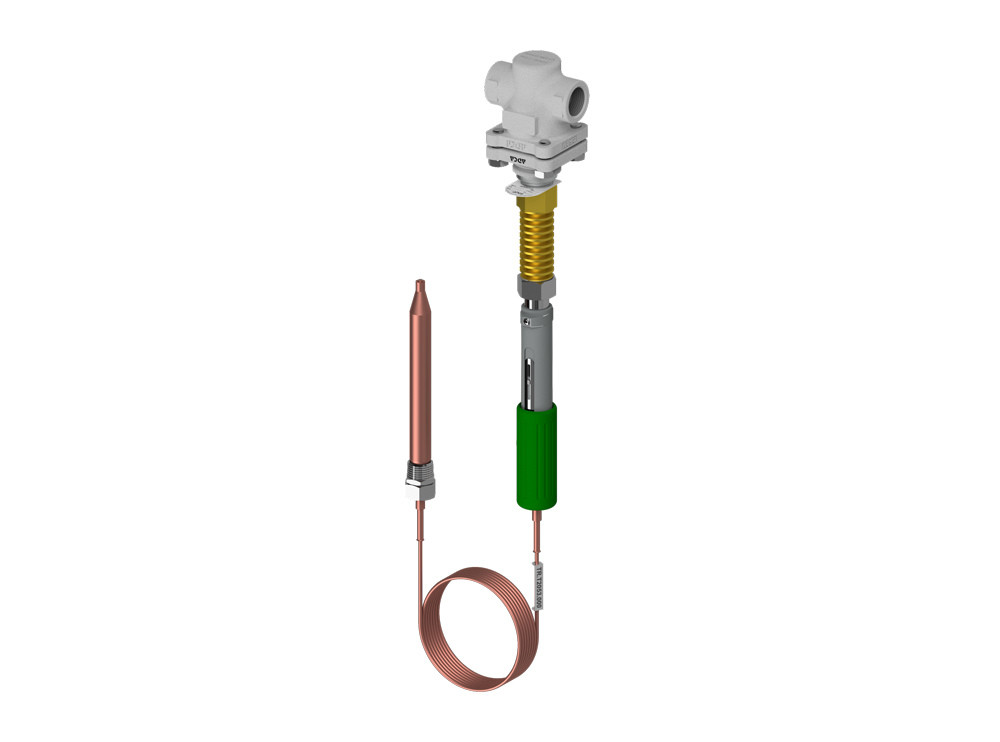

  • Valsteam ADCA

    TR.25SS04

    Product code: TR.25SS04

    Self operated temperature regulator ADCA TR25SS for heating with thermostat ADCATrol

    • Function

      Temperature regulator (TR)

    • Application

      Valve closes when the temperature rises (heating)

    • Application

      Saturated and superheated steam,
      Hot and superheated water

    • Body material

      Stainless Steel AISI 316 & Stainless Steel – Plug

    • Max. operating pressure

      Up to 40 bar (Body design PN40)

    • Medium temperatures

      Up to 150 ºC (standard),
      In case of medium temperatures between 150 and 250 ºC, a cooling unit type K1 has to be applied

    • Up to 40 bar (Body design PN40)

      Kvs 0,2 to 0,95 (m³/h)

    • Thermostat type

      Thermostat with copper rod sensor

    • Available thermostat

      ADCATrol T series thermostat models T.205

    • Thermostat ranges

      0 to 120 ºC

    • Capillary length thermostatic element

      3 m (standard),
      6 or 9 m (on request)

    • Max. closing force

      Up to 200 N (T.205)

    • Connections

      Female threaded ISO 7 Rp

    Dimension:
    1/4” – 3/8”
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    TR.251SS04

    Product code: TR.251SS04

    Self operated temperature regulator ADCA TR25SS for heating with thermostat ADCATrol

    • Function

      Temperature regulator (TR)

    • Application

      Valve closes when the temperature rises (heating)

    • Application

      Saturated and superheated steam,
      Hot and superheated water

    • Body material

      Stainless Steel CF8M & Stainless Steel – Plug

    • Max. operating pressure

      Up to 40 bar (Body design PN40)

    • Medium temperatures

      Up to 150 ºC (standard),
      In case of medium temperatures between 150 and 250 ºC, a cooling unit type K1 has to be applied

    • Flow rate coefficients

      Kvs 0,2 to 7,5 (m³/h)

    • Thermostat type

      Thermostat with copper rod sensor

    • Available thermostat

      ADCATrol T series thermostat models T.205 and T.405

    • Thermostat ranges

      0 to 160 ºC

    • Capillary length thermostatic element

      3 m (standard),
      6 or 9 m (on request)

    • Max. closing force

      Up to 400 N (T.205),
      Up to 500 N (T.405)

    • Connections

      Female threaded ISO 7 Rp

    Dimension:
    1/2” – 1”
    Price according to configuration
    Available on request
    More about the product

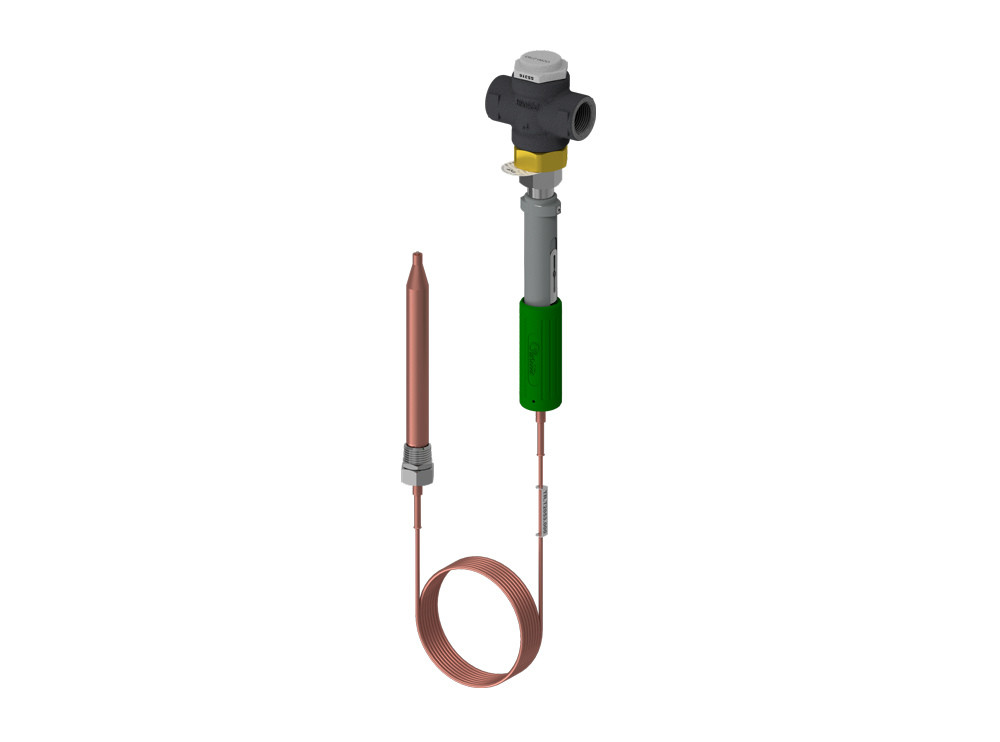

  • Valsteam ADCA

    TR.251SR15

    Product code: TR.251SR15

    Self operated temperature regulator ADCA TR25S/R reverse action for cooling with thermostat ADCATrol

    • Function

      Temperature regulator (TR)

    • Application

      Valve opens when the temperature rises (cooling)

    • Application

      Water and other liquids,
      Air and non-flammable gases,
      Heat transfer oil

    • Body material

      Carbon steel 250GH & Stainless Steel – Plug

    • Max. operating pressure

      Up to 40 bar (Body design PN40)

    • Max. operating temperature

      Up to 150 ºC

    • Flow rate coefficients

      Kvs 1,9 to 4,2 (m³/h)

    • Thermostat type

      Thermostat with copper rod sensor

    • Available thermostat

      ADCATrol T series thermostat models T.205 and T.405

    • Thermostat ranges

      0 to 160 ºC

    • Capillary length thermostatic element

      3 m (standard),
      6 or 9 m (on request)

    • Max. closing force

      Up to 400 N (T.205),
      Up to 500 N (T.405)

    • Connections

      Female threaded ISO 7 Rp,
      Flanged EN 1092-1 PN 40

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

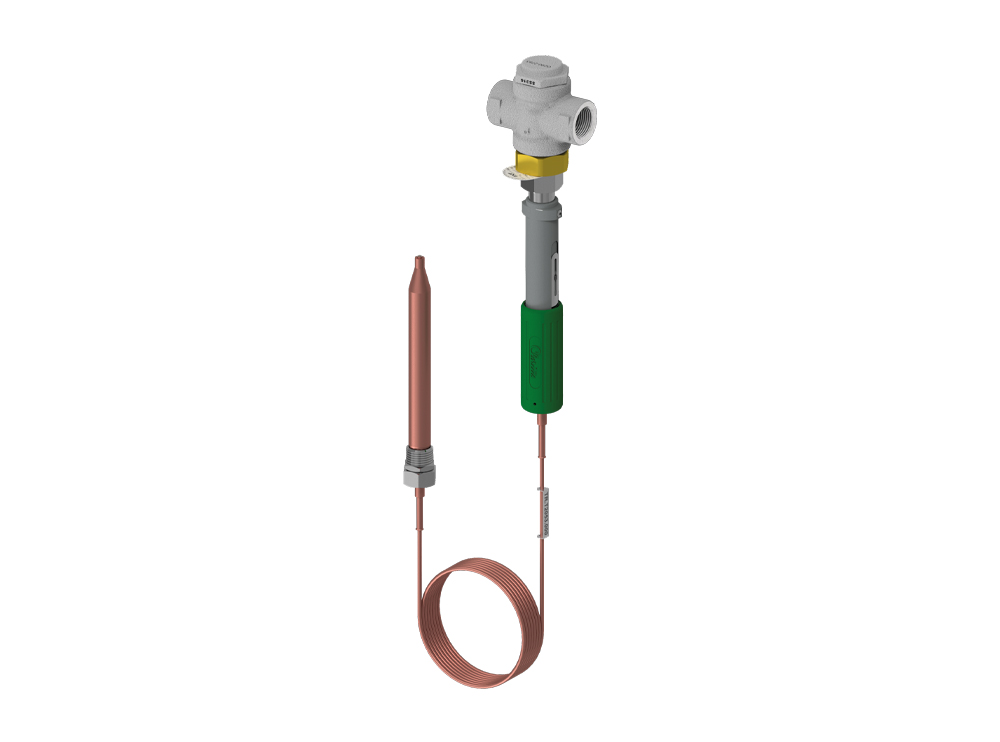

  • Valsteam ADCA

    TR.251IR15

    Product code: TR.251IR15

    Self operated temperature regulator ADCA TR25i/R reverse action for cooling with thermostat ADCATrol

    • Function

      Temperature regulator (TR)

    • Application

      Valve opens when the temperature rises (cooling)

    • Application

      Water and other liquids,
      Air and non-flammable gases,
      Heat transfer oil

    • Body material

      Stainless Steel AISI 316 & Stainless Steel – Plug

    • Max. operating pressure

      Up to 33,7 bar (Body design PN40)

    • Max. operating temperature

      Up to 150 ºC

    • Flow rate coefficients

      Kvs 1,9 to 4,2 (m³/h)

    • Thermostat type

      Thermostat with copper rod sensor

    • Available thermostat

      ADCATrol T series thermostat models T.205 and T.405

    • Thermostat ranges

      0 to 160 ºC

    • Capillary length thermostatic element

      3 m (standard),
      6 or 9 m (on request)

    • Max. closing force

      Up to 400 N (T.205),
      Up to 500 N (T.405)

    • Connections

      Female threaded ISO 7 Rp,
      Flanged EN 1092-1 PN 40

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product
