Three-way control valves

Refine

Show:
10 per page
  • 10 products per page
  • 25 products per page
  • 50 products per page
Sort:
Relevance
  • Relevance
  • Created at
  • Product code
  • Name
  • Available

  • Valsteam ADCA

    PV23GM17L

    Product code: PV23GM17L

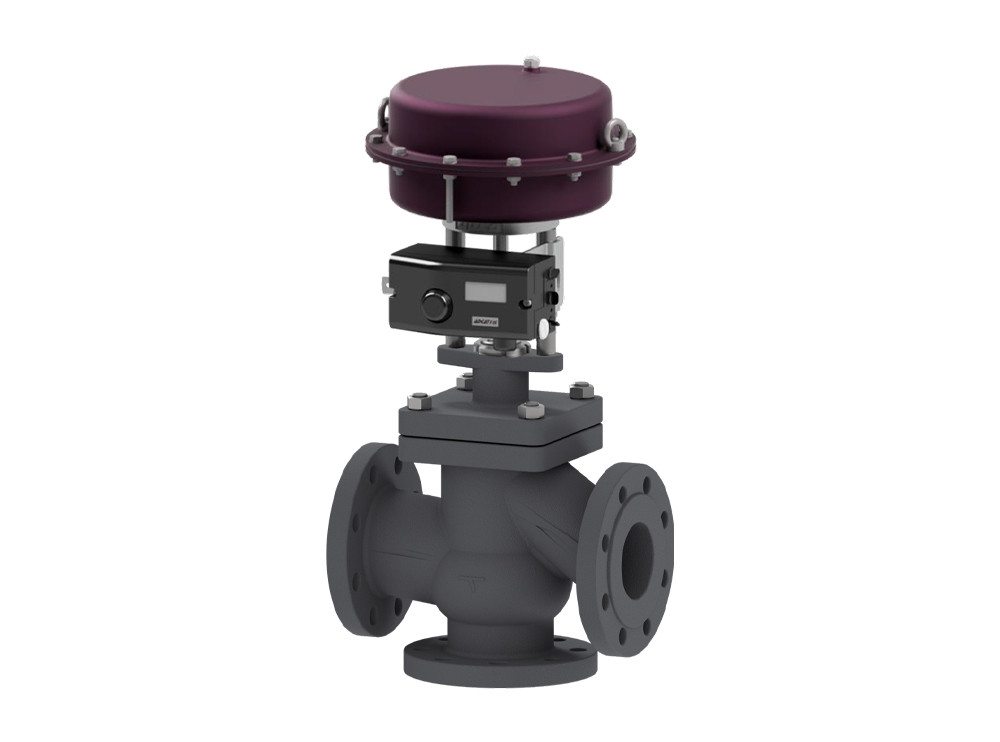

    Pneumatic 3-way mixing control valve ADCA PV253G EN flanged, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner

    • Application

      Saturated and superheated steam,
      Hot and superheated water,
      Air, gases and other no corrosive fluids

    • Body material

      Ductile iron GJS-400-18-LT & Stainless Steel M1 Trim

    • Max. operating pressure

      Up to 14,7 bar (Body design PN16),
      Up to 23 bar (Body design PN25), on request

    • Flow rate coefficients

      Kvs 4 to 160 (m³/h)

    • Type & Plug design

      Three-way, desing with mixing plug

    • Stem sealing

      PTFE/GR V-Rings – up to 220ºC (standard),
      Graphite packing – up to 350ºC,
      Stainless steel bellows – up to 350ºC

    • Valve sealing

      Metal to metal (class IV), standard

    • Actuator

      Pneumatic Actuator ADCATrol PA series

    • Actuator direction of action

      Air to open (standard) / Air to close

    • Digital Electro-Pneumatic Valve Positioner

      0-10V, 0-5V, 0-20mA or 4-20mA input

    • Connections

      Flanged EN 1092-2 PN 16,
      Flanged EN 1092-2 PN 25, on request,
      Flanged ASME B16.5 Class 150, special order

    Dimension:
    DN15 – DN100
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    PV23GD17L

    Product code: PV23GD17L

    Pneumatic 3-way diverting control valve ADCA PV253G EN flanged, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner

    • Application

      Saturated and superheated steam,
      Hot and superheated water,
      Air, gases and other no corrosive fluids

    • Body material

      Ductile iron GJS-400-18-LT & Stainless Steel D1 Trim

    • Max. operating pressure

      Up to 14,7 bar (Body design PN16),
      Up to 23 bar (Body design PN25), on request

    • Flow rate coefficients

      Kvs 12 to 123 (m³/h)

    • Type & Plug design

      Three-way, desing with diverting plug

    • Stem sealing

      PTFE/GR V-Rings – up to 220ºC (standard),
      Graphite packing – up to 350ºC,
      Stainless steel bellows – up to 350ºC

    • Valve sealing

      Metal to metal (class IV), standard

    • Actuator

      Pneumatic Actuator ADCATrol PA series

    • Actuator direction of action

      Air to open (standard) / Air to close

    • Digital Electro-Pneumatic Valve Positioner

      0-10V, 0-5V, 0-20mA or 4-20mA input

    • Connections

      Flanged EN 1092-2 PN 16,
      Flanged EN 1092-2 PN 25, on request,
      Flanged ASME B16.5 Class 150, special order

    Dimension:
    DN32 – DN150
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    EV23GM17L

    Product code: EV23GM17L

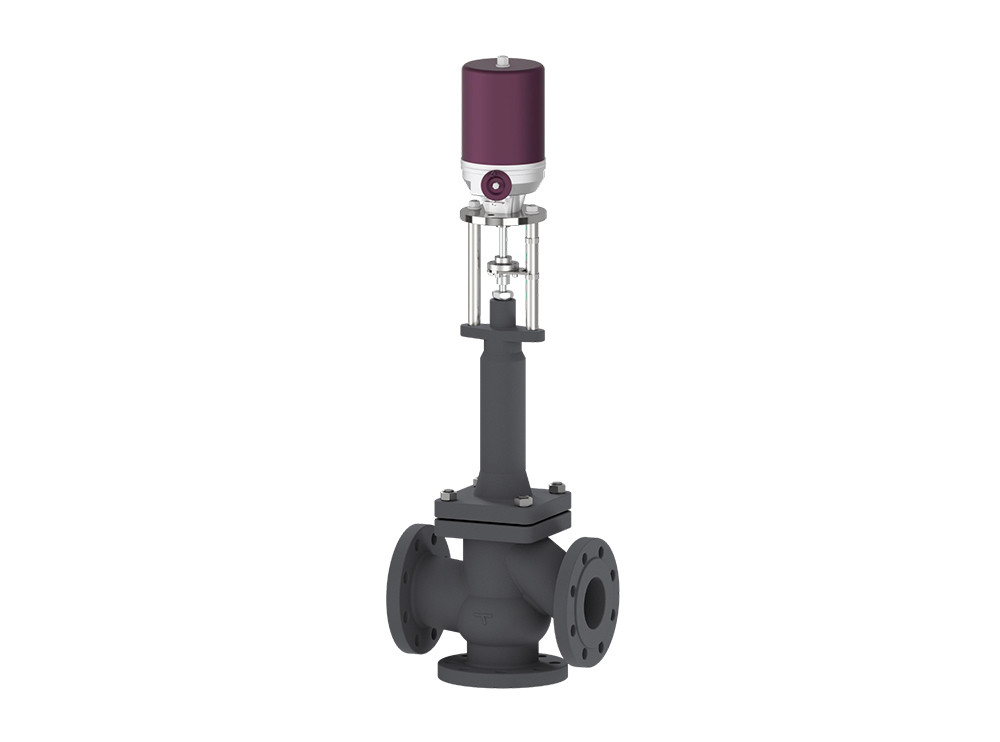

    Electric 3-way mixing control valve ADCA EV253G EN flanged, with electric actuator ADCATrol

    • Application

      Saturated and superheated steam,
      Hot and superheated water,
      Air, gases and other no corrosive fluids

    • Body material

      Ductile iron GJS-400-18-LT & Stainless Steel M1 Trim

    • Max. operating pressure

      Up to 14,7 bar (Body design PN16),
      Up to 23 bar (Body design PN25), on request

    • Flow rate coefficients

      Kvs 4 to 160 (m³/h)

    • Type & Plug design

      Three-way, desing with mixing plug

    • Stem sealing

      PTFE/GR V-Rings – up to 220ºC (standard),
      Graphite packing – up to 350ºC,
      Stainless steel bellows – up to 350ºC

    • Valve sealing

      Metal to metal (class IV), standard

    • Actuator

      Electric Actuator ADCATrol EL series

    • Supply voltage

      (230 V AC 50/60 Hz), 0-10V or 4-20mA Input (standard),
      24 V AC, 115 V AC, 230 V AC, 400 V AC 50/60 Hz and 24 V DC

    • Connections

      Flanged EN 1092-2 PN 16,
      Flanged EN 1092-2 PN 25, on request,
      Flanged ASME B16.5 Class 150, special order

    Dimension:
    DN15 – DN100
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    EV23GD17L

    Product code: EV23GD17L

    Electric 3-way diverting control valve ADCA EV253G EN flanged, with electric actuator ADCATrol

    • Application

      Saturated and superheated steam,
      Hot and superheated water,
      Air, gases and other no corrosive fluids

    • Body material

      Ductile iron GJS-400-18-LT & Stainless Steel D1 Trim

    • Max. operating pressure

      Up to 14,7 bar (Body design PN16),
      Up to 23 bar (Body design PN25), on request

    • Flow rate coefficients

      Kvs 12 to 250 (m³/h)

    • Type & Plug design

      Three-way, desing with diverting plug

    • Stem sealing

      PTFE/GR V-Rings – up to 220ºC (standard),
      Graphite packing – up to 350ºC,
      Stainless steel bellows – up to 350ºC

    • Valve sealing

      Metal to metal (class IV), standard

    • Actuator

      Electric Actuator ADCATrol EL series

    • Supply voltage

      (230 V AC 50/60 Hz), 0-10V or 4-20mA Input (standard),
      24 V AC, 115 V AC, 230 V AC, 400 V AC 50/60 Hz and 24 V DC

    • Connections

      Flanged EN 1092-2 PN 16,
      Flanged EN 1092-2 PN 25, on request,
      Flanged ASME B16.5 Class 150, special order

    Dimension:
    DN32 – DN150
    Price according to configuration
    Available to Order
    More about the product

  • Valsteam ADCA

    PV31SSM121L

    Product code: PV31SSM121L

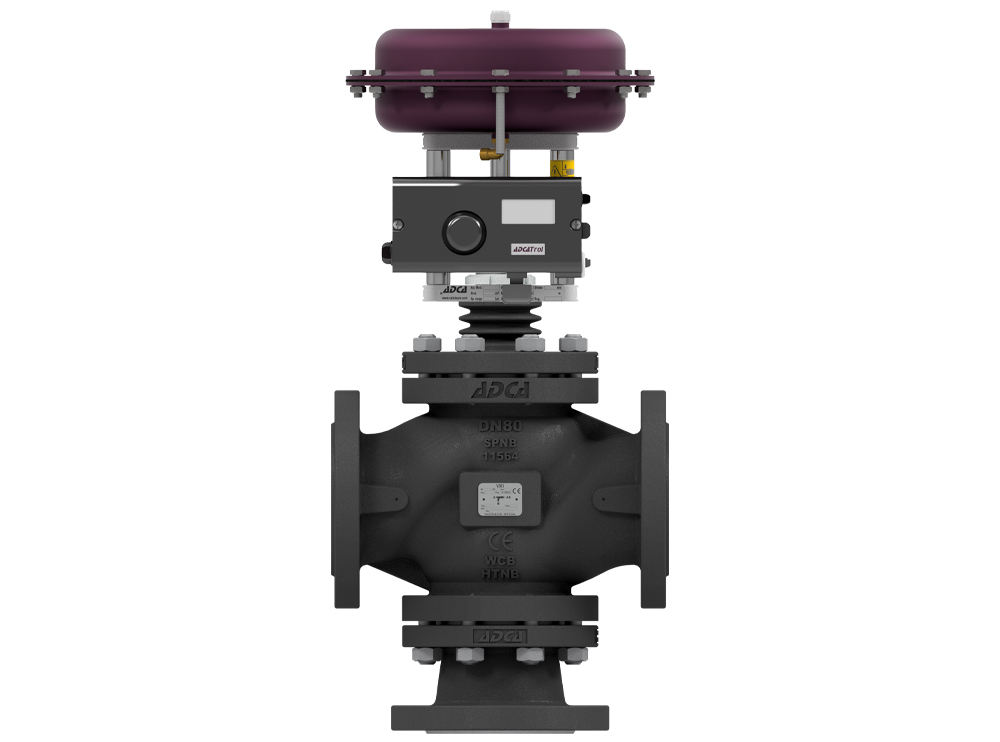

    Pneumatic 3-way mixing control valve ADCA PV303S EN flanged, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner

    • Application

      Saturated and superheated steam,
      Hot and superheated water,
      Thermal oil,
      Air, gases and others

    • Body material

      Carbon steel A216 WCB & Stainless Steel M12 Trim

    • Max. operating pressure

      Up to 13,3 bar (Body design PN16),
      Up to 33,3 bar (Body design PN40), on request

    • Flow rate coefficients

      Kvs 4 to 160 (m³/h)

    • Type & Plug design

      Three-way, desing with mixing plug

    • Stem sealing

      PTFE/GR V-Rings – up to 220ºC (standard),
      Graphite packing – up to 400ºC,
      Stainless steel bellows – up to 400ºC (PMO: 25 bar)

    • Valve sealing

      Metal to metal (class IV), standard

    • Actuator

      Pneumatic Actuator ADCATrol PA series

    • Actuator direction of action

      Air to open (standard) / Air to close

    • Digital Electro-Pneumatic Valve Positioner

      0-10V, 0-5V, 0-20mA or 4-20mA input

    • Connections

      Flanged EN 1092-1 PN 16,
      Flanged EN 1092-1 PN 40

    Dimension:
    DN15 – DN100
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    PV31SSD121L

    Product code: PV31SSD121L

    Pneumatic 3-way diverting control valve ADCA PV303S EN flanged, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner

    • Application

      Saturated and superheated steam,
      Hot and superheated water,
      Thermal oil,
      Air, gases and others

    • Body material

      Carbon steel A216 WCB & Stainless Steel D12 Trim

    • Max. operating pressure

      Up to 13,3 bar (Body design PN16),
      Up to 33,3 bar (Body design PN40), on request

    • Flow rate coefficients

      Kvs 10 to 100 (m³/h)

    • Type & Plug design

      Three-way, desing with diverting plug

    • Stem sealing

      PTFE/GR V-Rings – up to 220ºC (standard),
      Graphite packing – up to 400ºC,
      Stainless steel bellows – up to 400ºC (PMO: 25 bar)

    • Valve sealing

      Metal to metal (class IV), standard

    • Actuator

      Pneumatic Actuator ADCATrol PA series

    • Actuator direction of action

      Air to open (standard) / Air to close

    • Digital Electro-Pneumatic Valve Positioner

      0-10V, 0-5V, 0-20mA or 4-20mA input

    • Connections

      Flanged EN 1092-1 PN 16,
      Flanged EN 1092-1 PN 40

    Dimension:
    DN32 – DN100
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    EV31SSM121L

    Product code: EV31SSM121L

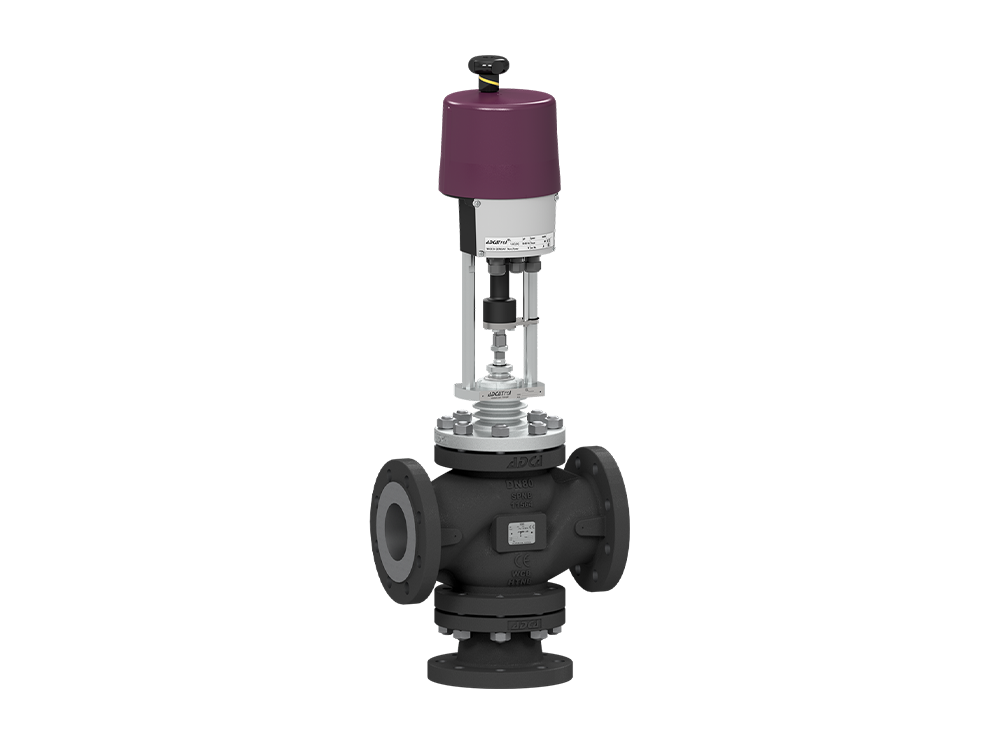

    Electric 3-way mixing control valve ADCA EV303S EN flanged, with electric actuator ADCATrol

    • Application

      Saturated and superheated steam,
      Hot and superheated water,
      Thermal oil,
      Air, gases and others

    • Body material

      Carbon steel A216 WCB & Stainless Steel M12 Trim

    • Max. operating pressure

      Up to 13,3 bar (Body design PN16),
      Up to 33,3 bar (Body design PN40), on request

    • Flow rate coefficients

      Kvs 4 to 160 (m³/h)

    • Type & Plug design

      Three-way, desing with mixing plug

    • Stem sealing

      PTFE/GR V-Rings – up to 220ºC (standard),
      Graphite packing – up to 400ºC,
      Stainless steel bellows – up to 400ºC (PMO: 25 bar)

    • Valve sealing

      Metal to metal (class IV), standard

    • Actuator

      Electric Actuator ADCATrol ELS series

    • Supply voltage

      (230 V AC 50/60 Hz), 0-10V or 4-20mA Input (standard),
      24 V AC, 115 V AC, 230 V AC, 400 V AC 50/60 Hz and 24 V DC

    • Connections

      Flanged EN 1092-1 PN 16,
      Flanged EN 1092-1 PN 40

    Dimension:
    DN15 – DN100
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    EV31SSD121L

    Product code: EV31SSD121L

    Electric 3-way diverting control valve ADCA EV303S EN flanged, with electric actuator ADCATrol

    • Application

      Saturated and superheated steam,
      Hot and superheated water,
      Thermal oil,
      Air, gases and others

    • Body material

      Carbon steel A216 WCB & Stainless Steel D12 Trim

    • Max. operating pressure

      Up to 13,3 bar (Body design PN16),
      Up to 33,3 bar (Body design PN40), on request

    • Flow rate coefficients

      Kvs 10 to 100 (m³/h)

    • Type & Plug design

      Three-way, desing with diverting plug

    • Stem sealing

      PTFE/GR V-Rings – up to 220ºC (standard),
      Graphite packing – up to 400ºC,
      Stainless steel bellows – up to 400ºC (PMO: 25 bar)

    • Valve sealing

      Metal to metal (class IV), standard

    • Actuator

      Electric Actuator ADCATrol ELS series

    • Supply voltage

      (230 V AC 50/60 Hz), 0-10V or 4-20mA Input (standard),
      24 V AC, 115 V AC, 230 V AC, 400 V AC 50/60 Hz and 24 V DC

    • Connections

      Flanged EN 1092-1 PN 16,
      Flanged EN 1092-1 PN 40

    Dimension:
    DN32 – DN100
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    PV31ISM121L

    Product code: PV31ISM121L

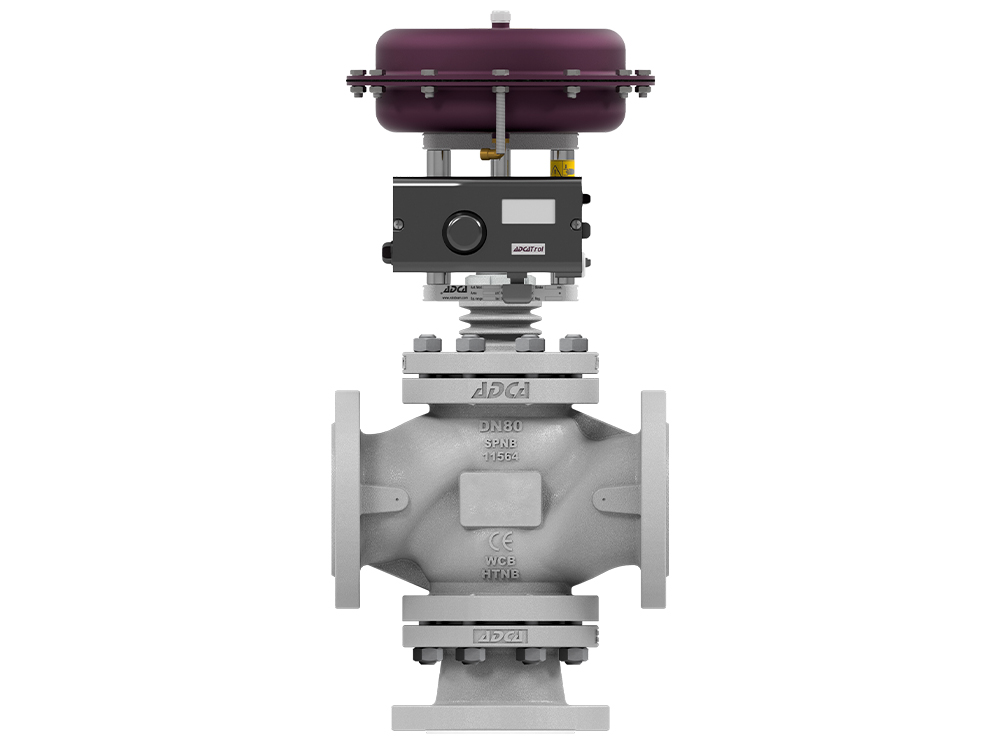

    Pneumatic 3-way mixing control valve ADCA PV303i EN flanged, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner

    • Application

      Saturated and superheated steam,
      Hot and superheated water,
      Thermal oil,
      Air, gases and others

    • Body material

      Stainless Steel A351 CF8M & Stainless Steel M12 Trim

    • Max. operating pressure

      Up to 13,4 bar (Body design PN16),
      Up to 33,7 bar (Body design PN40), on request

    • Flow rate coefficients

      Kvs 4 to 160 (m³/h)

    • Type & Plug design

      Three-way, desing with mixing plug

    • Stem sealing

      PTFE/GR V-Rings – up to 220ºC (standard),
      Graphite packing – up to 400ºC,
      Stainless steel bellows – up to 400ºC (PMO: 25 bar)

    • Valve sealing

      Metal to metal (class IV), standard

    • Actuator

      Pneumatic Actuator ADCATrol PA series

    • Actuator direction of action

      Air to open (standard) / Air to close

    • Digital Electro-Pneumatic Valve Positioner

      0-10V, 0-5V, 0-20mA or 4-20mA input

    • Connections

      Flanged EN 1092-1 PN 16,
      Flanged EN 1092-1 PN 40

    Dimension:
    DN15 – DN100
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    PV31ISD121L

    Product code: PV31ISD121L

    Pneumatic 3-way diverting control valve ADCA PV303i EN flanged, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner

    • Application

      Saturated and superheated steam,
      Hot and superheated water,
      Thermal oil,
      Air, gases and others

    • Body material

      Stainless Steel A351 CF8M & Stainless Steel D12 Trim

    • Max. operating pressure

      Up to 13,4 bar (Body design PN16),
      Up to 33,7 bar (Body design PN40), on request

    • Flow rate coefficients

      Kvs 10 to 100 (m³/h)

    • Type & Plug design

      Three-way, desing with diverting plug

    • Stem sealing

      PTFE/GR V-Rings – up to 220ºC (standard),
      Graphite packing – up to 400ºC,
      Stainless steel bellows – up to 400ºC (PMO: 25 bar)

    • Valve sealing

      Metal to metal (class IV), standard

    • Actuator

      Pneumatic Actuator ADCATrol PA series

    • Actuator direction of action

      Air to open (standard) / Air to close

    • Digital Electro-Pneumatic Valve Positioner

      0-10V, 0-5V, 0-20mA or 4-20mA input

    • Connections

      Flanged EN 1092-1 PN 16,
      Flanged EN 1092-1 PN 40

    Dimension:
    DN32 – DN100
    Price according to configuration
    Available on request
    More about the product

Thank you for your request, our manager will contact you soon!

Thank you for your request, our manager will contact you soon!

ㅤ
