Specifications

• Use

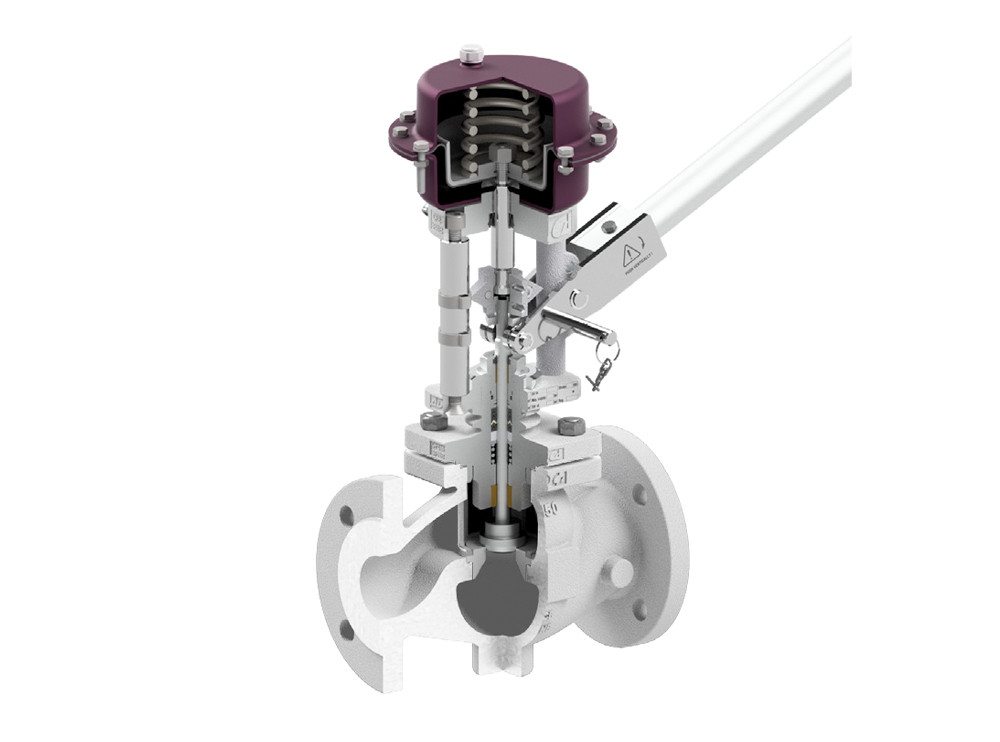

  Intermittent blowdown of steam boilers

• Body material

  Stainless Steel A351 CF8M & Stainless Steel Trim

• Max. operating pressure

  Up to 33,7 bar (Body design PN40)

• Flow rate coefficients

  Kvs 6,3 or 16 (m³/h)

• Type & Trim design

  two-way, balanced trim

• Stem sealing

  PTFE/GR V-Rings – up to 250ºC (standard)

• Valve sealing

  Metal to metal (class IV), standard

• Actuator

  Pneumatic Actuator ADCATrol PA series

• Actuator direction of action

  Air to close (standard)

• Max. air supply pressure

  6 bar

• Connections

  Flanged EN 1092-1 PN 40

• Versions construction

  Valve with actuator only, on request,
  Valve with actuator and hand lever (standard),
  Valve with actuator and foot lever, special order
