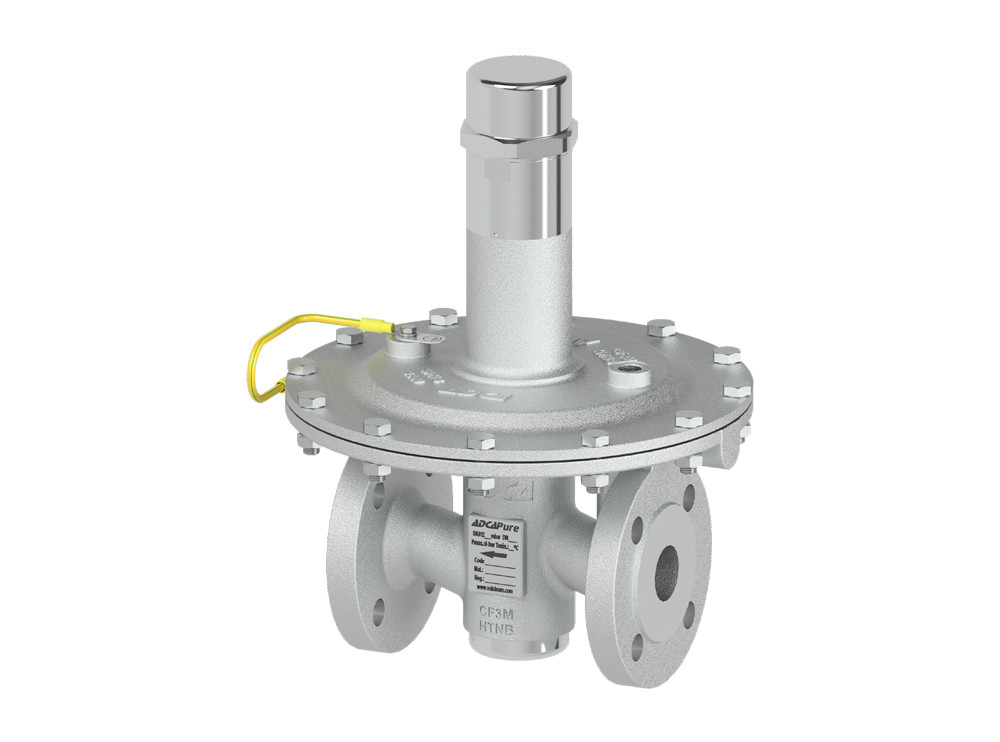

Pressure vent valve for tank blanketing ADCA BKVi2 (De-Padding)

Specifications

  • Application

    Air, nitrogen, argon and other gases

  • Body material

    Stainless steel A351 CF8M

  • Max. upstream pressure

    6 bar (Body design PN16)

  • Min. upstream pressure

    5 mbar

  • Max. operating temperature

    PTFE (Gylon) diaphragm for gases up to 130 ºC

  • Regulating range

    5 to 4000 mbar

  • Air capacities

    Up to 148 (Nm³/h)

  • Connections

    Flanged EN 1092-1 PN 16,
    Flanged ASME B16.5 Class 150 on request

Pressure vent valve for tank blanketing ADCA BKVi2 (De-Padding)

Product code: BKVi2

Available on request

Price according to configuration

Choose your configuration
See all configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)

Quantity

-
+

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

Tank blanketing valves are commonly used in tank storage systems to prevent and protect against explosions (avoiding flammable liquids being vented from the vessel), to control product contamination against external air that may fill the vapour space, to reduce evaporation losses (consequently, production losses), to reduce internal corrosion (caused by air and moisture) and to prevent vacuum condition. The blanketing process consists in covering the stored medium, usually a liquid, with a gas (normally N2).
