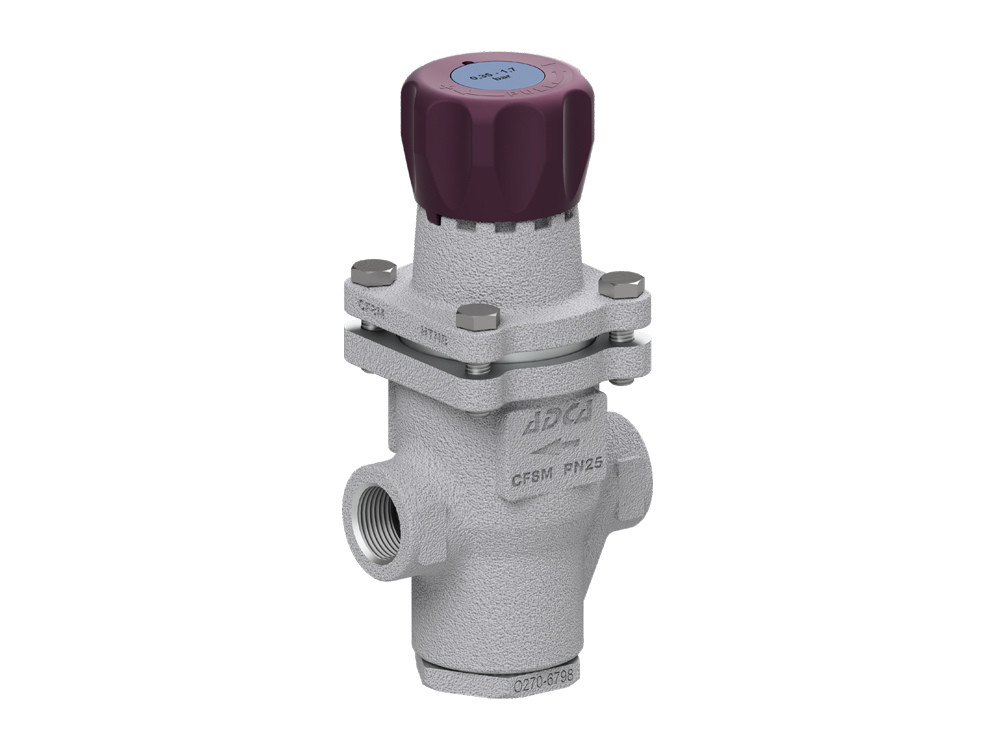

Pressure reducing valve ADCA PRW25/2i direct acting bellows operated, water/gases
Valsteam ADCA
Specifications
-
Application
Water and liquids,
Compressed air and other gases -
Body material
Stainless steel A351 CF8M
-
Max. upstream pressure
Up to 14 bar
-
Max. operating temperature
NBR sealing for water and gases up to 80 ºC
-
Regulating range
0,35 to 8,6 bar
-
Flow rate coefficients
1,7 to 3,1 Kvs
-
Flow rate capacity
Compressed air – Up to 604 (Nm³/h),
Water – Up to 10,15 (m³/h) -
Connections
Female threaded ISO 7 Rp (NPT on request),

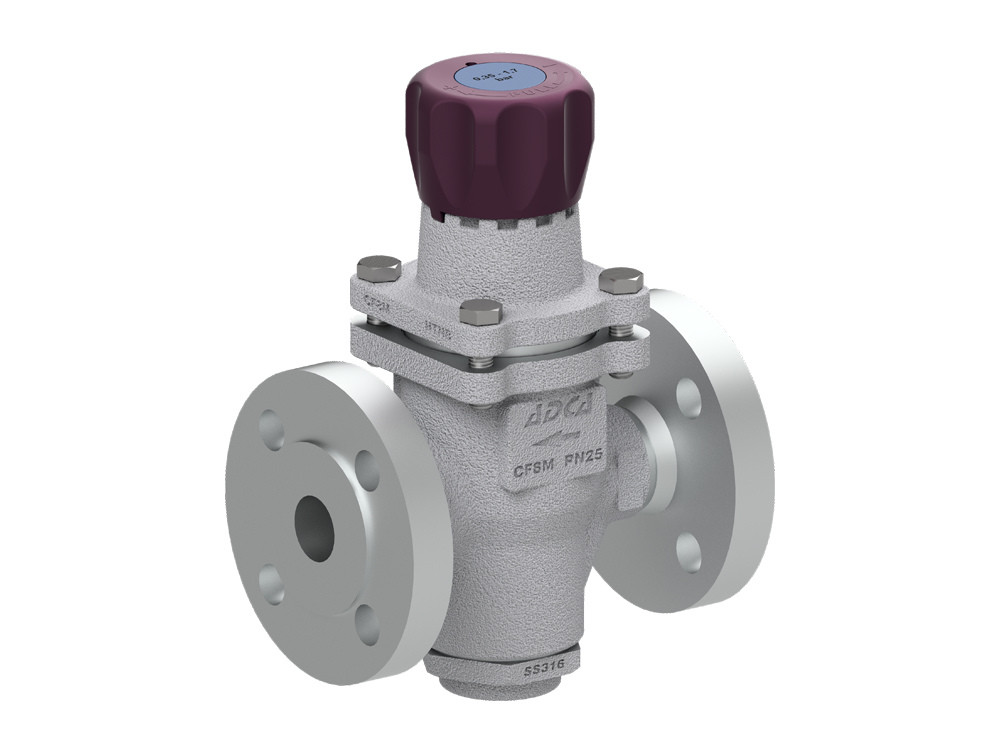

Flanged EN 1092-1 PN 25,
Flanged ASME B16.5 Class 150 on request
Pressure reducing valve ADCA PRW25/2i direct acting bellows operated, water/gases
Product code: PRW25-2i
Available on request
Price according to configuration
