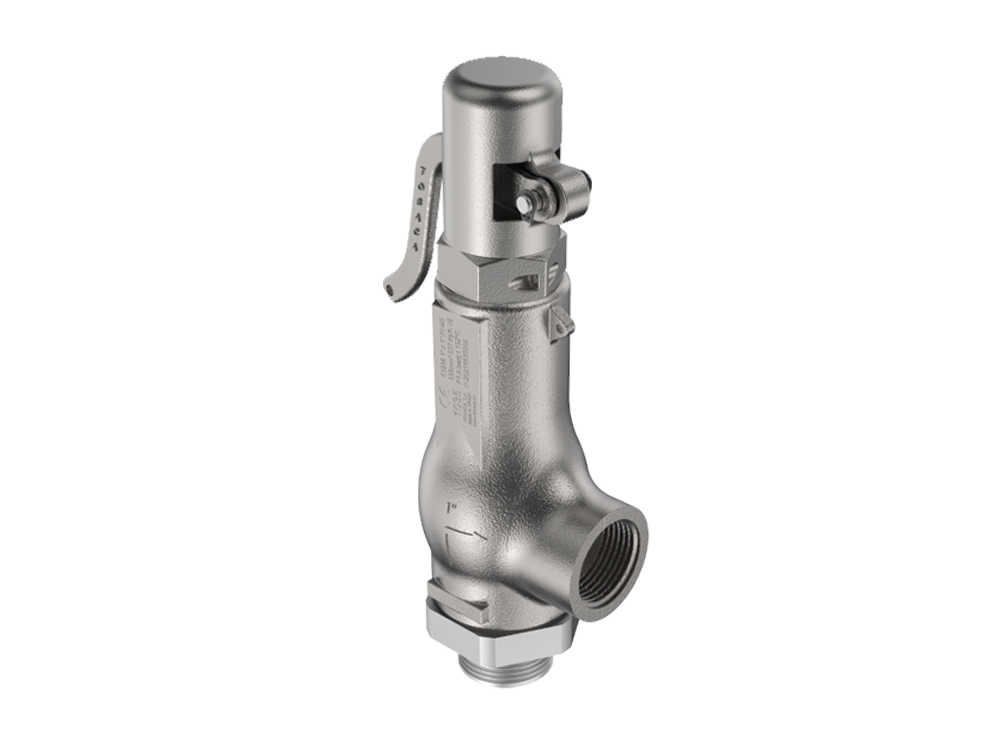

Safety relief valve Tosaca 1216 threaded, direct acting spring-loaded for steam, liquid and gas service, gas tight
Tosaca
Specifications
-
Application
Steam,
Liquids,
Air, gases and vapours,
Oxygen (degreased) -
Body material
Stainless steel 316L
-
Max. operating pressure
Up to 40 bar (Body design PN40)
-
Set pressure range
0,2 up to max. 40 barg
-
Temperature range
-20°C up to +350°C
-
Seal
Metal (standard),
PTFE,
Viton -
Lifting
Available in Lever or Dome Top
-
Design type
Angle type; Direct spring loaded; Full lift safety valve
-
Cap
Gastight; Packed; Plain
-
Connections
Female threaded ISO 7 Rp PN 40 (NPT on request)
Safety relief valve Tosaca 1216 threaded, direct acting spring-loaded for steam, liquid and gas service, gas tight
Product code: Mod.1216SS
Available on request
Price according to configuration
Choose your configuration
- 1/2” x 3/4”
- 1/2” x 1”
- 3/4” x 1”
- 1” x 1”
- 1” x 1.1/4”
- 1” x 2”
- 1.1/2” x 2”
- 2” x 2”
- 0,2 - 1 bar
- 1,1 - 2 bar
- 2,1 - 4 bar
- 4,1 - 8,6 bar
- 8,7 - 22 bar
- 22,1 - 40 bar
- with lever
- Threaded
See all configuration
