Specifications

• Application

  steam, hot condensate, cold and hot water, high-temperature oil, petroleum productsand other fluids

• Shell material

  STV/S – carbon steel shell,
  STV/SS – completely in stainless steel

• Tube material

  extruded low-finned tubes made of AISI 316L stainless steel

• Max. operating pressure

  up to 13 bar for saturated steam

• Max. operating temperature

  for saturated steam: 250°C

• Min. operating temperature

  -10 ºC

• Total heat exchange area

  from 0,5 to 300 m²

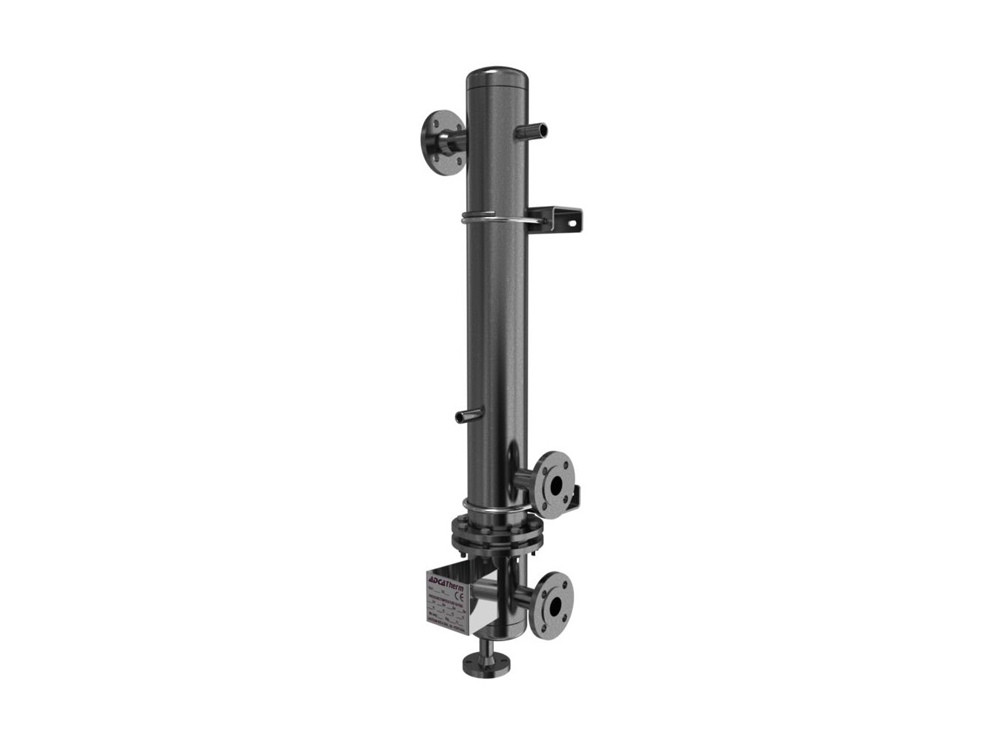

• Type

  shell and tube, half-welded, vertical installation

• Non-standard design

  available on request; custom flanges, made to order

• Connections

  Flanged EN 1092-1 PN 16,
  Female threaded ISO 7 Rp (NPT on request),
  Flanged ASME B16.5 Class 150 on request
