Boiler blowdown expansion and cooling unit ADCA BEX

Specifications

Function

Designed for handling the short bursts of intermittent blowdown from the steam boiler and other hot water drains.,
They allow the flash steam to separate and to vent safely to the atmosphere through the exhaust head
Use

Boiler blowdown and hot waste water
Body material

Carbon steel or stainless steel
Max. operating pressure

0,5 bar
Max. operating temperature

120 ºC
Min. operating temperature

-10 ºC
Tank capacity, (L)

BEX15 – 22,9; BEX30 – 56,9; BEX40 – 92; BEX50 – 251; BEX60 – 393; BEX80 – 767
Supports

Installation supporting feet floor
Non-standard design

Flash steam condensing spray system.,
Manifold with several inlets for multi-boiler installations.,
Fitted with support brackets for elevated installation.,
For non-standard models , please consult
Connections

Flanged EN 1092-1 PN 16,
Flanged ASME B16.5 Class 150 on request

Boiler blowdown expansion and cooling unit ADCA BEX

Product code: A.75.2050.000

Available on request

Price according to configuration

Choose your configuration

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

-

+

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

Boiler blowdown expansion and cooling unit ADCA BEX

The ADCA BEX series blowdown expansion and cooling units are used in modern boiler houses to cool hot waste water and steam boiler blowdown before discharging them into a pit or drain.

OPERATION

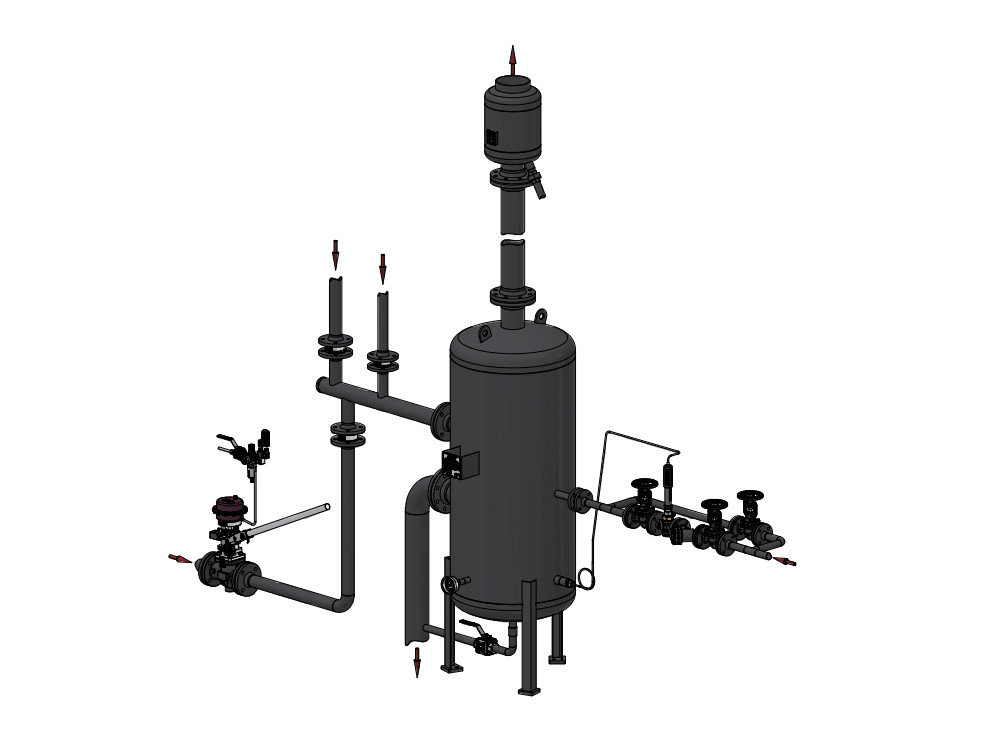

The waste water is discharged into the unit, which is at atmospheric pressure, and the cooling water enters through a control valve controlled by a thermostat, mixing it with the hot water.

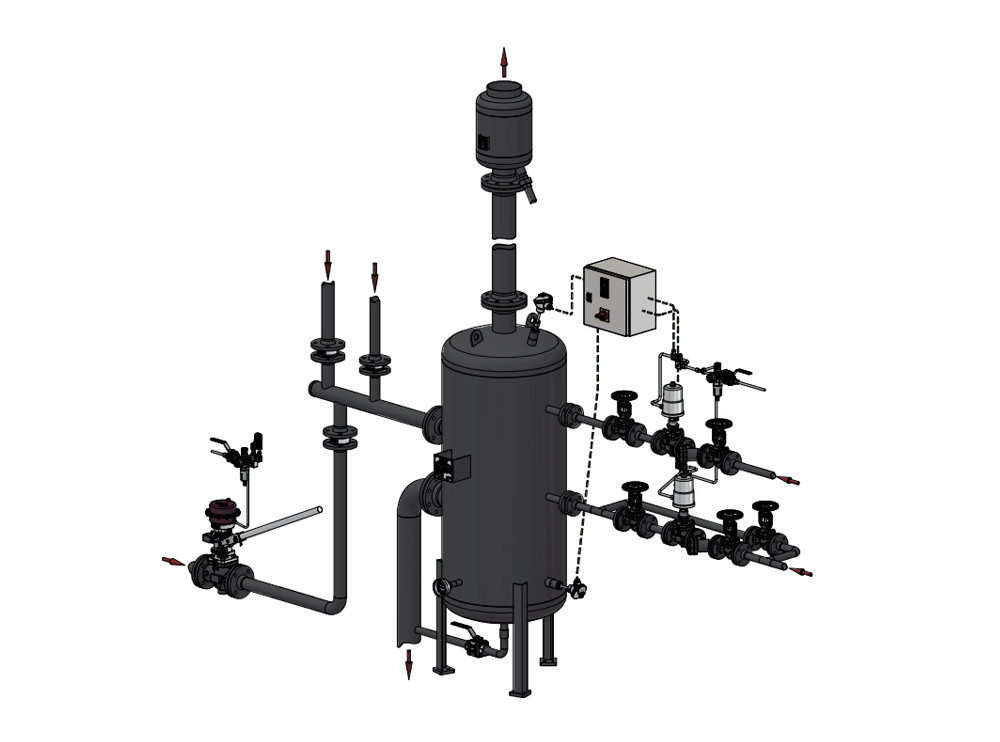

If flash steam can not be recovered or discharged to atmosphere, an additional condensing water spray system can be supplied. It is fitted into the top of the unit and can be controlled directly, either by another thermostat, or by the same command used for the automatic blowdown valve control.

BEX boiler blowdown expansion and cooling units are designed for handling the short bursts of intermittent blowdown from the steam boiler and other hot water drains.

They allow the flash steam to separate and to vent safely to the atmosphere through the exhaust head.

Cooling water is injected in the vessel bottom but an additional flash steam cooler can be installed for better performance.

For non standard models , please consult.

MAIN FEATURES

Prevents thermal pollution.

Overflow with siphon breaker.

Easy to install.

Reduces the flow of flash steam.

OPTIONS

Flash steam condensing spray system.

Stainless steel construction.

Complete system including all the necessary equipment (stop and check valves, thermostats, exhaust head, etc).

Manifold with several inlets for multi-boiler installations.

Manhole or handhole for inspection.

Fitted with support brackets for elevated installation.
