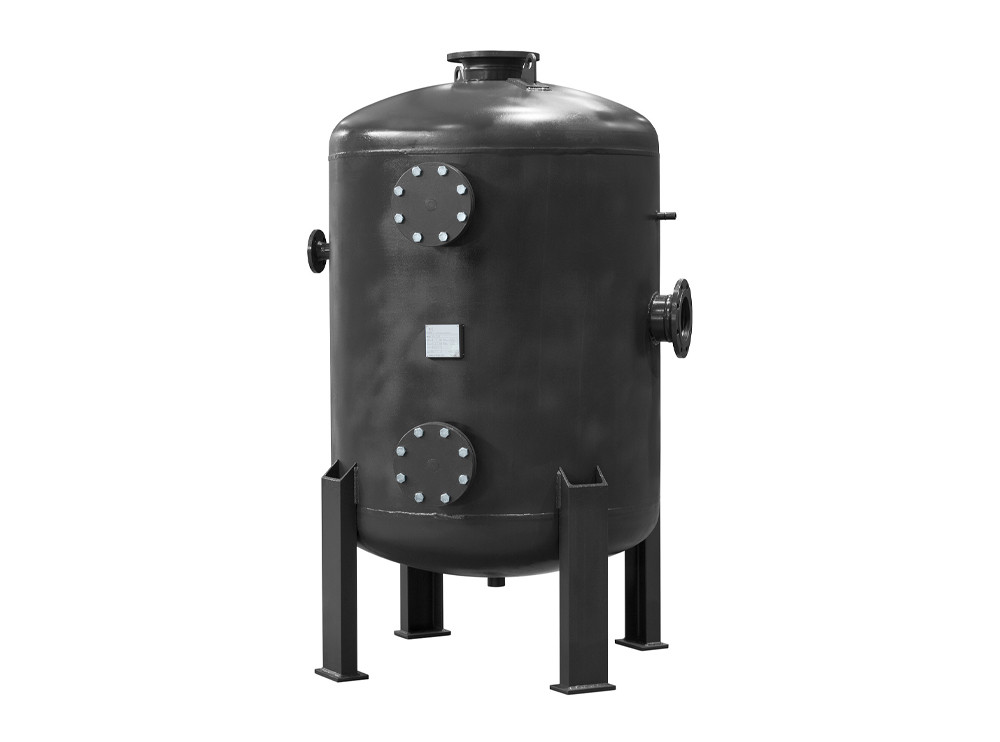

Boiler blowdown expansion vessel ADCA BV

Specifications

Function

The boiler blowdown expansion vessels are designed for handling the short bursts of intermittent blowdown from the steam boiler and other hot water drains,
They allow the flash steam to separate and to vent safely to the atmosphere through the exhaust head
Use

Boiler blowdown and hot waste water
Body material

Carbon steel or stainless steel
Max. operating pressure

7 bar
Max. operating temperature

180 ºC
Min. operating temperature

20 ºC
Tank capacity, (L)

BV3 – 249; BV4 – 373; BV5 – 598; BV6 – 978; BV7 – 1812
Supports

Installation supporting feet floor
Non-standard design

Water injection cooling system,
Manifold with several inlets for multi-boiler installations,
For non-standard models , please consult
Connections

Flanged EN 1092-1 PN 16,
Flanged ASME B16.5 Class 150 on request

Boiler blowdown expansion vessel ADCA BV

Product code: A.75.2100.BV

Available on request

Price according to configuration

Choose your configuration

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

-

+

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

Boiler blowdown expansion vessel ADCA BV

The ADCA BV series blowdown vessels are used in modern boiler houses to cool hot waste water and steam boiler blowdown before discharging into a pit or drain. If flash steam can not be recovered or discharged to the atmosphere, an optional condensing water spray system can be supplied. It is fitted into the top of the unit and can be controlled by, e.g., a thermostat.

The boiler blowdown expansion vessels are designed for handling the short bursts of intermittent blowdown from the steam boiler and other hot water drains.

They allow the flash steam to separate and to vent safely to the atmosphere through the exhaust head.

An additional water cooler and flash steam cooler can be installed for better performance.

MAIN FEATURES

Prevents thermal pollution.

Overflow with siphon breaker.

Easy to install.

Reduces the flow of flash steam.

OPTIONS

Water injection cooling system.

Stainless steel construction.

Complete system including all the necessary equipment (stop and check valves, thermostats, exhaust head, etc).

Manifold with several inlets for multi-boiler installations.

Manhole for inspection.
