Valsteam ADCA

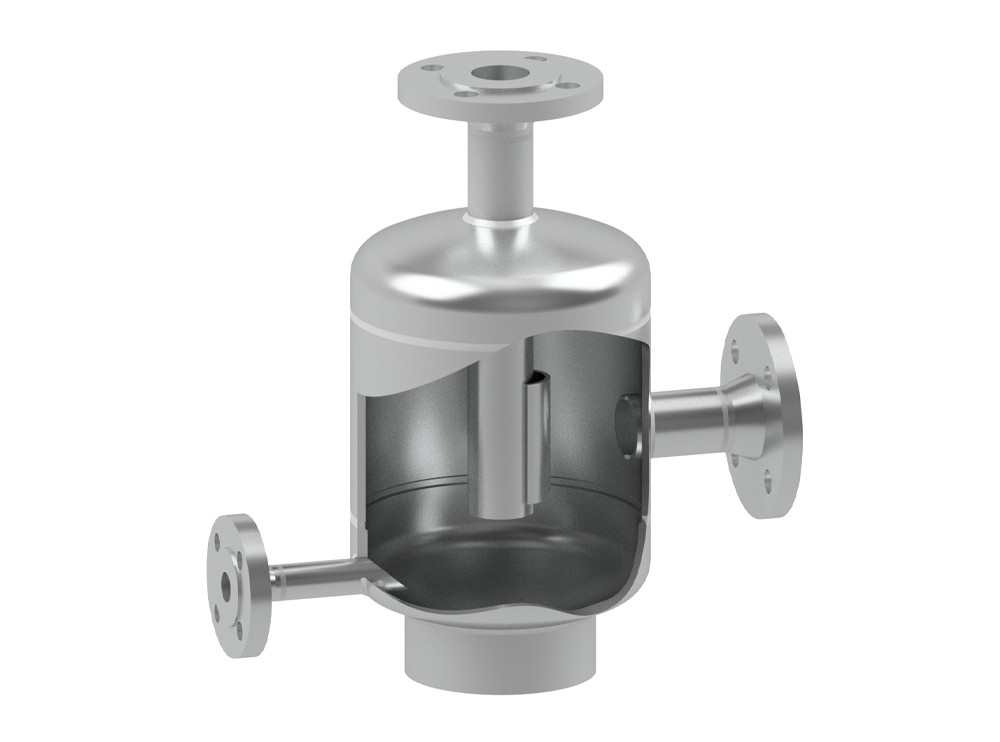

Condensate lifting pot ADCA LIPO/SS

Specifications

  • Function

    The equipment is used for lifting the condensate from steam to more elevated condensate mains, quietly and without water hammer

  • Application

    Lifting condensate to condensate mains

  • Body material

    LIPOSS – Welded stainless steel

  • Max. operating pressure

    12 bar (Body design PN16),
    18 bar (Body design PN40)

  • Max. operating temperature

    250°C (PN16 and PN40)

  • Supports

    Installation supporting feet floor

  • Connections

    Flanged EN 1092-1 PN 16 and PN 40,
    Flanged ASME B16.5 Class 150 or 300, on request

Condensate lifting pot ADCA LIPO/SS

Product code: A.67.5100.000

Available on request

Price according to configuration

Choose your configuration
See all configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)

Quantity

-
+

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

Condensate lifting pot ADCA LIPO/S - PN 16 Carbon steel.

The LIPO series of condensate lifting pots are designed for installation in steam and condensate systems. They are particularly used in condensate lines where condensate must be transported without causing water hammers and noise and lifted to elevated condensate mains.
When condensate is lifted to an elevated condensate mains, the flash steam formed at the outlet of the steam trap will condense due to sudden contact with condensate at a much lower temperature. The steam bubbles implode, reducing their volume while passing to the liquid state. Vacuum is then suddenly formed pulling violently the surrounding condensate which causes pressure shocks and water hammer.
The LIPO prevents this phenomenon from happening, by maintaining an air and flash steam cushion in the upper part of the lifting pot to absorb these shocks, while in the bottom the condensate operates as a sealing liquid. The condensate flowing inside the LIPO is thus pushed by the pressure inside to the elevated condensate mains.
