Specifications

• Body design

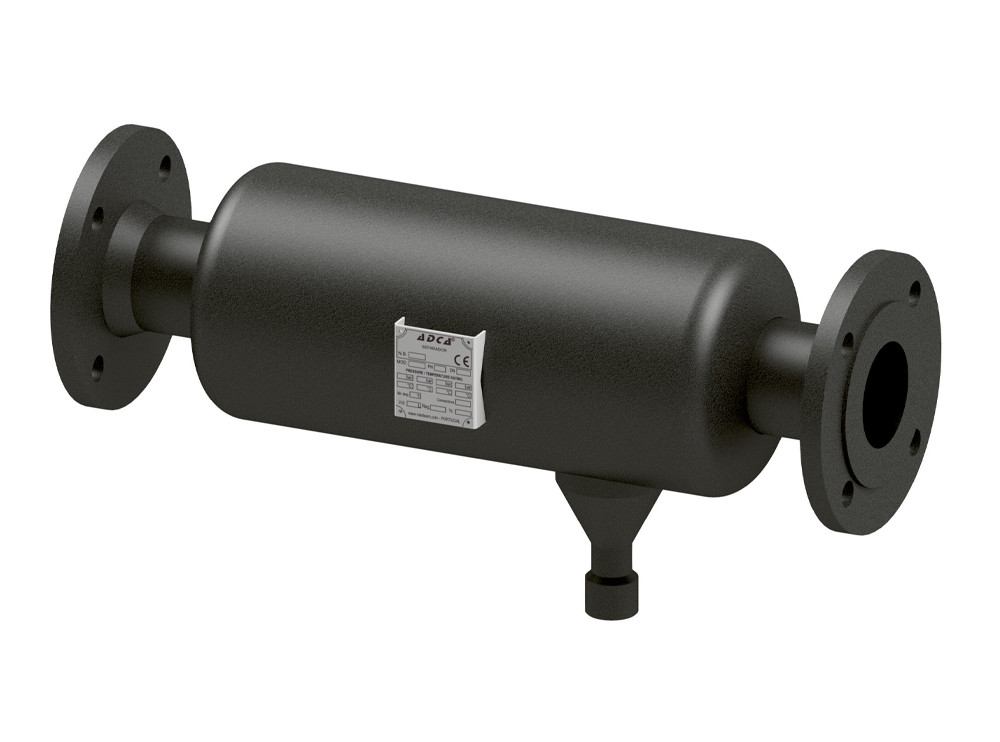

  Horizontal body construction

• Application

  Steam,
  Compressed air,
  Other gases

• Body material

  Carbon Steel P235GH

• Max. operating pressure

  for saturated steam: up to 13 bar (Body design PN16),
  for saturated steam: up to 31 bar (Body design PN40)

• Max. operating temperature

  for saturated steam: 300°C

• Min. operating temperature

  -10°C

• Drainer bore diameter

  1/2” – 1” (depending on the selected size),
  *EN flanged versions available on request

• Connections

  Flanged EN 1092-1 PN 16 (PN40 available on request),
  Flanged ASME B16.5 Class 150 or 300 on request
