Valsteam ADCA
Product code: ECV150SS2T10SS

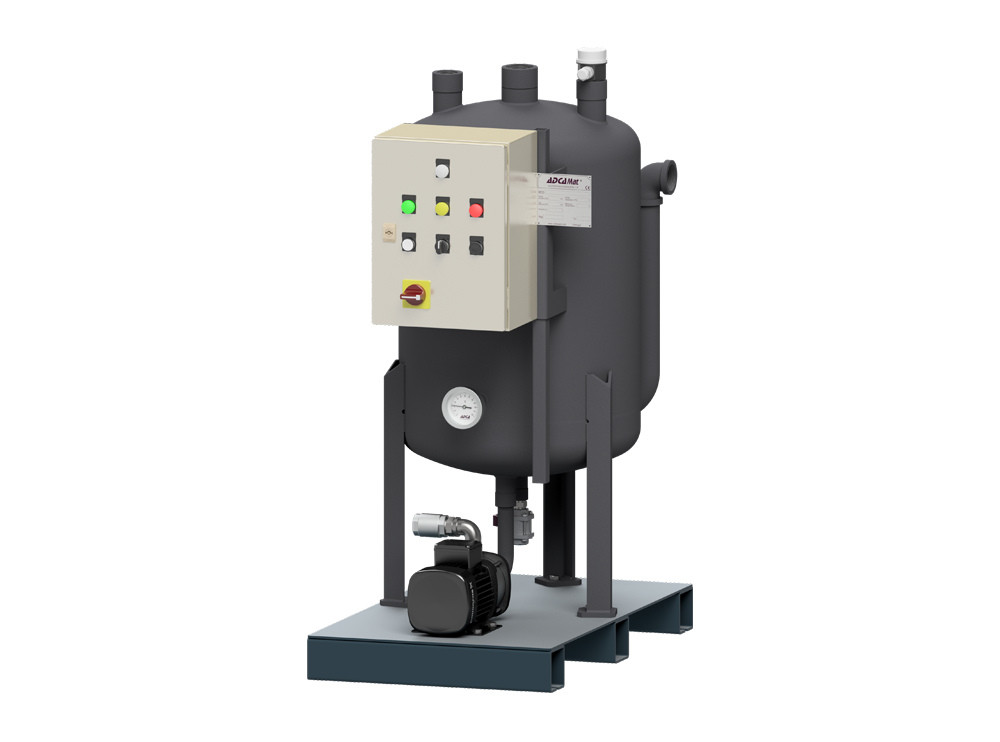

ADCAMat® Electric condensate recovery unit ADCA ECRUV (vertical design)
-
Application
hot condensate
-
Material
Condensate vessel material – Carbon steel,
Metal frame – Fabricated carbon steel,
Pipework, valves and ancillaries – Carbon steel -
Max. operating temperature
hot condensate up to 98 ºC
-
Vessel capacity
150 liters,
225 liters -
Delivery head
10 metres
-
Max. flow rate
2 m³/h (with 150 L vessel),
4 m³/h (with 225 L vessel),
*mentioned flow at the delivery head in 10 meters -
Electric pumps
Single pump (3~ 380 – 415 V, 50 Hz)
-
Control panel
Control panel, conductive switches and wiring
Dimension:
1.1/2” – 2”; DN40 – DN50Price according to configurationAvailable on requestMore about the product -
-
Valsteam ADCA
Product code: EC225SD2T10SS

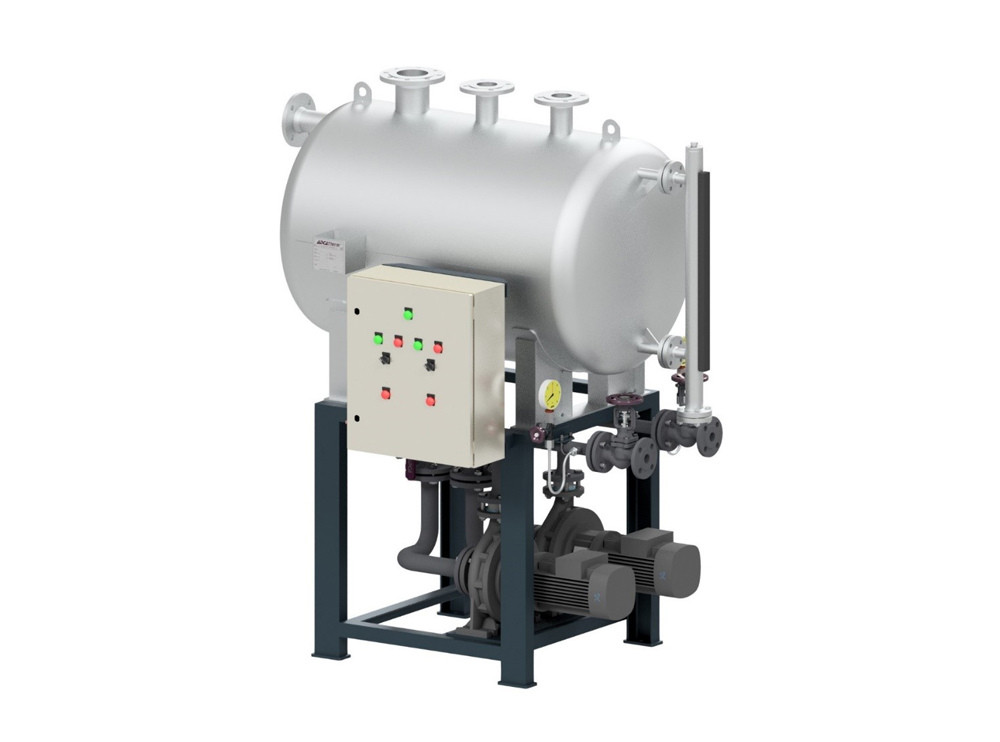

ADCAMat® Electric condensate recovery unit ADCA ECRU (Duplex design)
-
Application
hot condensate
-
Material
Condensate vessel material – Carbon steel,
Metal frame – Fabricated carbon steel,
Pipework, valves and ancillaries – Carbon steel -
Max. operating temperature
hot condensate up to 98 ºC
-
Vessel capacity
Max.: up to 850 liters,
Min.: from 225 liters -
Delivery head
Max.: up to 30 metres,
Min.: from 10 metres -
Max. flow rate
2 m³/h (with 225L vessel) and 10 m delivery head,
4 m³/h (with 225L vessel) and 10 m delivery head,
10 m³/h (with 600L vessel) and 10 m delivery head,
10 m³/h (with 600L vessel) and 20 m delivery head,
10 m³/h (with 600L vessel) and 30 m delivery head,
20 m³/h (with 600L vessel) and 10 m delivery head,
30 m³/h (with 850L vessel) and 10 m delivery head,
30 m³/h (with 850L vessel) and 20 m delivery head. -
Electric pumps
Two pumps (3~ 380 to 415 V, 50 Hz),
Single pump (non standard) (3~ 380 to 415 V, 50 Hz) -
Control panel
Control panel, magnetic level indicator, bi-stable switches and wiring
Dimension:
DN50 – DN100Price according to configurationAvailable on requestMore about the product -
-
Valsteam ADCA
Product code: EC225ID2T10IIIT

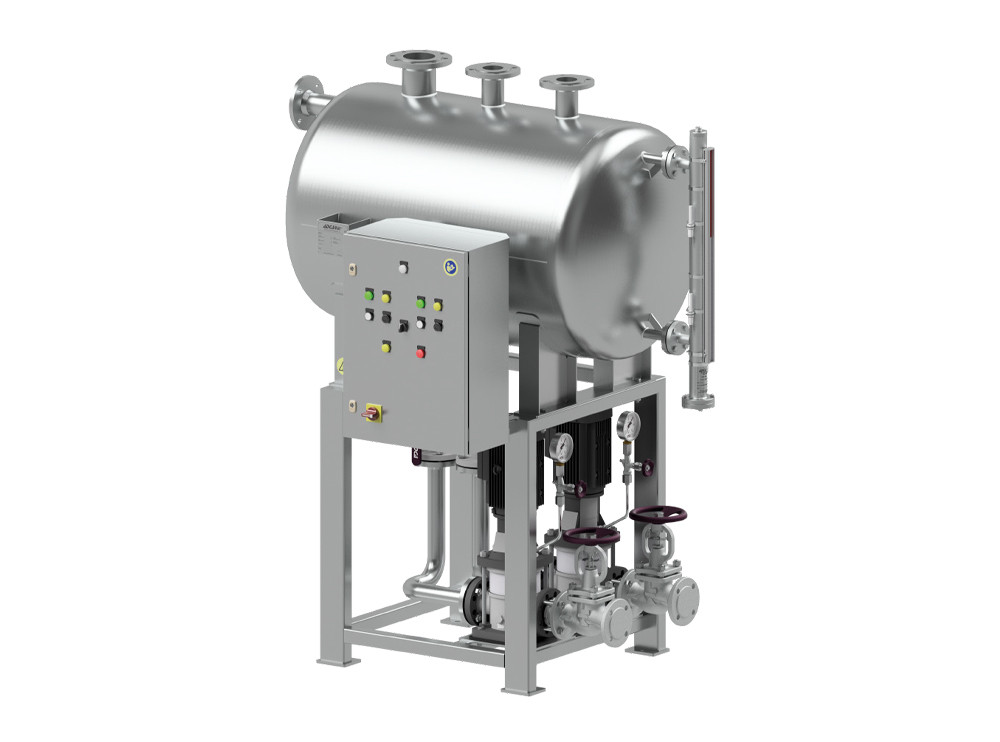

ADCAMat® Electric condensate recovery unit ADCA ECRU (ATEX design) with full stainless steel construction
-
Application
hot condensate
-
Material
Condensate vessel material – Stainless steel,
Metal frame – Fabricated stainless steel,
Pipework, valves and ancillaries – Stainless steel -
Max. operating temperature
hot condensate up to 98 ºC
-
Vessel capacity
Max.: up to 850 liters,
Min.: from 225 liters -
Delivery head
Max.: up to 30 metres,
Min.: from 10 metres -
Max. flow rate
2 m³/h (with 225L vessel) and 10 m delivery head,
4 m³/h (with 225L vessel) and 10 m delivery head,
10 m³/h (with 600L vessel) and 10 m delivery head,
10 m³/h (with 600L vessel) and 20 m delivery head,
10 m³/h (with 600L vessel) and 30 m delivery head,
20 m³/h (with 600L vessel) and 10 m delivery head,
30 m³/h (with 850L vessel) and 10 m delivery head,
30 m³/h (with 850L vessel) and 20 m delivery head. -
Electric pumps
Two pumps in stainless steel (3~ 380 to 415 V, 50 Hz),
Single pump in stainless steel (non standard) (3~ 380 to 415 V, 50 Hz) -
Control panel
Control panel with stainless steel enclosure, magnetic level indicator, bi-stable switches and wiring
Dimension:
DN50 – DN100Price according to configurationAvailable on requestMore about the product -
