Packaged pump units by an pressure operated pumping

Use

To lift* steam condensate and other liquids,
*Transfer, discharge, drain, filling, outlet, lifting

Motive fluid (medium)

Saturated steam,
compressed air,
nitrogen and other gases

Pumped fluid (medium)

Steam condensate,
diathermic oil, Diesel and petroleum products,
other liquids compatible with the construction

Body material

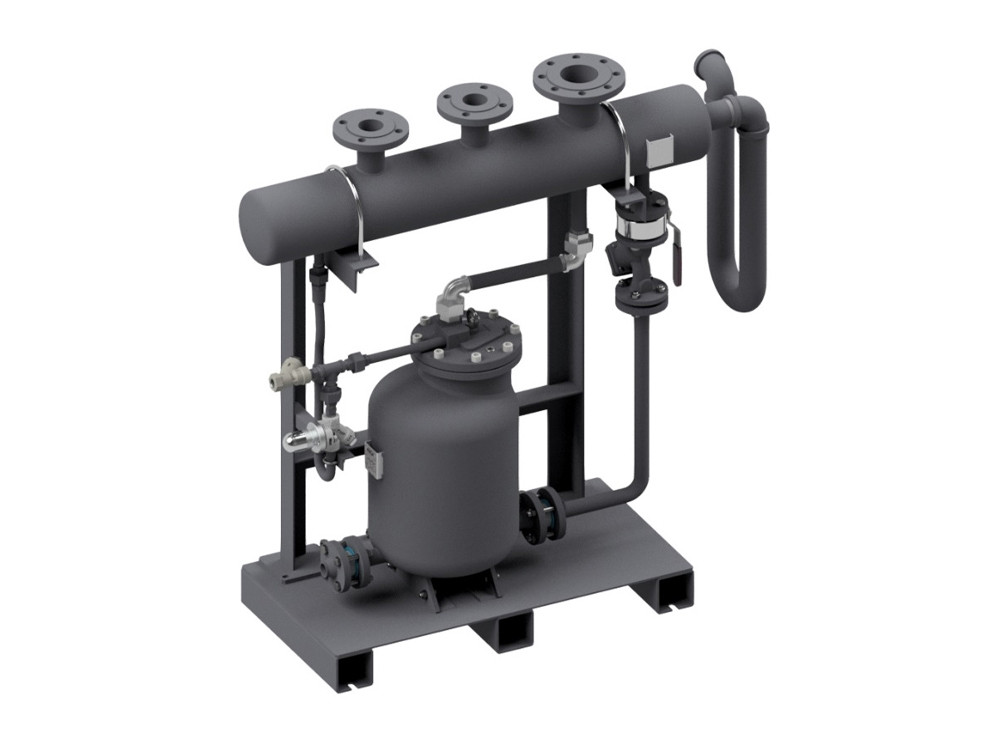

Carbon steel packaged units – model POPS-K,
Stainless steel packaged units – model POPSS-K

Pump model

Based on one ADCAMat POP* mechanical pump,
*PPA14, PPA312, PPO14 pump models, on request

Motive inlet pressure

Max.: 10 bar,
Min.: 0,5 bar

Receiver – Max. operating pressure

0,5 bar

Fluid operating temperature

Max.: 185 °C,
Min.: 20 °C

Flow rate (Condensate load)

Max.: up to 6080 kg/h,
Min.: 660 kg/h

Pump discharge per cycle

up to 25 (L)

Connections

Flanged EN 1092-1 PN 16,
Flanged ASME B16.5 Class 150, on request,
Female threaded ISO 7 Rp (threaded flanges), on request

Use

To lift* steam condensate and other liquids,
*Transfer, discharge, drain, filling, outlet, lifting

Motive fluid (medium)

Saturated steam,
compressed air,
nitrogen and other gases

Pumped fluid (medium)

Steam condensate,
diathermic oil, Diesel and petroleum products,
other liquids compatible with the construction

Body material

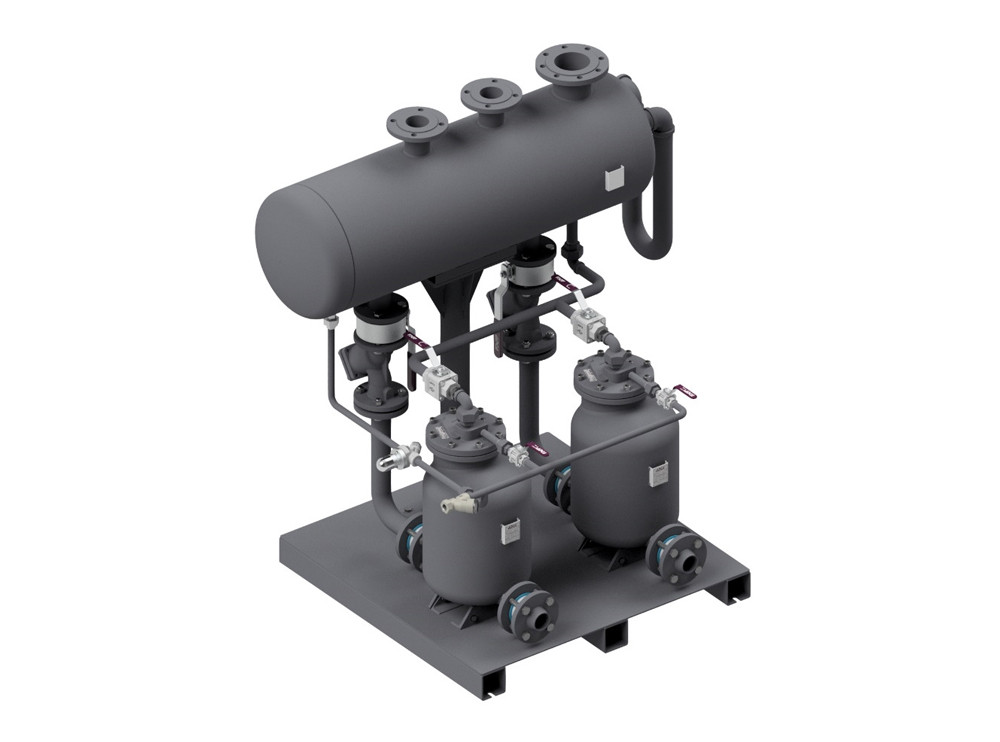

Carbon steel packaged units – model POPS-KD,
Stainless steel packaged units – model POPSS-KD

Pump model

Based on two ADCAMat POP mechanical pumps

Motive inlet pressure

Max.: 10 bar,
Min.: 0,5 bar

Receiver – Max. operating pressure

0,5 bar

Fluid operating temperature

Max.: 185 °C,
Min.: 20 °C

Flow rate (Condensate load)

Max.: up to 12160 kg/h

Packaged unit discharge per cycle (approx.)

up to 50 (L)

Connections

Flanged EN 1092-1 PN 16,
Flanged ASME B16.5 Class 150, on request,
Female threaded ISO 7 Rp (threaded flanges), on request

Use

To lift* steam condensate and other liquids,
*Transfer, discharge, drain, filling, outlet, lifting

Motive fluid (medium)

Saturated steam,
compressed air,
nitrogen and other gases

Pumped fluid (medium)

Steam condensate,
diathermic oil, Diesel and petroleum products,
other liquids compatible with the construction

Body material

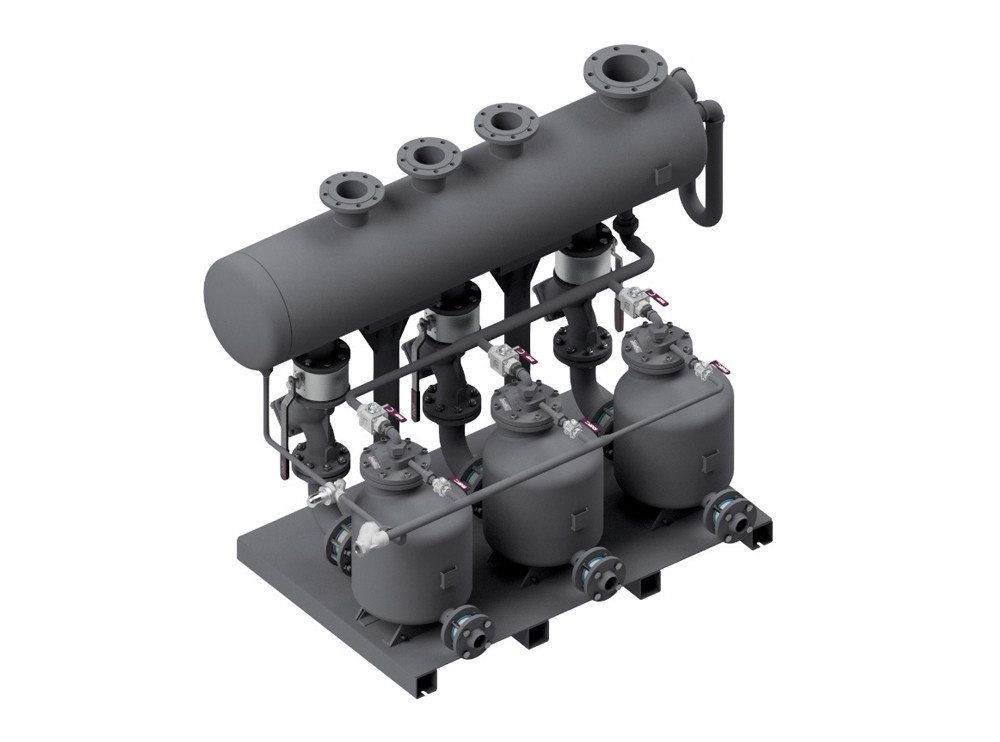

Carbon steel packaged units – model POPS-KT,
Stainless steel packaged units – model POPSS-KT

Pump model

Based on three ADCAMat POP mechanical pumps

Motive inlet pressure

Max.: 10 bar,
Min.: 0,5 bar

Receiver – Max. operating pressure

0,5 bar

Fluid operating temperature

Max.: 185 °C,
Min.: 20 °C

Flow rate (Condensate load)

Max.: up to 18240 kg/h

Packaged unit discharge per cycle (approx.)

up to 75 (L)

Connections

Flanged EN 1092-1 PN 16,
Flanged ASME B16.5 Class 150, on request,
Female threaded ISO 7 Rp (threaded flanges), on request

Use

Drain and lift* steam condensate from heat exchangers, among others,
*Transfer, discharge, drain, filling, outlet, lifting

Motive fluid (medium)

Saturated steam,
compressed air,
nitrogen and other gases

Pumped fluid (medium)

Steam condensate,
diathermic oil, Diesel and petroleum products,
other liquids compatible with the construction

Body material

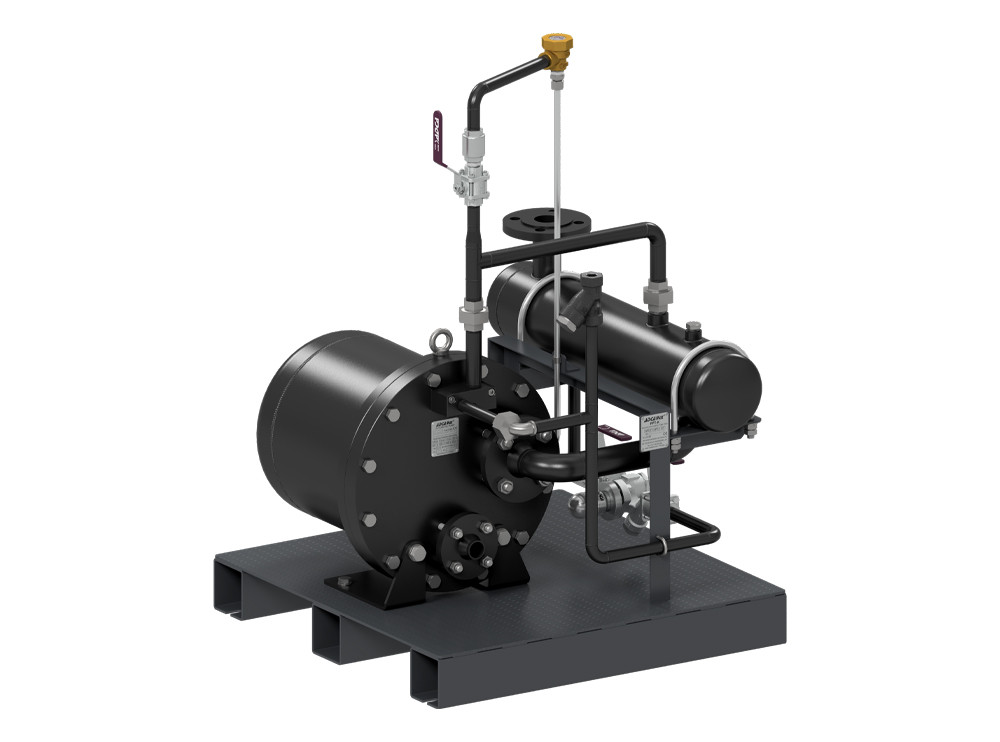

Carbon steel packaged units – model PPTS-K,
Stainless steel packaged units – model PPTSS-K

Pump model

Based on one ADCAMat PPT14 pump trap

Motive inlet pressure

Max.: 10 bar,
Min.: 0,5 bar

Receiver – Max. operating pressure

0,5 bar

Fluid operating temperature

Max.: 185 °C,
Min.: 20 °C

Trap discharge capacity (approx.)

Max.: up to 10100 kg/h

Pump discharge capacity (approx.)

Max.: up to 1830 kg/h

Pump discharge per cycle

up to 11 (L) one volume for all dimension

Connections

Flanged EN 1092-1 PN 16,
Flanged ASME B16.5 Class 150, on request,
Female threaded ISO 7 Rp (threaded flanges), on request
