Specifications

• Application

  For boiler water, Steam or condensate sampling

• Material

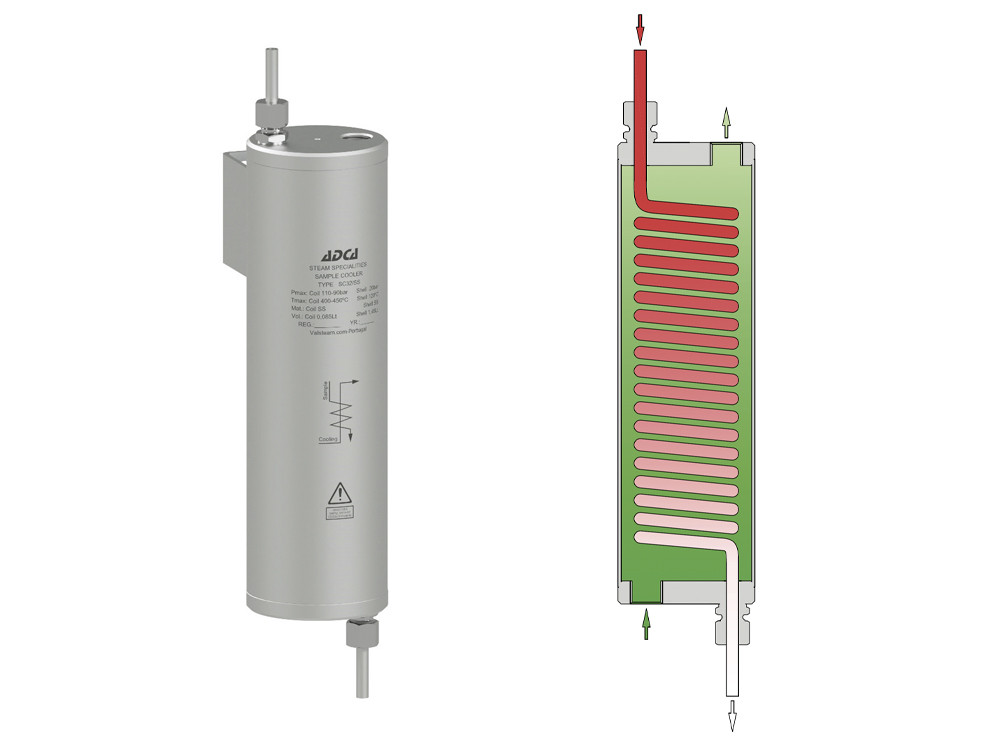

  SC32/SS and SC132/SS – stainless steel body and coil.

• Available models

  SC32/SS – coil length 300 mm,
  SC132/SS – coil length 400 mm;

• Max. operating pressure

  20 bar (body) / 110 bar (coil)

• Max. operating temperature

  120 ºC (body) / 450 ºC (coil)

• Flow rate capacity

  30 to 60 kg/h of sample liquid at ≈30 ºC with 1 m³/h of inlet cooling water at 15 ºC.

• Cooling water inlet and outlet connections

  1/2” on body (female threaded ISO 7 Rp and NPT on request)

• Sample tube inlet and outlet connections

  Tube ∅ 8 mm. on sample inlet/outlet
