Home → Catalogue → Steam equipment → ADCAMix® Steam Injector ADCA SI20

Valsteam ADCA

Specifications

Use

Heating via direct steam injection
Application

Saturated and superheated steam
Body material

Stainless steel AISI 304
Max. operating pressure

for saturated steam: up to 8,5 bar
Max. operating temperature

for saturated steam: 180 ºC
Flow rate capacity

up to 300 kg/h of saturated steam
Connections

Female threaded ISO 7 Rp (NPT on request)

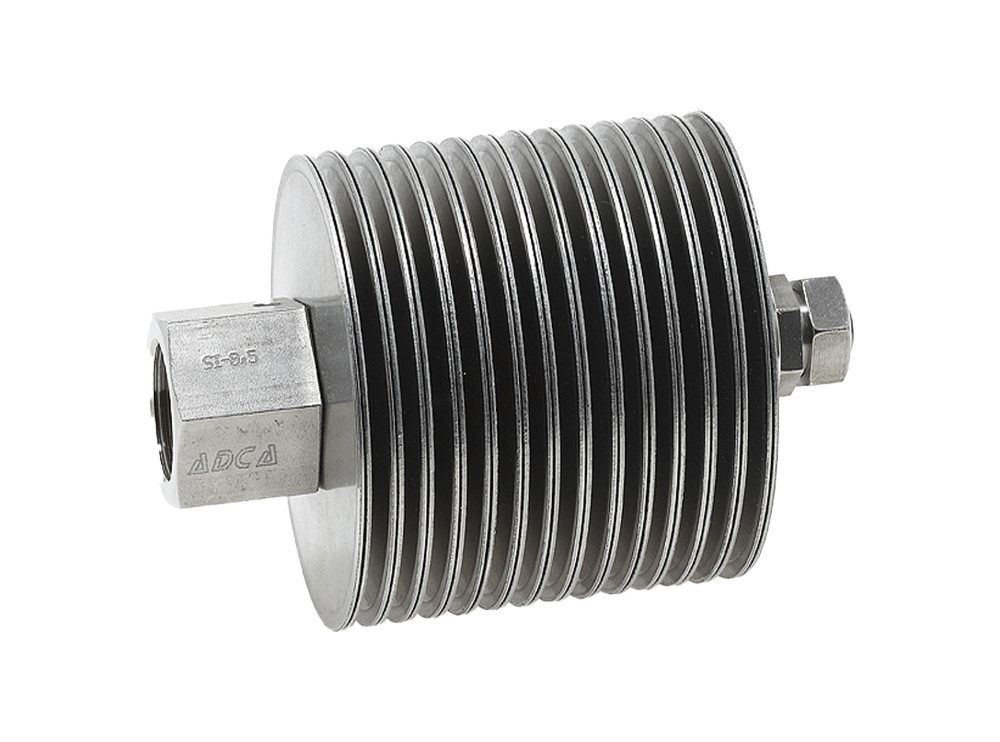

ADCAMix® Steam Injector ADCA SI20

Product code: A.57.6500.000

Available on request

Price according to configuration

Choose your configuration

Max. operating pressure *

Choose on Option...

4 bar
5,5 bar
7 bar
8,5 bar

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

See all configurations

Model Max. operating pressure Ref Price Quantity

ADCAMix® Steam injector ADCA SI20 3/4” BSP PMO=4 bar 4 bar A.57.6500.204 €316.20

ADCAMix® Steam injector ADCA SI20 3/4” BSP PMO=5,5 bar 5,5 bar A.57.6500.205 €316.20

ADCAMix® Steam injector ADCA SI20 3/4” BSP PMO=7 bar 7 bar A.57.6500.207 €316.20

ADCAMix® Steam injector ADCA SI20 3/4” BSP PMO=8,5 bar 8,5 bar A.57.6500.208 €316.20

The ADCAMix SI20 is a series of direct steam injectors designed for low noise heating of still or flowing mediums, inside basins and vessels.
Steam enters through the inlet connection and passes along the center of the device through holes in the inner rings until reaching the element plates, where most of the steam condenses. The condensate is then discharged at low velocity through the hundreds of serrated apertures in the periphery of the element plates and into the cool medium.
Under heavy loads if any steam passes through the periphery of the element plates, it will do so in very small jets, thus condensing in the surrounding liquid with very little noise and vibration.
