Bimetallic steam traps

Refine

Show:
10 per page
  • 10 products per page
  • 25 products per page
  • 50 products per page
Sort:
Relevance
  • Relevance
  • Created at
  • Product code
  • Name
  • Available

  • Valsteam ADCA

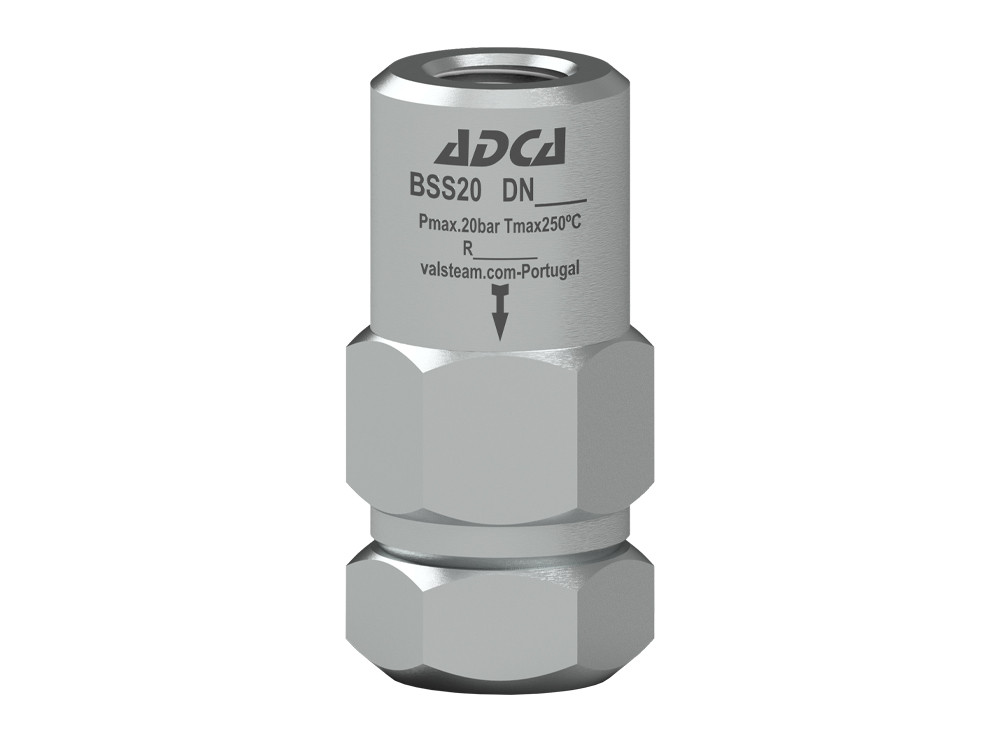

    BSS20

    Product code: BSS20

    Bimetallic steam trap ADCA BSS20

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Stainless steel

    • Max. operating pressure

      20 bar

    • Min. operating pressure

      0,6 bar

    • Max. operating temperature

      250 ºC

    • Differential pressure

      Delta P: 20 bar

    • Flow rate capacity

      Hot condensate discharge 10 ºC below saturation temperature: Up to 330 kg/h,
      Cold condensate discharge at 20 ºC: Up to 1120 kg/h

    • Connections

      Female threaded ISO 7 Rp (NPT on request)

    Dimension:
    1/2"
    Price according to configuration
    Available to Order
    More about the product

  • Valsteam ADCA

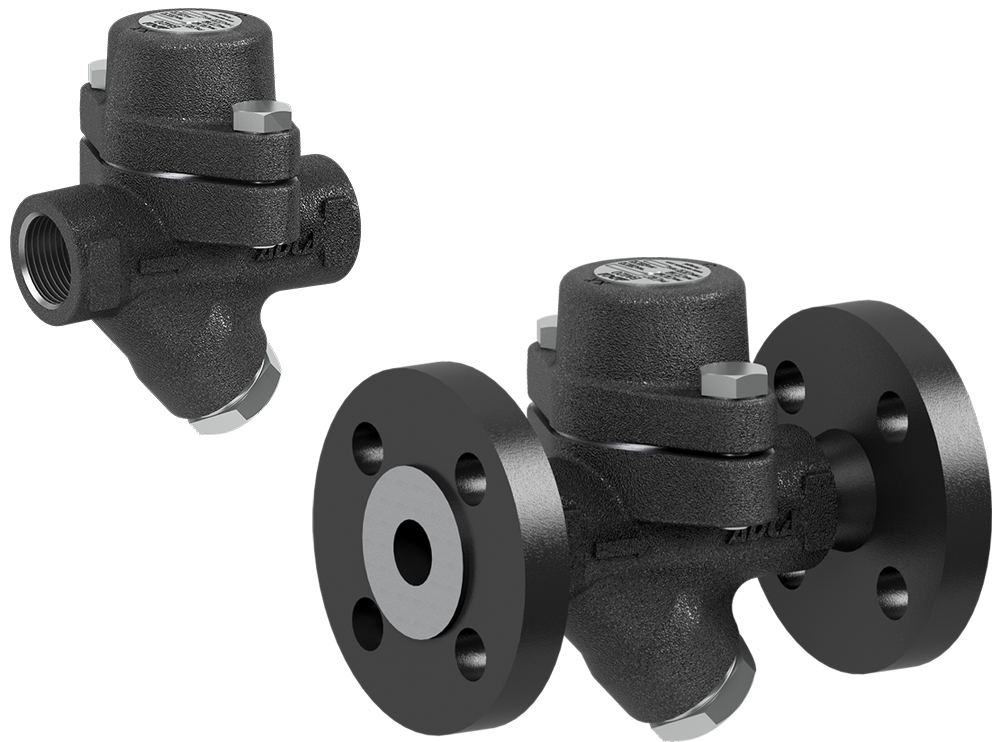

    BM20

    Product code: BM20

    Bimetallic steam trap ADCA BM20

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Carbon steel

    • Max. operating pressure

      17 bar

    • Min. operating pressure

      0,5 bar

    • Max. operating temperature

      250 ºC

    • Differential pressure

      Delta P: 17 bar

    • Flow rate capacity

      Hot condensate discharge 10 ºC below saturation temperature: Up to 600 kg/h,
      Cold condensate discharge at 20 ºC: Up to 1850 kg/h

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME B16.5 Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

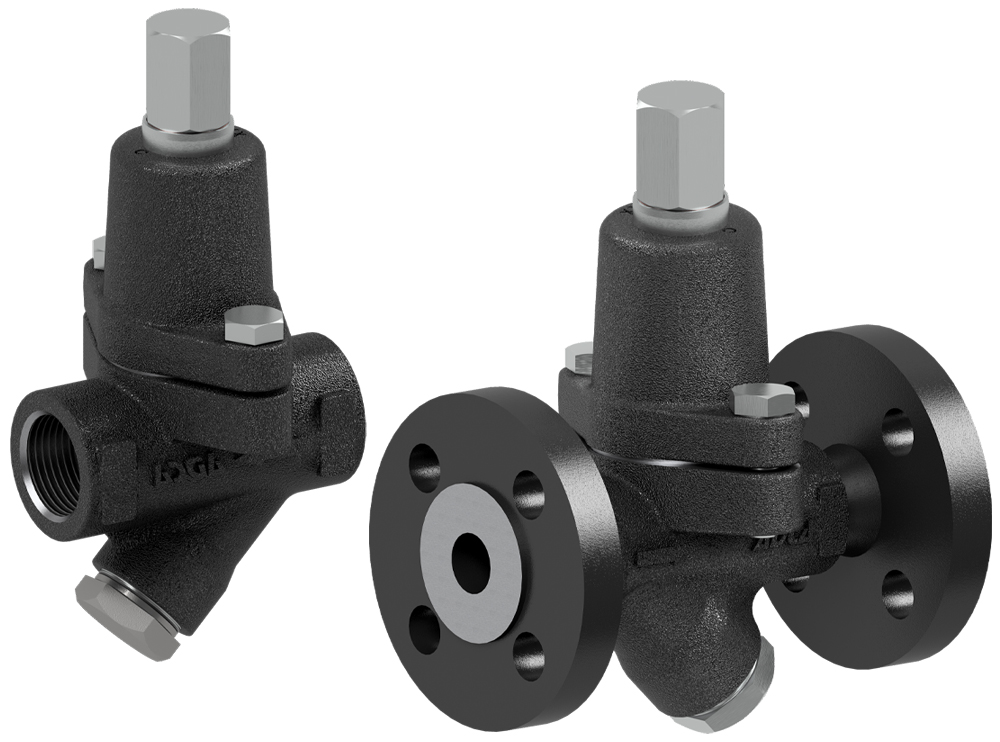

    BM20R

    Product code: BM20R

    Bimetallic steam trap ADCA BM20R (with external adjustable temperature control)

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Carbon steel

    • Max. operating pressure

      17 bar

    • Min. operating pressure

      0,5 bar

    • Max. operating temperature

      250 ºC

    • Differential pressure

      Delta P: 17 bar

    • Flow rate capacity

      Hot condensate discharge 10 ºC below saturation temperature: Up to 600 kg/h (Standard factory setting),
      Cold condensate discharge at 20 ºC: Up to 720 kg/h,
      Cold condensate discharge at 40 ºC: Up to 1180 kg/h,
      Cold condensate: Up to 1850 kg/h

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME B16.5 Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    • Options

      Suffix “CK”: Version with integrated check valve

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

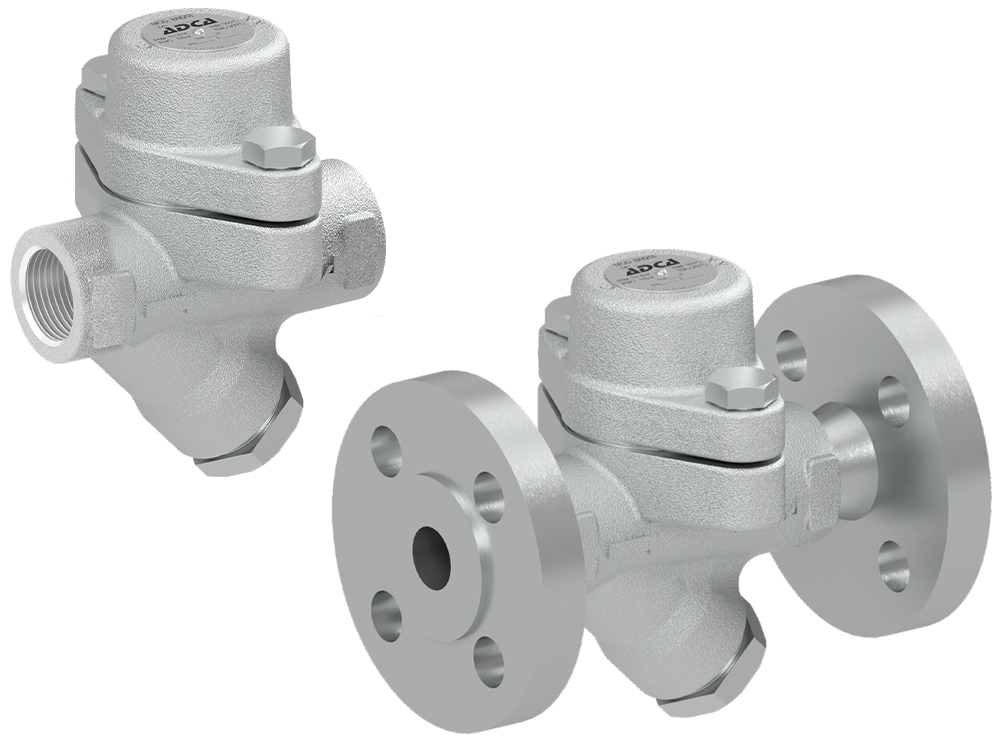

    BM20i

    Product code: BM20i

    Bimetallic steam trap ADCA BM20i

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Stainless steel

    • Max. operating pressure

      17 bar

    • Min. operating pressure

      0,5 bar

    • Max. operating temperature

      250 ºC

    • Differential pressure

      Delta P: 17 bar

    • Flow rate capacity

      Hot condensate discharge 10 ºC below saturation temperature: Up to 600 kg/h,
      Cold condensate discharge at 20 ºC: Up to 1850 kg/h

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME B16.5 Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    BM24.DN15-25

    Product code: BM24.DN15-25

    Bimetallic steam trap ADCA BM24

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Carbon steel

    • Max. operating pressure

      24 bar

    • Min. operating pressure

      0,5 bar

    • Max. operating temperature

      250 ºC

    • Differential pressure

      Delta P: 24 bar

    • Flow rate capacity

      Hot condensate discharge 10 ºC below saturation temperature: Up to 925 kg/h,
      Cold condensate discharge at 20 ºC: Up to 2680 kg/h

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME B16.5 Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

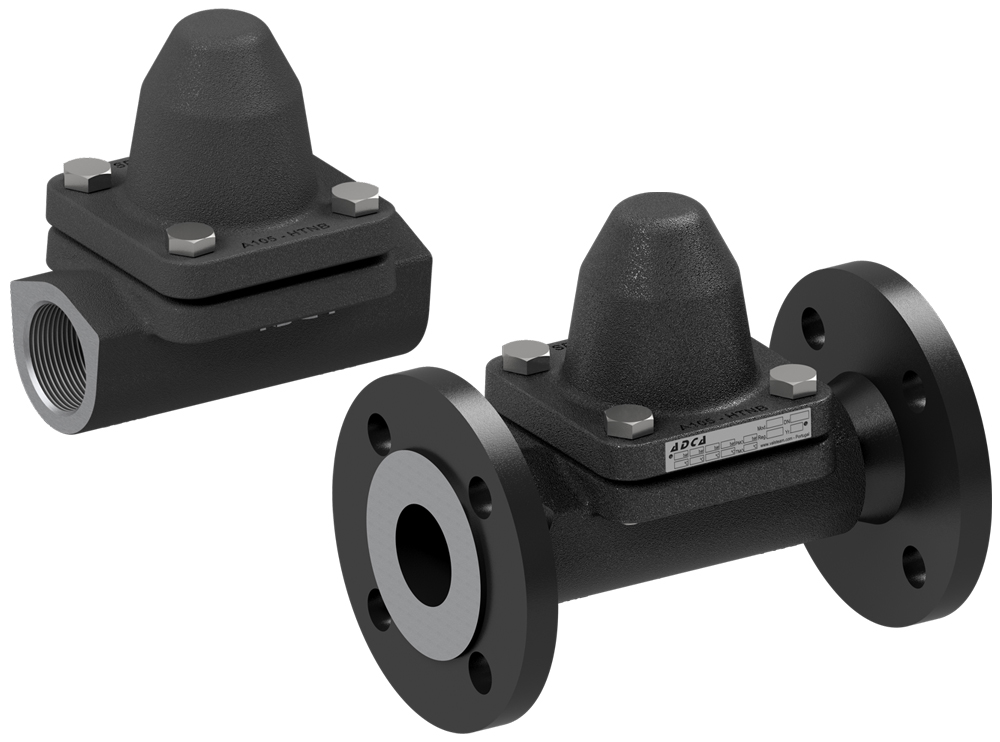

    BM24.DN40-50

    Product code: BM24.DN40-50

    Bimetallic steam trap ADCA BM24

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Carbon steel

    • Max. operating pressure

      24 bar

    • Min. operating pressure

      0,5 bar

    • Max. operating temperature

      250 ºC

    • Differential pressure

      Delta P: 24 bar

    • Flow rate capacity

      Hot condensate discharge 10 ºC below saturation temperature: Up to 2100 kg/h,
      Cold condensate discharge at 20 ºC: Up to 9000 kg/h

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME B16.5 Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    Dimension:
    1.1/2” – 2”; DN40 – DN50
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

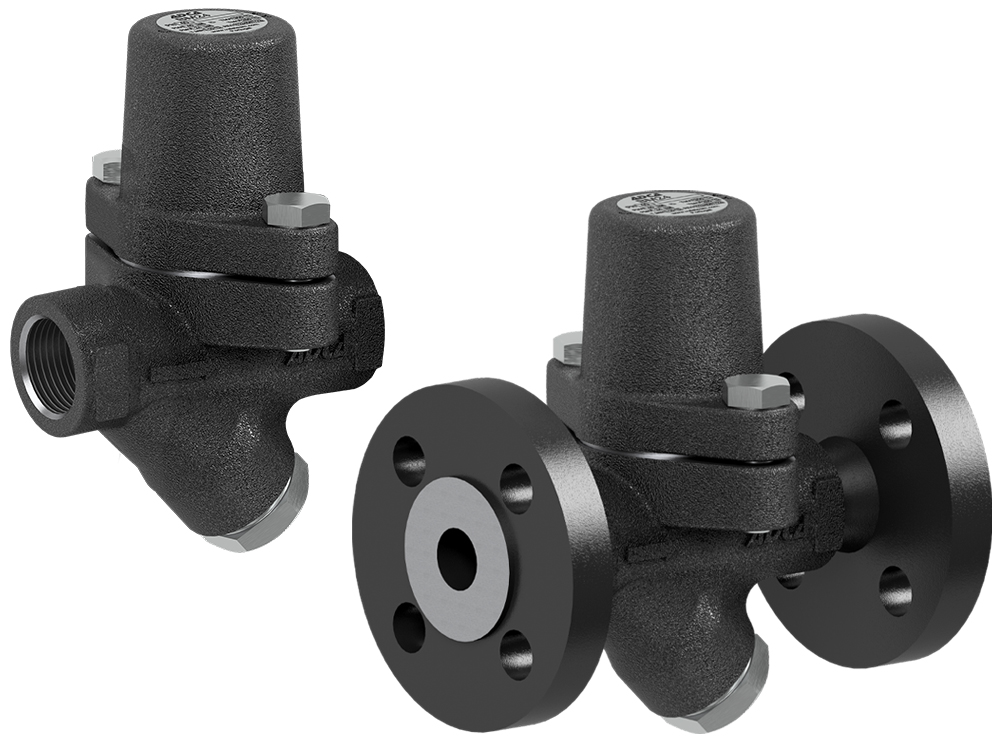

    BM32.DN15-25

    Product code: BM32.DN15-25

    Bimetallic steam trap ADCA BM32

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Carbon steel

    • Max. operating pressure

      32 bar

    • Min. operating pressure

      0,5 bar

    • Max. operating temperature

      300 ºC

    • Differential pressure

      Delta P: 32 bar

    • Flow rate capacity

      Hot condensate discharge 10 ºC below saturation temperature: Up to 810 kg/h,
      Cold condensate discharge at 20 ºC: Up to 2900 kg/h

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME B16.5 Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

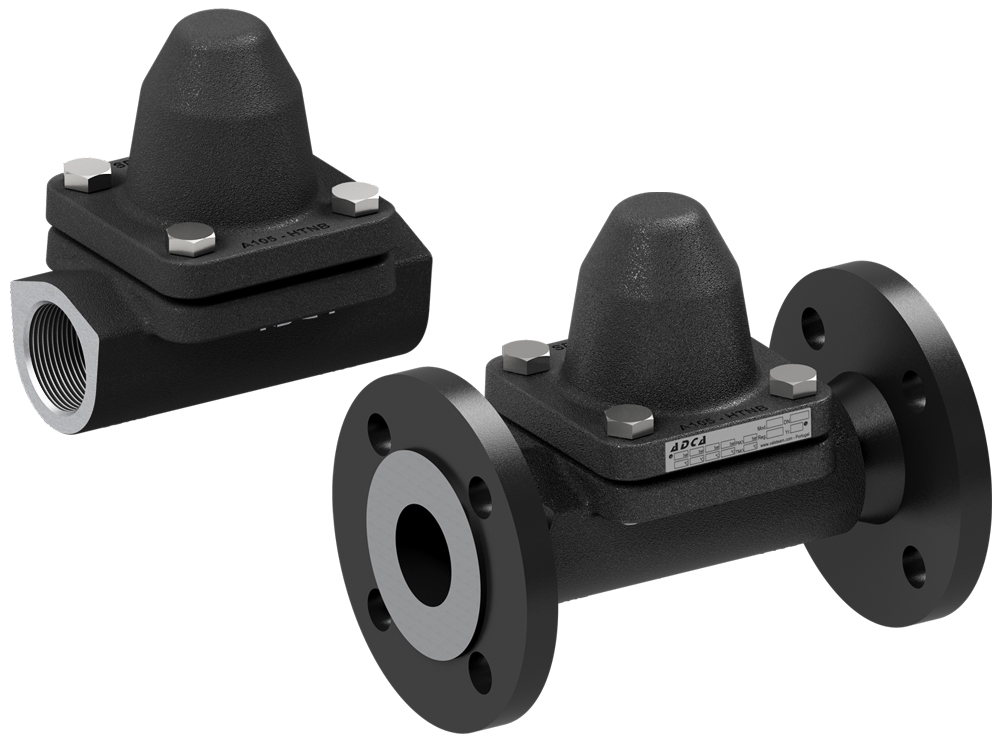

    BM32.DN40-50

    Product code: BM32.DN40-50

    Bimetallic steam trap ADCA BM32

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Carbon steel

    • Max. operating pressure

      32 bar

    • Min. operating pressure

      0,5 bar

    • Max. operating temperature

      300 ºC

    • Differential pressure

      32 bar

    • Flow rate capacity

      Hot condensate discharge 10 ºC below saturation temperature: Up to 1150 kg/h,,
      Cold condensate discharge at 20 ºC: Up to 3500 kg/h

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME B16.5 Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    Dimension:
    1.1/2” – 2”; DN40 – DN50
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    BM87

    Product code: BM87

    Bimetallic steam trap ADCA BM87

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Carbon steel A105 (Equiv. P250GH)

    • Max. operating pressure

      45 bar

    • Min. operating pressure

      4 bar

    • Max. operating temperature

      425 ºC

    • Differential pressure

      Delta P: 45 bar

    • Flow rate capacity

      Hot condensate discharge 10 ºC below saturation temperature: Up to 590 kg/h,
      Cold condensate discharge at 20 ºC: Up to 4100 kg/h

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40 or PN 63/100,
      Flanged ASME B16.5 Class 300 or 600 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

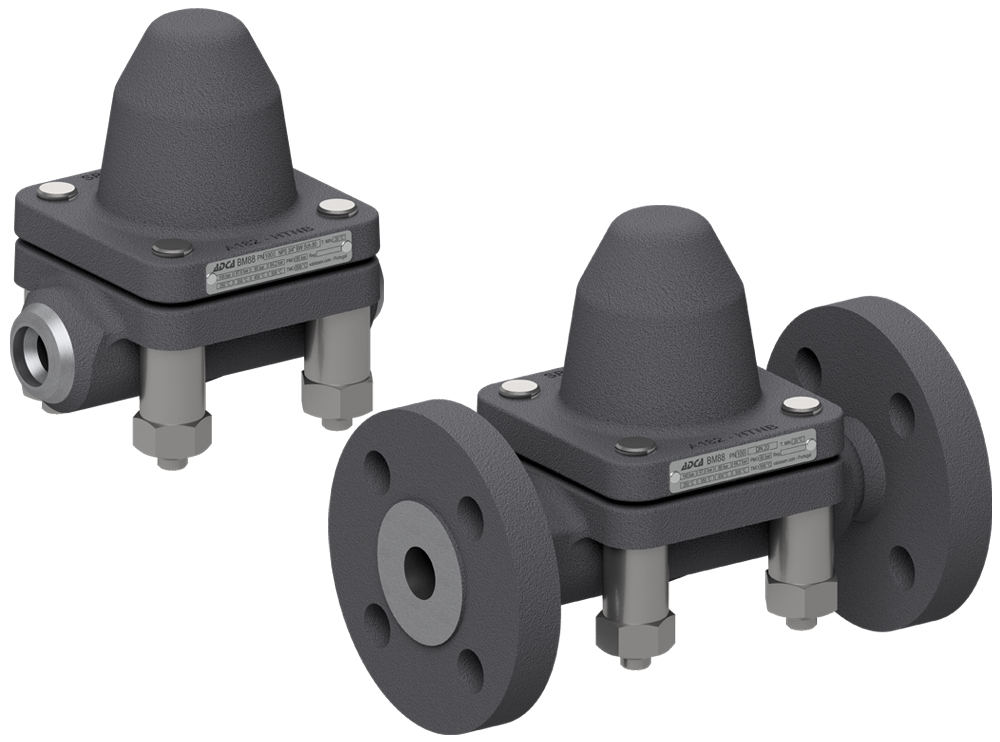

    BM88

    Product code: BM88

    Bimetallic steam trap ADCA BM88

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Carbon steel A182 F22 (Equiv. 10CrMo910)

    • Max. operating pressure

      85 bar

    • Min. operating pressure

      4 bar

    • Max. operating temperature

      500 ºC

    • Differential pressure

      Delta P: 85 bar

    • Flow rate capacity

      Hot condensate discharge 10 ºC below saturation temperature: Up to 910 kg/h,
      Cold condensate discharge at 20 ºC: Up to 5800 kg/h

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 100,
      Flanged ASME B16.5 Class 600 on request,
      Socket weld (SW) ASME B16.11 on request,
      Butt weld (BW) ASME B16.25 on request

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product
