Complementary equipment on steam traps

Refine

Show:
10 per page
  • 10 products per page
  • 25 products per page
  • 50 products per page
Sort:
Relevance
  • Relevance
  • Created at
  • Product code
  • Name
  • Available

  • Valsteam ADCA

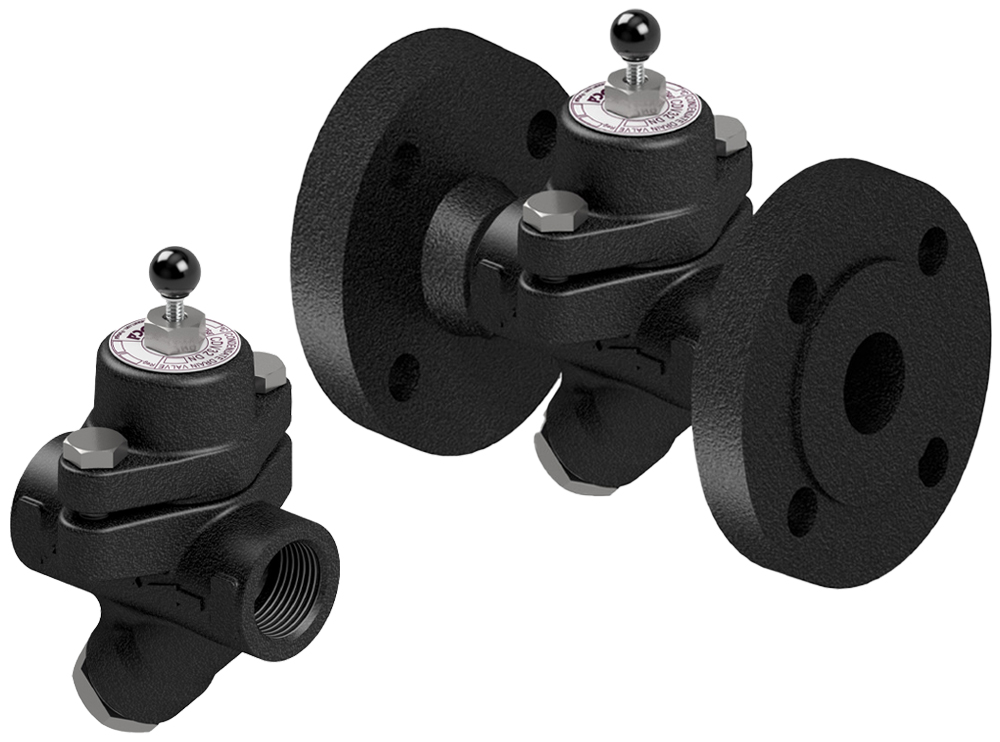

    CDV32

    Product code: CDV32

    Automatical condensate drain valve ADCA CDV32

    • Description

      Condensate drain valve automatically discharges air and condensate from steam systems during start-up

    • Application

      Saturated and superheated steam,
      steam condensate

    • Body material

      Carbon steel

    • Max. operating pressure

      22 bar

    • Min. working pressure

      0,1 bar

    • Max. operating temperature

      250 ºC

    • Flow rate capacity

      Up to 780 kg/h

    • Closing pressure

      Delta P: 1,5 bar

    • Connections

      Female threaded ISO 7 Rp (NPT on request),
      Flanged EN 1092-1 PN 40,
      Flanged ASME Class 150 or 300 on request,
      Socket weld (SW) ASME B16.11 on request

    Dimension:
    1/2” – 3/4”; DN15 – DN20
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    DF15

    Product code: DF15

    Noise diffuser ADCA DF15

    • Description

      Noise reduction greater than 80%, measured at 1 meter away from the source

    • Available model

      DF15 – outlet with threaded connection, suitable when discharging to condensate return lines

    • Application

      Steam or condensate,
      compressed air

    • Body material

      Stainless steel AISI 304

    • Max. allowable pressure

      40 bar

    • Max. allowable temperature

      400 ºC

    • Max. operating pressure

      32 bar

    • Max. operating temperature

      250 ºC

    • Noise reductions

      greater than 80%

    • Connections

      Female threaded ISO 7 Rp (PN40)

    Dimension:
    1/2” – 1”; DN15 – DN25
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

    DF16

    Product code: DF16

    Noise diffuser ADCA DF16 outlet without threaded connection

    • Description

      Noise reduction greater than 80%, measured at 1 meter away from the source

    • Available model

      DF16 – outlet without threaded connection, suitable for direct discharge to atmosphere.

    • Application

      Steam or condensate,
      compressed air

    • Body material

      Stainless steel AISI 304

    • Max. allowable pressure

      40 bar

    • Max. allowable temperature

      400 ºC

    • Max. operating pressure

      32 bar

    • Max. operating temperature

      250 ºC

    • Noise reductions

      greater than 80%

    • Connections

      Female threaded ISO 7 Rp (PN40)

    Dimension:
    1/2” – 1”
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

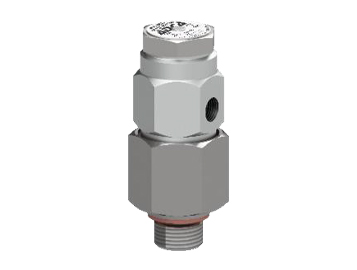

    VB21M.FLT

    Product code: VB21M.FLT

    Vacuum breaker ADCA VB21M with adapter fitting, for float steam traps cover

    • Available model

      VB21M Supplied with adapter fitting, for direct connection to the float steam trap cover

    • Retrofitted for steam trap

      All the ADCA float steam traps can be supplied with the VB21M

    • Application

      Saturated and superheated steam

    • Body material

      Stainless steel AISI 303

    • Max. allowable pressure

      21 bar at 220 ºC

    • Max. allowable temperature

      13 bar at 400 ºC

    • ΔP required to open vacuum breaker

      6,13 mbar

    • Flow rate capacity

      Up to 3 dm³/s

    • Connections

      adapter fitting 1/2" x 3/8" ISO 228,
      adapter fitting 1/2" ISO 228 x 3/8" NPT

    Dimension:
    1/2" x 3/8"
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

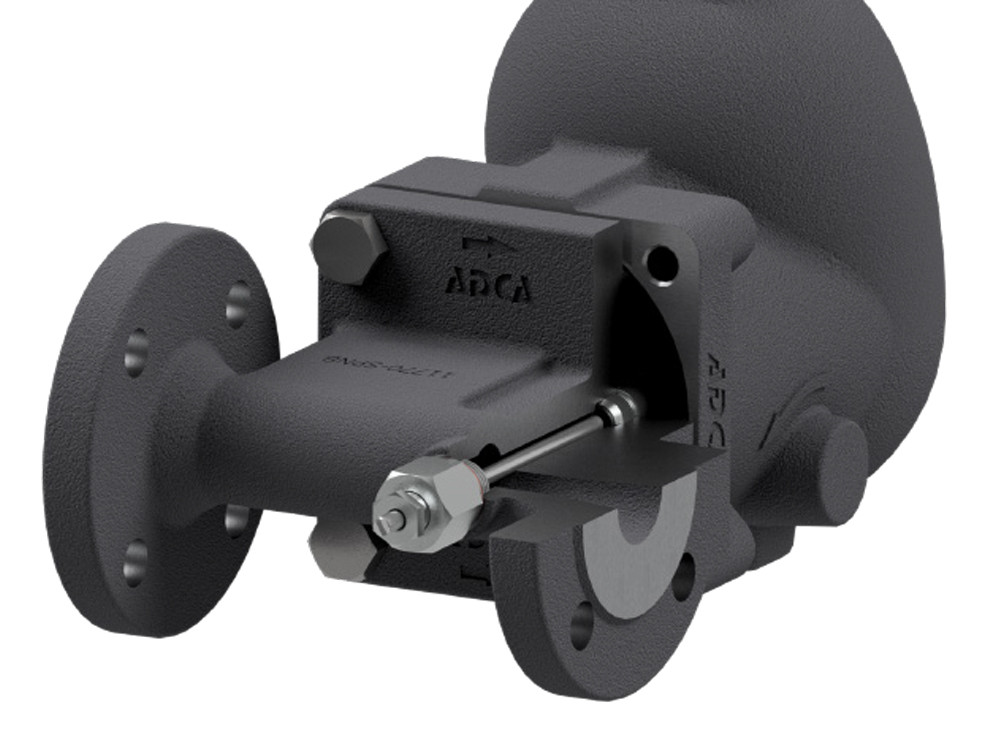

    SLR.FLT

    Product code: SLR.FLT

    Steam Lock Release Assembly ADCA SLR for float steam trap body

    • Description

      SLR allow constant bleeding of steam, just enough to prevent steam locking

    • Retrofitted for steam trap

      All the ADCA float steam traps can be supplied with the SLR

    Dimension:
    According to the selected float steam trap
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

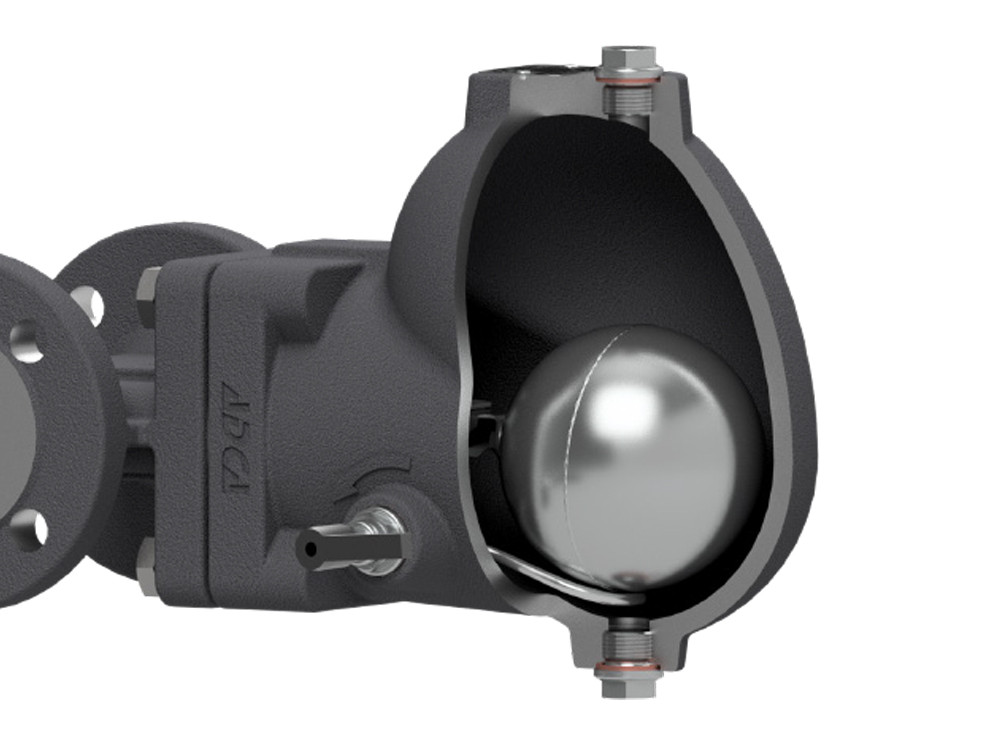

    FLL

    Product code: FLL

    Float lifting lever assembly ADCA FLL for steam trap body

    • Description

      The float lifting lever (FLL) is used to manually open the steam trap main valve, to drain its content or to check the current float position.

    • Retrofitted for steam trap

      All the ADCA float steam traps can be supplied with the FLL,
      All the ADCA air and gas float traps can be supplied with the FLL

    Dimension:
    According to the selected float steam trap
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

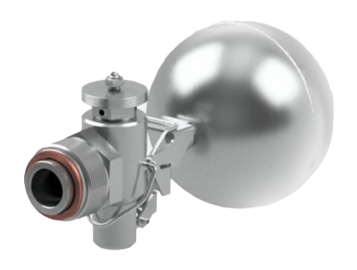

    LVR.FLT-21-45

    Product code: LVR.FLT-21-45

    Lever mechanism assembly for float steam trap ADCA

    • Retrofitted for steam trap

      The ADCA FLT20, FLT21 and FLT25 (SG iron),
      FLT30, FLT31 and FLT35 (carbon steel),
      FLT40, FLT41 and FLT45 (stainless steel)

    • Max. differential pressure

      Delta P: 4,5 , 10, 14, 21 and 32 bar

    Dimension:
    According to the selected float steam trap
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

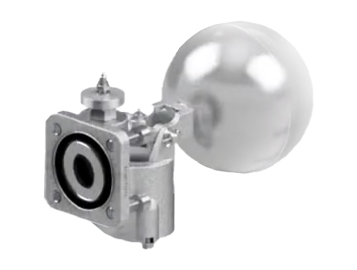

    LVR.FLT-27-49

    Product code: LVR.FLT-27-49

    Lever mechanism assembly for float steam trap ADCA (High Capacity)

    • Retrofitted for steam trap

      The ADCA FLT27 and FLT29 (SG iron),
      FLT37 and FLT39 (carbon steel),
      FLT47 and FLT49 (stainless steel)

    • Max. differential pressure

      Delta P: 4,5 , 10, 14, 21 and 32 bar

    Dimension:
    According to the selected float steam trap
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

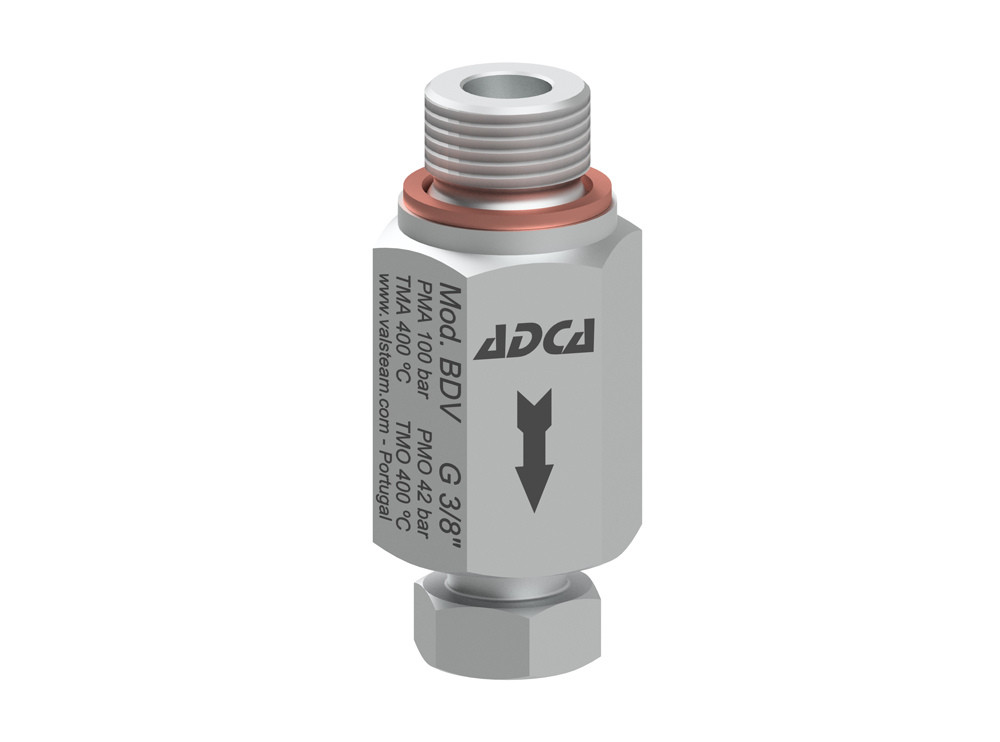

    BDV

    Product code: BDV

    Blowdown valves ADCA BDV for steam traps cover

    • Description

      Manual discharge of strainer screen contents and generally to be used as a drain and/or depressurization valve.

    • Retrofitted for steam trap

      All the ADCA float steam traps can be supplied with the BDV,
      and also on the model: DT46, DT42/2, TH32, BM20, BM32, CDV, UCX41, CTS4U

    • Body material

      Stainless steel AISI 303

    • Max. operating pressure

      42 bar

    • Max. operating temperature

      400 ºC

    • Connections

      Male threaded NPT-M,
      Male threaded ISO 228,
      Male threaded M22 (Metric fine pitch)

    Dimension:
    3/8" and M22
    Price according to configuration
    Available on request
    More about the product

  • Valsteam ADCA

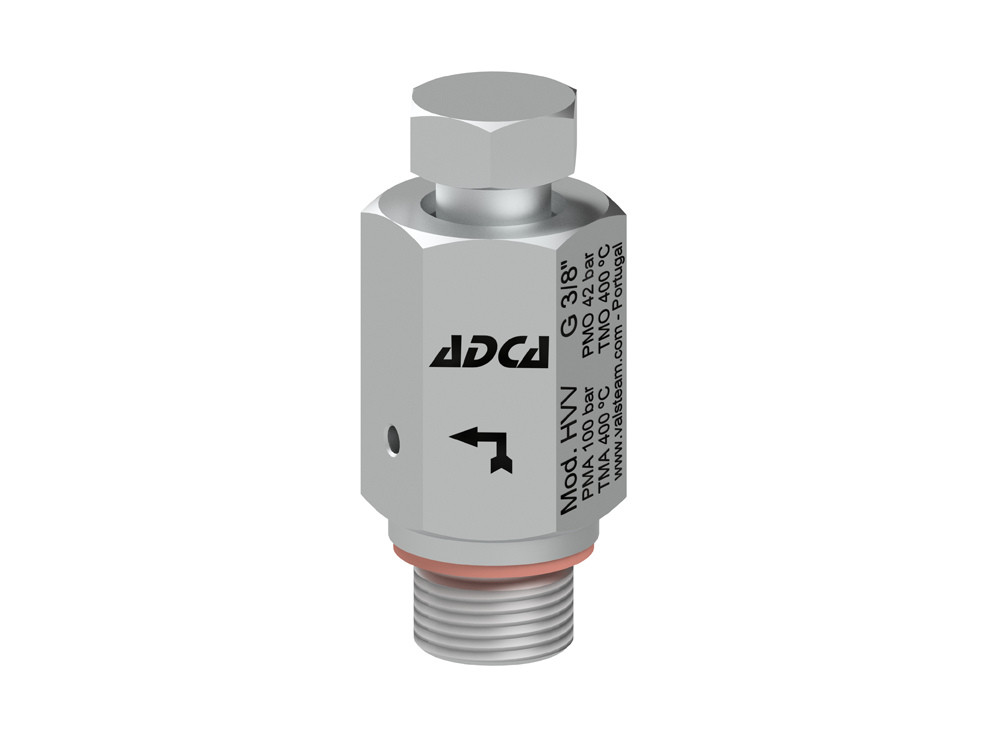

    HVV

    Product code: HVV

    Hand vent valve ADCA HVV for float steam traps cover

    • Description

      Venting of float traps and generally to be used as a vent or depressurization valve.

    • Retrofitted for steam trap

      All the ADCA float steam traps can be supplied with the HVV

    • Body material

      Stainless steel AISI 303

    • Max. operating pressure

      42 bar

    • Max. operating temperature

      400 ºC

    • Connections

      Male threaded NPT-M,
      Male threaded ISO 228

    Dimension:
    3/8”
    Price according to configuration
    Available on request
    More about the product
