Valsteam ADCA

Product code: DT40-2

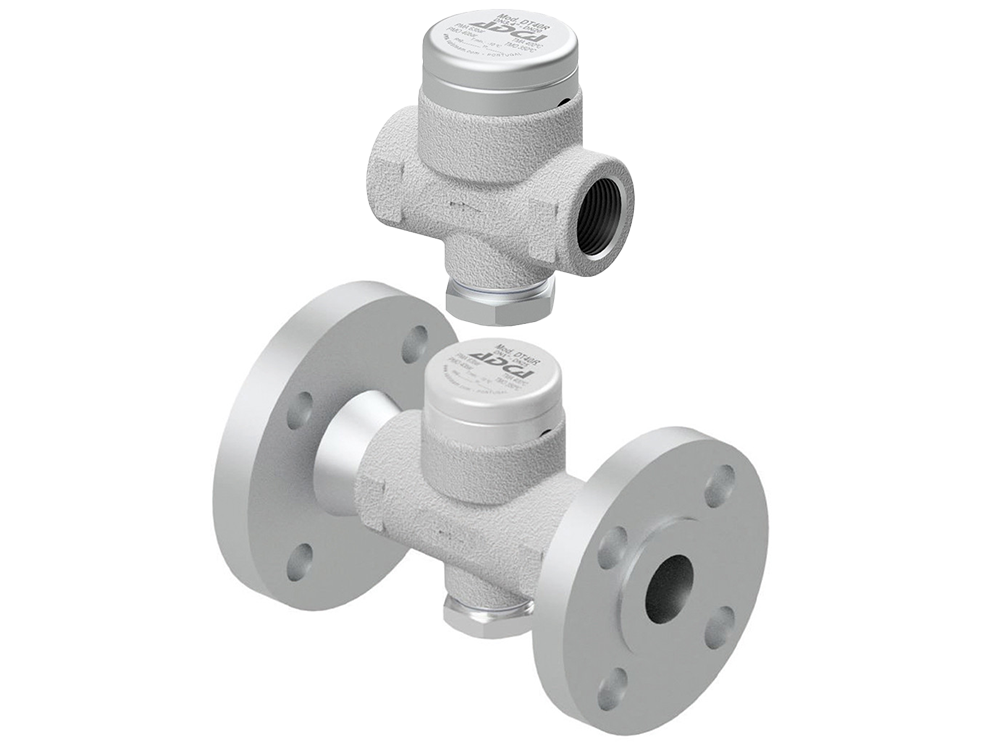

Thermodynamic steam trap ADCA DT40/2
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Stainless steel
- Max. operating pressure

  40 bar
- Min. operating pressure

  1,5 bar
- Max. operating temperature

  300 ºC
- Flow rate capacity

  Up to 740 kg/h
- Differential pressure

  Delta P: 40 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN PN 40,
  Flanged ASME Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request,
  Butt weld (BW) ASME B16.25 on request
Dimension:
3/8” – 1”; DN10 – DN25

Price according to configuration

Out of production
More about the product
Valsteam ADCA

Product code: DT42-2

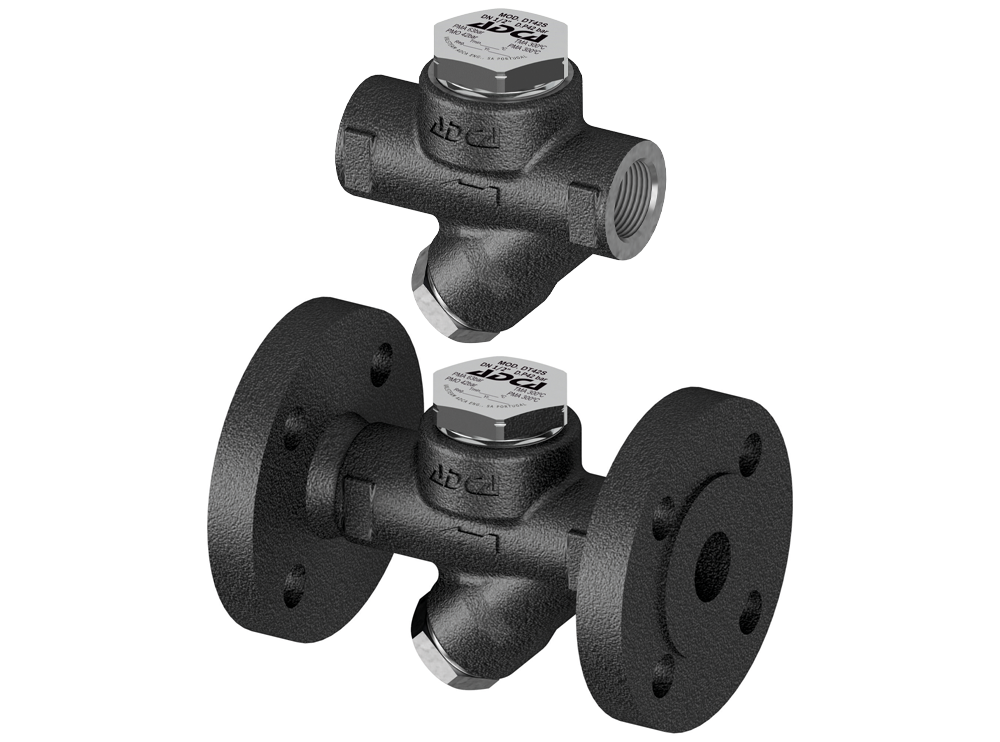

Thermodynamic steam trap ADCA DT42/2
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Carbon steel
- Max. operating pressure

  42 bar
- Min. operating pressure

  0,25 bar
- Max. operating temperature

  300 ºC
- Flow rate capacity

  Up to 1040 kg/h
- Differential pressure

  Delta P: 42 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN PN 40 or PN 63,
  Flanged ASME Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request
Dimension:
1/2” – 1”; DN15 – DN25

Price according to configuration

Available to Order
More about the product
Valsteam ADCA

Product code: DT46

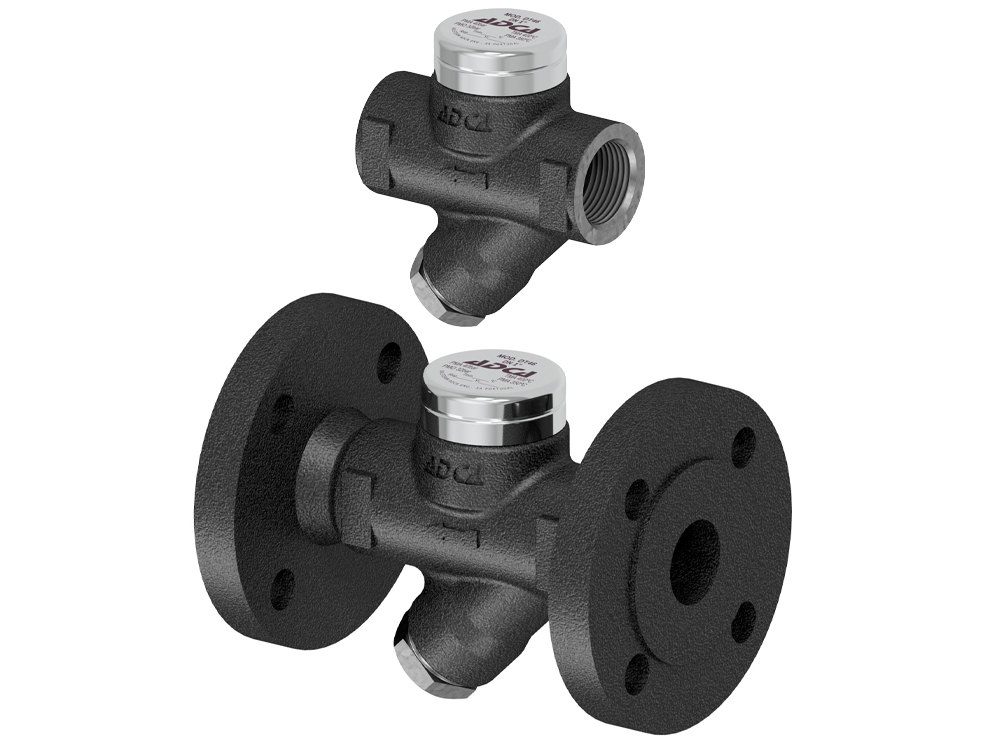

Thermodynamic steam trap ADCA DT46
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Carbon steel
- Max. operating pressure

  46 bar
- Min. operating pressure

  1,5 bar
- Max. operating temperature

  400 ºC
- Flow rate capacity

  Up to 800 kg/h
- Differential pressure

  Delta P: 46 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN PN 40, PN 63 or PN 100,
  Flanged ASME Class 150, 300 or 600 on request,
  Socket weld (SW) ASME B16.11 on request
Dimension:
1/2” – 1”; DN15 – DN25

Price according to configuration

Out of production
More about the product
Valsteam ADCA

Product code: DT40R

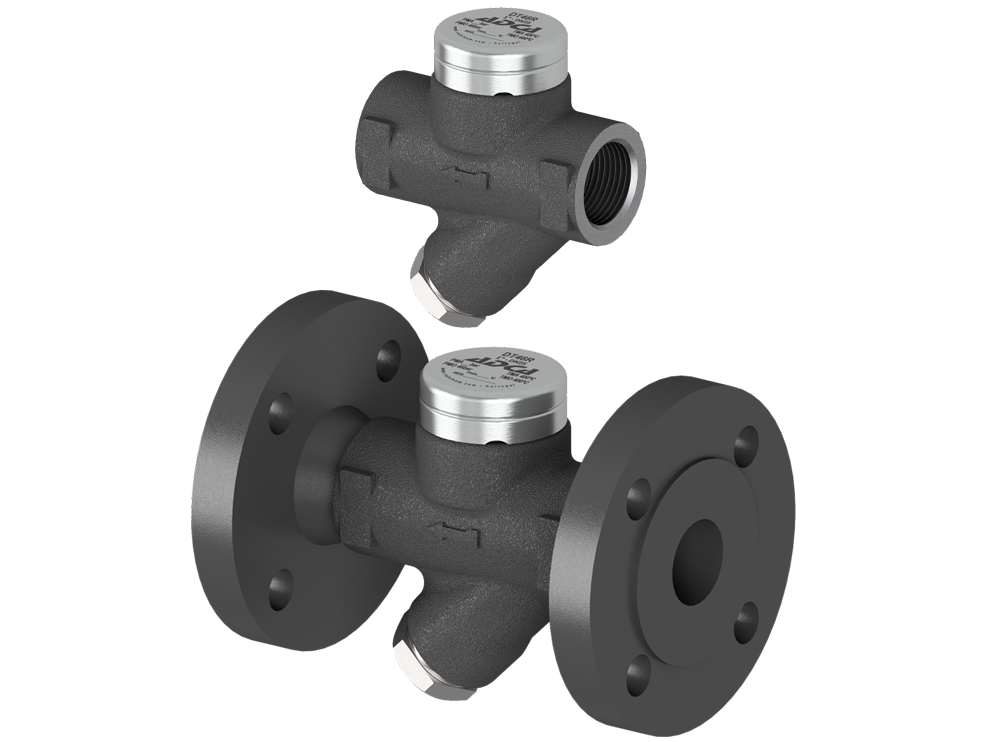

Thermodynamic steam trap ADCA DT40R
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Stainless steel
- Max. operating pressure

  40 bar
- Min. operating pressure

  1,5 bar
- Max. operating temperature

  300 ºC
- Flow rate capacity

  Up to 740 kg/h
- Differential pressure

  Delta P: 40 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN PN 40,
  Flanged ASME Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request,
  Butt weld (BW) ASME B16.25 on request
Dimension:
3/8” – 1”; DN10 – DN25

Price according to configuration

Available to Order
More about the product
Valsteam ADCA

Product code: DT46R

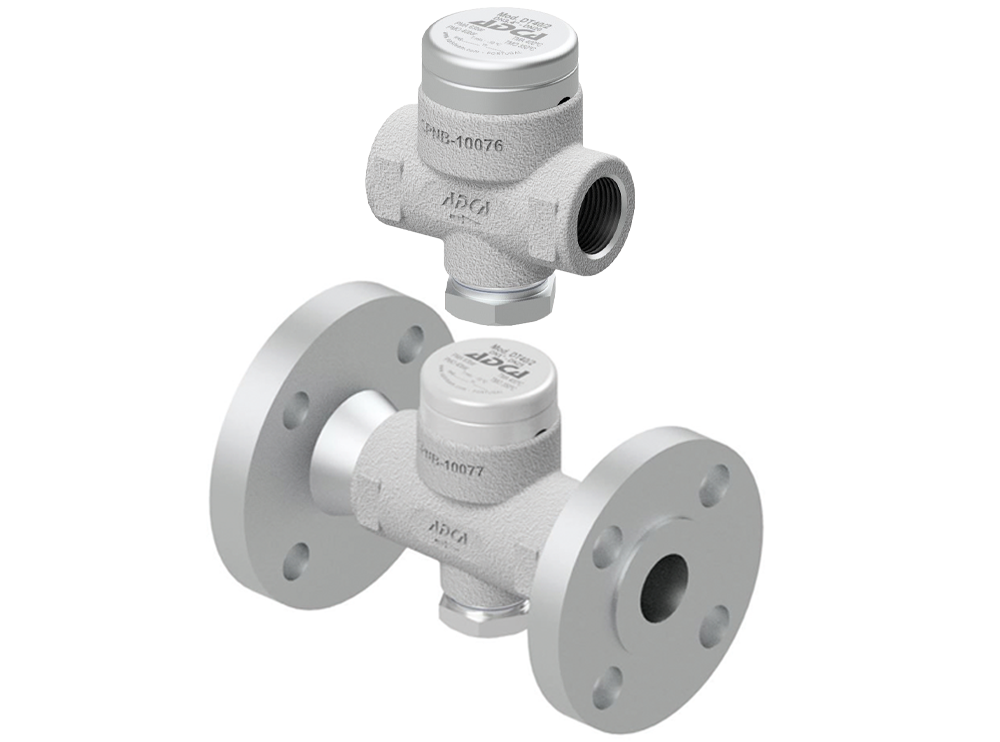

Thermodynamic steam trap ADCA DT46R
- Application

  Saturated and superheated steam,
  steam condensate
- Body material

  Carbon steel
- Max. operating pressure

  46 bar
- Min. operating pressure

  1,5 bar
- Max. operating temperature

  400 ºC
- Flow rate capacity

  Up to 800 kg/h
- Differential pressure

  Delta P: 46 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN PN 40, PN 63 or PN 100,
  Flanged ASME Class 150, 300 or 600 on request,
  Socket weld (SW) ASME B16.11 on request
Dimension:
1/2” – 1”; DN15 – DN25

Price according to configuration

Available to Order
More about the product
