Specifications

• Use

  Suitable for hot water cleaning purposes and saturated steam cleaning operations, sterilisation,
  Suitable for use in dairies and in the food industry.

• Tube materials

  NBR rubber, clear colour, food quality, odourless, tasteless, smooth, mirror-like. Complies with FDA standards, BfR recommendations and M.D. 21/03/73 and following amendments

• Burst pressure

  20 bar at 100 ºC,
  6 bar at 164ºC (short peaks)

• Temperature range

  +164°C (saturated steam),
  +95°C (hot water)

• Inner diameter

  19 mm.

• Outer diameter

  31 mm.

• Wall thickness

  6 mm.

• Connections

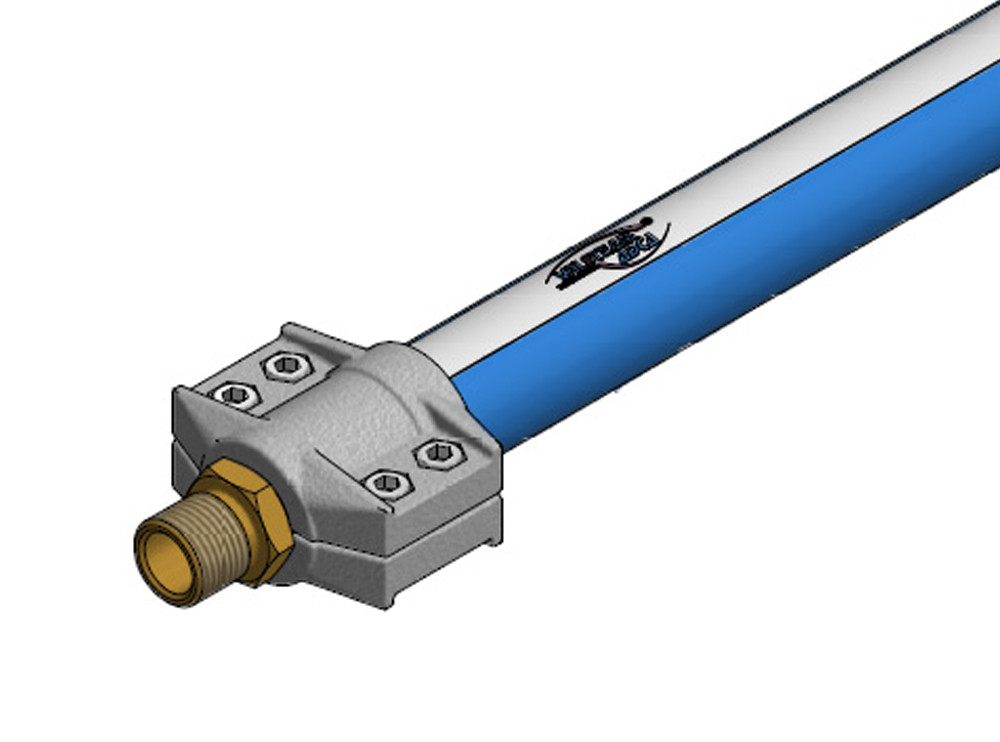

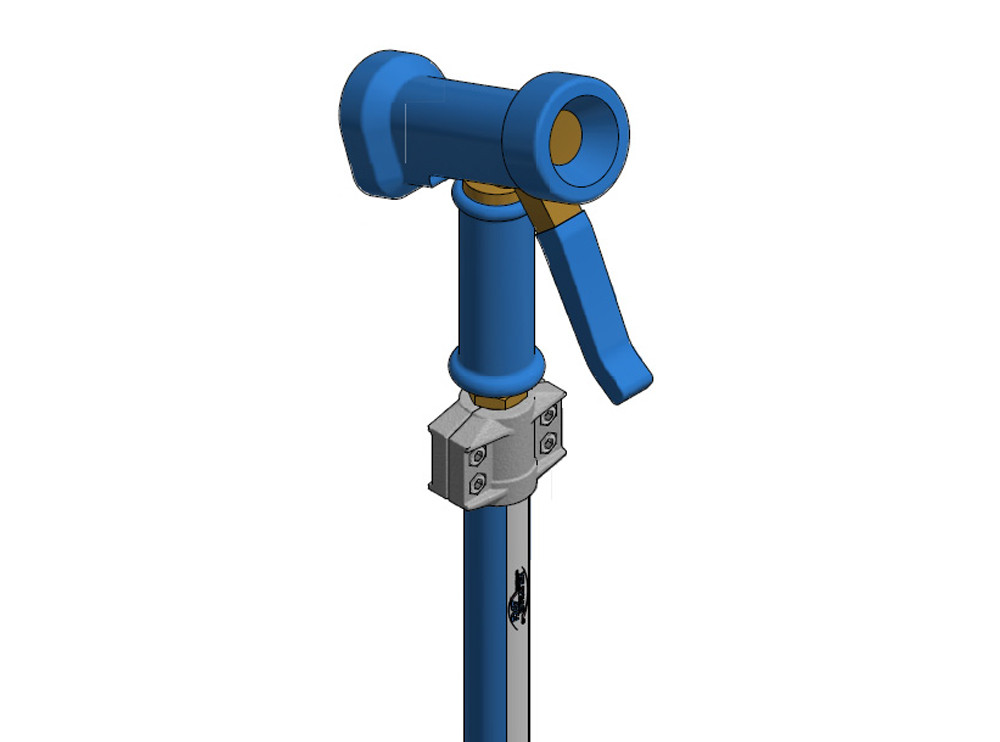

  Hose brass connectors with seal o-ring DN 1/2" x 19 mm (gun connection),
  Hose brass connectors with seal o-ring DN 3/4" x 19 mm (mixer connection)

• Remarks

  Two safety clamps should be ordered (gun connector and mixer connector).
