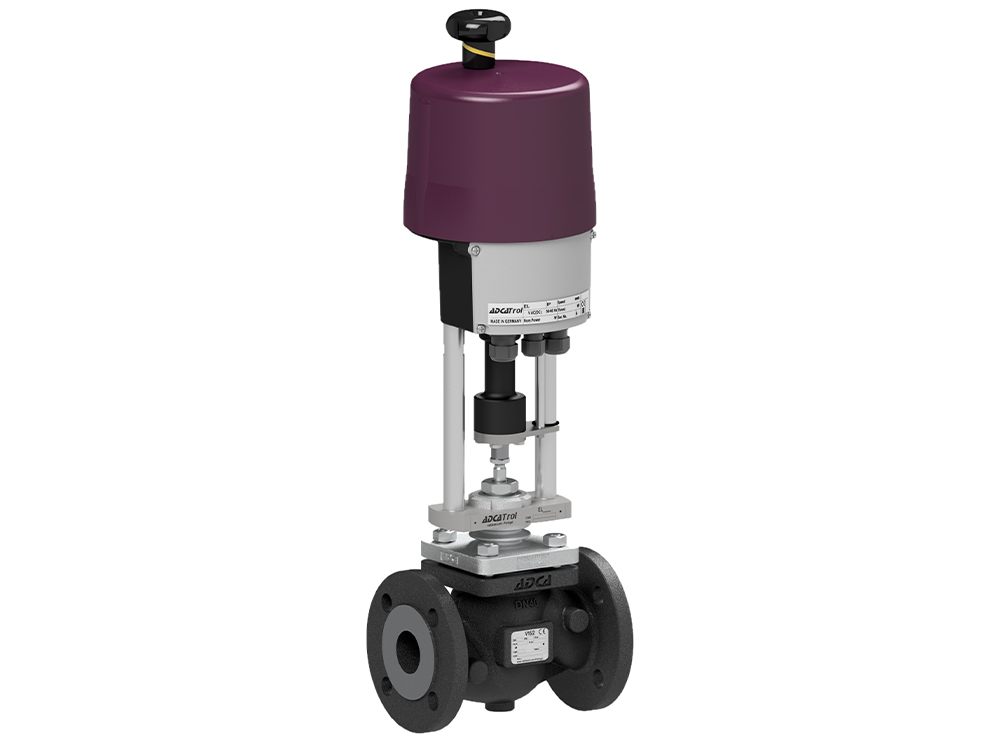

Electric control valve ADCA EV16/2G EN flanged, two-way, with electric actuator ADCATrol

Specifications

Application

Saturated and superheated steam,
Hot and superheated water,
Air, gases and other no corrosive fluids
Body material

Ductile iron GJS-400-15 & Stainless Steel 1U Trim
Max. operating pressure

Up to 14,7 bar (Body design PN16)
Flow rate coefficients

Kvs 2,1 to 160 (m³/h)
Plug design

Parabolic
Stem sealing

PTFE/GR V-Rings – up to 220ºC (standard),
Graphite – up to 400ºC,
Stainless steel bellows – up to 400ºC
Valve sealing

Metal to metal (class IV), standard,
Soft sealed with PTFE/GR (class VI),
Stellited (class IV),
Note: Valves with soft seal, maximum allow. temp: 200 ºC
Actuator

Electric Actuator ADCATrol EL series
Supply voltage

(230 V AC 50/60 Hz), 0-10V or 4-20mA Input (standard),
24 V AC, 115 V AC, 230 V AC, 400 V AC 50/60 Hz and 24 V DC
Connections

Flanged EN 1092-1/-2 PN16

Electric control valve ADCA EV16/2G EN flanged, two-way, with electric actuator ADCATrol

Product code: EV12GS1U111L

Available to Order

Price according to configuration

Choose your configuration

Size / Kvs *

Choose on Option...

DN15 (Kvs 4)
DN20 (Kvs 6.3)
DN25 (Kvs 10)
DN32 (Kvs 16)
DN40 (Kvs 25)
DN50 (Kvs 40)
DN65 (Kvs 63)
DN80 (Kvs 100)
DN100 (Kvs 160)

Maximum permissible pressure drop *

Choose on Option...

4,2 bar
4,4 bar
4,7 bar
7 bar
7,2 bar
7,6 bar
8,1 bar
8,2 bar
8,6 bar
9,7 bar
10,4 bar
12 bar
12,5 bar
13 bar
13,2 bar
13,7 bar
17,3 bar
18,2 bar
18,3 bar
18,7 bar
18,8 bar
19,2 bar
29,1 bar
29,6 bar
30,8 bar
40 bar

Valve sealing *

Choose on Option...

Metal / Metal
PTFE / Graphite

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

-

+

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

See all configurations

Model Size / Kvs Maximum permissible pressure drop Valve sealing Ref Price Quantity

Electric control valve ADCA EV16/2G DN 15 (Kvs 4), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS20 (ΔP 40 bar), supply voltage 230V AC DN15 (Kvs 4) 40 bar Metal / Metal EV12GS1U111L015

-

+

Electric control valve ADCA EV16/2G DN 100 (Kvs 160), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS140 (ΔP 12,5 bar), supply voltage 230V AC DN100 (Kvs 160) 12,5 bar Metal / Metal EV12GS1U111L100

-

+

Electric control valve ADCA EV16/2G DN 100 (Kvs 160), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS80 (ΔP 8,1 bar), supply voltage 230V AC DN100 (Kvs 160) 8,1 bar Metal / Metal EV12GS1U111L100

-

+

Electric control valve ADCA EV16/2G DN 100 (Kvs 160), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS45 (ΔP 4,2 bar), supply voltage 230V AC DN100 (Kvs 160) 4,2 bar Metal / Metal EV12GS1U111L100

-

+

Electric control valve ADCA EV16/2G DN 80 (Kvs 100), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS80 (ΔP 13,2 bar), supply voltage 230V AC DN80 (Kvs 100) 13,2 bar Metal / Metal EV12GS1U111L080

-

+

Electric control valve ADCA EV16/2G DN 80 (Kvs 100), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS45 (ΔP 7 bar), supply voltage 230V AC DN80 (Kvs 100) 7 bar Metal / Metal EV12GS1U111L080

-

+

Electric control valve ADCA EV16/2G DN65 (Kvs 63), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS80 (ΔP 18,2 bar), supply voltage 230V AC DN65 (Kvs 63) 18,2 bar Metal / Metal EV12GS1U111L065

-

+

Electric control valve ADCA EV16/2G DN65 (Kvs 63), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS45 (ΔP 9,7 bar), supply voltage 230V AC DN65 (Kvs 63) 9,7 bar Metal / Metal EV12GS1U111L065

-

+

Electric control valve ADCA EV16/2G DN 50 (Kvs 40), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS45 (ΔP 18,3 bar), supply voltage 230V AC DN50 (Kvs 40) 18,3 bar Metal / Metal EV12GS1U111L050

-

+

Electric control valve ADCA EV16/2G DN 50 (Kvs 40), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS20 (ΔP 7,2 bar), supply voltage 230V AC DN50 (Kvs 40) 7,2 bar Metal / Metal EV12GS1U111L050

-

+

Electric control valve ADCA EV16/2G DN 40 (Kvs 25), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS45 (ΔP 29,6 bar), supply voltage 230V AC DN40 (Kvs 25) 29,6 bar Metal / Metal EV12GS1U111L040

-

+

Electric control valve ADCA EV16/2G DN 40 (Kvs 25), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS20 (ΔP 12 bar), supply voltage 230V AC DN40 (Kvs 25) 12 bar Metal / Metal EV12GS1U111L040

-

+

Electric control valve ADCA EV16/2G DN 32 (Kvs 16), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS20 (ΔP 17,3 bar), supply voltage 230V AC DN32 (Kvs 16) 17,3 bar Metal / Metal EV12GS1U111L032

-

+

Electric control valve ADCA EV16/2G DN 25 (Kvs 10), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS20 (ΔP 29,1 bar), supply voltage 230V AC DN25 (Kvs 10) 29,1 bar Metal / Metal EV12GS1U111L025

-

+

Electric control valve ADCA EV16/2G DN 20 (Kvs 6,3), EN flanges, parabolic EQP metal to metal plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS20 (ΔP 40 bar), supply voltage 230V AC DN20 (Kvs 6.3) 40 bar Metal / Metal EV12GS1U111L020

-

+

Electric control valve ADCA EV16/2G DN 15 (Kvs 4), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS20 (ΔP 40 bar), supply voltage 230V AC DN15 (Kvs 4) 40 bar PTFE / Graphite EV12GS1U113L015

-

+

Electric control valve ADCA EV16/2G DN 100 (Kvs 160), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS140 (ΔP 13 bar), supply voltage 230V AC DN100 (Kvs 160) 13 bar PTFE / Graphite EV12GS1U113L100

-

+

Electric control valve ADCA EV16/2G DN 100 (Kvs 160), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS80 (ΔP 8,6 bar), supply voltage 230V AC DN100 (Kvs 160) 8,6 bar PTFE / Graphite EV12GS1U113L100

-

+

Electric control valve ADCA EV16/2G DN 100 (Kvs 160), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS45 (ΔP 4,7 bar), supply voltage 230V AC DN100 (Kvs 160) 4,7 bar PTFE / Graphite EV12GS1U113L100

-

+

Electric control valve ADCA EV16/2G DN 80 (Kvs 100), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS80 (ΔP 13,7 bar), supply voltage 230V AC DN80 (Kvs 100) 13,7 bar PTFE / Graphite EV12GS1U113L080

-

+

Electric control valve ADCA EV16/2G DN 80 (Kvs 100), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS45 (ΔP 7,6 bar), supply voltage 230V AC DN80 (Kvs 100) 7,6 bar PTFE / Graphite EV12GS1U113L080

-

+

Electric control valve ADCA EV16/2G DN65 (Kvs 63), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS80 (ΔP 18,8 bar), supply voltage 230V AC DN65 (Kvs 63) 18,8 bar PTFE / Graphite EV12GS1U113L065

-

+

Electric control valve ADCA EV16/2G DN65 (Kvs 63), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS45 (ΔP 10,4 bar), supply voltage 230V AC DN65 (Kvs 63) 10,4 bar PTFE / Graphite EV12GS1U113L065

-

+

Electric control valve ADCA EV16/2G DN65 (Kvs 63), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS20 (ΔP 4,4 bar), supply voltage 230V AC DN65 (Kvs 63) 4,4 bar PTFE / Graphite EV12GS1U113L065

-

+

Electric control valve ADCA EV16/2G DN 50 (Kvs 40), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS45 (ΔP 19,2 bar), supply voltage 230V AC DN50 (Kvs 40) 19,2 bar PTFE / Graphite EV12GS1U113L050

-

+

Electric control valve ADCA EV16/2G DN 50 (Kvs 40), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS20 (ΔP 8,2 bar), supply voltage 230V AC DN50 (Kvs 40) 8,2 bar PTFE / Graphite EV12GS1U113L050

-

+

Electric control valve ADCA EV16/2G DN 40 (Kvs 25), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS20 (ΔP 13,2 bar), supply voltage 230V AC DN40 (Kvs 25) 13,2 bar PTFE / Graphite EV12GS1U113L040

-

+

Electric control valve ADCA EV16/2G DN 32 (Kvs 16), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS20 (ΔP 18,7 bar), supply voltage 230V AC DN32 (Kvs 16) 18,7 bar PTFE / Graphite EV12GS1U113L032

-

+

Electric control valve ADCA EV16/2G DN 25 (Kvs 10), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS20 (ΔP 30,8 bar), supply voltage 230V AC DN25 (Kvs 10) 30,8 bar PTFE / Graphite EV12GS1U113L025

-

+

Electric control valve ADCA EV16/2G DN 20 (Kvs 6,3), EN flanges, parabolic EQP soft plug, PTFE/GR stem sealing, complete with electric actuator signal 4-20 mA / 0-10 V, mod. ADCATrol ELS20 (ΔP 40 bar), supply voltage 230V AC DN20 (Kvs 6.3) 40 bar PTFE / Graphite EV12GS1U113L020

-

+

The ADCATrol V16/2 is a series of single seated, two-way globe control valves designed for simple process engineering and industrial applications with non-critical operating conditions. These valves can be assembled with electric actuators, for modulating and shut-off control tasks.
