Valsteam ADCA

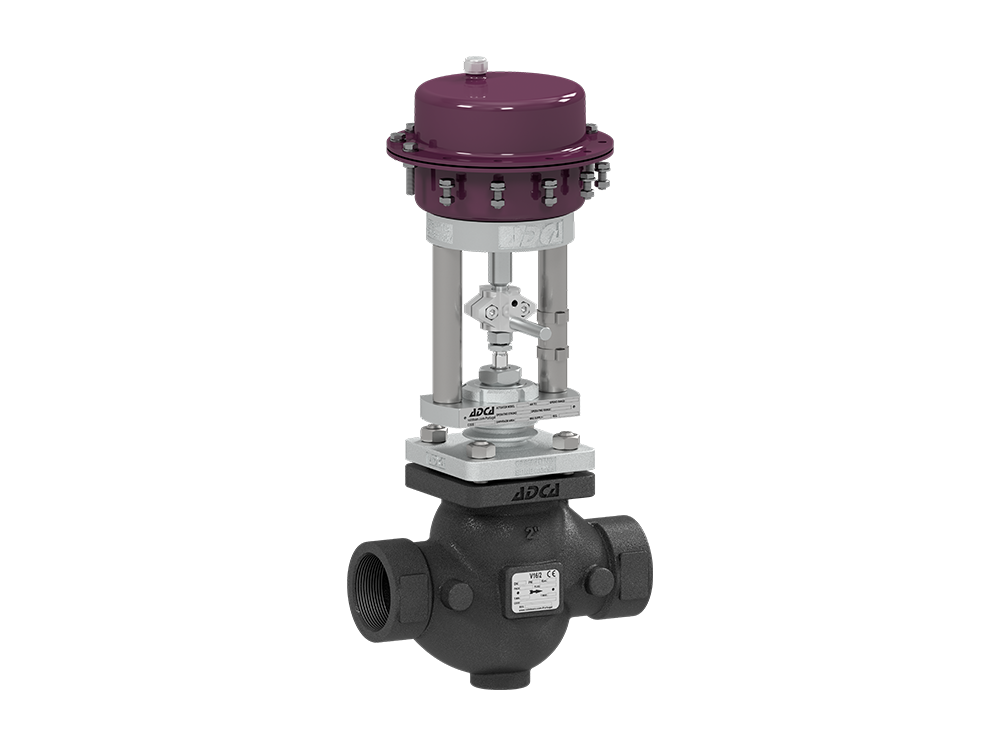

Product code: PV12SS1U111A
Pneumatic control valve ADCA PV16/2S threaded, two-way, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner
- Application

  Saturated and superheated steam,
  Hot and superheated water,
  Diathermic oil,
  Air, gases and other no corrosive fluids
- Body material

  Carbon steel A216 WCB & Stainless Steel 1U Trim
- Max. operating pressure

  Up to 33,3 bar (Body design PN40)
- flow rate coefficients

  Kvs 0,1 to 40 (m³/h)
- Plug design

  Parabolic,
  Microflow
- Stem sealing

  PTFE/GR V-Rings – up to 220ºC (standard),
  Graphite – up to 400ºC,
  Stainless steel bellows – up to 400ºC
- Valve sealing

  Metal to metal (class IV), standard,
  Soft sealed with PTFE/GR (class VI),
  Stellited (class IV),
  Note: Valves with soft seal, maximum allow. temp: 200ºC
- Actuator

  Pneumatic Actuator ADCATrol PA series
- Actuator direction of action

  Air to open (standard) / Air to close
- Digital Electro-Pneumatic Valve Positioner

  0-10V, 0-5V, 0-20mA or 4-20mA input
- Connections

  Female threaded ISO 7 Rp (NPT on request)
Dimension:
1/2” – 2”

Price according to configuration

Available on request
More about the product
Valsteam ADCA

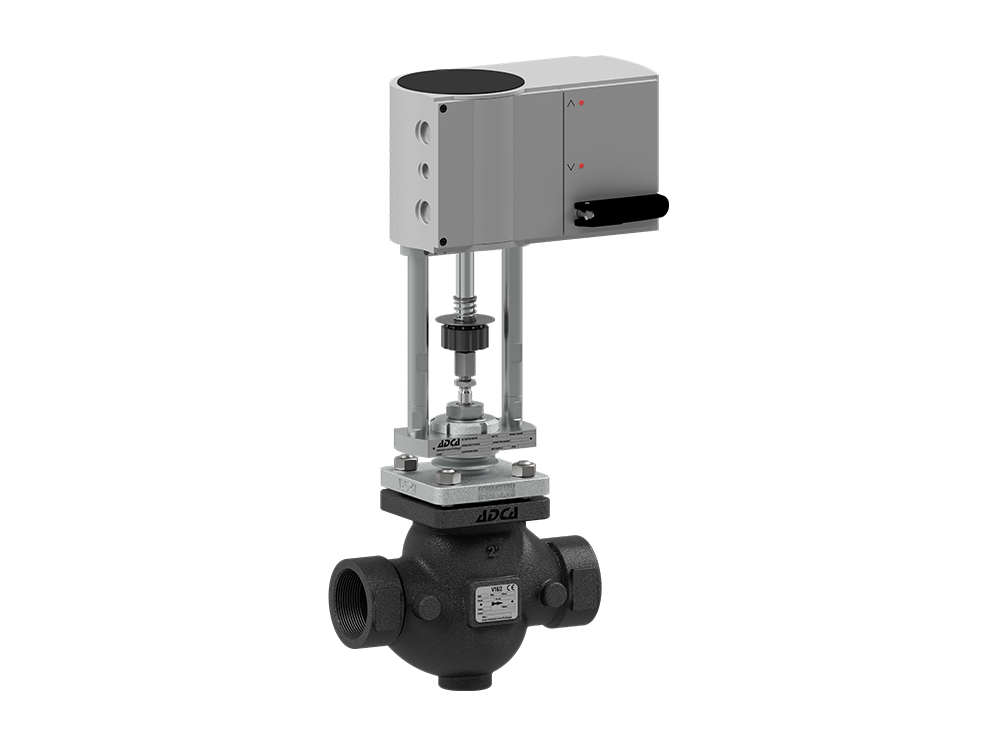

Product code: EV12SS1U111A
Electric control valve ADCA EV16/2S threaded, two-way, with electric actuator ADCATrol
- Application

  Saturated and superheated steam,
  Hot and superheated water,
  Diathermic oil,
  Air, gases and other no corrosive fluids
- Body material

  Carbon steel A216 WCB & Stainless Steel 1U Trim
- Max. operating pressure

  Up to 33,3 bar (Body design PN40)
- flow rate coefficients

  Kvs 0,1 to 40 (m³/h)
- Plug design

  Parabolic,
  Microflow
- Stem sealing

  PTFE/GR V-Rings – up to 220ºC (standard),
  Graphite – up to 400ºC,
  Stainless steel bellows – up to 400ºC
- Valve sealing

  Metal to metal (class IV), standard,
  Soft sealed with PTFE/GR (class VI),
  Stellited (class IV),
  Note: Valves with soft seal, maximum allow. temp: 200ºC
- Actuator

  Electric Actuator ADCATrol EL series
- Supply voltage

  (230 V AC 50/60 Hz), 0-10V or 4-20mA Input (standard),
  24 V AC, 115 V AC, 230 V AC, 400 V AC 50/60 Hz and 24 V DC
- Connections

  Female threaded ISO 7 Rp (NPT on request)
Dimension:
1/2” – 2”

Price according to configuration

Available on request
More about the product
Valsteam ADCA

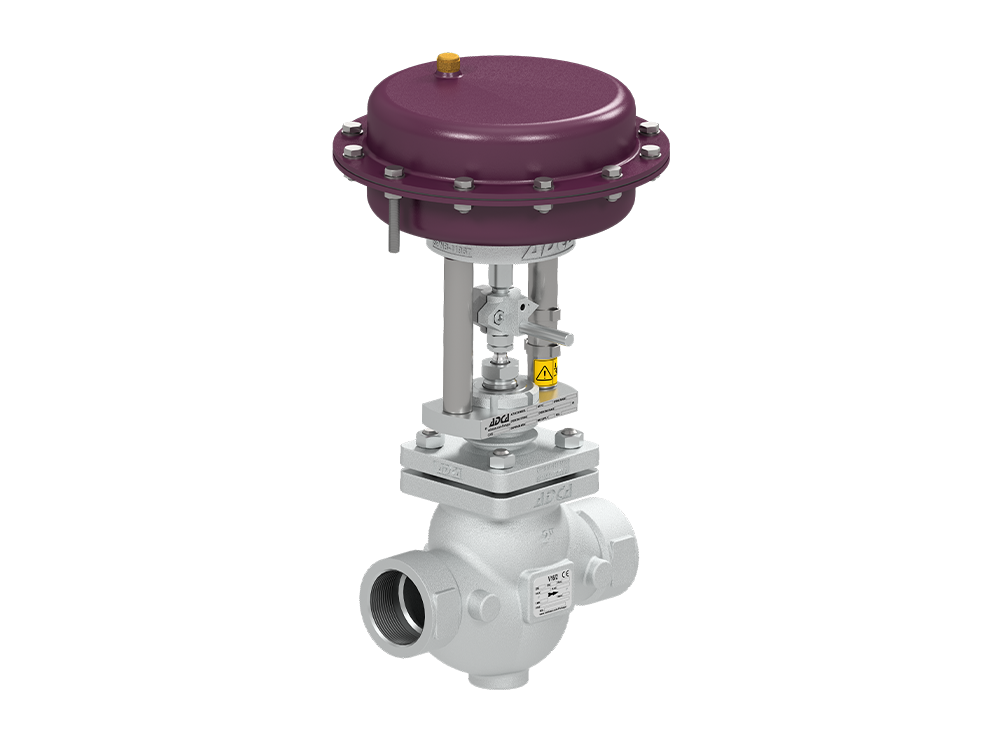

Product code: PV12IS1U111A
Pneumatic control valve ADCA PV16/2i threaded, two-way, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner
- Application

  Saturated and superheated steam,
  Hot and superheated water,
  Diathermic oil,
  Air, gases and other no corrosive fluids
- Body material

  Stainless Steel A351 CF8M & Stainless Steel 1U Trim
- Max. operating pressure

  Up to 33,7 bar (Body design PN40)
- flow rate coefficients

  Kvs 0,1 to 40 (m³/h)
- Plug design

  Parabolic,
  Microflow
- Stem sealing

  PTFE/GR V-Rings – up to 220ºC (standard),
  Graphite – up to 400ºC,
  Stainless steel bellows – up to 400ºC
- Valve sealing

  Metal to metal (class IV), standard,
  Soft sealed with PTFE/GR (class VI),
  Stellited (class IV),
  Note: Valves with soft seal, maximum allow. temp: 200ºC
- Actuator

  Pneumatic Actuator ADCATrol PA series
- Actuator direction of action

  Air to open (standard) / Air to close
- Digital Electro-Pneumatic Valve Positioner

  0-10V, 0-5V, 0-20mA or 4-20mA input
- Connections

  Female threaded ISO 7 Rp (NPT on request)
Dimension:
1/2” – 2”

Price according to configuration

Available on request
More about the product
Valsteam ADCA

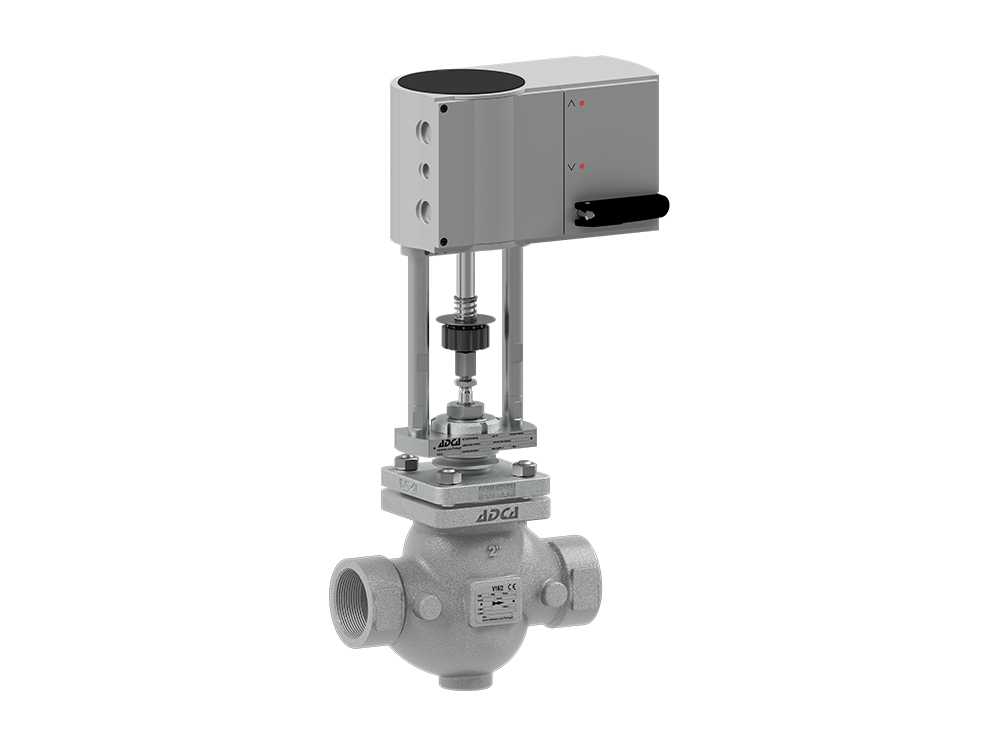

Product code: EV12IS1U111A
Electric control valve ADCA EV16/2i threaded, two-way, with electric actuator ADCATrol
- Application

  Saturated and superheated steam,
  Hot and superheated water,
  Diathermic oil,
  Air, gases and other no corrosive fluids
- Body material

  Stainless Steel A351 CF8M & Stainless Steel 1U Trim
- Max. operating pressure

  Up to 33,7 bar (Body design PN40)
- flow rate coefficients

  Kvs 0,1 to 40 (m³/h)
- Plug design

  Parabolic,
  Microflow
- Stem sealing

  PTFE/GR V-Rings – up to 220ºC (standard),
  Graphite – up to 400ºC,
  Stainless steel bellows – up to 400ºC
- Valve sealing

  Metal to metal (class IV), standard,
  Soft sealed with PTFE/GR (class VI),
  Stellited (class IV),
  Note: Valves with soft seal, maximum allow. temp: 200ºC
- Actuator

  Electric Actuator ADCATrol EL series
- Supply voltage

  (230 V AC 50/60 Hz), 0-10V or 4-20mA Input (standard),
  24 V AC, 115 V AC, 230 V AC, 400 V AC 50/60 Hz and 24 V DC
- Connections

  Female threaded ISO 7 Rp (NPT on request)
Dimension:
1/2” – 2”

Price according to configuration

Available on request
More about the product
Valsteam ADCA

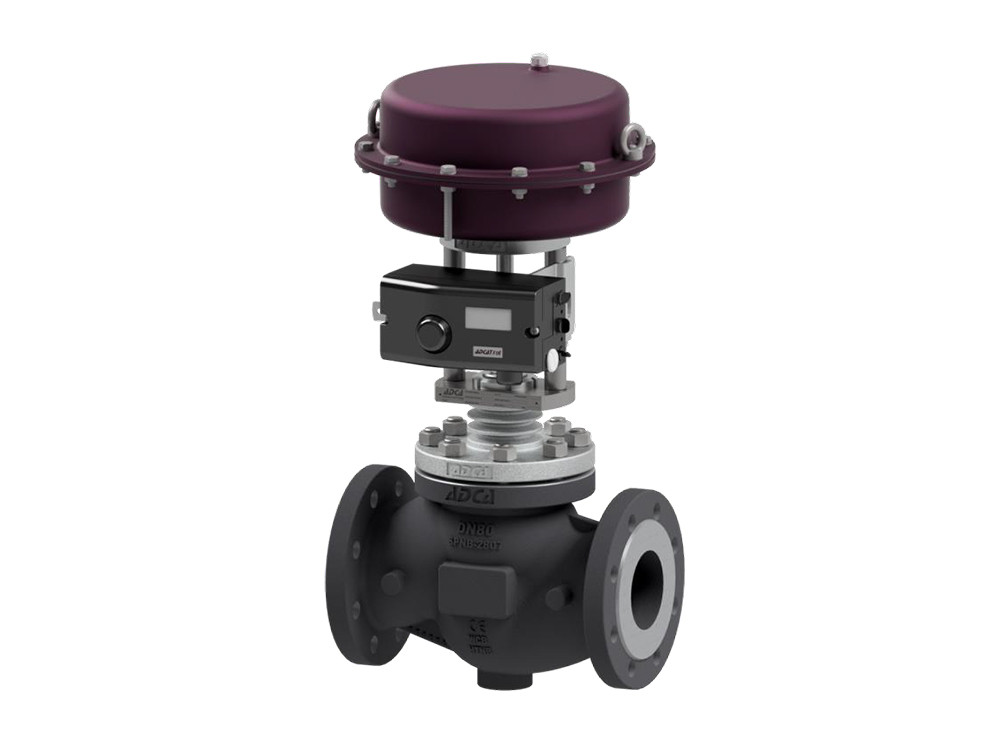

Product code: PV12GS1U111L
Pneumatic control valve ADCA PV16/2G EN flanged, two-way, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner
- Application

  Saturated and superheated steam,
  Hot and superheated water,
  Air, gases and other no corrosive fluids
- Body material

  Ductile iron GJS-400-15 & Stainless Steel 1U Trim
- Max. operating pressure

  Up to 14,7 bar (Body design PN16)
- flow rate coefficients

  Kvs 2,1 to 160 (m³/h)
- Plug design

  Parabolic
- Stem sealing

  PTFE/GR V-Rings – up to 220ºC (standard),
  Graphite – up to 400ºC,
  Stainless steel bellows – up to 400ºC
- Valve sealing

  Metal to metal (class IV), standard,
  Soft sealed with PTFE/GR (class VI),
  Stellited (class IV),
  Note: Valves with soft seal, maximum allow. temp: 200 ºC
- Actuator

  Pneumatic Actuator ADCATrol PA series
- Actuator direction of action

  Air to open (standard) / Air to close
- Digital Electro-Pneumatic Valve Positioner

  0-10V, 0-5V, 0-20mA or 4-20mA input
- Connections

  Flanged EN 1092-1/-2 PN16
Dimension:
DN15 – DN100

Price according to configuration

Available to Order
More about the product
Valsteam ADCA

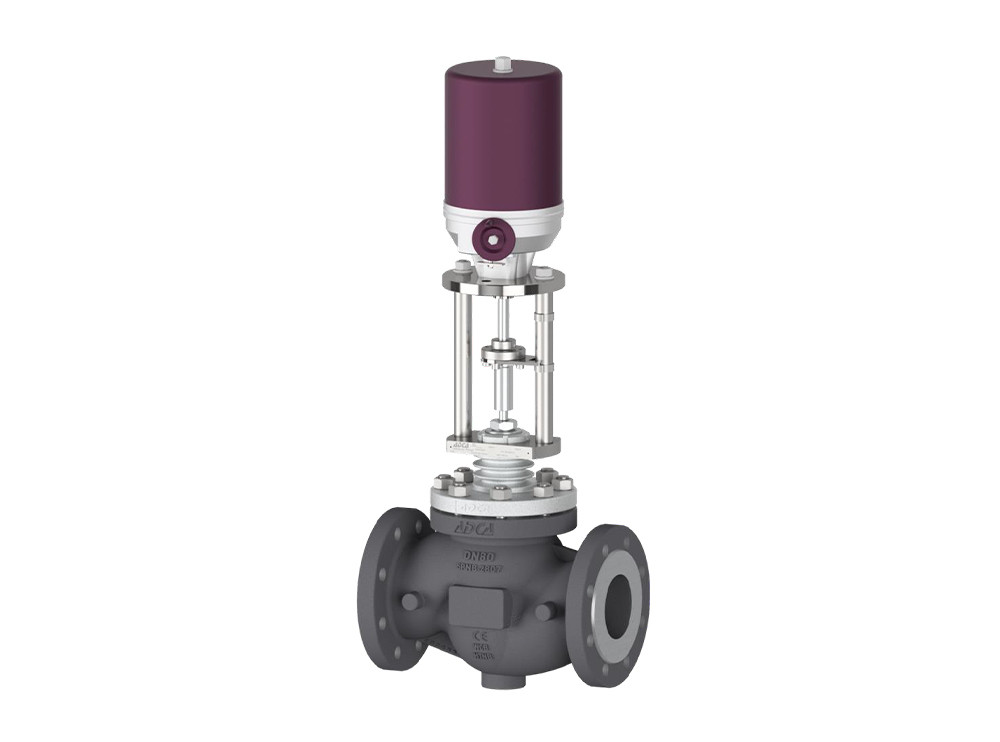

Product code: EV12GS1U111L
Electric control valve ADCA EV16/2G EN flanged, two-way, with electric actuator ADCATrol
- Application

  Saturated and superheated steam,
  Hot and superheated water,
  Air, gases and other no corrosive fluids
- Body material

  Ductile iron GJS-400-15 & Stainless Steel 1U Trim
- Max. operating pressure

  Up to 14,7 bar (Body design PN16)
- Flow rate coefficients

  Kvs 2,1 to 160 (m³/h)
- Plug design

  Parabolic
- Stem sealing

  PTFE/GR V-Rings – up to 220ºC (standard),
  Graphite – up to 400ºC,
  Stainless steel bellows – up to 400ºC
- Valve sealing

  Metal to metal (class IV), standard,
  Soft sealed with PTFE/GR (class VI),
  Stellited (class IV),
  Note: Valves with soft seal, maximum allow. temp: 200 ºC
- Actuator

  Electric Actuator ADCATrol EL series
- Supply voltage

  (230 V AC 50/60 Hz), 0-10V or 4-20mA Input (standard),
  24 V AC, 115 V AC, 230 V AC, 400 V AC 50/60 Hz and 24 V DC
- Connections

  Flanged EN 1092-1/-2 PN16
Dimension:
DN15 – DN100

Price according to configuration

Available to Order
More about the product
Valsteam ADCA

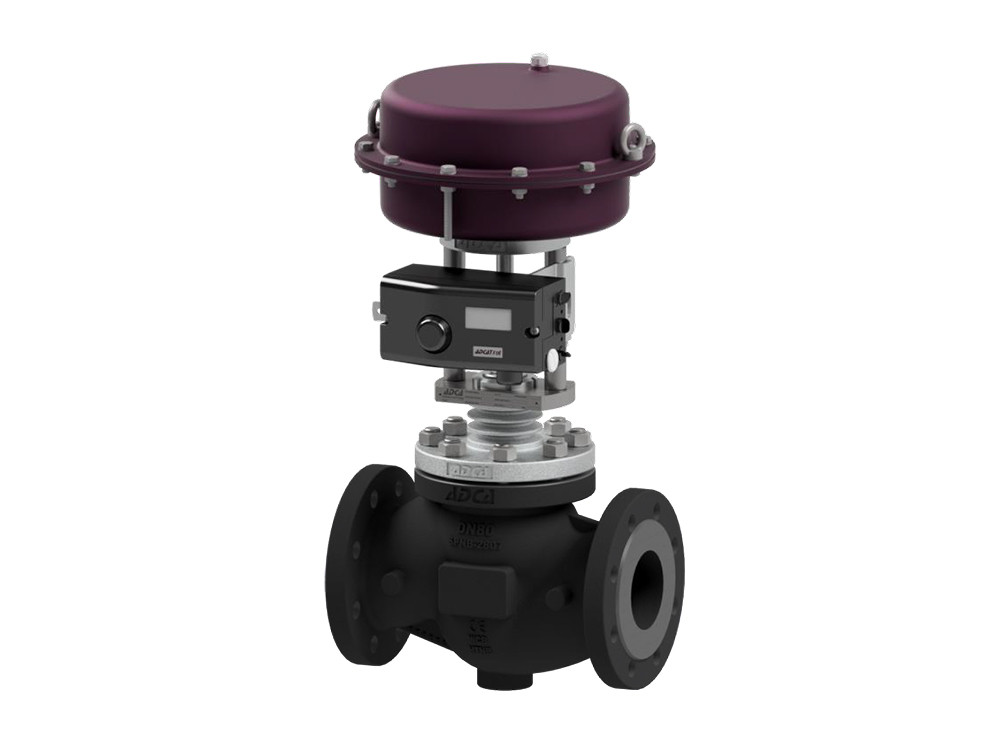

Product code: PV12SS1U111L
Pneumatic control valve ADCA PV16/2S EN flanged, two-way, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner
- Application

  Saturated and superheated steam,
  Hot and superheated water,
  Air, gases and other no corrosive fluids
- Body material

  Carbon steel A216 WCB & Stainless Steel 1U Trim
- Max. operating pressure

  Up to 13,3 bar (Body design PN16),
  Up to 33,3 bar (Body design PN40)
- flow rate coefficients

  Kvs 2,1 to 160 (m³/h)
- Plug design

  Parabolic
- Stem sealing

  PTFE/GR V-Rings – up to 220ºC (standard),
  Graphite – up to 400ºC,
  Stainless steel bellows – up to 400ºC
- Valve sealing

  Metal to metal (class IV), standard,
  Soft sealed with PTFE/GR (class VI),
  Stellited (class IV),
  Note: Valves with soft seal, maximum allow. temp: 200 ºC
- Actuator

  Pneumatic Actuator ADCATrol PA series
- Actuator direction of action

  Air to open (standard) / Air to close
- Digital Electro-Pneumatic Valve Positioner

  0-10V, 0-5V, 0-20mA or 4-20mA input
- Connections

  Flanged EN 1092-1 PN16,
  Flanged EN 1092-1 PN40
Dimension:
DN15 – DN100

Price according to configuration

Available on request
More about the product
Valsteam ADCA

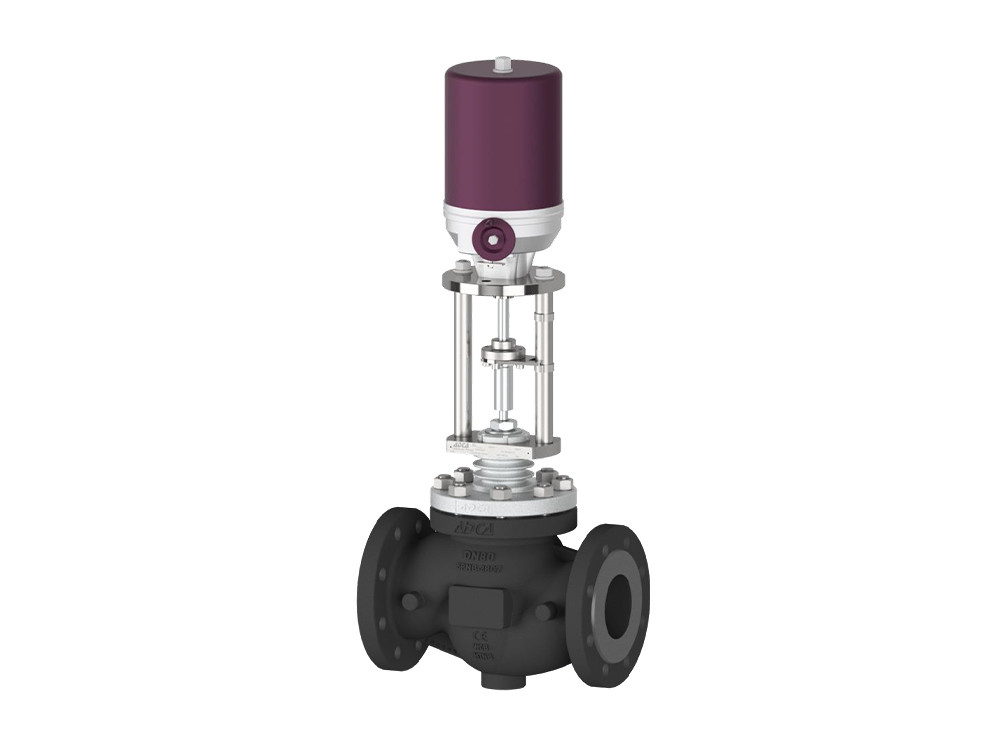

Product code: EV12SS1U111L
Electric control valve ADCA EV16/2S EN flanged, two-way, with electric actuator ADCATrol
- Application

  Saturated and superheated steam,
  Hot and superheated water,
  Air, gases and other no corrosive fluids
- Body material

  Carbon steel A216 WCB & Stainless Steel 1U Trim
- Max. operating pressure

  Up to 13,3 bar (Body design PN16),
  Up to 33,3 bar (Body design PN40)
- Flow rate coefficients

  Kvs 2,1 to 160 (m³/h)
- Plug design

  Parabolic
- Stem sealing

  PTFE/GR V-Rings – up to 220ºC (standard),
  Graphite – up to 400ºC,
  Stainless steel bellows – up to 400ºC
- Valve sealing

  Metal to metal (class IV), standard,
  Soft sealed with PTFE/GR (class VI),
  Stellited (class IV),
  Note: Valves with soft seal, maximum allow. temp: 200 ºC
- Actuator

  Electric Actuator ADCATrol EL series
- Supply voltage

  (230 V AC 50/60 Hz), 0-10V or 4-20mA Input (standard),
  24 V AC, 115 V AC, 230 V AC, 400 V AC 50/60 Hz and 24 V DC
- Connections

  Flanged EN 1092-1 PN16,
  Flanged EN 1092-1 PN40
Dimension:
DN15 – DN100

Price according to configuration

Available on request
More about the product
Valsteam ADCA

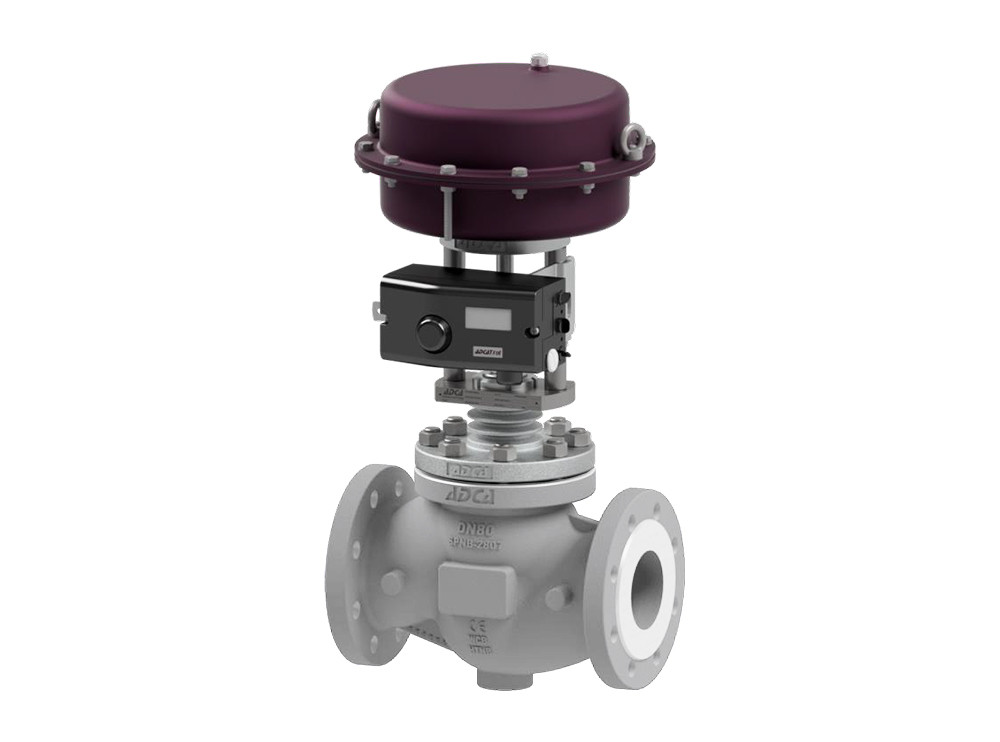

Product code: PV12IS1U111L
Pneumatic control valve ADCA PV16/2i EN flanged, two-way, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner
- Application

  Saturated and superheated steam,
  Hot and superheated water,
  Air, gases and other no corrosive fluids
- Body material

  Stainless Steel A351 CF8M & stainless steel 1U Trim
- Max. operating pressure

  Up to 13,4 bar (Body design PN16),
  Up to 33,7 bar (Body design PN40)
- flow rate coefficients

  Kvs 2,1 to 160 (m³/h)
- Plug design

  Parabolic
- Stem sealing

  PTFE/GR V-Rings – up to 220ºC (standard),
  Graphite – up to 400ºC,
  Stainless steel bellows – up to 400ºC
- Valve sealing

  Metal to metal (class IV), standard,
  Soft sealed with PTFE/GR (class VI),
  Stellited (class IV),
  Note: Valves with soft seal, maximum allow. temp: 200 ºC
- Actuator

  Pneumatic Actuator ADCATrol PA series
- Actuator direction of action

  Air to open (standard) / Air to close
- Digital Electro-Pneumatic Valve Positioner

  0-10V, 0-5V, 0-20mA or 4-20mA input
- Connections

  Flanged EN 1092-1 PN16,
  Flanged EN 1092-1 PN40
Dimension:
DN15 – DN100

Price according to configuration

Available on request
More about the product
Valsteam ADCA

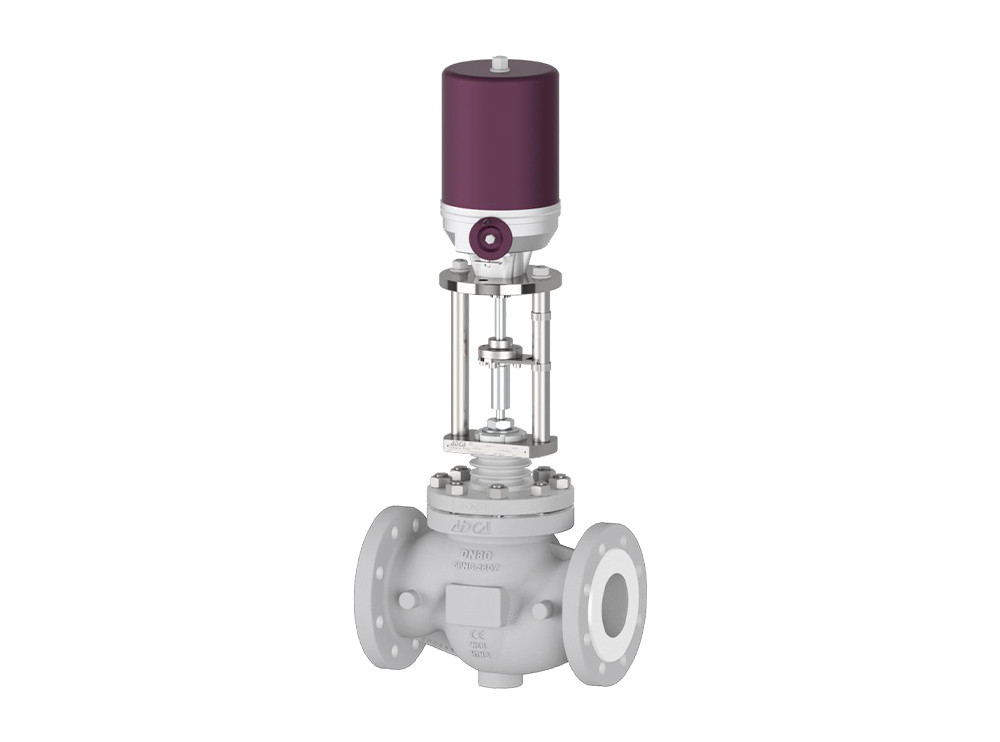

Product code: EV12IS1U111L
Electric control valve ADCA EV16/2i EN flanged, two-way, with electric actuator ADCATrol
- Application

  Saturated and superheated steam,
  Hot and superheated water,
  Air, gases and other no corrosive fluids
- Body material

  Stainless Steel A351 CF8M & stainless steel 1U Trim
- Max. operating pressure

  Up to 13,4 bar (Body design PN16),
  Up to 33,7 bar (Body design PN40)
- Flow rate coefficients

  Kvs 2,1 to 160 (m³/h)
- Plug design

  Parabolic
- Stem sealing

  PTFE/GR V-Rings – up to 220ºC (standard),
  Graphite – up to 400ºC,
  Stainless steel bellows – up to 400ºC
- Valve sealing

  Metal to metal (class IV), standard,
  Soft sealed with PTFE/GR (class VI),
  Stellited (class IV),
  Note: Valves with soft seal, maximum allow. temp: 200 ºC
- Actuator

  Electric Actuator ADCATrol EL series
- Supply voltage

  (230 V AC 50/60 Hz), 0-10V or 4-20mA Input (standard),
  24 V AC, 115 V AC, 230 V AC, 400 V AC 50/60 Hz and 24 V DC
- Connections

  Flanged EN 1092-1 PN16,
  Flanged EN 1092-1 PN40
Dimension:
DN15 – DN100

Price according to configuration

Available on request
More about the product

Two-way control valves

Refine

Valsteam ADCA

Pneumatic control valve ADCA PV16/2S threaded, two-way, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner

Valsteam ADCA

Electric control valve ADCA EV16/2S threaded, two-way, with electric actuator ADCATrol

Valsteam ADCA

Pneumatic control valve ADCA PV16/2i threaded, two-way, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner

Valsteam ADCA

Electric control valve ADCA EV16/2i threaded, two-way, with electric actuator ADCATrol

Valsteam ADCA

Pneumatic control valve ADCA PV16/2G EN flanged, two-way, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner

Valsteam ADCA

Electric control valve ADCA EV16/2G EN flanged, two-way, with electric actuator ADCATrol

Valsteam ADCA

Pneumatic control valve ADCA PV16/2S EN flanged, two-way, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner

Valsteam ADCA

Electric control valve ADCA EV16/2S EN flanged, two-way, with electric actuator ADCATrol

Valsteam ADCA

Pneumatic control valve ADCA PV16/2i EN flanged, two-way, with linear actuators ADCATrol and Digital Electro-Pneumatic Positioner

Valsteam ADCA

Electric control valve ADCA EV16/2i EN flanged, two-way, with electric actuator ADCATrol

Ask a question

Submit an inquiry

Attach details
