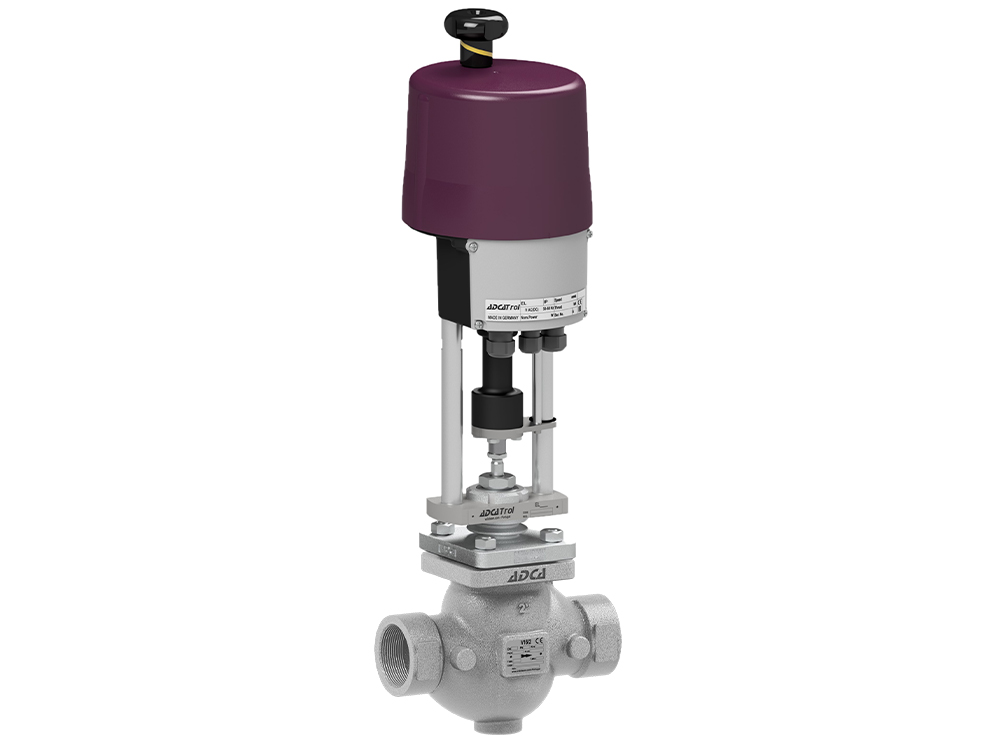

Specifications

• Application

  Saturated and superheated steam,
  Hot and superheated water,
  Diathermic oil,
  Air, gases and other no corrosive fluids

• Body material

  Stainless Steel A351 CF8M & Stainless Steel 1U Trim

• Max. operating pressure

  Up to 33,7 bar (Body design PN40)

• flow rate coefficients

  Kvs 0,1 to 40 (m³/h)

• Plug design

  Parabolic,
  Microflow

• Stem sealing

  PTFE/GR V-Rings – up to 220ºC (standard),
  Graphite – up to 400ºC,
  Stainless steel bellows – up to 400ºC

• Valve sealing

  Metal to metal (class IV), standard,
  Soft sealed with PTFE/GR (class VI),
  Stellited (class IV),
  Note: Valves with soft seal, maximum allow. temp: 200ºC

• Actuator

  Electric Actuator ADCATrol EL series

• Supply voltage

  (230 V AC 50/60 Hz), 0-10V or 4-20mA Input (standard),
  24 V AC, 115 V AC, 230 V AC, 400 V AC 50/60 Hz and 24 V DC

• Connections

  Female threaded ISO 7 Rp (NPT on request)
