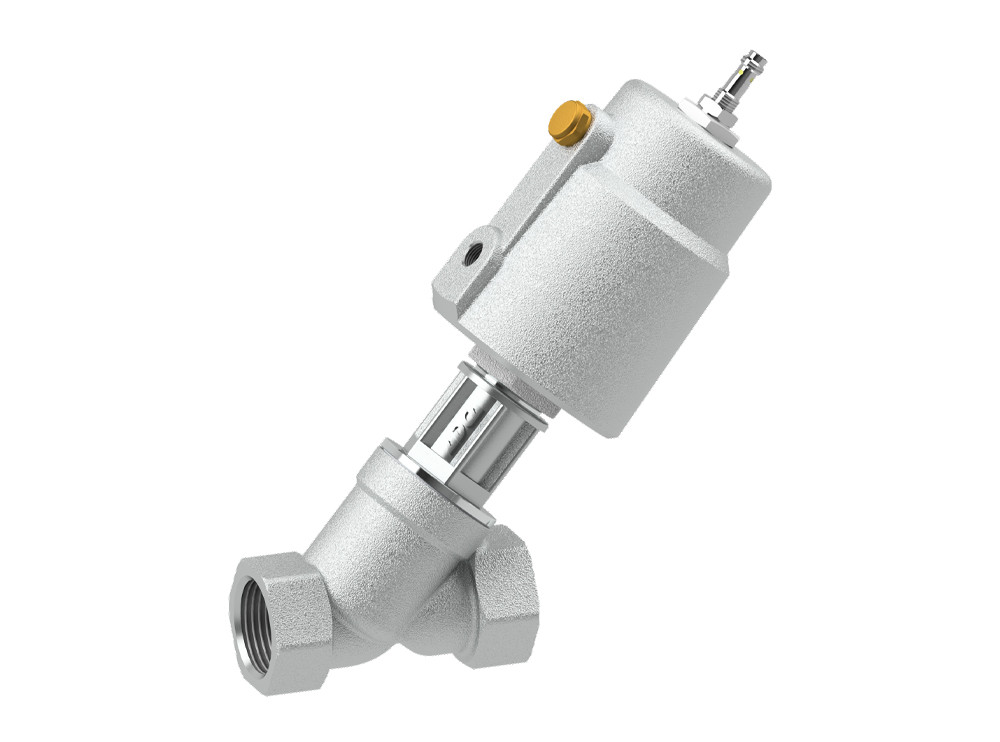

Angle seat valve ADCA PAV21 threaded, with pneumatic air on-off piston actuator ADCATrol

Specifications

  • Application

    Saturated steam,
    Hot and superheated water,
    Air, gases and others

  • Body material

    Stainless Steel A351 CF8M & Stainless Steel Trim

  • Max. operating pressure

    Body design PN16

  • flow rate coefficients

    Kvs 4,8 to 52,6 (m³/h)

  • Plug type

    angle seat, parabolic quick-opening (On/Off) soft plug

  • Flow direction

    Flow under the plug

  • Stem sealing

    PTFE/GR V-Rings – up to 200ºC

  • Valve sealing

    Soft sealed with PTFE/GR (class VI)

  • Actuator

    Pneumatic air on-off piston actuator ADCATrol PPI series

  • Actuator direction of action

    Air to open (standard) / Air to close

  • Max. air supply pressure

    8 bar

  • Connections

    Female threaded ISO 7 Rp (NPT on request)

Angle seat valve ADCA PAV21 threaded, with pneumatic air on-off piston actuator ADCATrol

Product code: PAV.211A

Available to Order

Price according to configuration

Choose your configuration
Choose on Option...
  • 1/2" (Kvs 4,8)
  • 3/4" (Kvs 9,5)
See all configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)

Quantity

-
+

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

See all configurations

Model Size / Kvs Ref Price Quantity
Angle seat valve PAV21 1/2" (Kvs 4,8) BSP, single seated, two way, soft plug, PTFE/GR stem sealing, complete with pneumatic air to open (RA) stainless steel on-off piston actuator mod. PPI63 (ΔP 16 bar) 1/2" (Kvs 4,8) PAV.211A15B.63.R
-
+
Angle seat valve PAV21 3/4" (Kvs 9,5) BSP, single seated, two way, soft plug, PTFE/GR stem sealing, complete with pneumatic air to open (RA) stainless steel on-off piston actuator mod. PPI63 (ΔP 16 bar) 3/4" (Kvs 9,5) PAV.211A15B.63.R
-
+

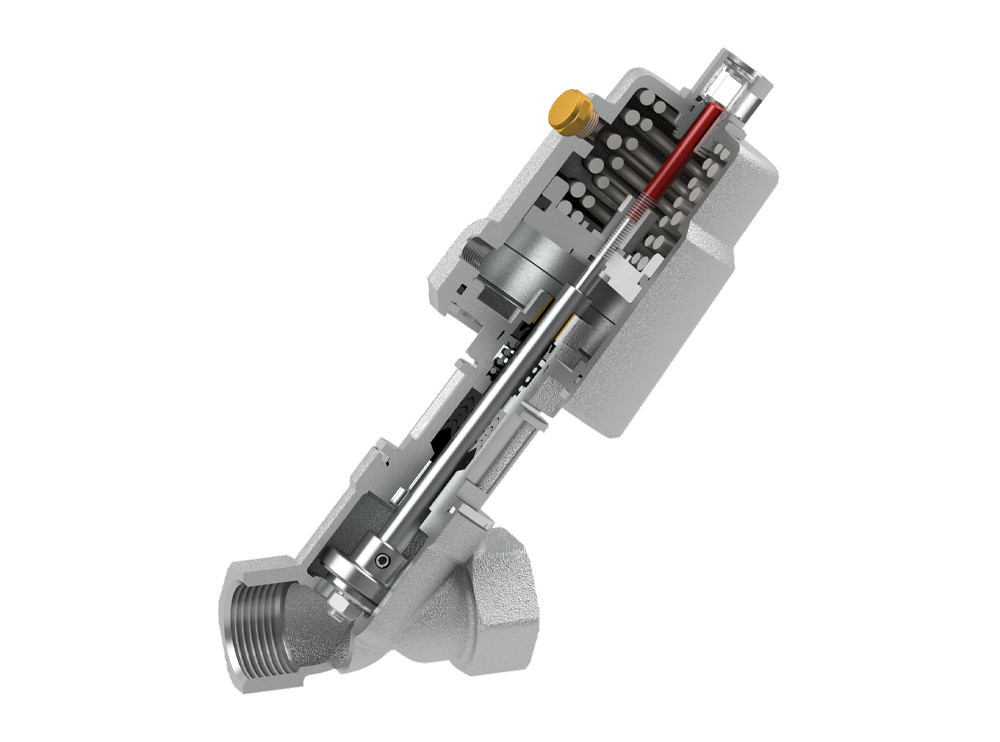

The ADCATrol PAV21 is a series of pneumatic angle seat shut-off valves with piston actuators. These valves are suitable for use with the most common process fluids such as steam, water, superheated water, air, neutral gases and oils. The PAV21 is recommended for applications where flexibility and affordability are important requirements.
