Valsteam ADCA
Product code: PAV.211A

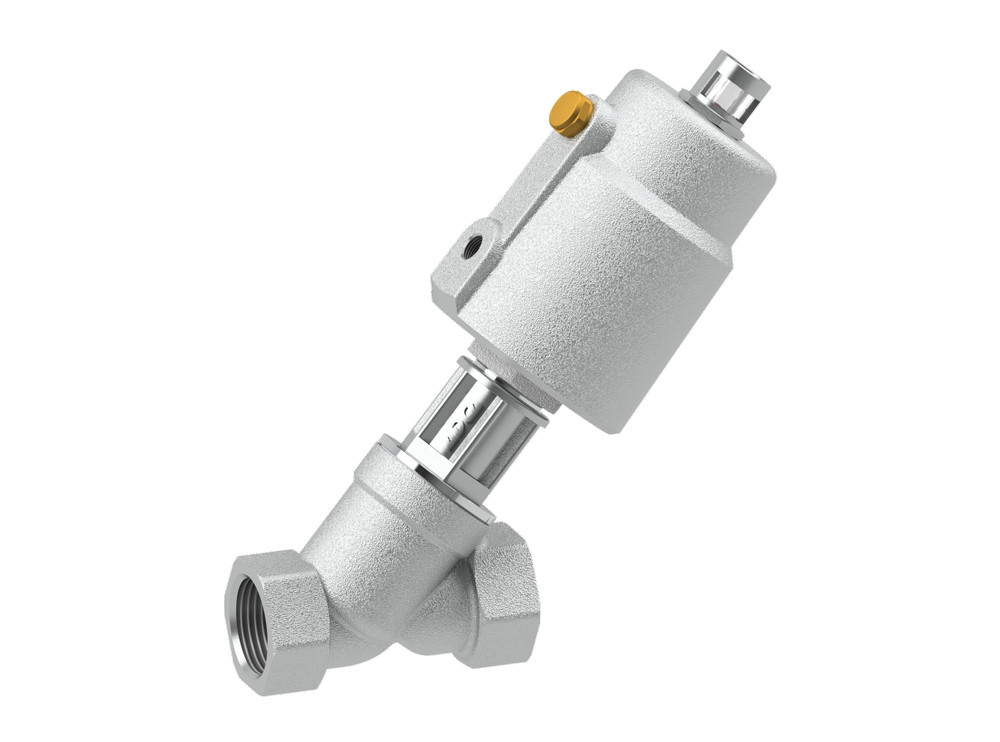

Angle seat valve ADCA PAV21 threaded, with pneumatic air on-off piston actuator ADCATrol
-
Application
Saturated steam,
Hot and superheated water,
Air, gases and others -
Body material
Stainless Steel A351 CF8M & Stainless Steel Trim
-
Max. operating pressure
Body design PN16
-
flow rate coefficients
Kvs 4,8 to 52,6 (m³/h)
-
Plug type
angle seat, parabolic quick-opening (On/Off) soft plug
-
Flow direction
Flow under the plug
-
Stem sealing
PTFE/GR V-Rings – up to 200ºC
-
Valve sealing
Soft sealed with PTFE/GR (class VI)
-
Actuator
Pneumatic air on-off piston actuator ADCATrol PPI series
-
Actuator direction of action
Air to open (standard) / Air to close
-
Max. air supply pressure
8 bar
-
Connections
Female threaded ISO 7 Rp (NPT on request)
-
-
Valsteam ADCA
Product code: PPV1GU1306IRXL

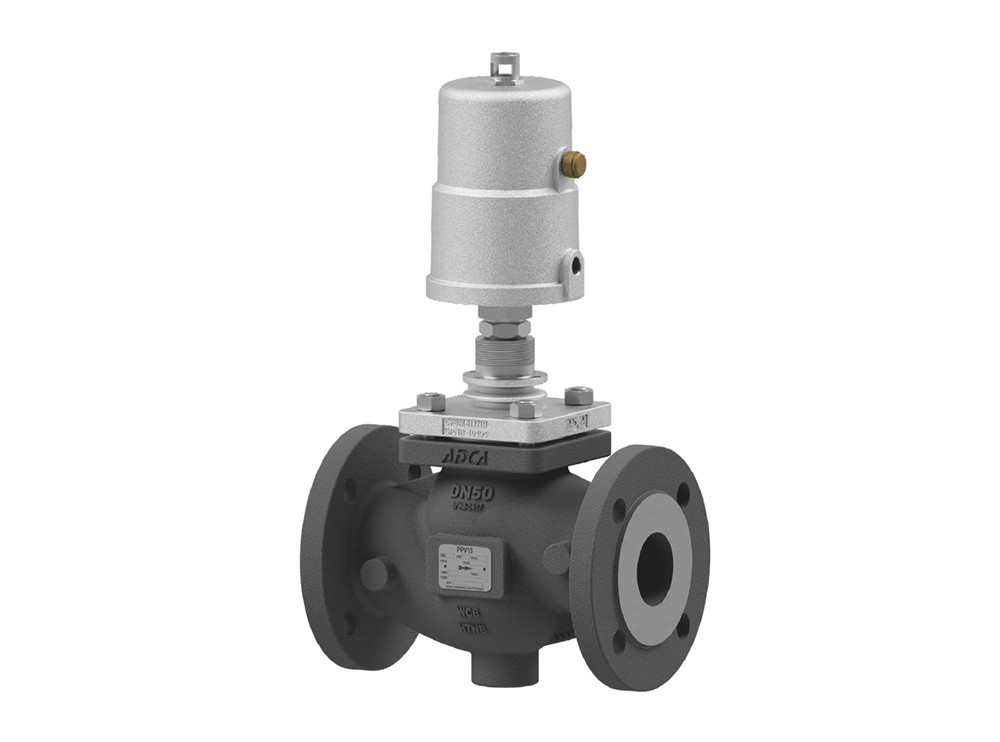

Pneumatic on/off globe valve ADCA PPV15G EN flanged, with pneumatic air on-off piston actuator ADCATrol
-
Application
Saturated steam,
Hot and superheated water,
Air, gases and others -
Body material
Ductile iron GJS-400-15 & Stainless Steel U1 Trim
-
Max. operating pressure
Up to 14,7 bar (Body design PN16)
-
Flow rate coefficients
Kvs 5,1 to 40 (m³/h)
-
Plug type
parabolic quick-opening (On/Off) soft plug
-
Flow direction
Flow under the plug
-
Stem sealing
PTFE/GR V-Rings – up to 200ºC
-
Valve sealing
Soft sealed with PTFE/GR (class VI)
-
Actuator
Pneumatic air on-off piston actuator ADCATrol PPI series
-
Actuator direction of action
Air to open (standard) / Air to close
-
Max. air supply pressure
8 bar
-
Connections
Flanged EN 1092-2 PN 16
-
-
Valsteam ADCA
Product code: PPV1SU1306IRXL

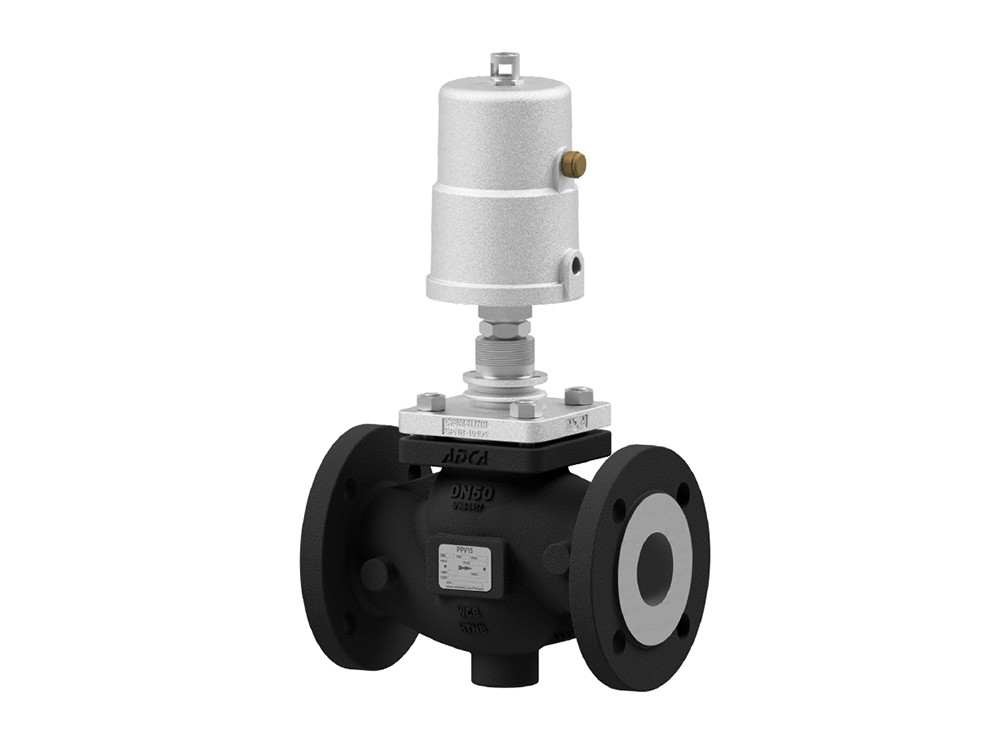

Pneumatic on/off globe valve ADCA PPV15S EN flanged, with pneumatic air on-off piston actuator ADCATrol
-
Application
Saturated steam,
Hot and superheated water,
Air, gases and others -
Body material
Carbon steel A216 WCB & Stainless Steel U1 Trim
-
Max. operating pressure
Up to 13,3 bar (Body design PN16),
Up to 33,3 bar (Body design PN40) -
Flow rate coefficients
Kvs 5,1 to 40 (m³/h)
-
Plug type
parabolic quick-opening (On/Off) soft plug
-
Flow direction
Flow under the plug
-
Stem sealing
PTFE/GR V-Rings – up to 200ºC
-
Valve sealing
Soft sealed with PTFE/GR (class VI)
-
Actuator
Pneumatic air on-off piston actuator ADCATrol PPI series
-
Actuator direction of action
Air to open (standard) / Air to close
-
Max. air supply pressure
8 bar
-
Connections
Flanged EN 1092-1 PN 16 or PN 40
-
-
Valsteam ADCA
Product code: PPV1IU1306IRXL

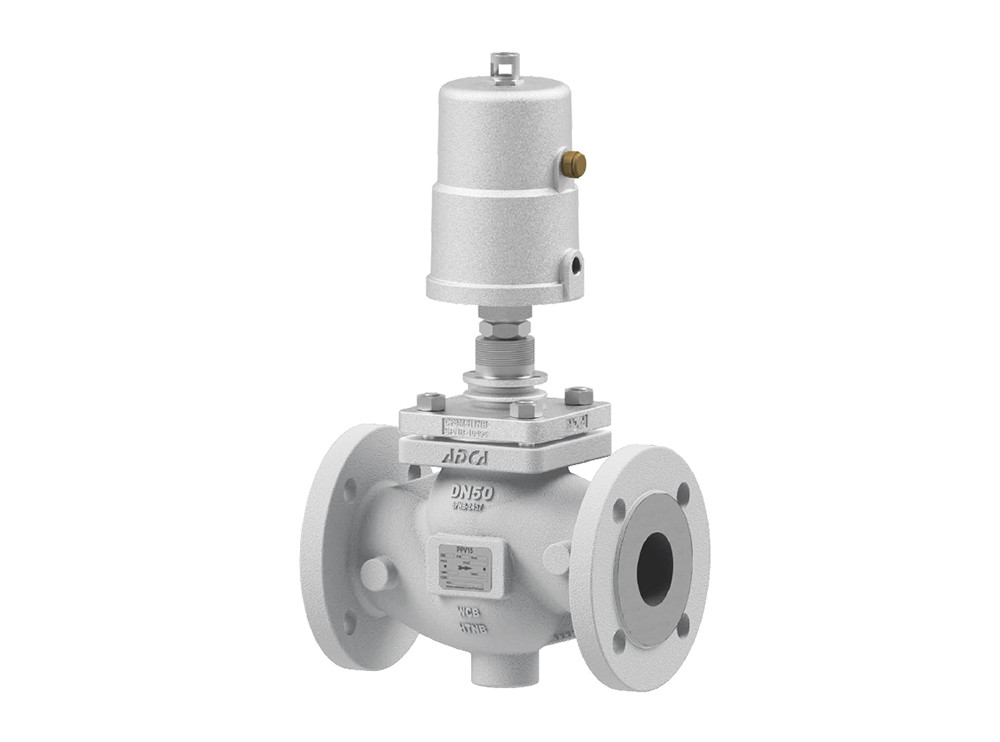

Pneumatic on/off globe valve ADCA PPV15i EN flanged, with pneumatic air on-off piston actuator ADCATrol
-
Application
Saturated steam,
Hot and superheated water,
Air, gases and others -
Body material
Stainless Steel A351 CF8M & Stainless Steel U1 Trim
-
Max. operating pressure
Up to 13,4 bar (Body design PN16),
Up to 33,7 bar (Body design PN40) -
Flow rate coefficients
Kvs 5,1 to 40 (m³/h)
-
Plug type
parabolic quick-opening (On/Off) soft plug
-
Flow direction
Flow under the plug
-
Stem sealing
PTFE/GR V-Rings – up to 200ºC
-
Valve sealing
Soft sealed with PTFE/GR (class VI)
-
Actuator
Pneumatic air on-off piston actuator ADCATrol PPI series
-
Actuator direction of action
Air to open (standard) / Air to close
-
Max. air supply pressure
8 bar
-
Connections
Flanged EN 1092-1 PN 16 or PN 40
-
-
Valsteam ADCA
Product code: PV151GU1210SRXL

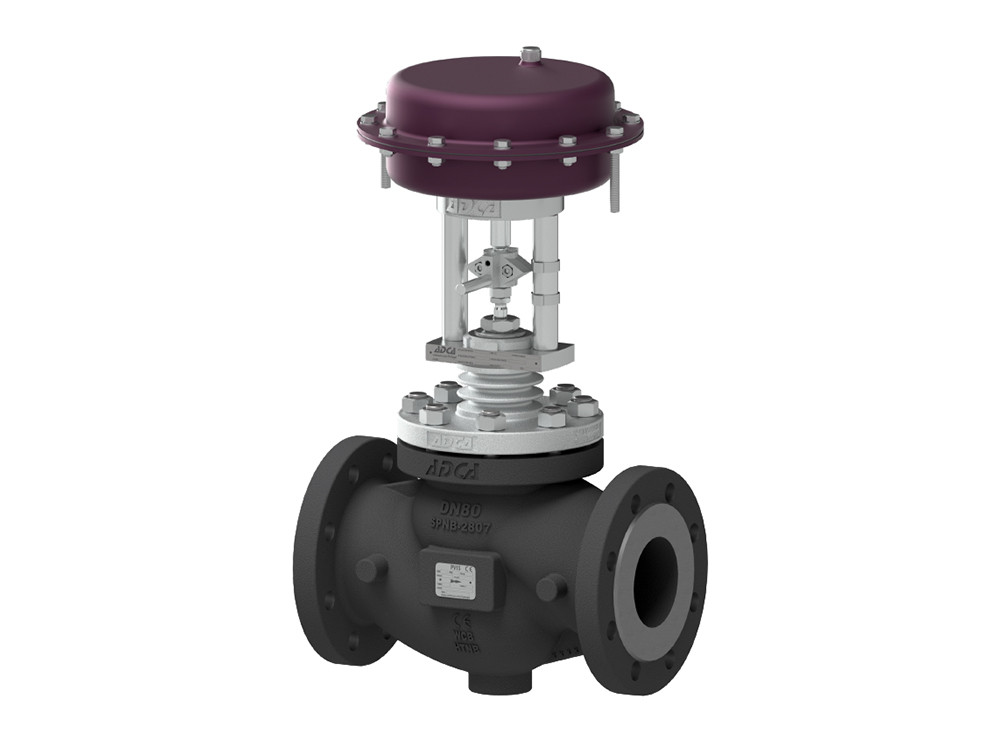

Pneumatic on/off globe valve ADCA PV15G EN flanged, complete with ADCATrol PA series diaphragm actuators
-
Application
Saturated steam,
Hot and superheated water,
Air, gases and others -
Body material
Ductile iron GJS-400-15 & Stainless Steel U12 Trim
-
Max. operating pressure
Up to 14,7 bar (Body design PN16)
-
Flow rate coefficients
Kvs 5,1 to 630 (m³/h)
-
Plug type
parabolic quick-opening (On/Off) metal plug
-
Flow direction
Flow under the plug
-
Stem sealing
PTFE/GR V-Rings – up to 220ºC (standard),
Graphite – up to 400ºC,
Stainless steel bellows – up to 400ºC -
Valve sealing
Metal to metal (class IV), standard,
Soft sealed with PTFE/GR (class VI),
Note: Valves with soft seal, maximum allow. temp: 200 ºC -
Actuator
Pneumatic Actuator ADCATrol PA series
-
Actuator direction of action
Air to open (standard) / Air to close
-
Max. air supply pressure
6 bar
-
Connections
Flanged EN 1092-2 PN 16
-
-
Valsteam ADCA
Product code: E151GU120121XL

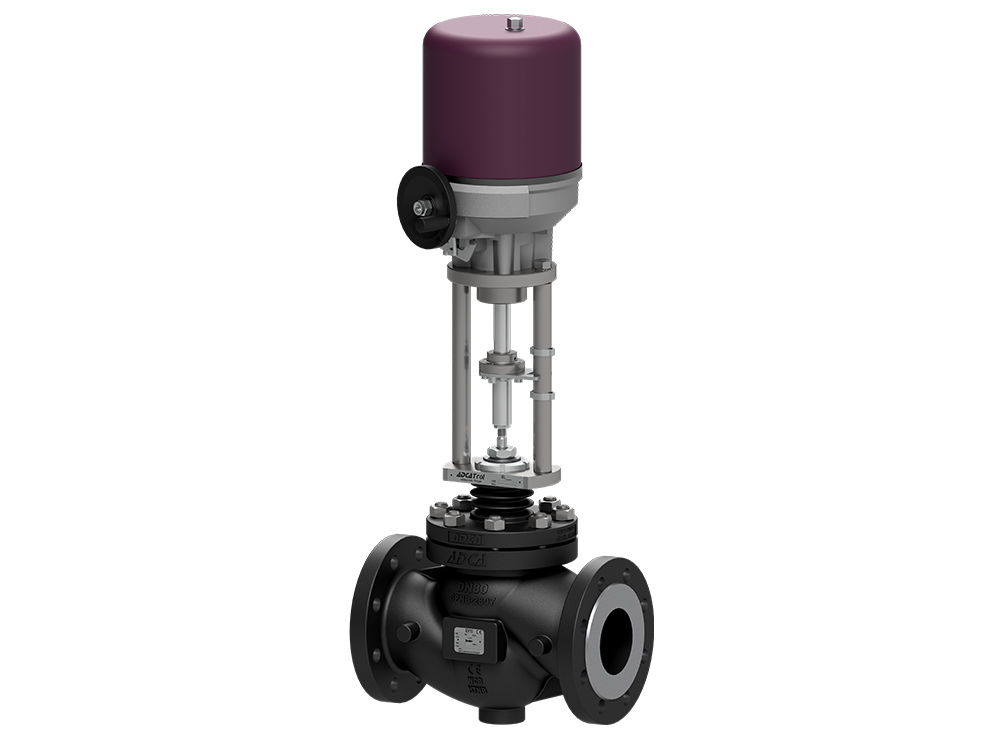

Electric on/off globe valve ADCA EV15G EN flanged, with electric actuator ADCATrol
-
Application
Saturated steam,
Hot and superheated water,
Air, gases and others -
Body material
Ductile iron GJS-400-15 & Stainless Steel U1 Trim
-
Max. operating pressure
Up to 14,7 bar (Body design PN16)
-
Flow rate coefficients
Kvs 5,1 to 630 (m³/h)
-
Plug type
parabolic quick-opening (On/Off) metal plug
-
Flow direction
Flow under the plug
-
Stem sealing
PTFE/GR V-Rings – up to 220ºC (standard),
Graphite – up to 400ºC,
Stainless steel bellows – up to 400ºC -
Valve sealing
Metal to metal (class IV), standard,
Soft sealed with PTFE/GR (class VI),
Note: Valves with soft seal, maximum allow. temp: 200 ºC -
Actuator
Electric Actuator ADCATrol EL series
-
Supply voltage
(230 V AC 50/60 Hz), 0-10V or 4-20mA Input (standard),
24 V AC, 115 V AC, 230 V AC, 400 V AC 50/60 Hz and 24 V DC -
Connections
Flanged EN 1092-2 PN 16
Dimension:
DN15 – DN200Price according to configurationAvailable on requestMore about the product -
-
Valsteam ADCA

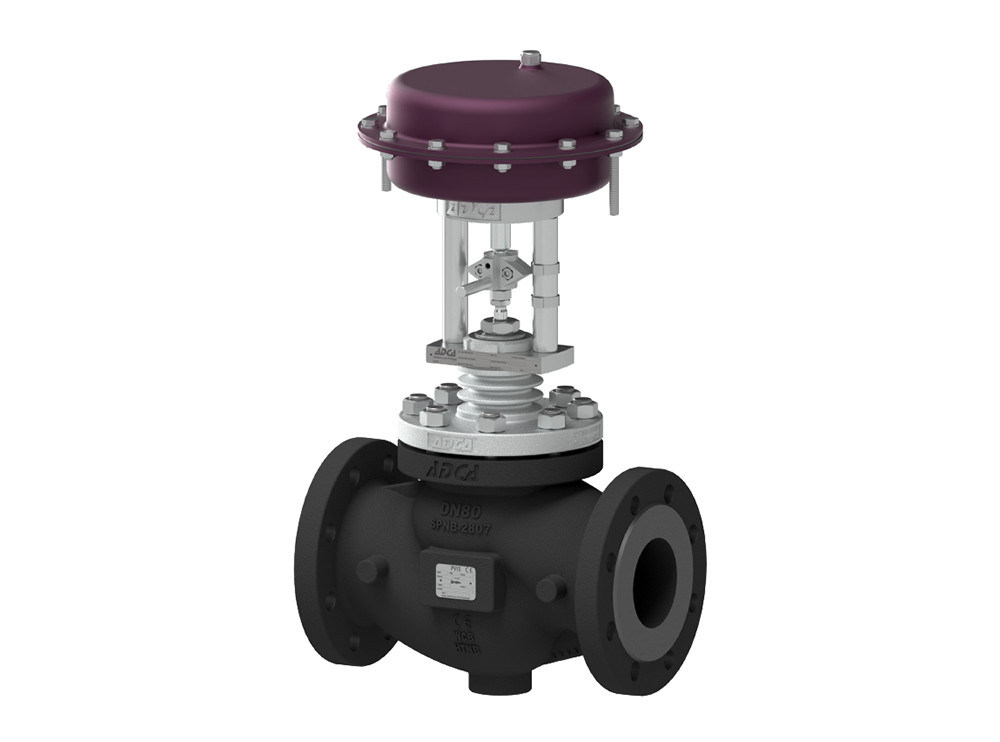

Product code: PV151SU1210SRXL
Pneumatic on/off globe valve ADCA PV15S EN flanged, complete with ADCATrol PA series diaphragm actuators
-
Application
Saturated steam,
Hot and superheated water,
Air, gases and others -
Body material
Carbon steel A216 WCB & Stainless Steel U12 Trim
-
Max. operating pressure
Up to 13,3 bar (Body design PN16),
Up to 33,3 bar (Body design PN40) -
Flow rate coefficients
Kvs 5,1 to 630 (m³/h)
-
Plug type
parabolic quick-opening (On/Off) metal plug
-
Flow direction
Flow under the plug
-
Stem sealing
PTFE/GR V-Rings – up to 220ºC (standard),
Graphite – up to 400ºC,
Stainless steel bellows – up to 400ºC (PMO: 25 bar) -
Valve sealing
Metal to metal (class IV), standard,
Soft sealed with PTFE/GR (class VI),
Note: Valves with soft seal, maximum allow. temp: 200 ºC -
Actuator
Pneumatic Actuator ADCATrol PA series
-
Actuator direction of action
Air to open (standard) / Air to close
-
Max. air supply pressure
6 bar
-
Connections
Flanged EN 1092-1 PN 16,
Flanged EN 1092-1 PN 40
Dimension:
DN15 – DN200Price according to configurationAvailable on requestMore about the product -
-
Valsteam ADCA
Product code: E151SU120121XL
Electric on/off globe valve ADCA EV15S EN flanged, with electric actuator ADCATrol
-
Application
Saturated steam,
Hot and superheated water,
Air, gases and others -
Body material
Carbon steel A216 WCB & Stainless Steel U12 Trim
-
Max. operating pressure
Up to 13,3 bar (Body design PN16),
Up to 33,3 bar (Body design PN40) -
Flow rate coefficients
Kvs 5,1 to 630 (m³/h)
-
Plug type
parabolic quick-opening (On/Off) metal plug
-
Flow direction
Flow under the plug
-
Stem sealing
PTFE/GR V-Rings – up to 220ºC (standard),
Graphite – up to 400ºC,
Stainless steel bellows – up to 400ºC (PMO: 25 bar) -
Valve sealing
Metal to metal (class IV), standard,
Soft sealed with PTFE/GR (class VI),
Note: Valves with soft seal, maximum allow. temp: 200 ºC -
Actuator
Electric Actuator ADCATrol EL series
-
Supply voltage
(230 V AC 50/60 Hz), 0-10V or 4-20mA Input (standard),
24 V AC, 115 V AC, 230 V AC, 400 V AC 50/60 Hz and 24 V DC -
Connections
Flanged EN 1092-1 PN 16,
Flanged EN 1092-1 PN 40
Dimension:
DN15 – DN200Price according to configurationAvailable on requestMore about the product -
-
Valsteam ADCA
Product code: PV151IU1210SRXL

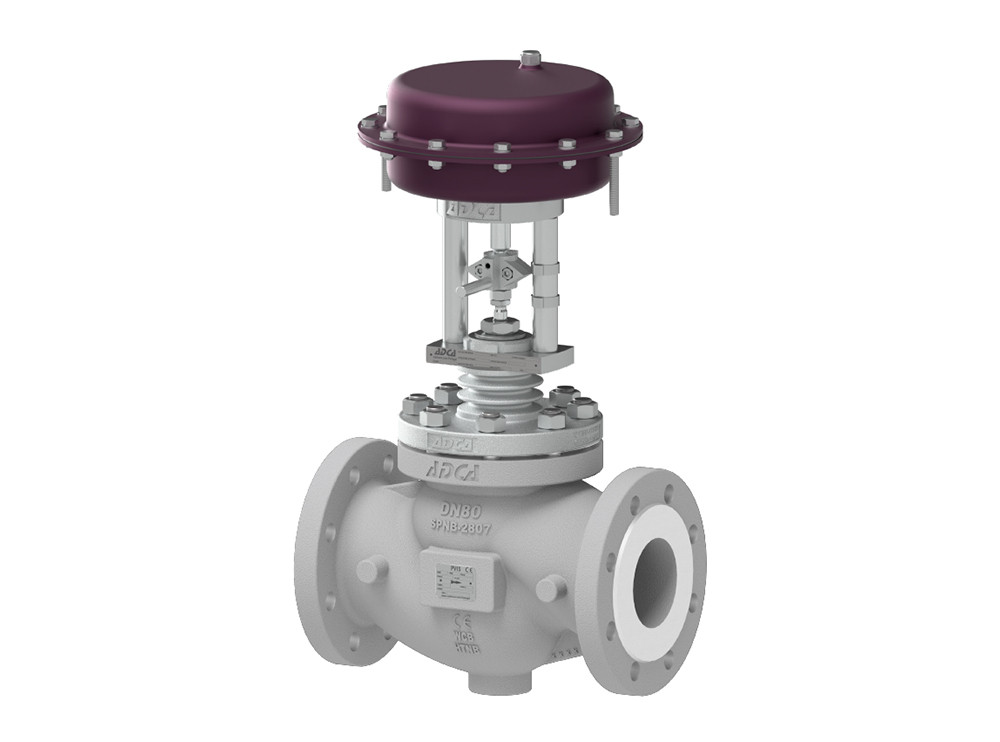

Pneumatic on/off globe valve ADCA PV15i EN flanged, complete with ADCATrol PA series diaphragm actuators
-
Application
Saturated steam,
Hot and superheated water,
Air, gases and others -
Body material
Stainless Steel A351 CF8M & Stainless Steel U12 Trim
-
Max. operating pressure
Up to 13,4 bar (Body design PN16),
Up to 33,7 bar (Body design PN40) -
Flow rate coefficients
Kvs 5,1 to 630 (m³/h)
-
Plug type
parabolic quick-opening (On/Off) metal plug
-
Flow direction
Flow under the plug
-
Stem sealing
PTFE/GR V-Rings – up to 220ºC (standard),
Graphite – up to 400ºC,
Stainless steel bellows – up to 400ºC (PMO: 25 bar) -
Valve sealing
Metal to metal (class IV), standard,
Soft sealed with PTFE/GR (class VI),
Note: Valves with soft seal, maximum allow. temp: 200 ºC -
Actuator
Pneumatic Actuator ADCATrol PA series
-
Actuator direction of action
Air to open (standard) / Air to close
-
Max. air supply pressure
6 bar
-
Connections
Flanged EN 1092-1 PN 16,
Flanged EN 1092-1 PN 40
Dimension:
DN15 – DN200Price according to configurationAvailable on requestMore about the product -
-
Valsteam ADCA
Product code: E151IU120121XL

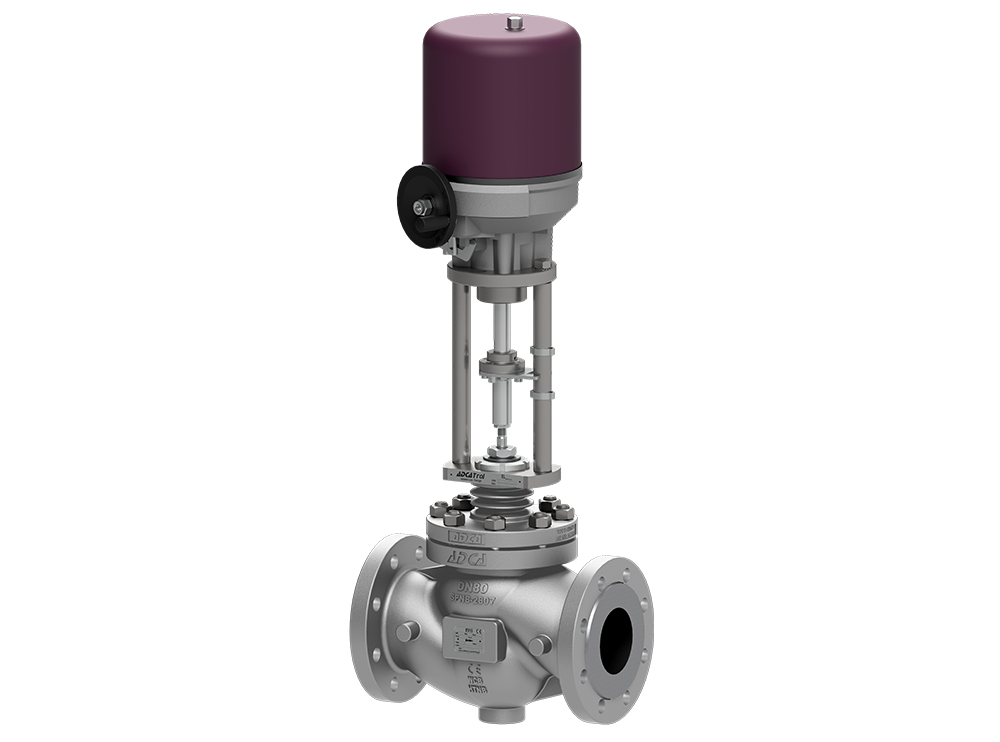

Electric on/off globe valve ADCA EV15i EN flanged, with electric actuator ADCATrol
-
Application
Saturated steam,
Hot and superheated water,
Air, gases and others -
Body material
Stainless Steel A351 CF8M & Stainless Steel U12 Trim
-
Max. operating pressure
Up to 13,4 bar (Body design PN16),
Up to 33,7 bar (Body design PN40) -
Flow rate coefficients
Kvs 5,1 to 630 (m³/h)
-
Plug type
parabolic quick-opening (On/Off) metal plug
-
Flow direction
Flow under the plug
-
Stem sealing
PTFE/GR V-Rings – up to 220ºC (standard),
Graphite – up to 400ºC,
Stainless steel bellows – up to 400ºC (PMO: 25 bar) -
Valve sealing
Metal to metal (class IV), standard,
Soft sealed with PTFE/GR (class VI),
Note: Valves with soft seal, maximum allow. temp: 200 ºC -
Actuator
Electric Actuator ADCATrol EL series
-
Supply voltage
(230 V AC 50/60 Hz), 0-10V or 4-20mA Input (standard),
24 V AC, 115 V AC, 230 V AC, 400 V AC 50/60 Hz and 24 V DC -
Connections
Flanged EN 1092-1 PN 16,
Flanged EN 1092-1 PN 40
Dimension:
DN15 – DN200Price according to configurationAvailable on requestMore about the product -
