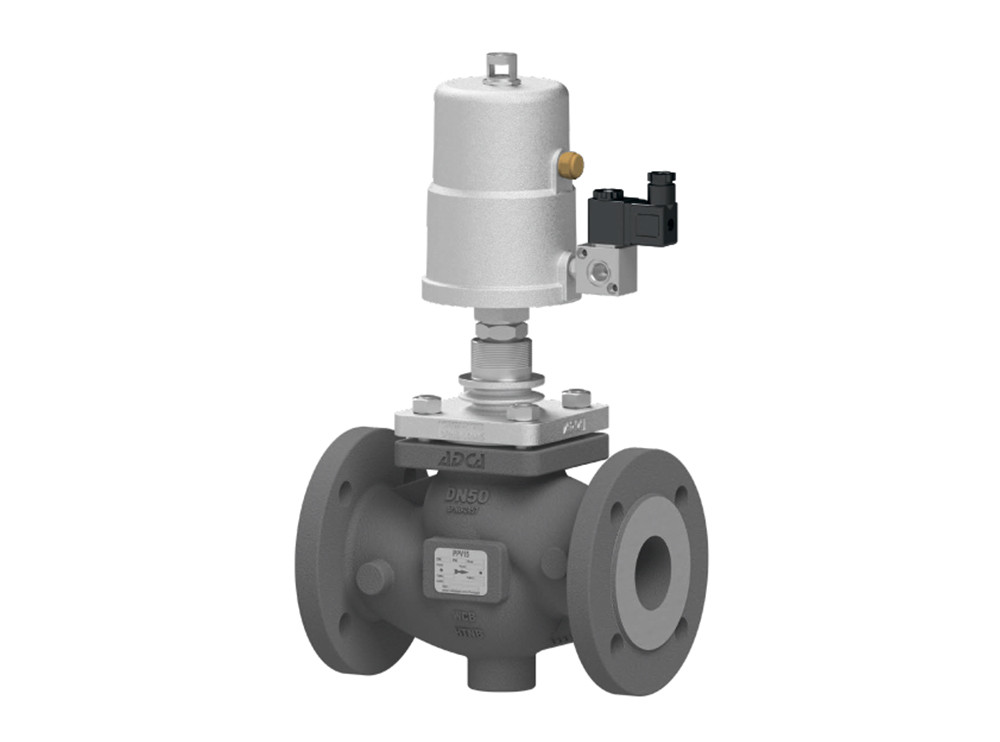

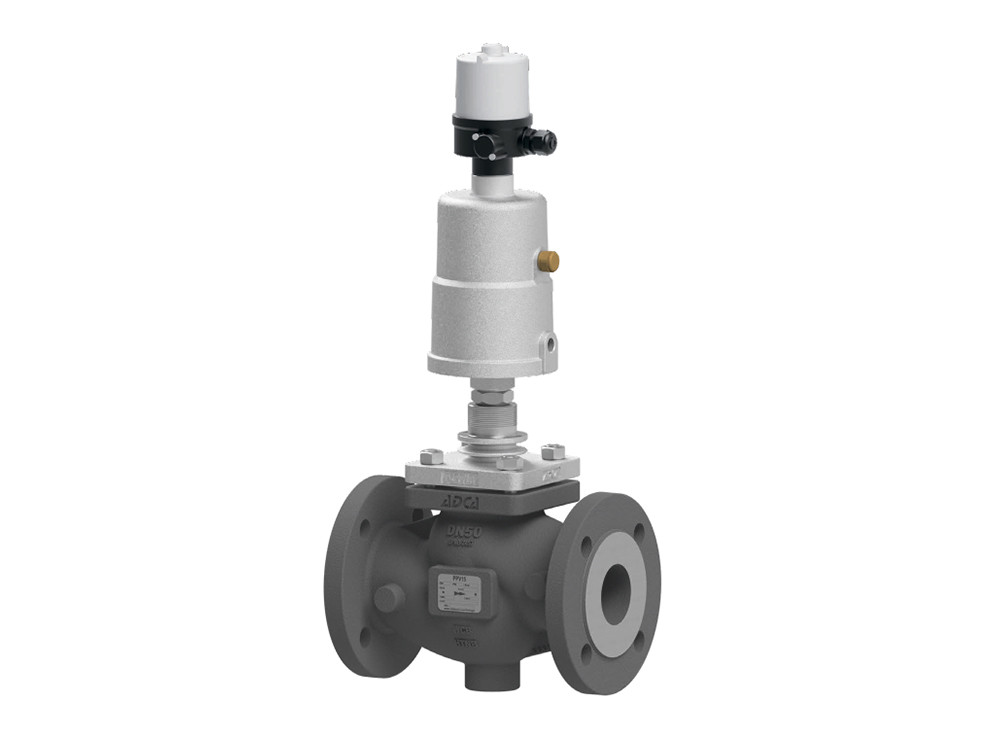

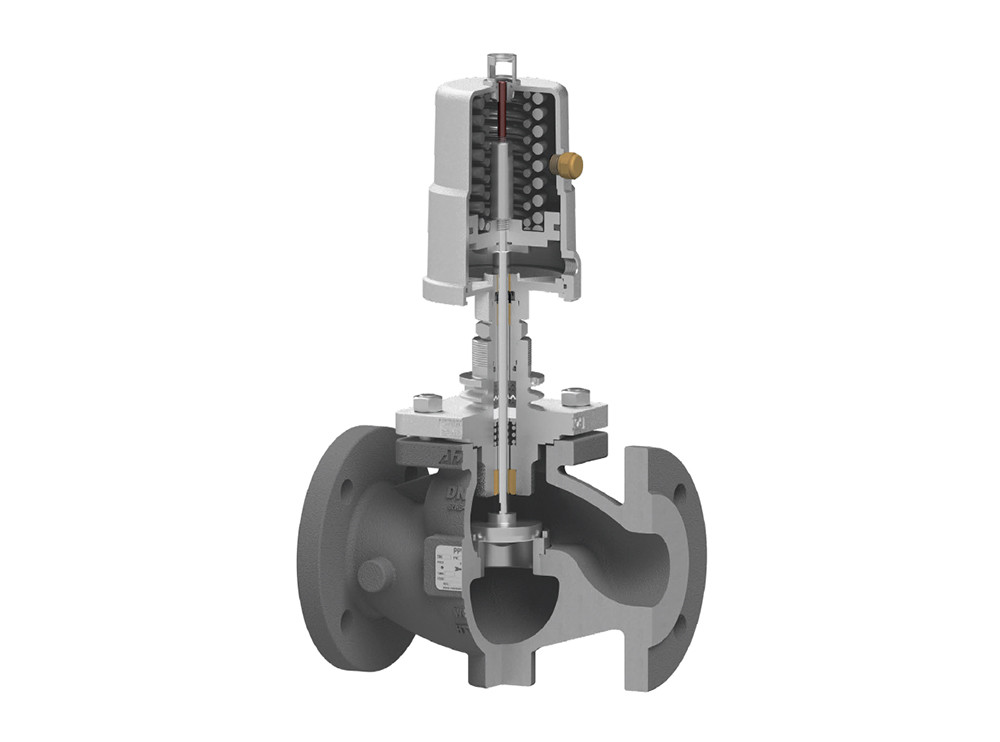

Pneumatic on/off globe valve ADCA PPV15G EN flanged, with pneumatic air on-off piston actuator ADCATrol
Valsteam ADCA
Specifications
-
Application
Saturated steam,
Hot and superheated water,
Air, gases and others -
Body material
Ductile iron GJS-400-15 & Stainless Steel U1 Trim
-
Max. operating pressure
Up to 14,7 bar (Body design PN16)
-
Flow rate coefficients
Kvs 5,1 to 40 (m³/h)
-
Plug type
parabolic quick-opening (On/Off) soft plug
-
Flow direction
Flow under the plug
-
Stem sealing
PTFE/GR V-Rings – up to 200ºC
-
Valve sealing
Soft sealed with PTFE/GR (class VI)
-
Actuator
Pneumatic air on-off piston actuator ADCATrol PPI series
-
Actuator direction of action
Air to open (standard) / Air to close
-
Max. air supply pressure
8 bar
-
Connections
Flanged EN 1092-2 PN 16
Pneumatic on/off globe valve ADCA PPV15G EN flanged, with pneumatic air on-off piston actuator ADCATrol
Product code: PPV1GU1306IRXL
Available to Order
Price according to configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)
Quantity
-
+
