Public offer Prima Steam – Relible supplier equipment for your flow control!
Home → Catalogue → Pressure control → Pressure regulators → Pressure reducing valve ADCA PRV25/2S - 1,4 - 4 bar DN25
Valsteam ADCA

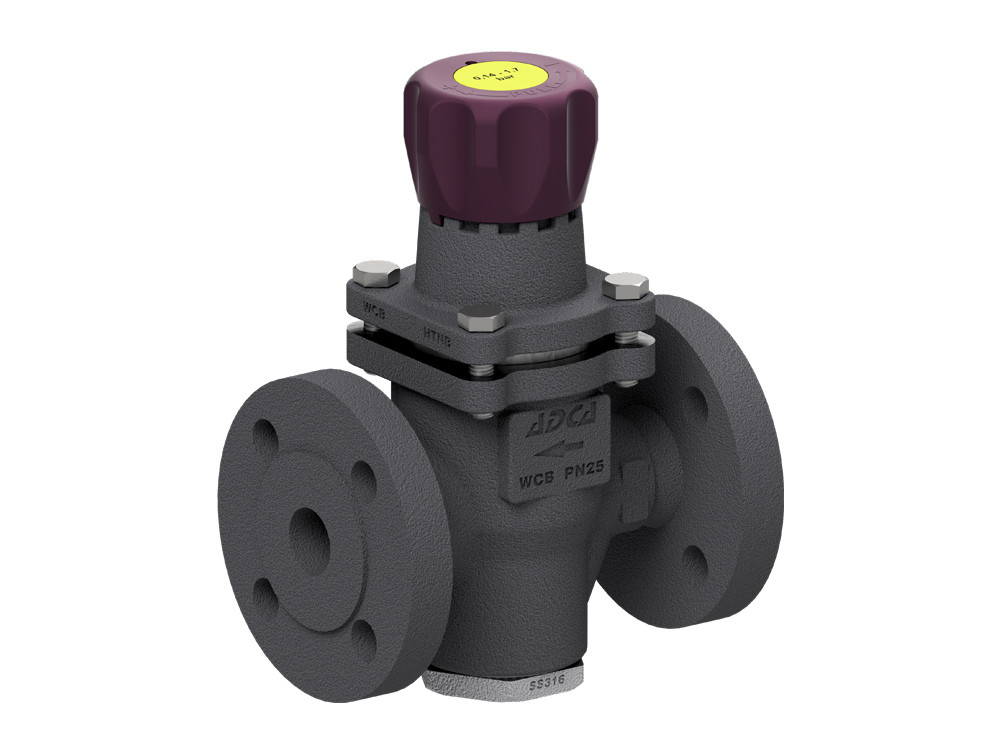

Pressure reducing valve ADCA PRV25/2S - 1,4 - 4 bar DN25

Specifications

  • Body material

    Carbon steel

  • Application

    Steam

  • Size

    DN 25

  • Connection

    Flanged

  • Pressure Rating

    PN25

  • Downstream pressure range

    1,4 - 4 bar

  • Flow rate coefficients

    Kvs 3,1 m³/h

  • Max. operating pressure

    PMO 17 bar

  • Max. operating temperature

    TMO 210°C

  • Valve sealing

    Metal / Metal

  • Brand

    Valsteam ADCA

Documentation

Technical data sheet(s)

Pressure reducing valve ADCA PRV25/2S - 1,4 - 4 bar DN25

Product code: VR.522.025

Available to Order

Price according to configuration

Choose your configuration
Flanged
  • Threaded
  • Flanged
25
  • 1/2"
  • 3/4"
  • 1"
  • 15
  • 20
  • 25
1,4 - 4 bar
  • 0,14 - 1,7 bar
  • 1,4 - 4 bar
  • 3,5 - 8,6 bar
Metal / Metal
  • Metal / Metal
  • PTFE / Graphite
See all configuration
Ref.#.
€551.00 ex. VAT
(INDICATIVE PRICE)

Quantity

-
+

The selected configuration has been added to the cart

Go to quotation request

See all configurations

Model Connection Size Downstream pressure range Valve sealing Ref Price Quantity
Pressure reducing valve ADCA PRV25/2SG - 0,14 - 1,7 bar DN15 Flanged 15 0,14 - 1,7 bar PTFE / Graphite VR.541.015 €501.00
-
+
Pressure reducing valve ADCA PRV25/2SG BSP - 0,14 - 1,7 bar 3/4" Threaded 3/4" 0,14 - 1,7 bar PTFE / Graphite VR.531.020 €385.20
-
+
Pressure reducing valve ADCA PRV25/2SG BSP - 0,14 - 1,7 bar 1" Threaded 1" 0,14 - 1,7 bar PTFE / Graphite VR.531.025 €408.40
-
+
Pressure reducing valve ADCA PRV25/2SG BSP - 1,4 - 4 bar 1/2" Threaded 1/2" 1,4 - 4 bar PTFE / Graphite VR.532.015 €363.50
-
+
Pressure reducing valve ADCA PRV25/2SG BSP - 1,4 - 4 bar 3/4" Threaded 3/4" 1,4 - 4 bar PTFE / Graphite VR.532.020 €385.20
-
+
Pressure reducing valve ADCA PRV25/2SG BSP - 1,4 - 4 bar 1" Threaded 1" 1,4 - 4 bar PTFE / Graphite VR.532.025 €408.40
-
+
Pressure reducing valve ADCA PRV25/2SG BSP - 3,5 - 8,6 bar 1/2" Threaded 1/2" 3,5 - 8,6 bar PTFE / Graphite VR.533.015 €363.50
-
+
Pressure reducing valve ADCA PRV25/2SG BSP - 3,5 - 8,6 bar 3/4" Threaded 3/4" 3,5 - 8,6 bar PTFE / Graphite VR.533.020 €385.20
-
+
Pressure reducing valve ADCA PRV25/2SG BSP - 3,5 - 8,6 bar 1" Threaded 1" 3,5 - 8,6 bar PTFE / Graphite VR.533.025 €408.40
-
+
Pressure reducing valve ADCA PRV25/2SG BSP - 0,14 - 1,7 bar 1/2" Threaded 1/2" 0,14 - 1,7 bar PTFE / Graphite VR.531.015 €363.50
-
+
Pressure reducing valve ADCA PRV25/2SG - 0,14 - 1,7 bar DN20 Flanged 20 0,14 - 1,7 bar PTFE / Graphite VR.541.020 €540.70
-
+
Pressure reducing valve ADCA PRV25/2SG - 0,14 - 1,7 bar DN25 Flanged 25 0,14 - 1,7 bar PTFE / Graphite VR.541.025 €584.60
-
+
Pressure reducing valve ADCA PRV25/2SG - 1,4 - 4 bar DN15 Flanged 15 1,4 - 4 bar PTFE / Graphite VR.542.015 €501.00
-
+
Pressure reducing valve ADCA PRV25/2SG - 1,4 - 4 bar DN20 Flanged 20 1,4 - 4 bar PTFE / Graphite VR.542.020 €540.70
-
+
Pressure reducing valve ADCA PRV25/2SG - 1,4 - 4 bar DN25 Flanged 25 1,4 - 4 bar PTFE / Graphite VR.542.025 €584.60
-
+
Pressure reducing valve ADCA PRV25/2SG - 3,5 - 8,6 bar DN15 Flanged 15 3,5 - 8,6 bar PTFE / Graphite VR.543.015 €501.00
-
+
Pressure reducing valve ADCA PRV25/2SG - 3,5 - 8,6 bar DN20 Flanged 20 3,5 - 8,6 bar PTFE / Graphite VR.543.020 €540.70
-
+
Pressure reducing valve ADCA PRV25/2SG - 3,5 - 8,6 bar DN25 Flanged 25 3,5 - 8,6 bar PTFE / Graphite VR.543.025 €584.60
-
+
Pressure reducing valve ADCA PRV25/2S - 0,14 - 1,7 bar DN15 Flanged 15 0,14 - 1,7 bar Metal / Metal VR.521.015 €467.30
-
+
Pressure reducing valve ADCA PRV25/2S BSP - 0,14 - 1,7 bar 3/4" Threaded 3/4" 0,14 - 1,7 bar Metal / Metal VR.511.020 €351.70
-
+
Pressure reducing valve ADCA PRV25/2S BSP - 0,14 - 1,7 bar 1” Threaded 1" 0,14 - 1,7 bar Metal / Metal VR.511.025 €375.20
-
+
Pressure reducing valve ADCA PRV25/2S BSP - 1,4 - 4 bar 1/2" Threaded 1/2" 1,4 - 4 bar Metal / Metal VR.512.015 €329.90
-
+
Pressure reducing valve ADCA PRV25/2S BSP - 1,4 - 4 bar 3/4" Threaded 3/4" 1,4 - 4 bar Metal / Metal VR.512.020 €351.70
-
+
Pressure reducing valve ADCA PRV25/2S BSP - 1,4 - 4 bar 1" Threaded 1" 1,4 - 4 bar Metal / Metal VR.512.025 €375.20
-
+
Pressure reducing valve ADCA PRV25/2S BSP - 3,5 - 8,6 bar 1/2" Threaded 1/2" 3,5 - 8,6 bar Metal / Metal VR.513.015 €329.90
-
+
Pressure reducing valve ADCA PRV25/2S BSP - 3,5 - 8,6 bar 3/4" Threaded 3/4" 3,5 - 8,6 bar Metal / Metal VR.513.020 €351.70
-
+
Pressure reducing valve ADCA PRV25/2S BSP - 3,5 - 8,6 bar 1" Threaded 1" 3,5 - 8,6 bar Metal / Metal VR.513.025 €375.20
-
+
Pressure reducing valve ADCA PRV25/2S BSP - 0,14 - 1,7 bar 1/2" Threaded 1/2" 0,14 - 1,7 bar Metal / Metal VR.511.015 €329.90
-
+
Pressure reducing valve ADCA PRV25/2S - 0,14 - 1,7 bar DN20 Flanged 20 0,14 - 1,7 bar Metal / Metal VR.521.020 €507.20
-
+
Pressure reducing valve ADCA PRV25/2S - 0,14 - 1,7 bar DN25 Flanged 25 0,14 - 1,7 bar Metal / Metal VR.521.025 €551.00
-
+
Pressure reducing valve ADCA PRV25/2S - 1,4 - 4 bar DN15 Flanged 15 1,4 - 4 bar Metal / Metal VR.522.015 €467.30
-
+
Pressure reducing valve ADCA PRV25/2S - 1,4 - 4 bar DN20 Flanged 20 1,4 - 4 bar Metal / Metal VR.522.020 €507.20
-
+
Pressure reducing valve ADCA PRV25/2S - 1,4 - 4 bar DN25 Flanged 25 1,4 - 4 bar Metal / Metal VR.522.025 €551.00
-
+
Pressure reducing valve ADCA PRV25/2S - 3,5 - 8,6 bar DN15 Flanged 15 3,5 - 8,6 bar Metal / Metal VR.523.015 €467.30
-
+
Pressure reducing valve ADCA PRV25/2S - 3,5 - 8,6 bar DN20 Flanged 20 3,5 - 8,6 bar Metal / Metal VR.523.020 €507.20
-
+
Pressure reducing valve ADCA PRV25/2S - 3,5 - 8,6 bar DN25 Flanged 25 3,5 - 8,6 bar Metal / Metal VR.523.025 €551.00
-
+

Documentation

Technical data sheet(s)
