Specifications

• Function

  For recovering flash steam from condensate,

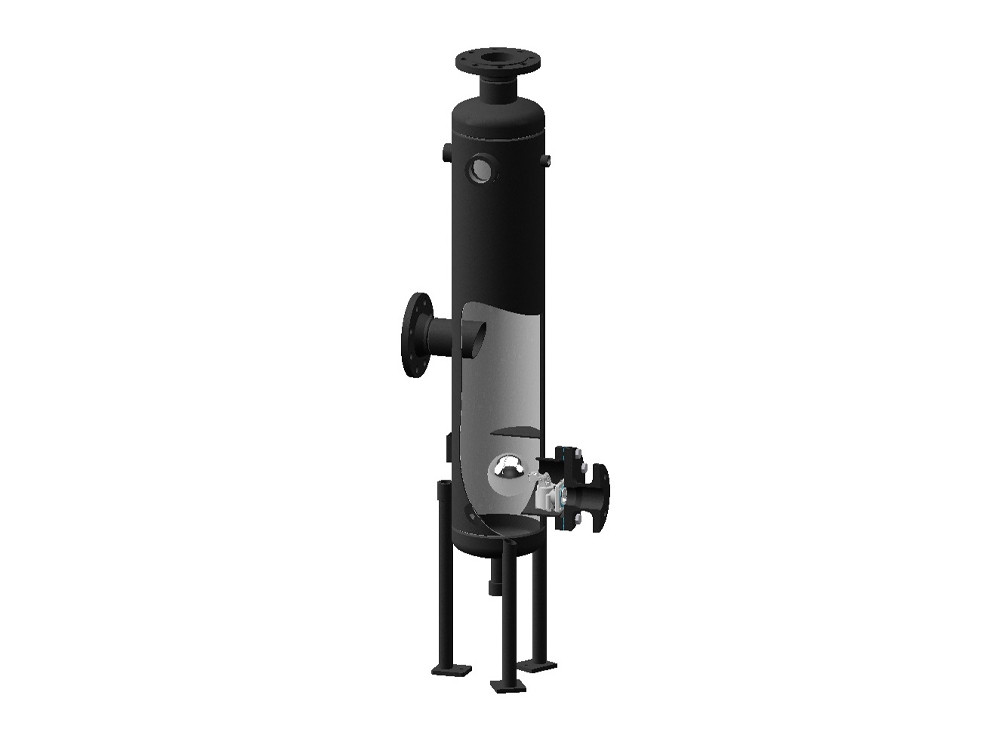

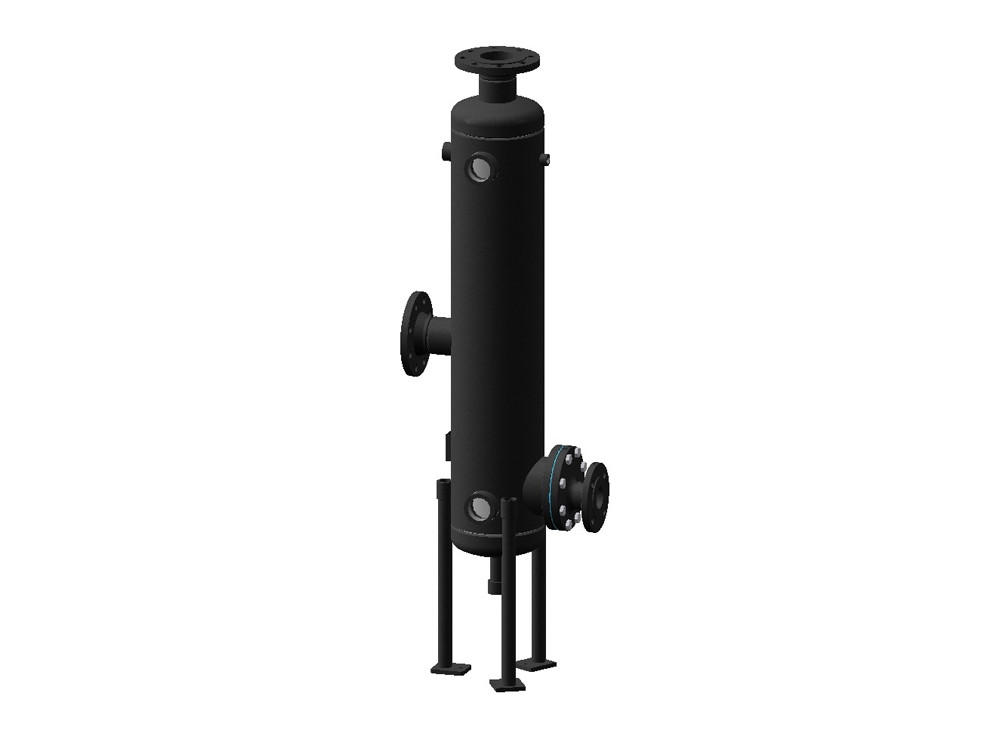

  The flash vessel allows the flash steam to separate from high pressure condensate.

• Use

  High pressure condensate,
  Boiler blowdown heat recovery systems

• Body material

  RVST/S – carbon steel,
  RVST/SS – stainless steel,
  *Steam trap mechanism – Stainless steel

• Max. operating pressure

  up to 13 bar for saturated steam

• Max. operating temperature

  for saturated steam: 250 ºC

• Min. operating temperature

  -10 ºC

• Trap discharge capacity

  Max.: up to 50000 kg/h,,
  Min.: from 1800 kg/h

• Differential pressure on trap mechanism

  Delta P: 4,5 , 10 and 12 bar

• Installation

  Horizontal condensate inlet and outlet.

• Supports

  Installation supporting feet floor,
  Installation supports on body (without supporting feet).

• Non-standard design

  available on request; custom flanges, made to order

• Connections

  Flanged EN 1092-1 PN 16,
  Female threaded ISO 7 Rp (NPT on request),
  Flanged ASME B16.5 Class 150 on request
