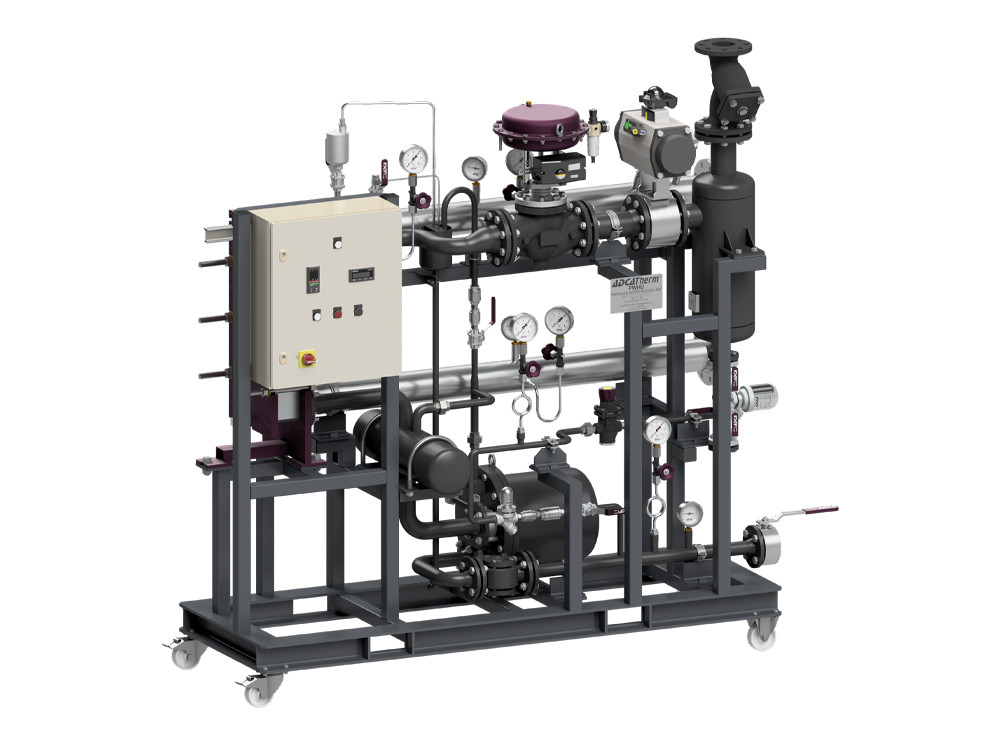

Packaged water heating units

Function

A complete system conceived for instant production of heated water using steam as primary fluid. This system is ideal whenever there is enough energy available for instant heating.

Use

Instant water heating for process and other applications.

Maximum allowable saturated steam (primary) pressure

9 bar

Maximum allowable water (secondary) pressure

9 bar

Maximum operating temperature (EPDM-HT seals)

180 ºC

Pipework pressure rating

PN 16

Non-standard design

Humidity separator set,
Steam pressure reducing set,
Recirculation pump and bypass set,
Primary and/or secondary side shut-off set,
* Can be integrated on the package or delivered as isolated components to be fitted on the line.

Connections

Flanged EN 1092-1 PN 16,
Flanged ASME B16.5 Class 150 on request

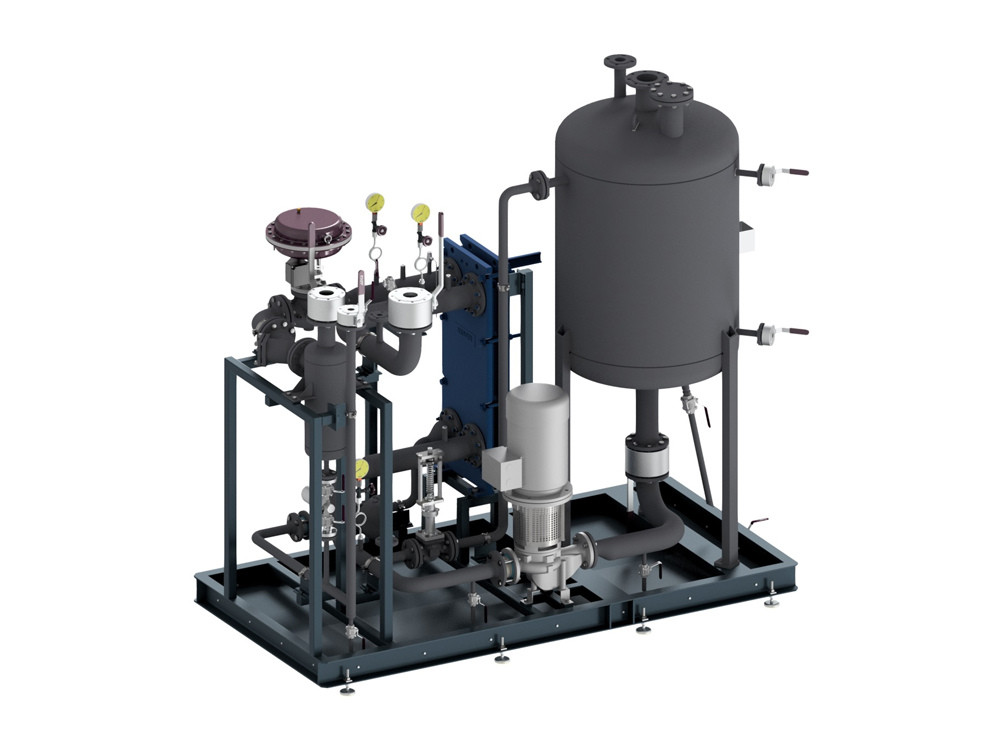

Function

Especially suitable for the production of consumable hot water, domestic or industrial.

Use

Instant water heating for process and other applications.

Maximum allowable saturated steam (primary) pressure

9 bar

Maximum allowable water (secondary) pressure

9 bar

Maximum operating temperature (EPDM-HT seals)

180 ºC

Vessel capacity

Max.: up to 1812 liters,
Min.: from 249 liters

Pipework pressure rating

PN 16

Non-standard design

Humidity separator set,
Steam pressure reducing set,
Recirculation pump and bypass set,
Primary and/or secondary side shut-off set,
* Can be integrated on the package or delivered as isolated components to be fitted on the line.

Connections

Flanged EN 1092-1 PN 16,
Flanged ASME B16.5 Class 150 on request

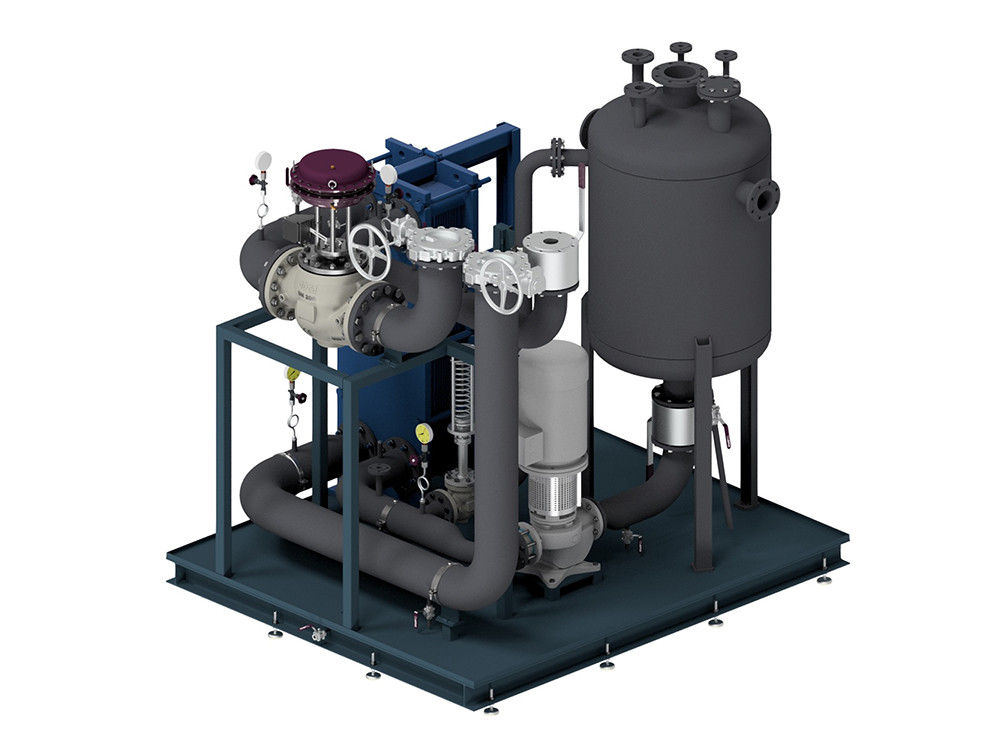

Function

Simple, robust and reliable systems designed to collect, pump and accurately control the thermal fluid outlet temperature by means of indirect heating/cooling.

Use

Instant water heating for process and other applications.

Maximum allowable saturated steam (primary) pressure

9 bar

Maximum allowable water (secondary) pressure

9 bar

Maximum operating temperature (EPDM-HT seals)

180 ºC

Vessel capacity

Max.: up to 5943 liters,
Min.: from 537 liters

Pipework pressure rating

PN 16

Non-standard design

Humidity separator set,
Steam pressure reducing set,
Recirculation pump and bypass set,
Primary and/or secondary side shut-off set,
* Can be integrated on the package or delivered as isolated components to be fitted on the line.

Connections

Flanged EN 1092-1 PN 16,
Flanged ASME B16.5 Class 150 on request
