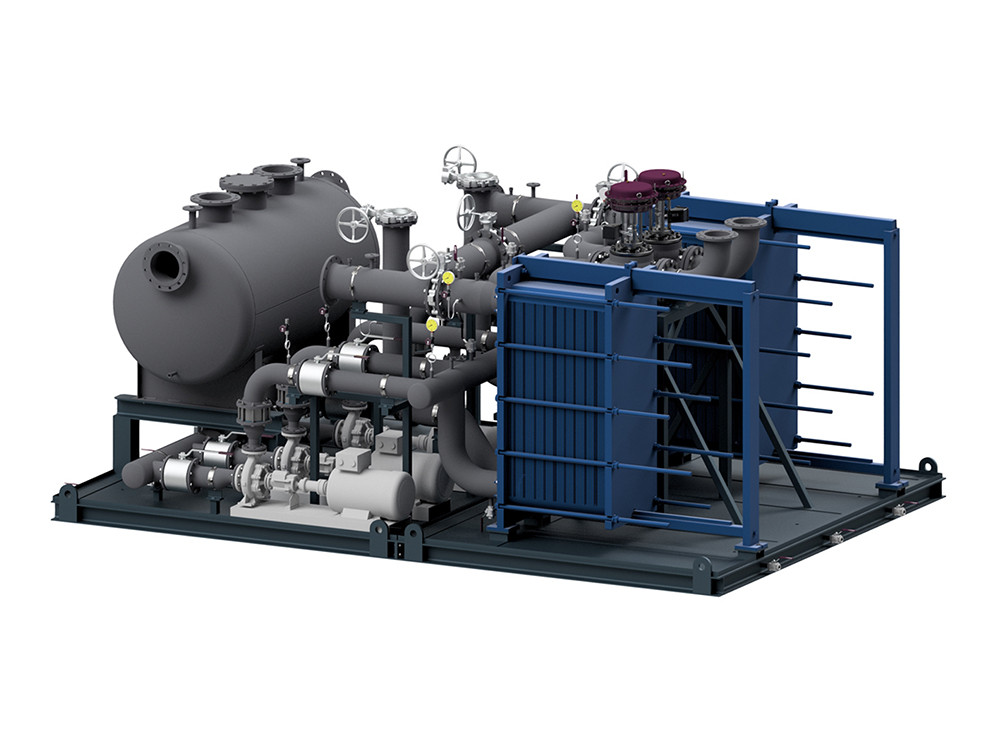

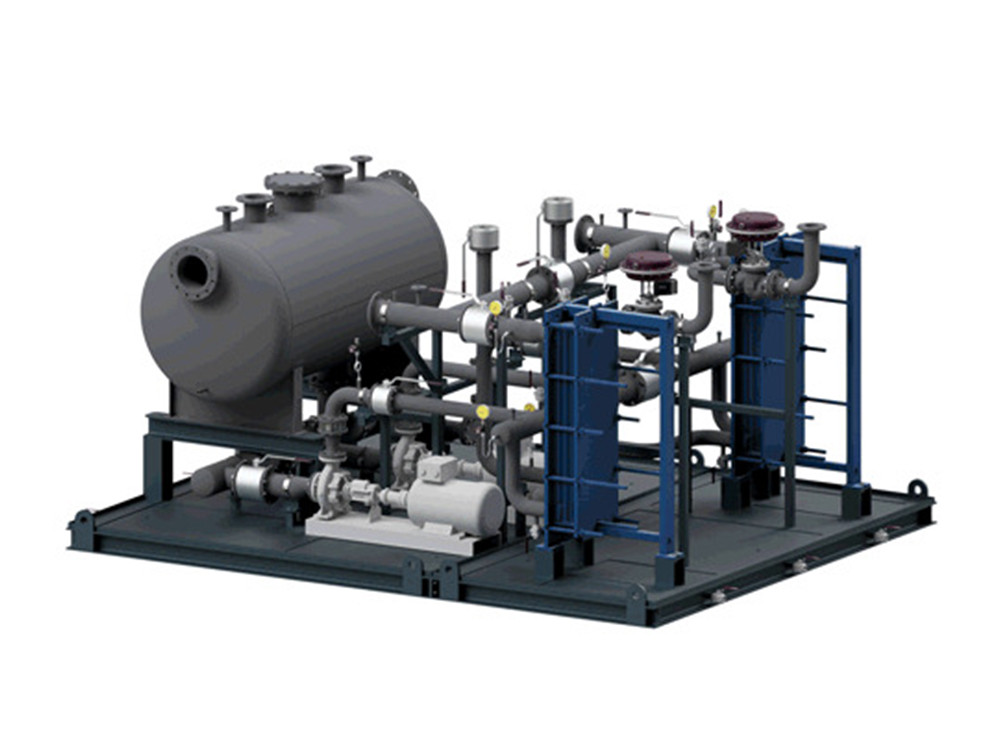

ADCATherm® Packaged Thermal Fluid Unit ADCA PTFU (steam to water) with Water Heating Vessel

Specifications

  • Function

    Simple, robust and reliable systems designed to collect, pump and accurately control the thermal fluid outlet temperature by means of indirect heating/cooling.

  • Use

    Instant water heating for process and other applications.

  • Maximum allowable saturated steam (primary) pressure

    9 bar

  • Maximum allowable water (secondary) pressure

    9 bar

  • Maximum operating temperature (EPDM-HT seals)

    180 ºC

  • Vessel capacity

    Max.: up to 5943 liters,
    Min.: from 537 liters

  • Pipework pressure rating

    PN 16

  • Non-standard design

    Humidity separator set,
    Steam pressure reducing set,
    Recirculation pump and bypass set,
    Primary and/or secondary side shut-off set,
    * Can be integrated on the package or delivered as isolated components to be fitted on the line.

  • Connections

    Flanged EN 1092-1 PN 16,
    Flanged ASME B16.5 Class 150 on request

ADCATherm® Packaged Thermal Fluid Unit ADCA PTFU (steam to water) with Water Heating Vessel

Product code: PTFU

Available on request

Price according to configuration

Choose your configuration
See all configuration
Ref.#.
ex. VAT
(INDICATIVE PRICE)

Quantity

-
+

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

ADCATherm® Packaged Thermal Fluid Unit ADCA PTFU (steam to water) with Water Heating Vessel

Simple, robust and reliable systems designed to collect, pump and accurately control the thermal fluid outlet temperature by means of indirect heating/cooling.

MAIN FEATURES

Accurate water heating with simple and intuitive controls.

Fully assembled and tested, saving design, assembly and commisioning time.

Compactly mounted in a structural steel metal frame to save floor space.

Tailor made to meet application and space requirements.

Hot water side manufactured in austenitic stainless steel with automatic air venting.

Fitted with ADCATherm PAT plate heat exchanger or ST shell & tube heat exchanger.

Buffer vessel for semi-instantaneous systems.

OPTIONS

Frame and/or primary side manufactured in stainless steel.

Humidity separator set.

Independent high limit set.

Steam pressure reducing set.

Pump trap set.

Recirculation pump and bypass set.

Primary and/or secondary side shut-off set.

ADCATherm shell & tube heat exchanger.

Thermal insulation.

Wheels.
