Specifications

• Use

  Drain and lift* steam condensate from heat exchangers, among others,
  *Transfer, discharge, drain, filling, outlet, lifting

• Motive fluid (medium)

  Saturated steam, compressed air, nitrogen and other gases

• Pumped fluid (medium)

  Steam condensate, diathermic oil, Diesel and petroleum products and other liquids compatible with the construction

• Body material

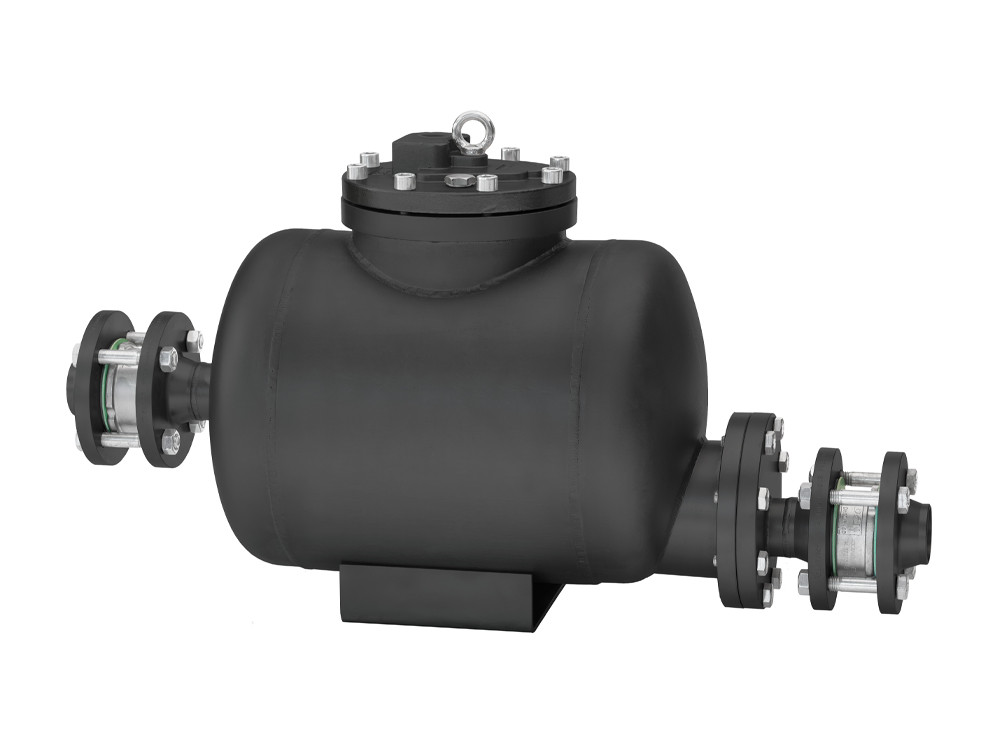

  Carbon steel – model APSTS-HC,

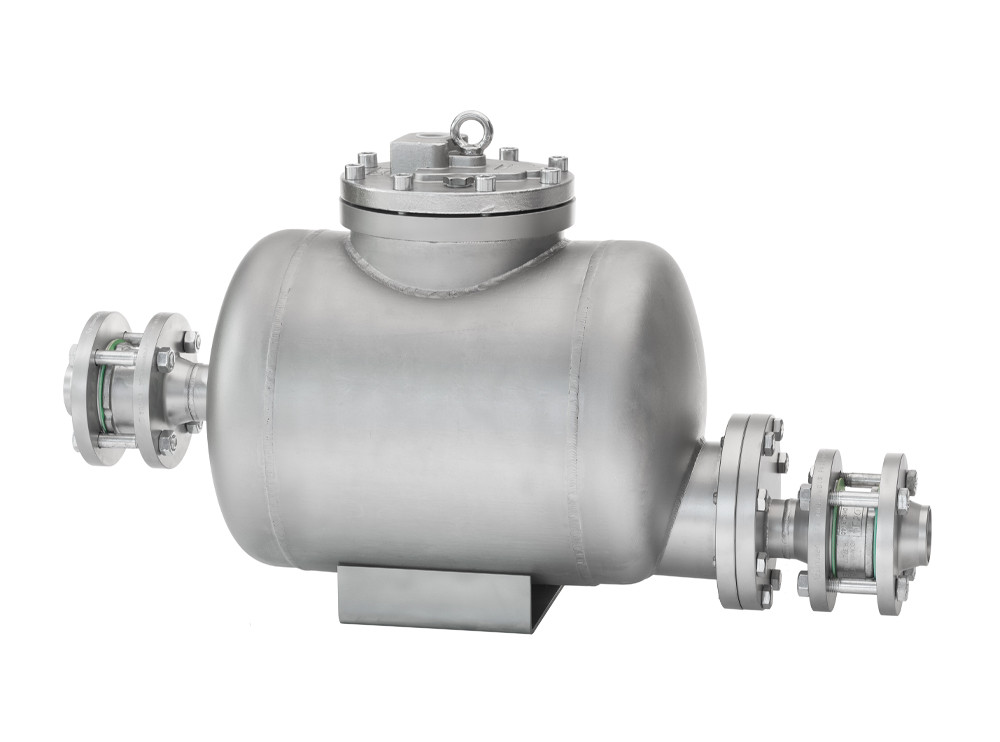

  Stainless steel – model APSTSS-HC

• Motive inlet pressure

  Max.: 10 bar,
  Min.: 1 bar

• Fluid operating temperature

  Max.: 185 °C,
  Min.: 20 °C

• Trap discharge capacity

  Max.: up to 30000 kg/h (High Capacity),
  Min.: from 2400kg/h

• Pump discharge capacity

  Max.: up to 4580 kg/h,
  Min.: from 1850 kg/h

• Pump discharge per cycle

  22 (L) one volume for all dimension

• Connections

  Flanged* EN 1092-1 PN 16,
  Flanged* ASME B16.5 Class 150, on request,
  Female threaded ISO 7 Rp (threaded flanges*), on request,
  *Check valves and welding neck counter flanges included
