Specifications

• Use

  Drain and lift* steam condensate from heat exchangers, among others,
  *Transfer, discharge, drain, filling, outlet, lifting

• Motive fluid (medium)

  Saturated steam, compressed air, nitrogen and other gases

• Pumped fluid (medium)

  Steam condensate, diathermic oil, Diesel and petroleum products and other liquids compatible with the construction

• Body material

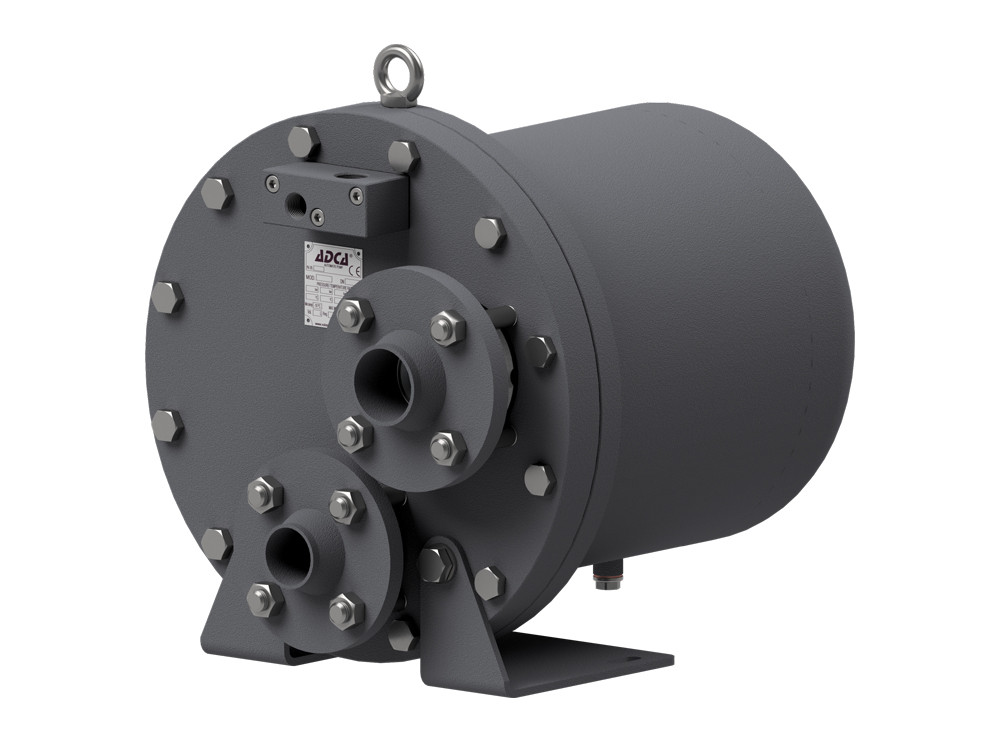

  Carbon steel – model PPT14S,

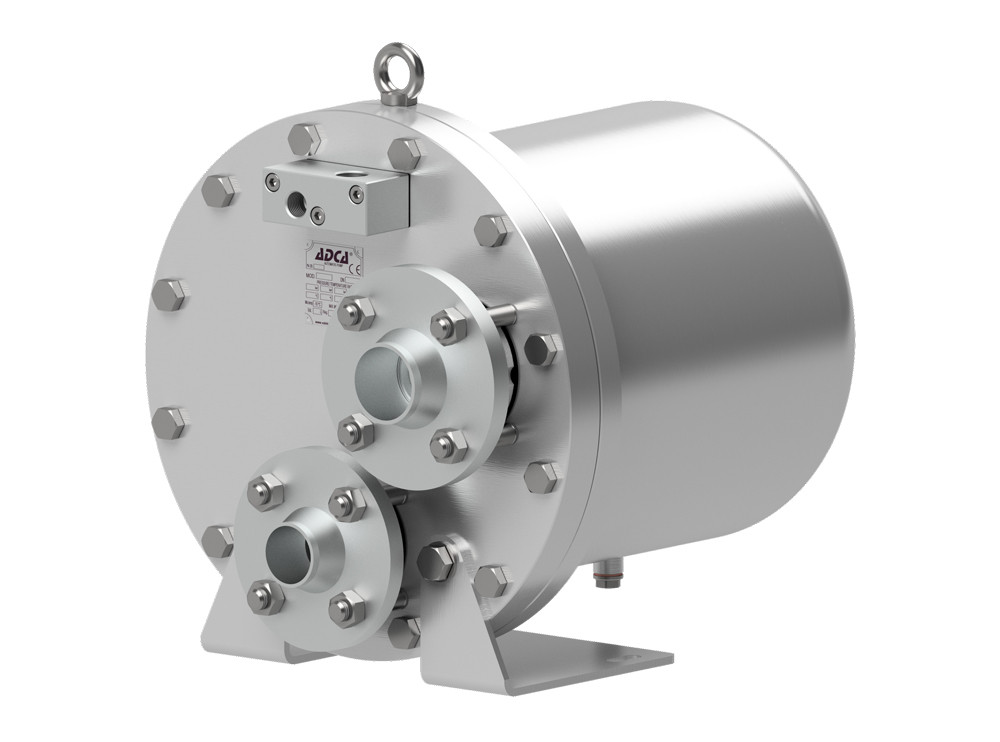

  Stainless steel – model PPT14SS

• Motive inlet pressure

  Max.: 10 bar,
  Min.: 1 bar

• Fluid operating temperature

  Max.: 185 °C,
  Min.: 20 °C

• Trap discharge capacity

  Max.: up to 10100 kg/h,
  Min.: from 650 kg/h

• Pump discharge capacity

  Max.: up to 1830 kg/h,
  Min.: from 520 kg/h

• Pump discharge per cycle

  11 (L) one volume for all dimension

• Connections

  Flanged EN 1092-1 PN 16,
  Flanged ASME B16.5 Class 150, on request,
  Female threaded ISO 7 Rp (threaded flanges), on request
