ADCAMat® Mechanical stroke counter ADCA POP-CT for сondensate pumps

Specifications

Use

Monitoring or metering of pressure operated pumps
Available models

Mechanical stroke counter (standart),
Battery powered digital stroke counter (special request)
Body material

Stainless steel, brass and aluminium
Max. operating pressure

10 bar
Max. operating temperature

185°C
Minimum motive pressure

4 bar (steam),
3 bar (air or nitrogen)
Connections

External threaded ISO 7 Rp (NPT on request)

ADCAMat® Mechanical stroke counter ADCA POP-CT for сondensate pumps

Product code: POPCT.015

Available on request

Price according to configuration

Choose your configuration

Pumps Options and Connectors *

Choose on Option...

Mechanical stroke counter
Digital stroke counter

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

No ready-made solution

The selected configuration has been added to the cart

Go to quotation request

See all configurations

Model Pumps Options and Connectors Ref Price Quantity

ADCAMat® Mechanical stroke counter ADCA POP-CT threaded BSP 1/2" Mechanical stroke counter POPCT.015

ADCAMat® Digital cycle counter ADCA POP-CT threaded BSP 1/2" Digital stroke counter DGTL.POPCT.015

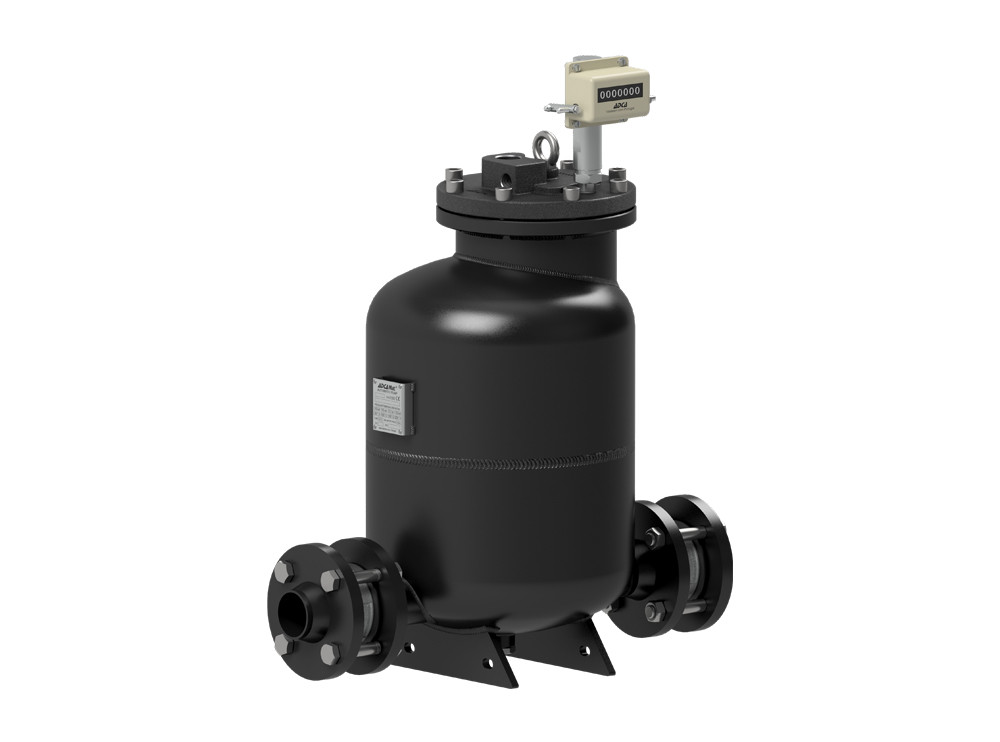

The ADCAMat POP-CT stroke counter is designed to monitor the operation of pressure operated pumps in open vented systems. The device is mechanical and operates by change in pressure inside the pump which it is connected to. It can be used to determine the amount of condensate return and establish maintenance intervals.
