Pressure operated pumps

Use

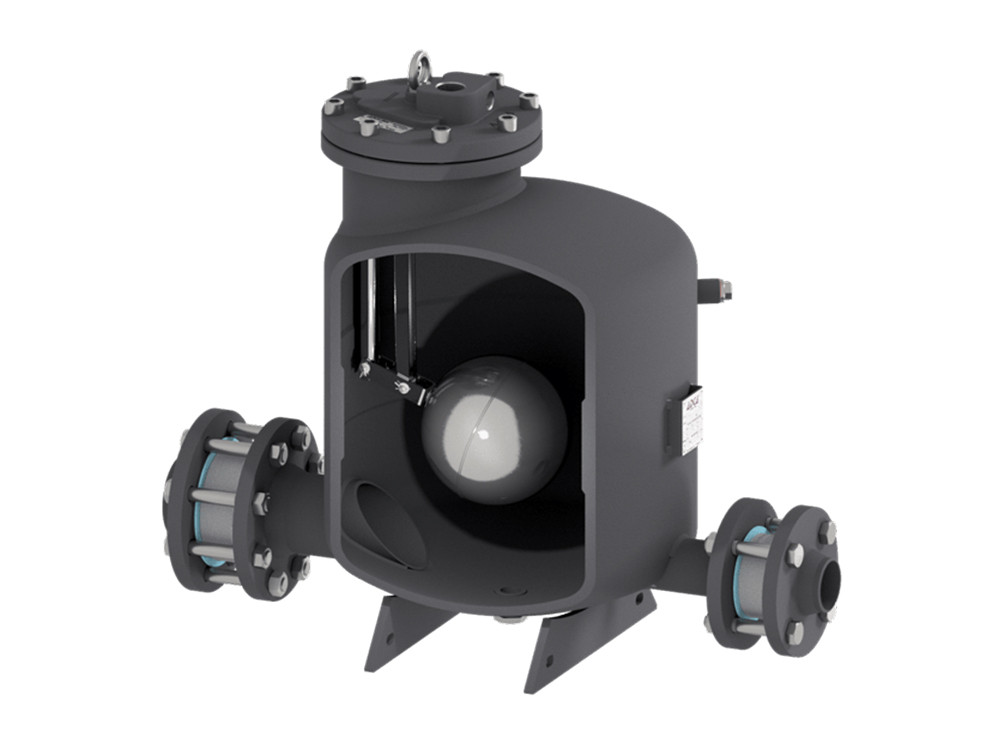

To lift* steam condensate and other liquids,
*Transfer, discharge, drain, filling, outlet, lifting

Motive fluid (medium)

Saturated steam, compressed air, nitrogen and other gases

Pumped fluid (medium)

Steam condensate, diathermic oil, Diesel and petroleum products and other liquids compatible with the construction

Body material

Carbon steel – model POP-S,
Stainless steel – model POP-SS

Motive inlet pressure

Max.: 10 bar,
Min.: 0,5 bar

Fluid operating temperature

Max.: 185 °C,
Min.: 20 °C

Flow rate (Condensate load)

Max.: up to 6080 kg/h,
Min.: 660 kg/h

Pump discharge per cycle

16 L (1"x1" – 2"x2"; DN25x25 – DN50x50),
25 L (3"x2"; DN80x50)

Connections

Flanged* EN 1092-1 PN 16,
Flanged* ASME B16.5 Class 150, on request,
Female threaded ISO 7 Rp (threaded flanges*), on request,
*Check valves and welding neck counter flanges included

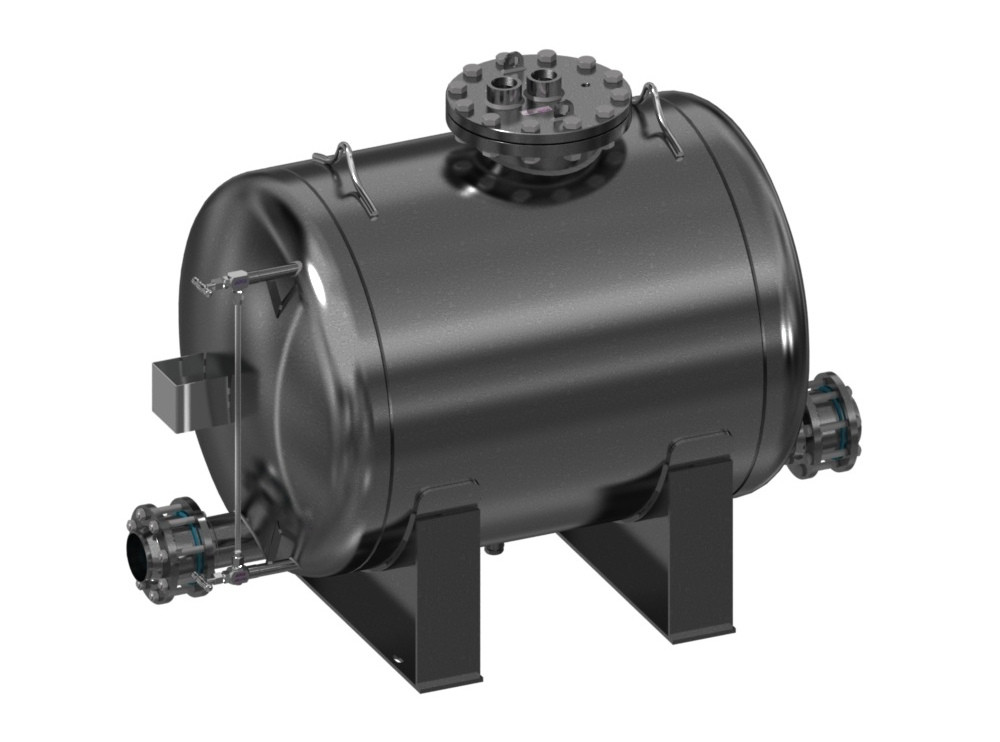

Use

To lift* steam condensate and other liquids,
*Transfer, discharge, drain, filling, outlet, lifting

Motive fluid (medium)

Saturated steam, compressed air, nitrogen and other gases

Pumped fluid (medium)

Steam condensate, diathermic oil, Diesel and petroleum products and other liquids compatible with the construction

Body material

Carbon steel – model POP-S

Motive inlet pressure

Max.: 10 bar,
Min.: 1 bar

Fluid operating temperature

Max.: 185 °C,
Min.: 20 °C

Flow rate (Condensate load)

Max.: up to 29800 kg/h (High Capacity),
Min.: 11700 kg/h

Pump discharge per cycle

325 L

Connections

Flanged* EN 1092-1 PN 16,
Flanged* ASME B16.5 Class 150, on request,
Female threaded ISO 7 Rp (threaded flanges*), on request,
*Check valves and welding neck counter flanges included

Use

To lift* steam condensate and other liquids,
*Transfer, discharge, drain, filling, outlet, lifting

Motive fluid (medium)

Saturated steam, compressed air, nitrogen and other gases

Pumped fluid (medium)

Steam condensate, diathermic oil, Diesel and petroleum products and other liquids compatible with the construction

Body material

Carbon steel – model POP-LCS,
Stainless steel – model POP-LCSS

Motive inlet pressure

Max.: 10 bar,
Min.: 0,5 bar

Fluid operating temperature

Max.: 185 °C,
Min.: 20 °C

Flow rate (Condensate load)

Max.: up to 2195 kg/h (Low Capacity),
Min.: 710 kg/h

Pump discharge per cycle

11,2 (L) one volume for all dimension

Connections

Flanged* EN 1092-1 PN 16,
Flanged* ASME B16.5 Class 150, on request,
Female threaded ISO 7 Rp (threaded flanges*), on request,
*Check valves and welding neck counter flanges included

Use

To lift* steam condensate and other liquids,
*Transfer, discharge, drain, filling, outlet, lifting

Motive fluid (medium)

Saturated steam, compressed air, nitrogen and other gases

Pumped fluid (medium)

Steam condensate, diathermic oil, Diesel and petroleum products and other liquids compatible with the construction

Body material

Carbon steel – model PPO14S,
Stainless steel – model PPO14SS

Motive inlet pressure

Max.: 10 bar,
Min.: 0,5 bar

Fluid operating temperature

Max.: 185 °C,
Min.: 20 °C

Flow rate (Condensate load)

Max.: up to 4000 kg/h,
Min.: 660 kg/h

Pump discharge per cycle

16 (L) one volume for all dimension

Connections

Flanged* EN 1092-1 PN 16,
Flanged* ASME B16.5 Class 150, on request,
Female threaded ISO 7 Rp (threaded flanges*), on request,
*Check valves and welding neck counter flanges included

Use

To lift* steam condensate and other liquids,
*Transfer, discharge, drain, filling, outlet, lifting

Motive fluid (medium)

Saturated steam, compressed air, nitrogen and other gases

Pumped fluid (medium)

Steam condensate, diathermic oil, Diesel and petroleum products and other liquids compatible with the construction

Body material

Carbon steel – model PPA14S,
Stainless steel – model PPA14SS

Motive inlet pressure

Max.: 10 bar,
Min.: 0,5 bar

Fluid operating temperature

Max.: 185 °C,
Min.: 20 °C

Flow rate (Condensate load)

Max.: up to 6290 kg/h,
Min.: 1910 kg/h

Pump discharge per cycle

25 (L) one volume for all dimension

Connections

Flanged* EN 1092-1 PN 16,
Flanged* ASME B16.5 Class 150, on request,
Female threaded ISO 7 Rp (threaded flanges*), on request,
*Check valves and welding neck counter flanges included

Use

To lift* steam condensate and other liquids,
*Transfer, discharge, drain, filling, outlet, lifting

Motive fluid (medium)

Saturated steam, compressed air, nitrogen and other gases

Pumped fluid (medium)

Steam condensate, diathermic oil, Diesel and petroleum products and other liquids compatible with the construction

Body material

Carbon steel – model PPA312S

Motive inlet pressure

Max.: 10 bar,
Min.: 1 bar

Fluid operating temperature

Max.: 185 °C,
Min.: 20 °C

Flow rate (Condensate load)

Max.: up to 7540 kg/h (High Capacity),
Min.: 2030 kg/h

Pump discharge per cycle

45 (L) one volume for all dimension

Connections

Flanged* EN 1092-1 PN 16,
Flanged* ASME B16.5 Class 150, on request,
Female threaded ISO 7 Rp (threaded flanges*), on request,
*Check valves and welding neck counter flanges included

Use

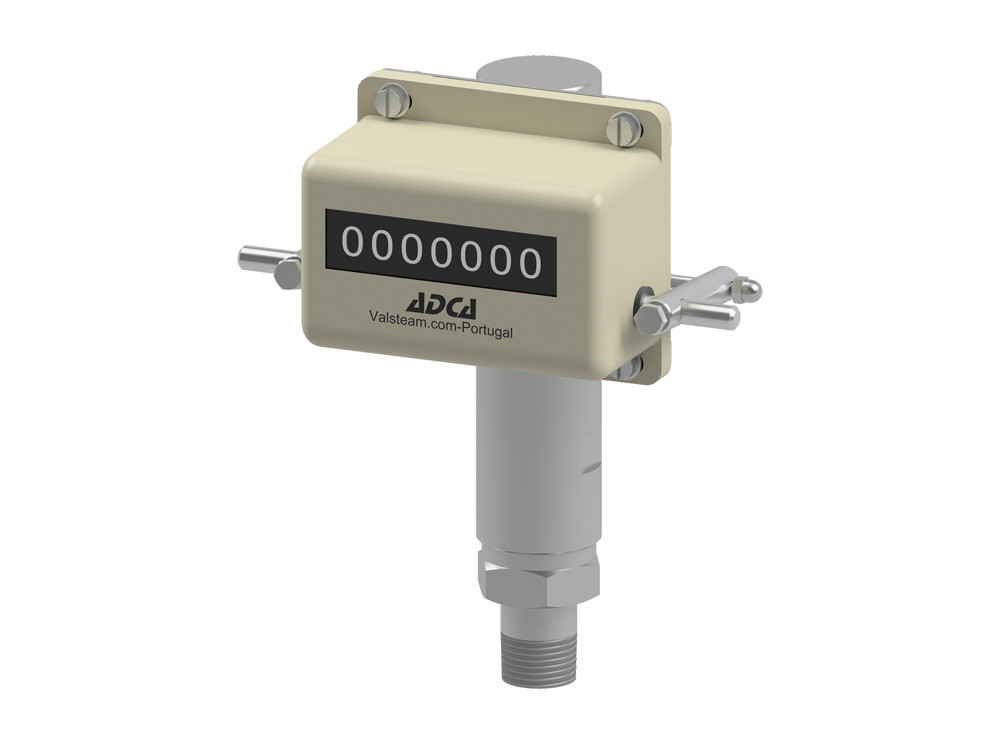

Monitoring or metering of pressure operated pumps

Available models

Mechanical stroke counter (standart),
Battery powered digital stroke counter (special request)

Body material

Stainless steel, brass and aluminium

Max. operating pressure

10 bar

Max. operating temperature

185°C

Minimum motive pressure

4 bar (steam),
3 bar (air or nitrogen)

Connections

External threaded ISO 7 Rp (NPT on request)
