ADCAMat® Condensate pump ADCA POP (Pressure Operated Pump)

Specifications

Use

To lift* steam condensate and other liquids,
*Transfer, discharge, drain, filling, outlet, lifting
Motive fluid (medium)

Saturated steam, compressed air, nitrogen and other gases
Pumped fluid (medium)

Steam condensate, diathermic oil, Diesel and petroleum products and other liquids compatible with the construction
Body material

Carbon steel – model POP-S,
Stainless steel – model POP-SS
Motive inlet pressure

Max.: 10 bar,
Min.: 0,5 bar
Fluid operating temperature

Max.: 185 °C,
Min.: 20 °C
Flow rate (Condensate load)

Max.: up to 6080 kg/h,
Min.: 660 kg/h
Pump discharge per cycle

16 L (1"x1" – 2"x2"; DN25x25 – DN50x50),
25 L (3"x2"; DN80x50)
Connections

Flanged* EN 1092-1 PN 16,
Flanged* ASME B16.5 Class 150, on request,
Female threaded ISO 7 Rp (threaded flanges*), on request,
*Check valves and welding neck counter flanges included

ADCAMat® Condensate pump ADCA POP (Pressure Operated Pump)

Product code: A.55.5800.000

Available on request

Price according to configuration

Choose your configuration

Body material *

Choose on Option...

Carbon steel
Stainless steel

Size pump *

Choose on Option...

25x25
40x40
50x50
80x50

See all configuration

Ref.#.

ex. VAT

(INDICATIVE PRICE)

Quantity

No ready-made solution

See all configurations

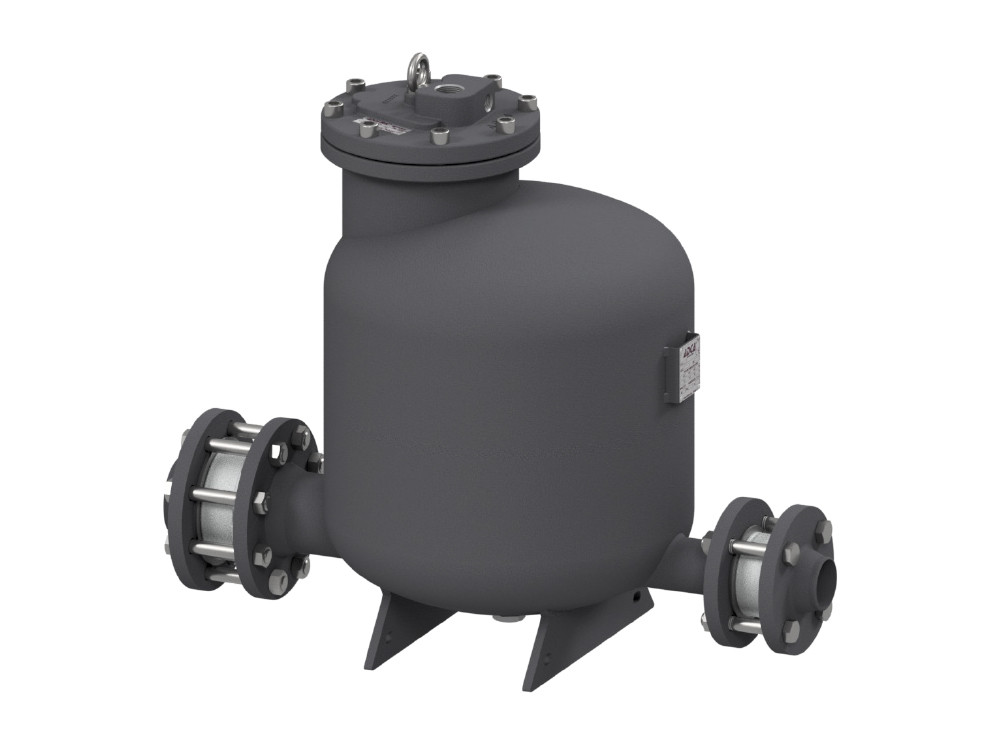

Condensate pump ADCA POP (Pressure Operated Pump) ADCAMat®

Check valves and welding neck counter flanges included.

The ADCAMat POP pressure operated pump is recommended in the transfer of steam condensate, oils and other non-hazardous liquids compatible with the construction, to a higher elevation or pressure. Under certain conditions, it can drain a closed vessel under vacuum or pressure. The pump can be operated using steam, compressed air or other gases, and is manufactured in carbon steel or stainless steel.

OPERATION

Liquid flows by gravity into the pump through an inlet check valve, lifting the float. At this point, the motive fluid intake valve is closed while the vent valve is open. As the float reaches its highest position the motive fluid intake valve opens and the vent valve closes, allowing the motive fluid to enter the pump body. The pressure in the pump builds up just enough to overcome backpressure.
The pressurized liquid opens the outlet check valve and the discharge starts. The liquid discharged may be quantified through a special counter, enabling the pump to function as a reliable flow meter. When the float reaches its lower position the motive fluid intake valve closes and the vent valve opens allowing the liquid to fill the pump once again, repeating the cycle.

MAIN FEATURES

Hardened stainless steel wear parts.

High-endurance inconel springs.

Low filling head to minimize installation space.

No electric requirements or NPSH issues.

Suitable for hazardous environments.

Low running costs.
