Specifications
-
Application
Compressed air,
non corrosive gases -
Body material
Ductile iron
-
Max. operating pressure
14 bar
-
Min. operating pressure
0,5 bar
-
Max. operating temperature
FPM / Viton valve sealing: 200 ºC,
Metal to metal sealing: 250 ºC -
Min. liquid specific weight
0,75 kg/dm³
-
Flow rate capacity
Up to 430 kg/h
-
Differential pressure
Delta P: 4,5 , 10 and 14 bar
-
Connections
Female threaded ISO 7 Rp (NPT on request),
Flanged EN 1092-1/-2 PN 16,
Flanged ASME B16.42/B16.5 Class 150 on request

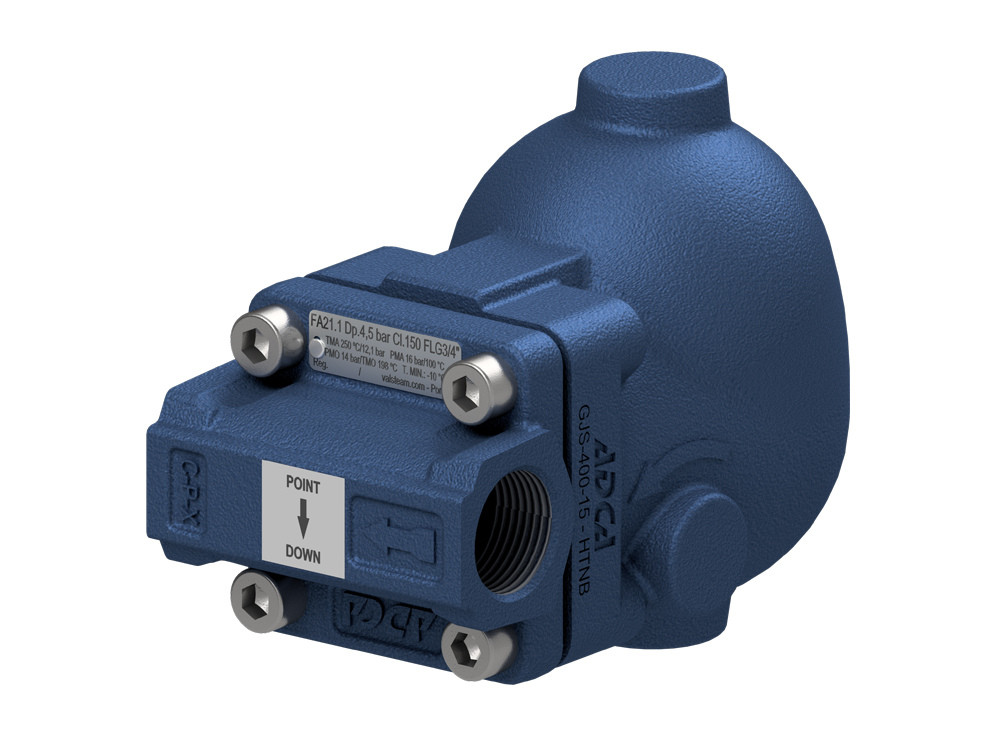

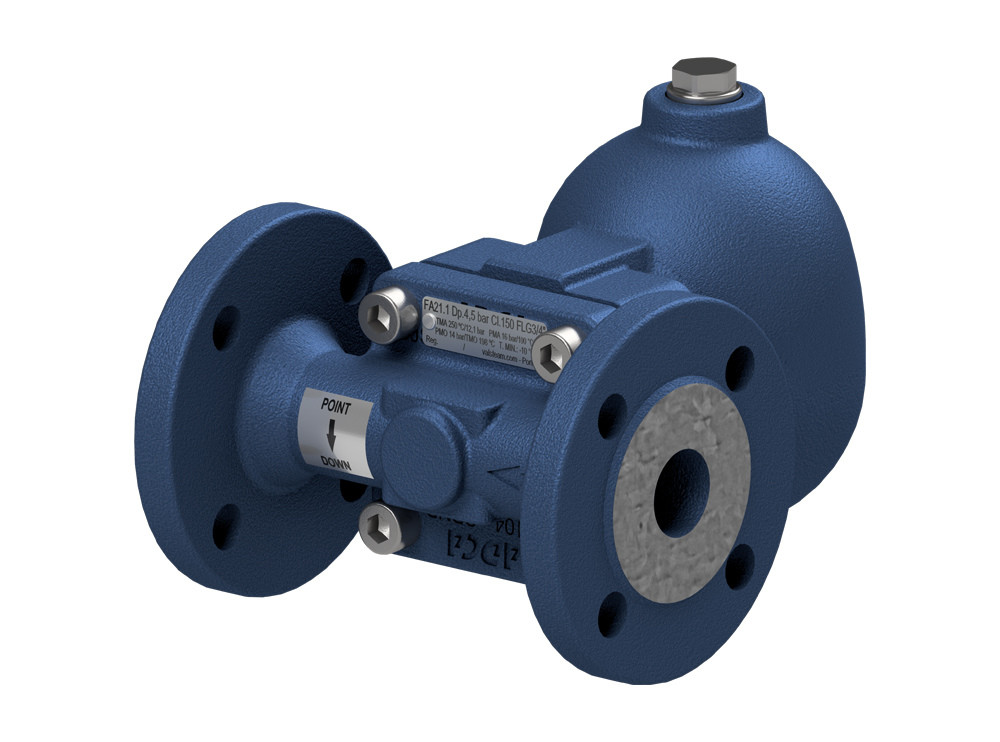

Air and gas float trap ADCA FA21.1
Product code: FA21.1
Available on request
Price according to configuration
Choose your configuration
- Threaded
- Flanged
- 1/2"
- 3/4"
- 1"
- 15
- 20
- 25
- 4.5 bar
- 10 bar
- 14 bar
- Metal / Metal
- FPM / Viton
