Air and gas float traps

Show:

10 per page

10 products per page
25 products per page
50 products per page

Sort:

Relevance

Relevance
Created at
Product code
Name
Available

Valsteam ADCA

Product code: FA16SS

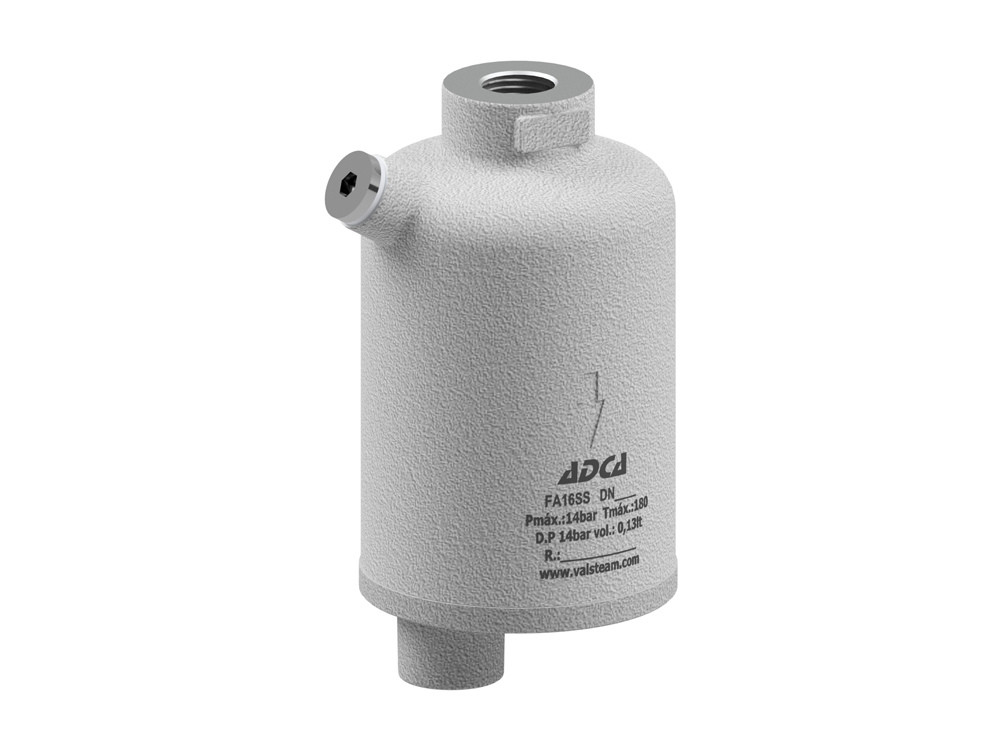

Air and gas float trap ADCA FA16SS
- Application

  Compressed air,
  non corrosive gases
- Body material

  Stainless steel
- Max. operating pressure

  14 bar
- Min. operating pressure

  0,5 bar
- Max. operating temperature

  Viton valve sealing: 180 ºC
- Min. liquid specific weight

  0,75 kg/dm³
- Flow rate capacity

  Up to 430 kg/h
- Differential pressure

  Delta P: 14 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request)
- Options

  With hand purging knob
Dimension:
1/2” – 3/4”

Price according to configuration

Available to Order
More about the product
Valsteam ADCA

Product code: FA21.1

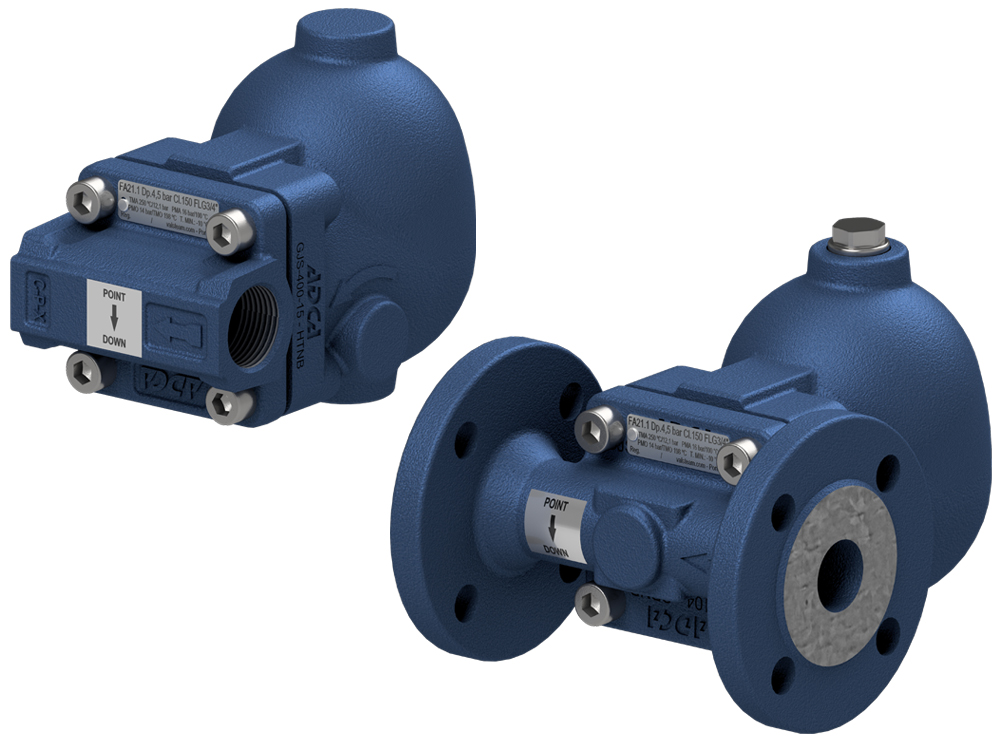

Air and gas float trap ADCA FA21.1
- Application

  Compressed air,
  non corrosive gases
- Body material

  Ductile iron
- Max. operating pressure

  14 bar
- Min. operating pressure

  0,5 bar
- Max. operating temperature

  FPM / Viton valve sealing: 200 ºC,
  Metal to metal sealing: 250 ºC
- Min. liquid specific weight

  0,75 kg/dm³
- Flow rate capacity

  Up to 430 kg/h
- Differential pressure

  Delta P: 4,5 , 10 and 14 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1/-2 PN 16,
  Flanged ASME B16.42/B16.5 Class 150 on request
Dimension:
1/2” – 1”; DN15 – DN25

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: FA25.1

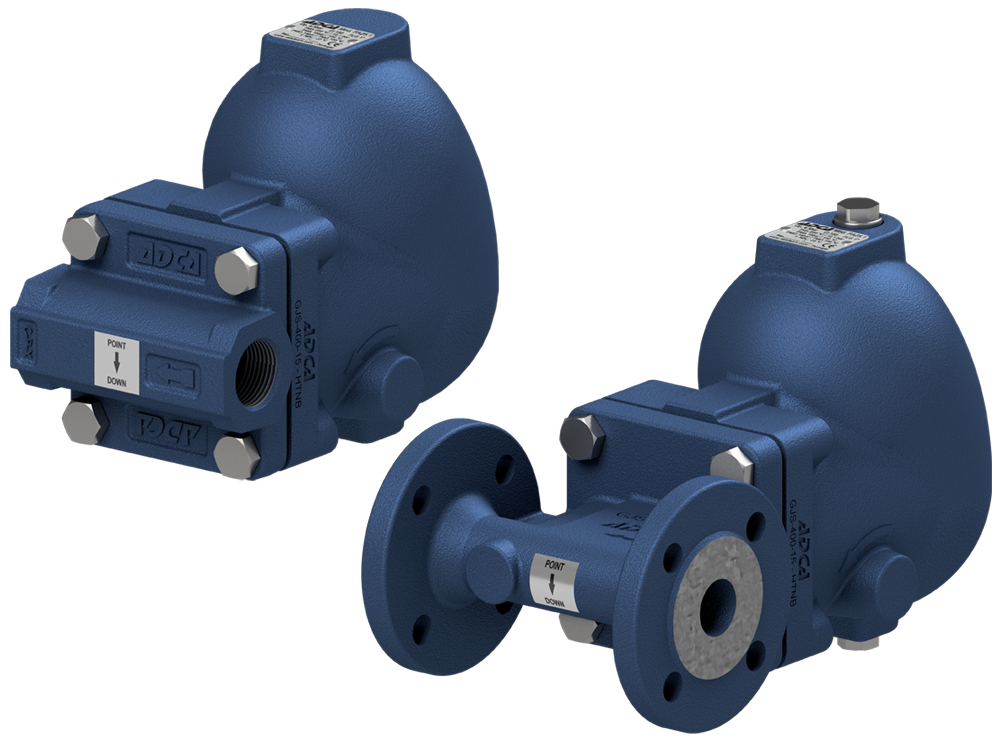

Air and gas float trap ADCA FA25.1
- Application

  Compressed air,
  non corrosive gases
- Body material

  Ductile iron
- Max. operating pressure

  14 bar
- Min. operating pressure

  0,5 bar
- Max. operating temperature

  FPM / Viton valve sealing: 200 ºC,
  Metal to metal sealing: 250 ºC
- Min. liquid specific weight

  0,75 kg/dm³
- Flow rate capacity

  Up to 2823 kg/h
- Differential pressure

  Delta P: 4,5 , 10 and 14 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1/-2 PN 16,
  Flanged ASME B16.42/B16.5 Class 150 on request
Dimension:
1”; DN25

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: FA25.3

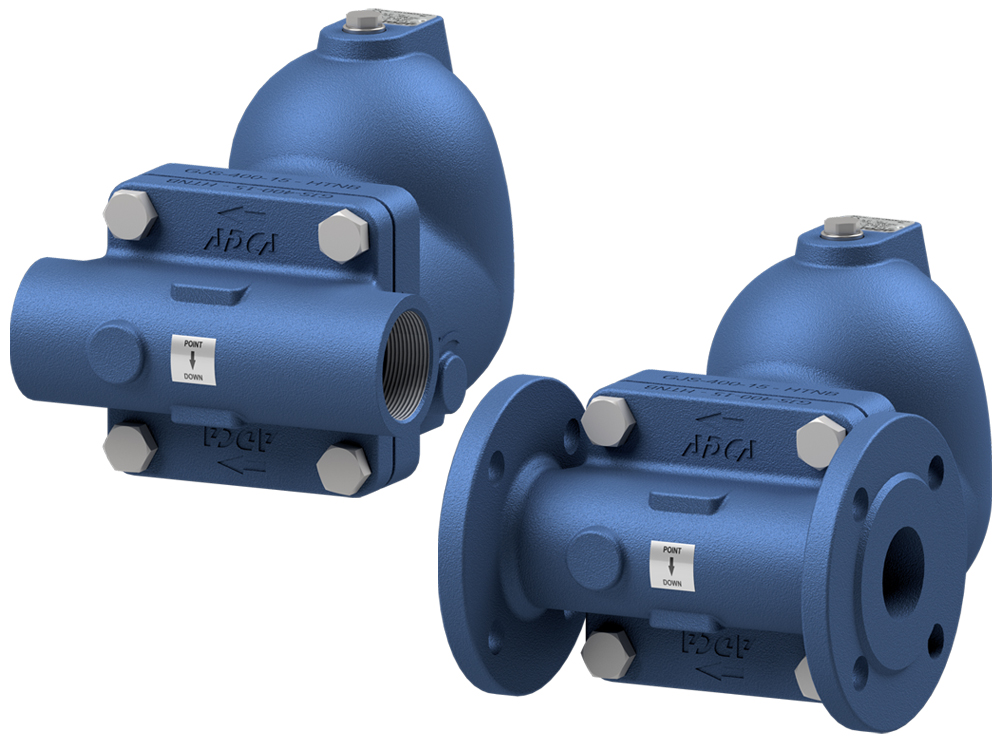

Air and gas float trap ADCA FA25.3
- Application

  Compressed air,
  non corrosive gases
- Body material

  Ductile iron
- Max. operating pressure

  14 bar
- Min. operating pressure

  0,5 bar
- Max. operating temperature

  Metal to metal sealing: 250 ºC
- Min. liquid specific weight

  0,75 kg/dm³
- Flow rate capacity

  Up to 2990 kg/h
- Differential pressure

  Delta P: 4,5 , 10 and 14 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-2 PN 16,
  Flanged ASME B16.42 Class 150 on request
Dimension:
1.1/2” – 2”; DN40 – DN50

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: FA31.1
Air and gas float trap ADCA FA31.1
- Application

  Compressed air,
  non corrosive gases
- Body material

  Carbon steel
- Max. operating pressure

  32 bar
- Min. operating pressure

  0,5 bar
- Max. operating temperature

  FPM / Viton valve sealing: 200 ºC,
  Metal to metal sealing: 250 ºC
- Min. liquid specific weight

  0,75 kg/dm³
- Flow rate capacity

  Up to 1366 kg/h
- Differential pressure

  Delta P: 4,5 , 10, 14, 21 and 32 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request
Dimension:
1/2” – 1”; DN15 – DN25

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: FA35.1
Air and gas float trap ADCA FA35.1
- Application

  Compressed air,
  non corrosive gases
- Body material

  Carbon steel
- Max. operating pressure

  32 bar
- Min. operating pressure

  0,5 bar
- Max. operating temperature

  FPM / Viton valve sealing: 200 ºC,
  Metal to metal sealing: 250 ºC
- Min. liquid specific weight

  0,75 kg/dm³
- Flow rate capacity

  Up to 2823 kg/h
- Differential pressure

  Delta P: 4,5 , 10, 14, 21 and 32 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request
Dimension:
1”; DN25

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: FA35.3
Air and gas float trap ADCA FA35.3
- Application

  Compressed air,
  non corrosive gases
- Body material

  Carbon steel
- Max. operating pressure

  32 bar
- Min. operating pressure

  0,5 bar
- Max. operating temperature

  Metal to metal sealing: 250 ºC
- Min. liquid specific weight

  0,75 kg/dm³
- Flow rate capacity

  Up to 2990 kg/h
- Differential pressure

  Delta P: 4,5 , 10, 14, 21 and 32 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request
Dimension:
1.1/2” – 2”; DN40 – DN50

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: FA41.1

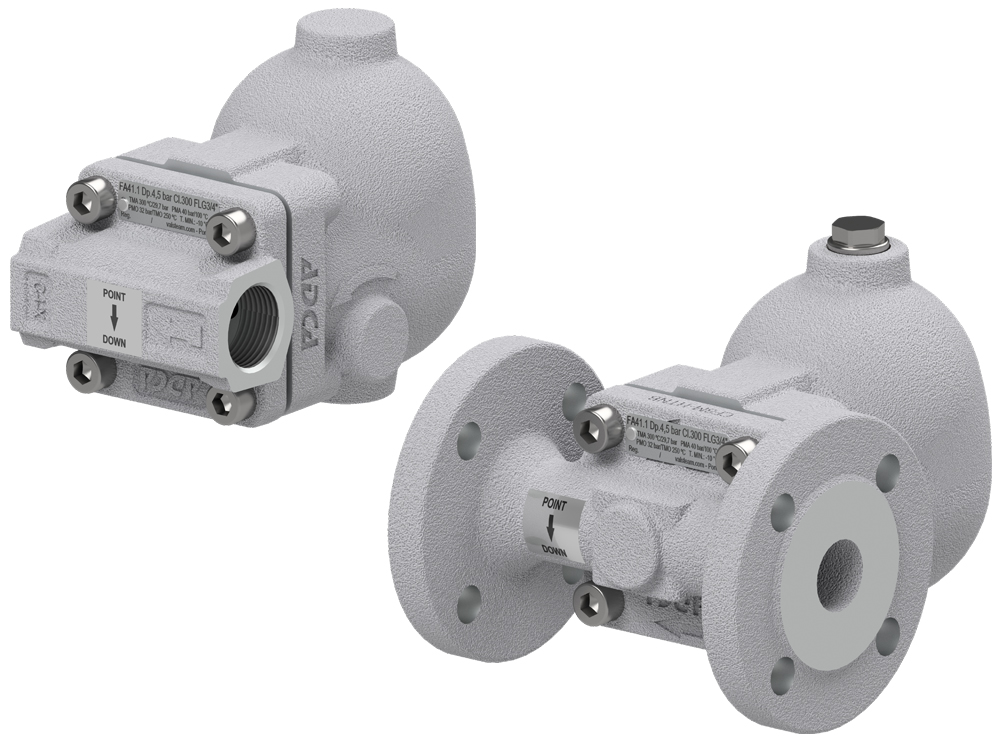

Air and gas float trap ADCA FA41.1
- Application

  Compressed air,
  non corrosive gases
- Body material

  Stainless steel
- Max. operating pressure

  32 bar
- Min. operating pressure

  0,5 bar
- Max. operating temperature

  FPM / Viton valve sealing: 200 ºC,
  Metal to metal sealing: 250 ºC
- Min. liquid specific weight

  0,75 kg/dm³
- Flow rate capacity

  Up to 1366 kg/h
- Flow rate capacity

  Delta P: 4,5 , 10, 14, 21 and 32 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request
Dimension:
1/2” – 1”; DN15 – DN25

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: FA45.1

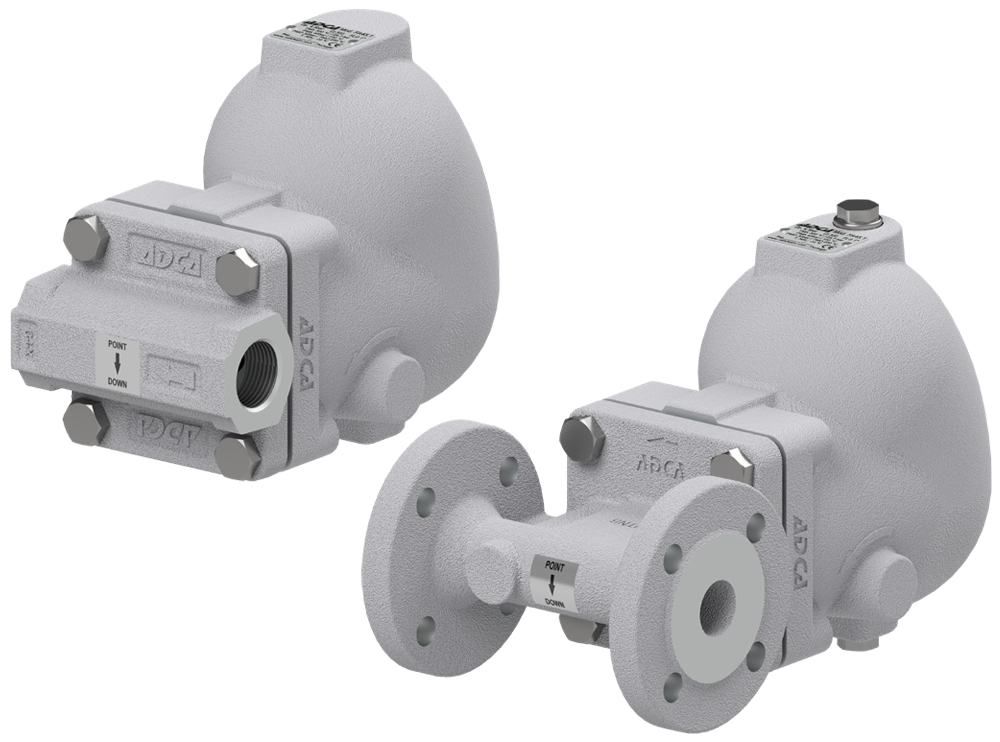

Air and gas float trap ADCA FA45.1
- Application

  Compressed air,
  non corrosive gases
- Body material

  Stainless steel
- Max. operating pressure

  32 bar
- Min. operating pressure

  0,5 bar
- Max. operating temperature

  FPM / Viton valve sealing: 200 ºC,
  Metal to metal sealing: 250 ºC
- Min. liquid specific weight

  0,75 kg/dm³
- Flow rate capacity

  Up to 2823 kg/h
- Differential pressure

  Delta P: 4,5 , 10, 14, 21 and 32 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request
Dimension:
1”; DN25

Price according to configuration

Available on request
More about the product
Valsteam ADCA

Product code: FA45.3

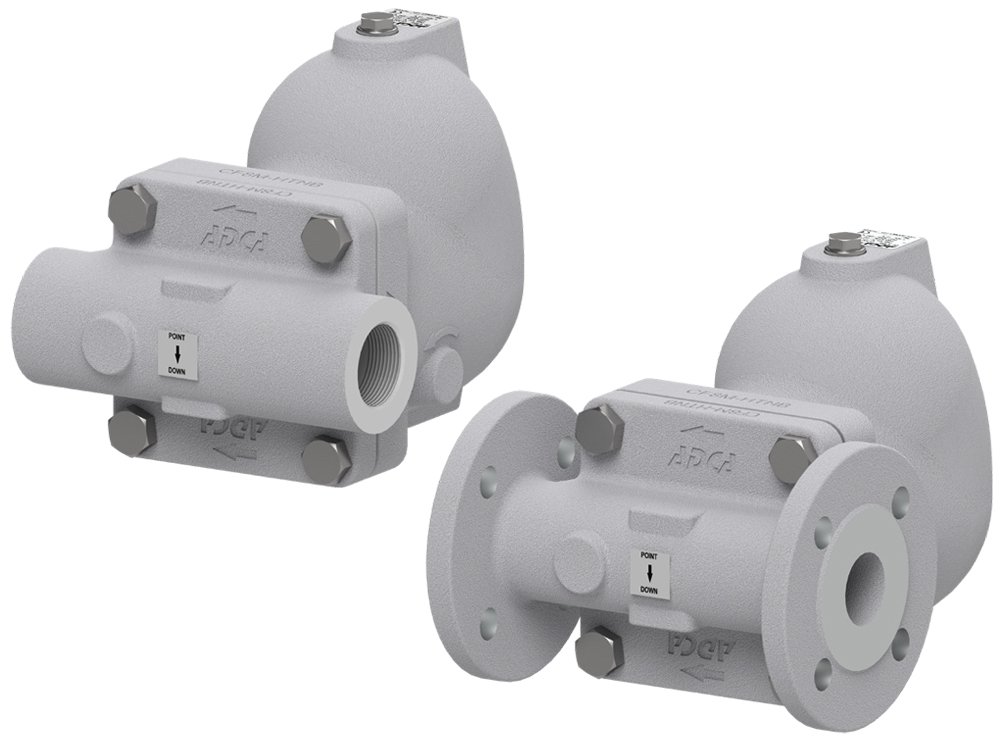

Air and gas float trap ADCA FA45.3
- Application

  Compressed air,
  non corrosive gases
- Body material

  Stainless steel
- Max. operating pressure

  32 bar
- Min. operating pressure

  0,5 bar
- Max. operating temperature

  Metal to metal sealing: 250 ºC
- Min. liquid specific weight

  0,75 kg/dm³
- Flow rate capacity

  Up to 2990 kg/h
- Differential pressure

  Delta P: 4,5 , 10, 14, 21 and 32 bar
- Connections

  Female threaded ISO 7 Rp (NPT on request),
  Flanged EN 1092-1 PN 40,
  Flanged ASME B16.5 Class 150 or 300 on request,
  Socket weld (SW) ASME B16.11 on request
Dimension:
1.1/2” – 2”; DN40 – DN50

Price according to configuration

Available on request
More about the product
