Valsteam ADCA
Specifications
-
Application
Compressed air,
non corrosive gases -
Body material
Stainless steel
-
Max. operating pressure
32 bar
-
Min. operating pressure
0,5 bar
-
Max. operating temperature
Metal to metal sealing: 250 ºC
-
Min. liquid specific weight
0,75 kg/dm³
-
Flow rate capacity
Up to 2990 kg/h
-
Differential pressure
Delta P: 4,5 , 10, 14, 21 and 32 bar
-
Connections
Female threaded ISO 7 Rp (NPT on request),
Flanged EN 1092-1 PN 40,
Flanged ASME B16.5 Class 150 or 300 on request,
Socket weld (SW) ASME B16.11 on request

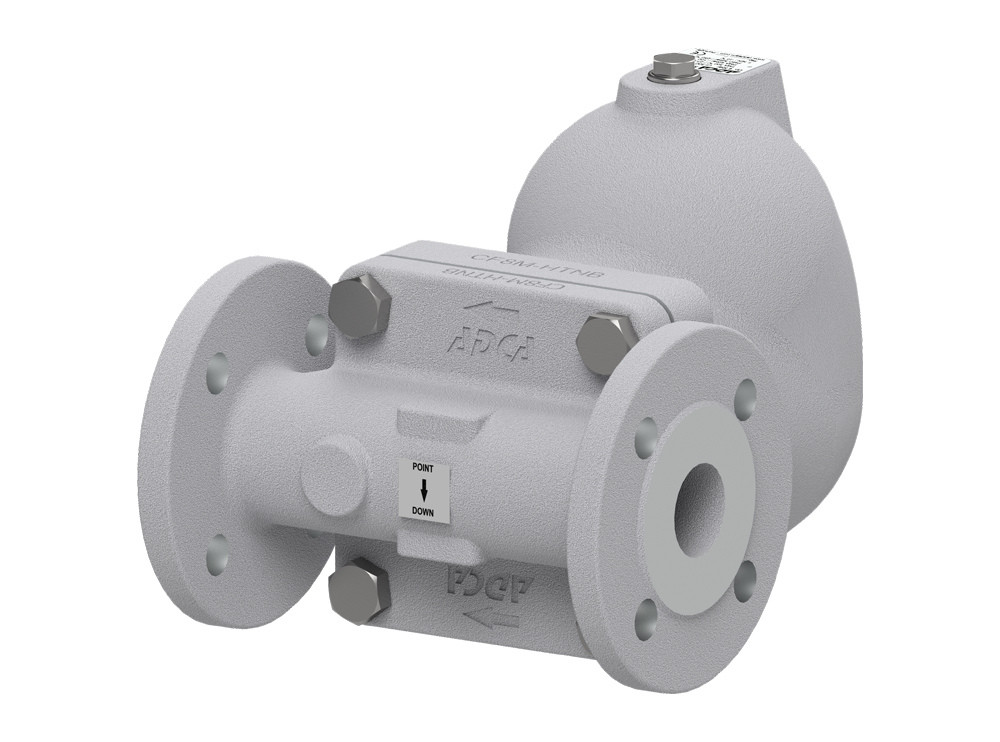

Air and gas float trap ADCA FA45.3
Product code: FA45.3
Available on request
Price according to configuration
Choose your configuration
- Threaded
- Flanged
- 1.1/2"
- 2"
- 40
- 50
- 4.5 bar
- 10 bar
- 14 bar
- 21 bar
- 32 bar
- Metal / Metal
See all configuration
